Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the washer solvent container into the vehicle.
Install the lower bolts.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Tighten

Tighten the bolts to 9 N.m (80 lb in).

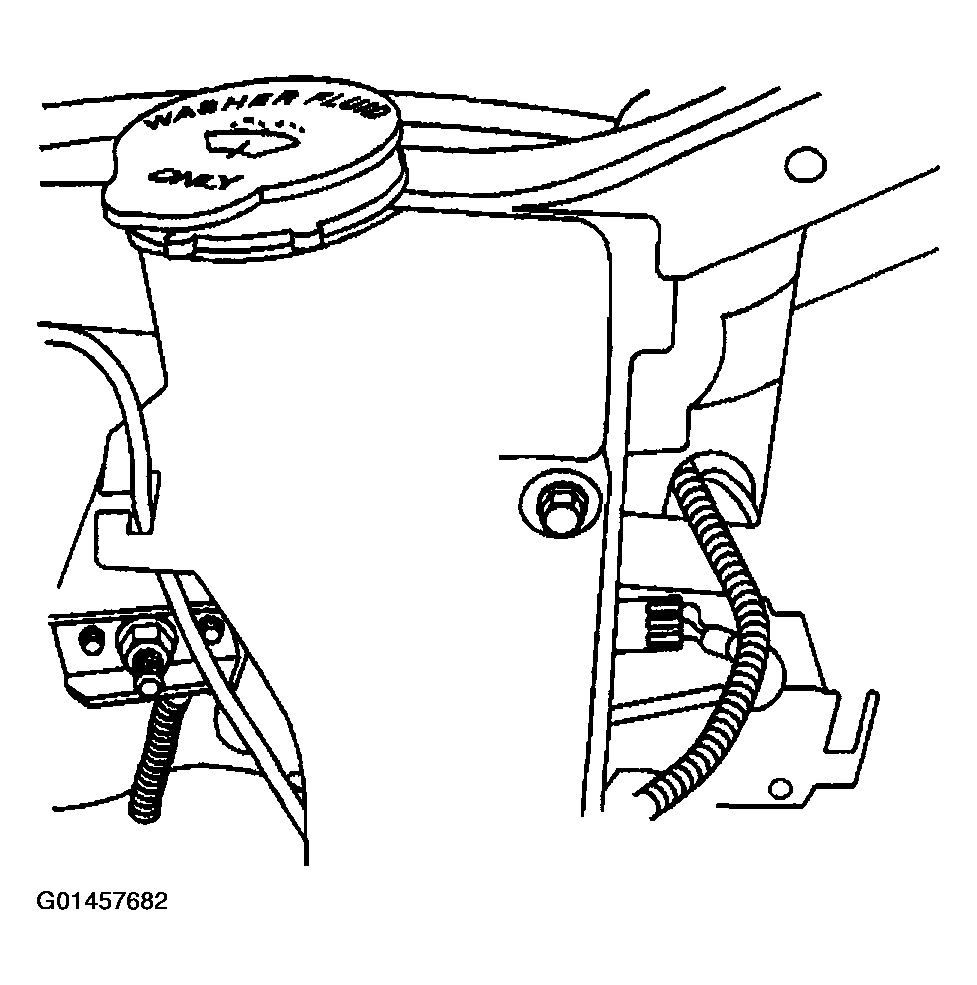

Fig 1: Installing Washer Pump/Reservoir (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Install the upper bolt.
Tighten

Tighten the bolt to 9 N.m (80 lb in).

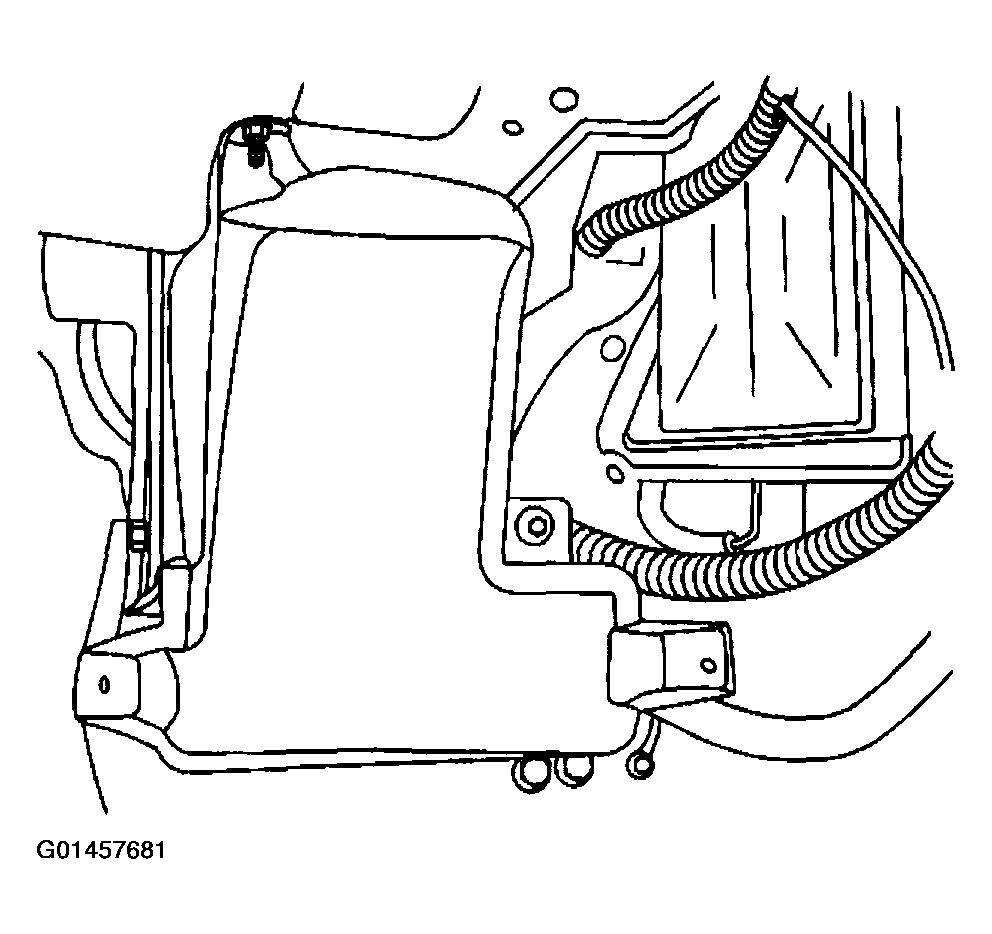

Fig 2: Installing Washer Pump/Reservoir (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the washer pump.
Connect the electrical connector to the washer solvent level sensor.
Connect the washer hose to the washer pump.
Install the inner wheel housing. Refer to WHEELHOUSE PANEL REPLACEMENT in Body Front End.
Install the battery and battery tray. Refer to BATTERY TRAY REPLACEMENT in Engine Electrical.
