Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the connector position assurance (CPA) retainer.
  3. Disconnect the oxygen sensor electrical connector (1).

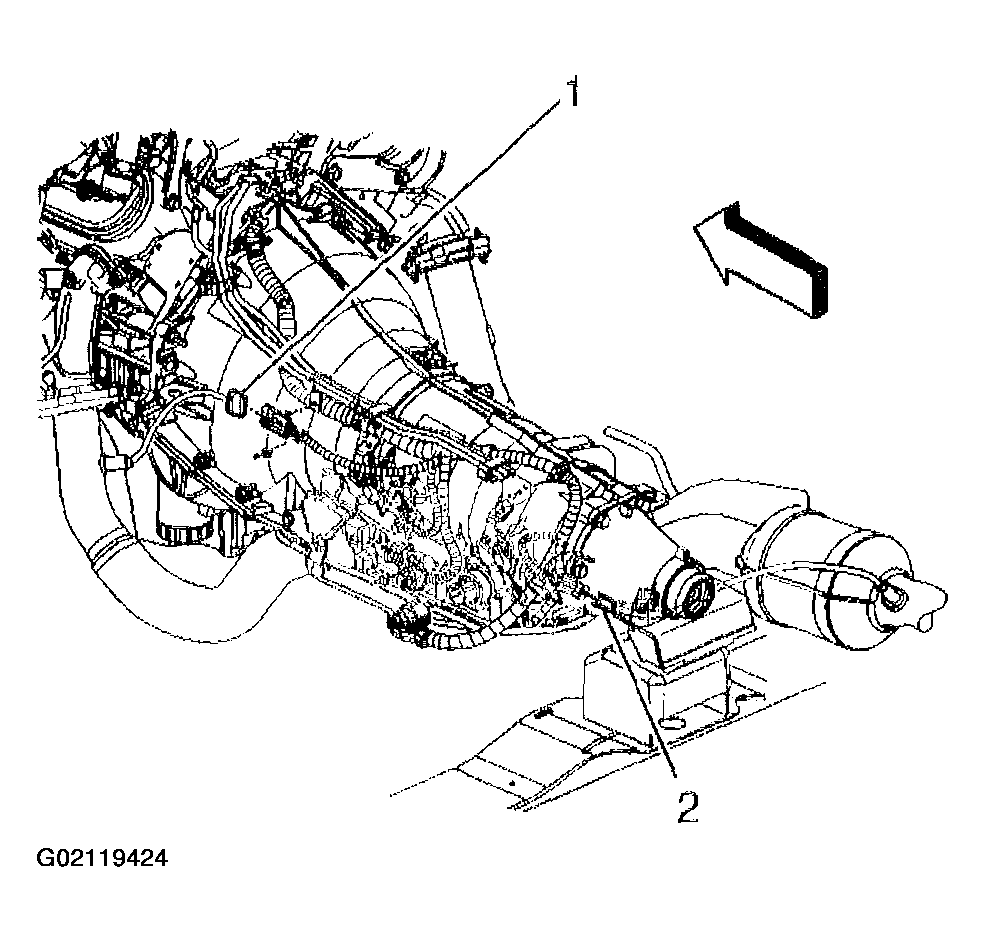

    4. Fig 1: Removing Oxygen Sensor Electrical Connector
    G02119424Courtesy of GENERAL MOTORS CORP.
  4. Support the catalytic converter or exhaust manifold pipe with adjustable jackstands.
  5. Remove the right exhaust manifold pipe nuts.

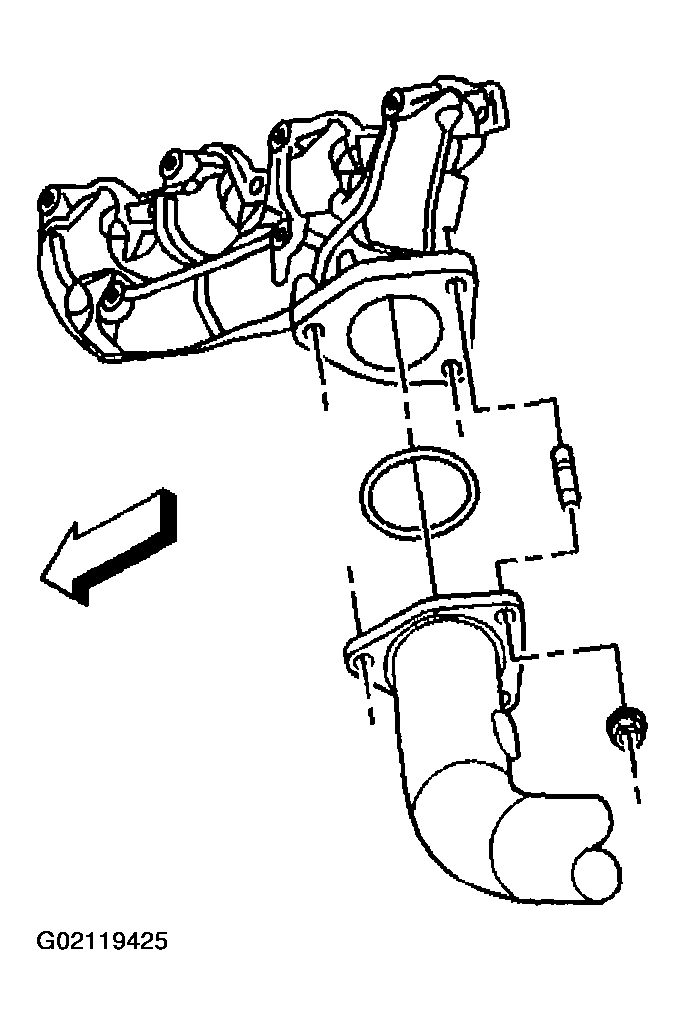

    6. Fig 2: Removing Right Exhaust Manifold Pipe Nuts
    G02119425Courtesy of GENERAL MOTORS CORP.
  6. Remove the left exhaust manifold pipe nuts.
    7. Fig 3: Removing Left Exhaust Manifold Pipe Nuts
    G02119426Courtesy of GENERAL MOTORS CORP.
  7. Remove the exhaust hanger mounting bracket bolts.
  8. Lower the catalytic converter or exhaust manifold pipe using the adjustable jackstands.
  9. Remove the exhaust manifold pipe seal(s).
