Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust muffler. Refer to MUFFLER REPLACEMENT (4.8L AND 5.3L ENGINES)  or MUFFLER REPLACEMENT (6.0L AND 8.1L ENGINES)  .
  2. Remove the exhaust heat shield bolts.
  3. Remove the exhaust heat shield.

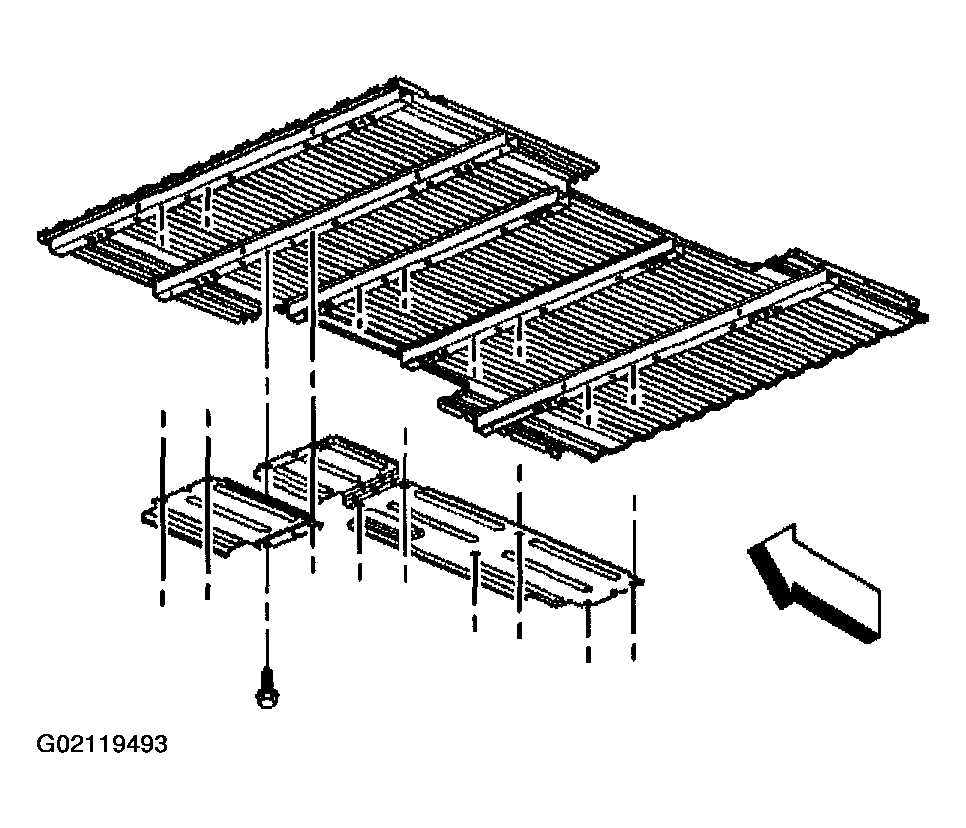

    4. Fig 1: Removing Exhaust Heat Shield
    G02119493Courtesy of GENERAL MOTORS CORP.
