Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the engine shield bolts and shield, if necessary.

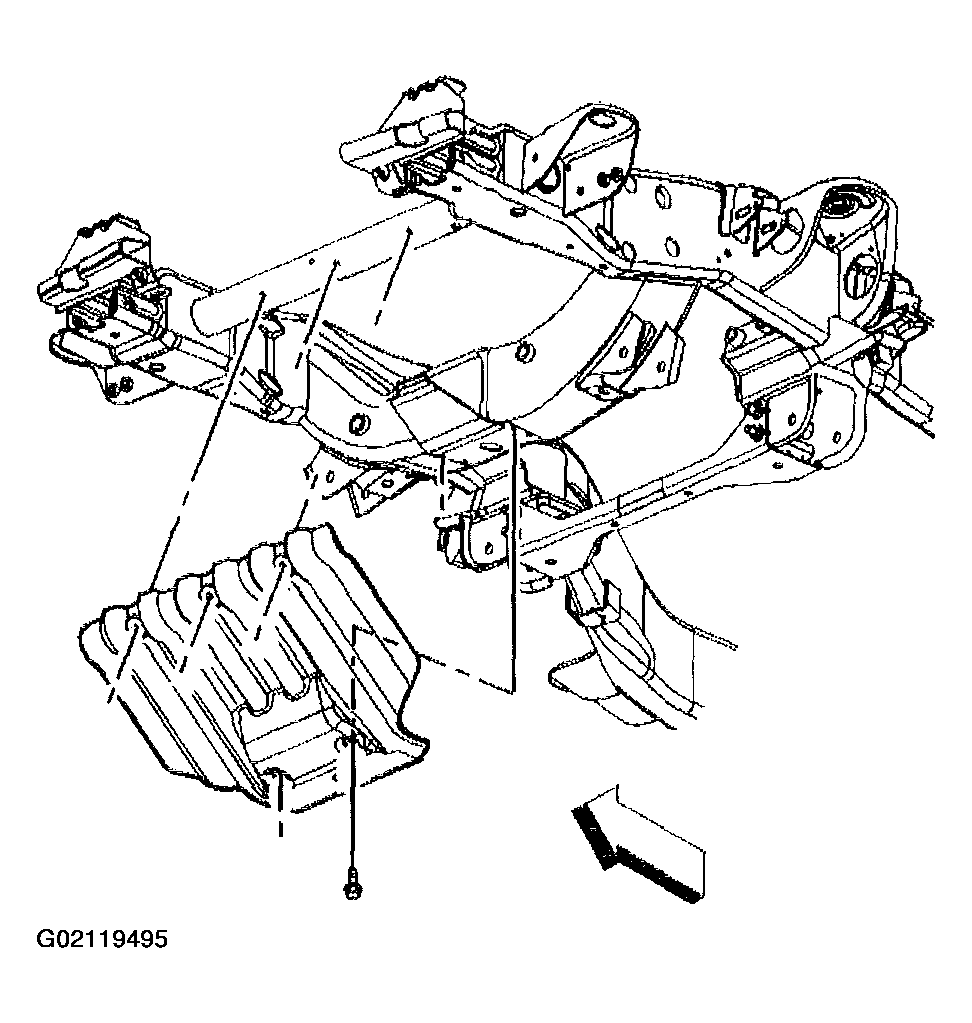

    3. Fig 1: Removing Engine Shield Bolts
    G02119495Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust heat shield nuts.
  4. Remove the exhaust heat shield (1, 3) from the dash panel studs.

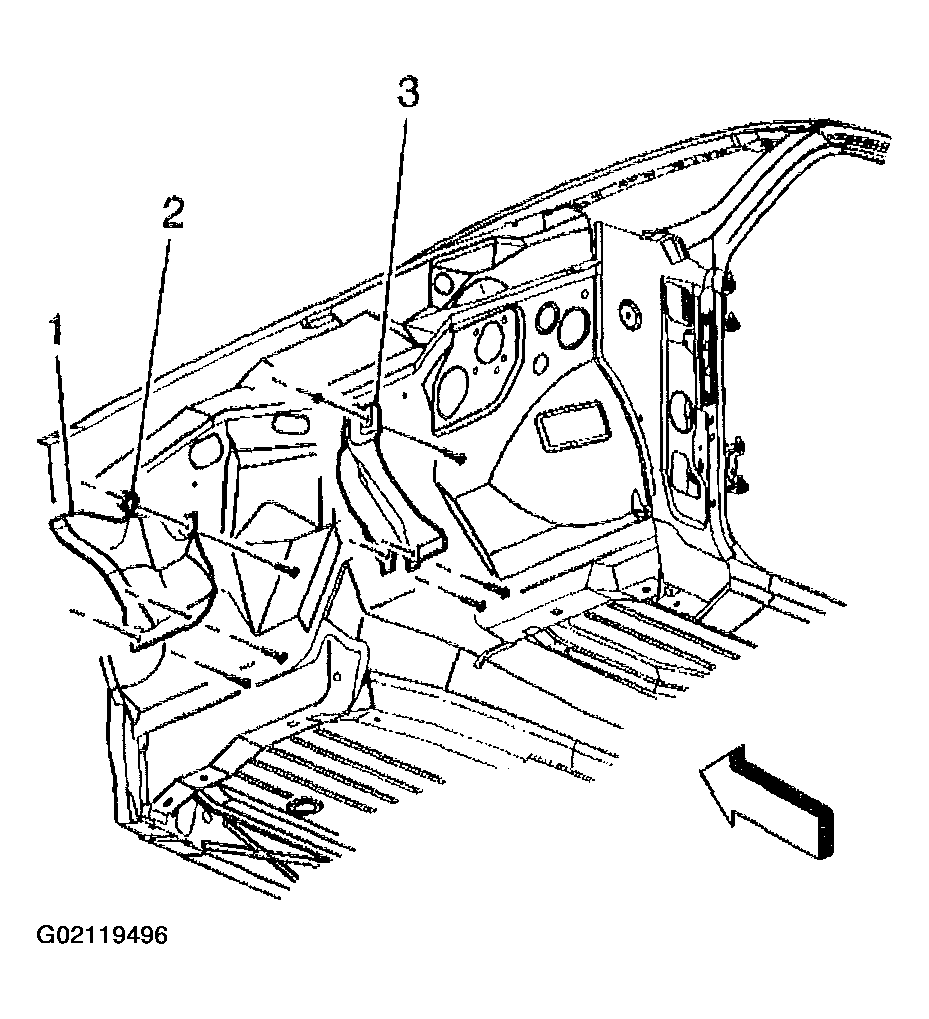

    5. Fig 2: Removing Exhaust Heat Shield
    G02119496Courtesy of GENERAL MOTORS CORP.
