ABS Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

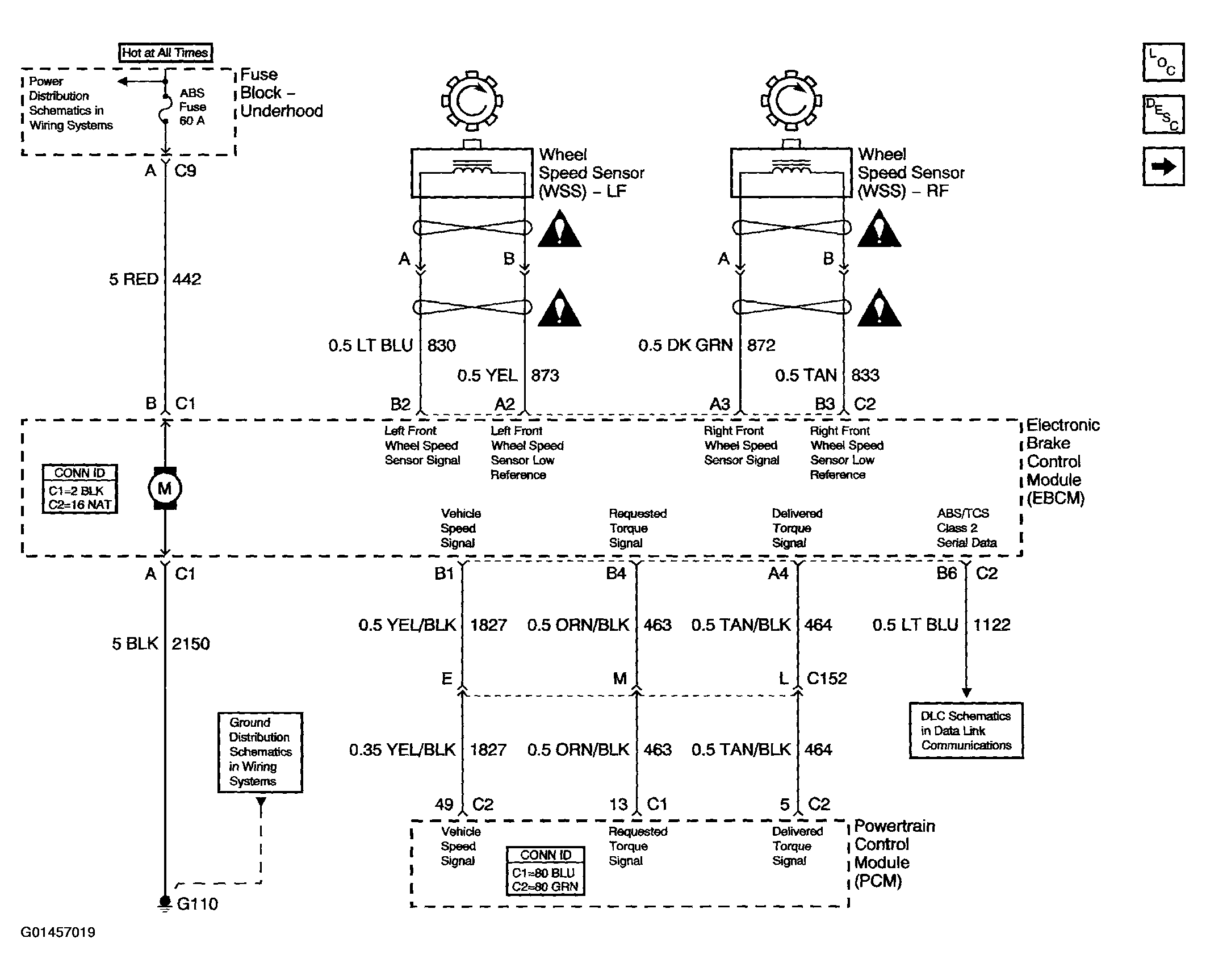

Fig 1: Power, Ground, Class 2, And Wheel Speed Sensors Schematic

G01457019

Courtesy of GENERAL MOTORS CORP.

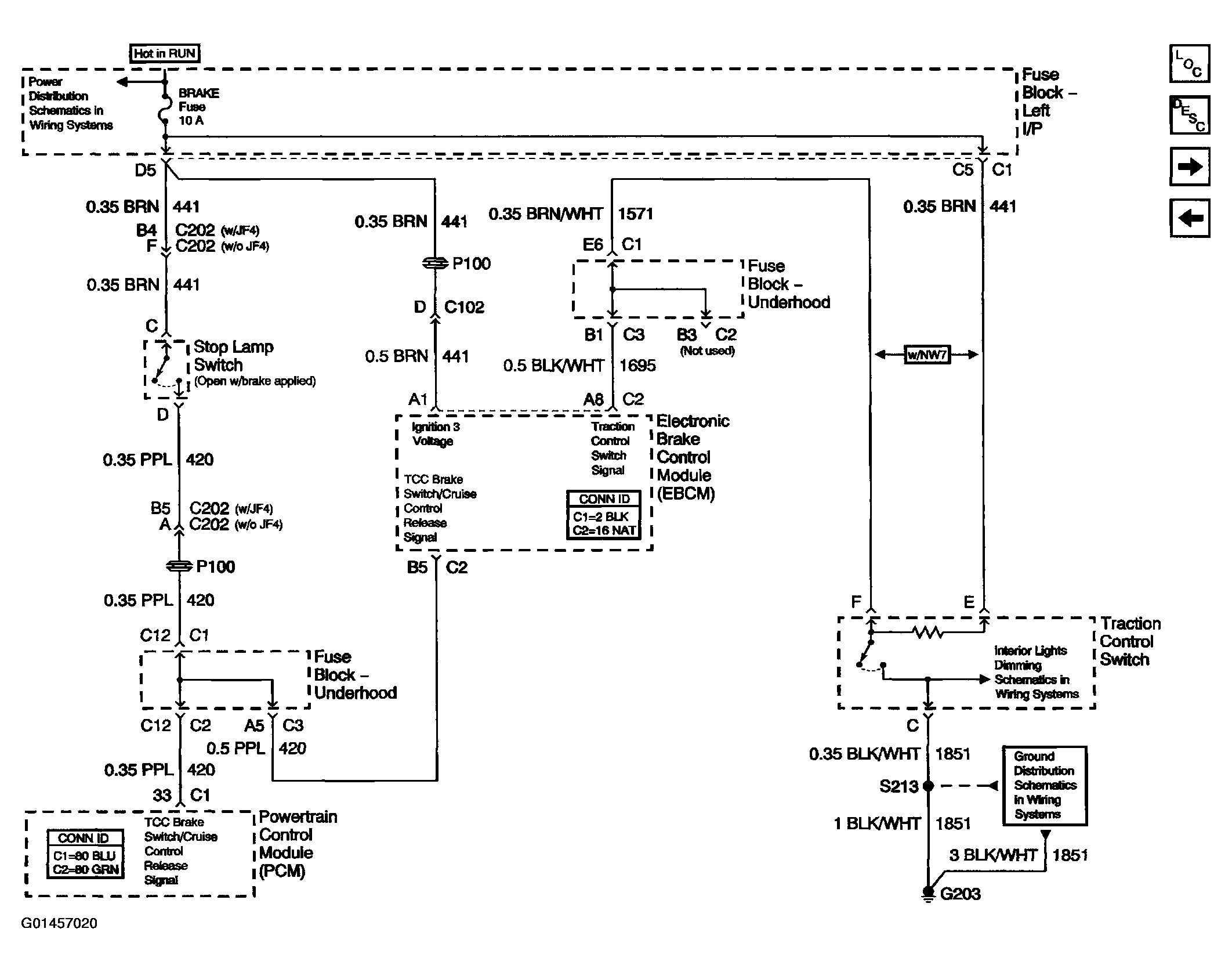

Fig 2: Stop Lamp Switch and Traction Control Switch Schematic

G01457020

Courtesy of GENERAL MOTORS CORP.

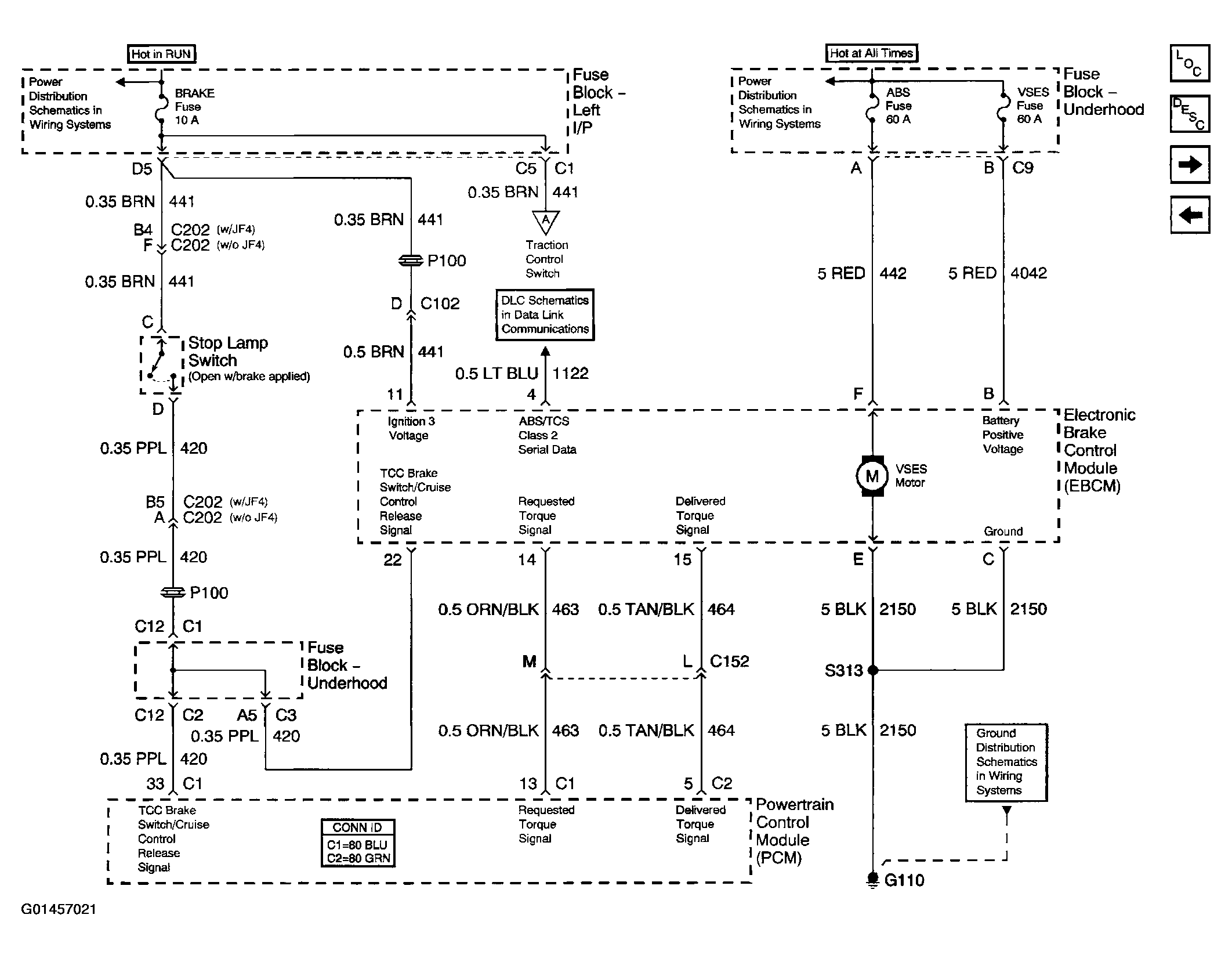

Fig 3: Power, Ground, Class And Stop Lamp Switch - w/VSES Schematic

G01457021

Courtesy of GENERAL MOTORS CORP.

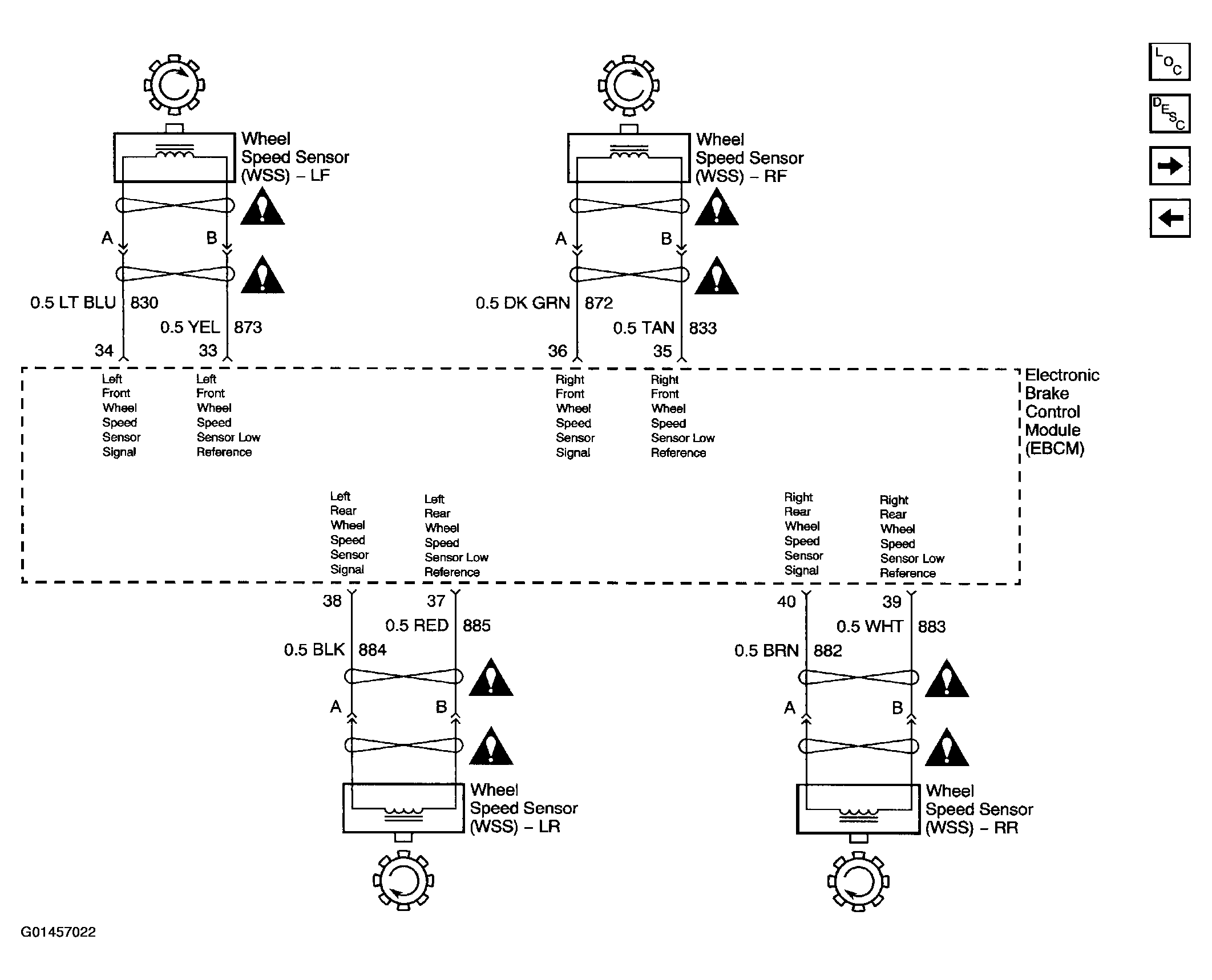

Fig 4: Wheel Speed Sendors - w/VSES Schematic

G01457022

Courtesy of GENERAL MOTORS CORP.

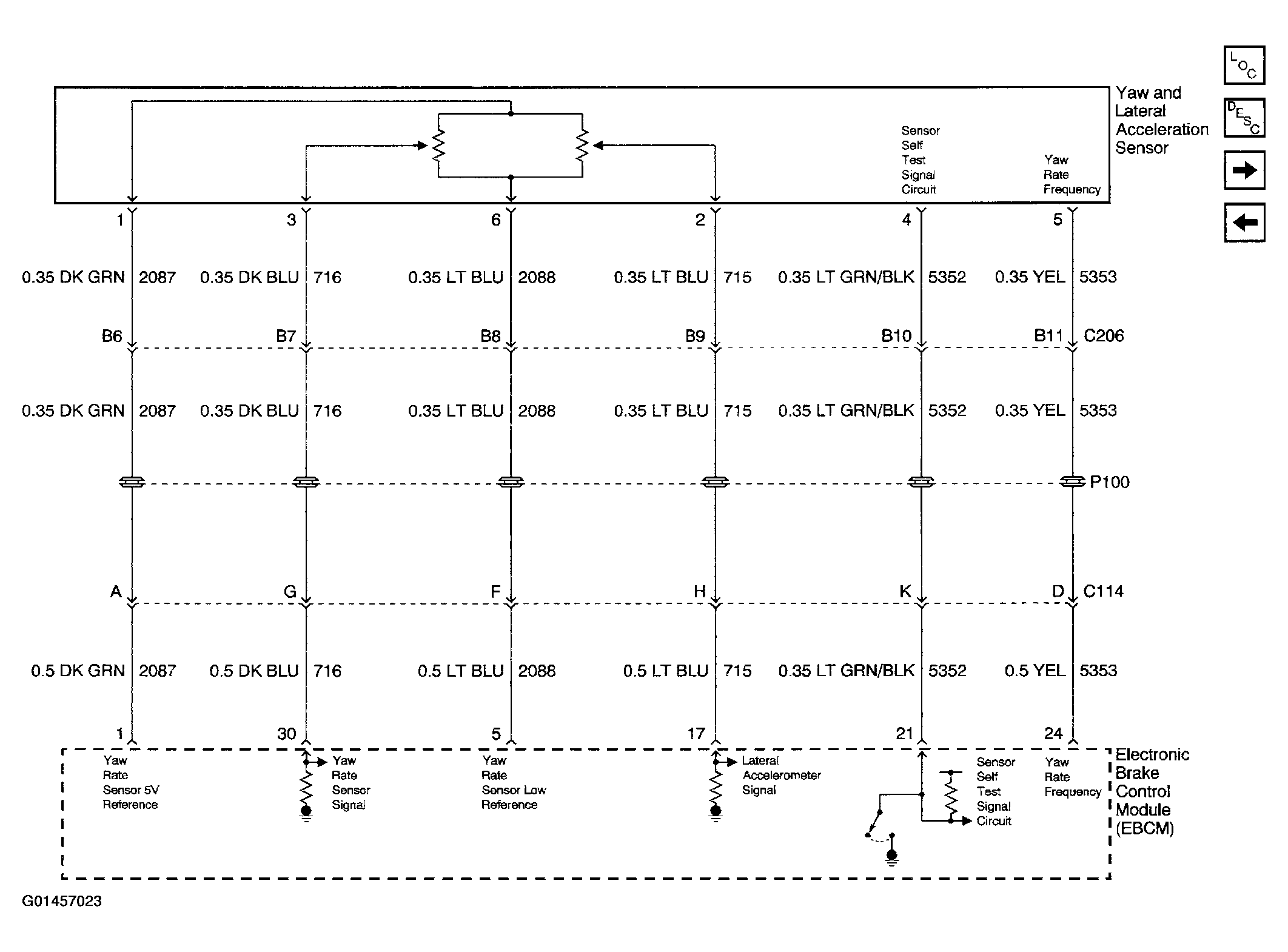

Fig 5: YAW And Lareral Acceleration Sensor Inputs Schematic

G01457023

Courtesy of GENERAL MOTORS CORP.

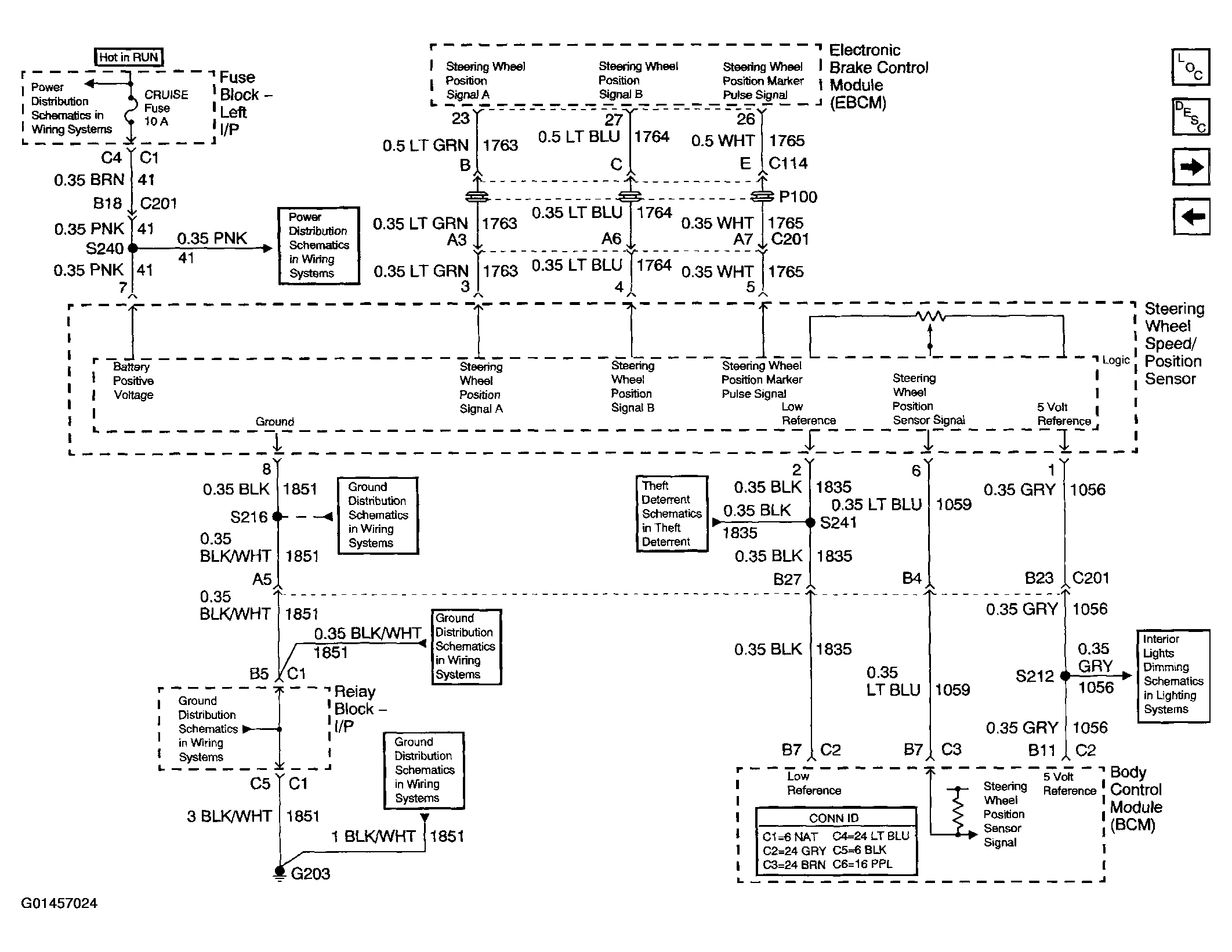

Fig 6: Steering Wheel Speed Position Inputs Schematic

G01457024

Courtesy of GENERAL MOTORS CORP.

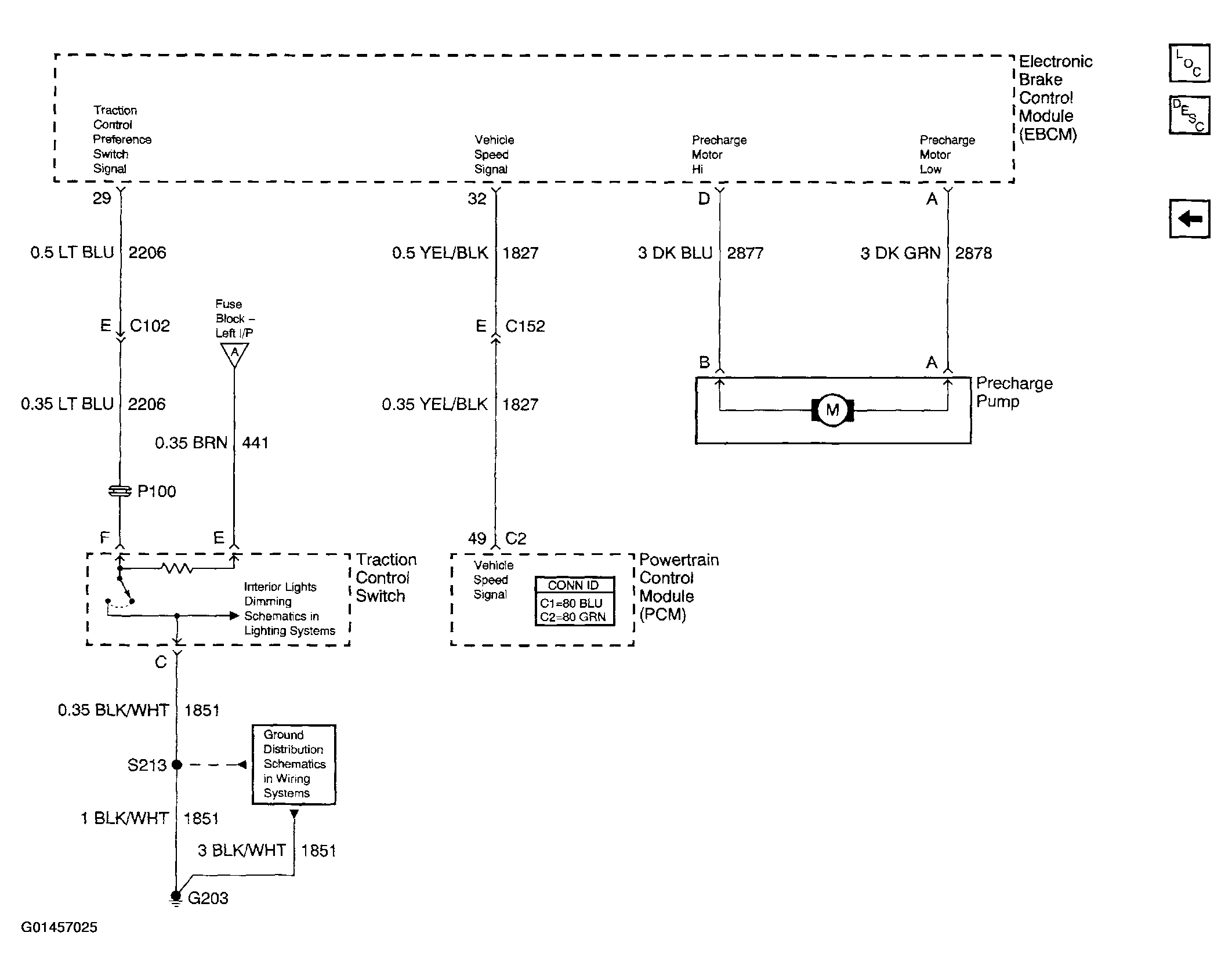

Fig 7: Transaction Control Switch And Precharge Motor Assembly - w/VSES Schematic

G01457025

Courtesy of GENERAL MOTORS CORP.
