Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the rear wheel speed sensor. Refer to WHEEL SPEED SENSOR REPLACEMENT - REAR  .
  4. Remove the rear axle housing cover. Refer to REAR AXLE HOUSING COVER AND GASKET REPLACEMENT in Rear Drive Axle.
  5. Remove the axle shaft. Refer to REAR AXLE SHAFT REPLACEMENT (8.6 INCH AXLE W/O JL4, 9.5 INCH AXLE) or REAR AXLE SHAFT REPLACEMENT (8.6 INCH AXLE W/JL4) or REAR AXLE SHAFT REPLACEMENT (9.75 INCH AXLE) in Rear Drive Axle.

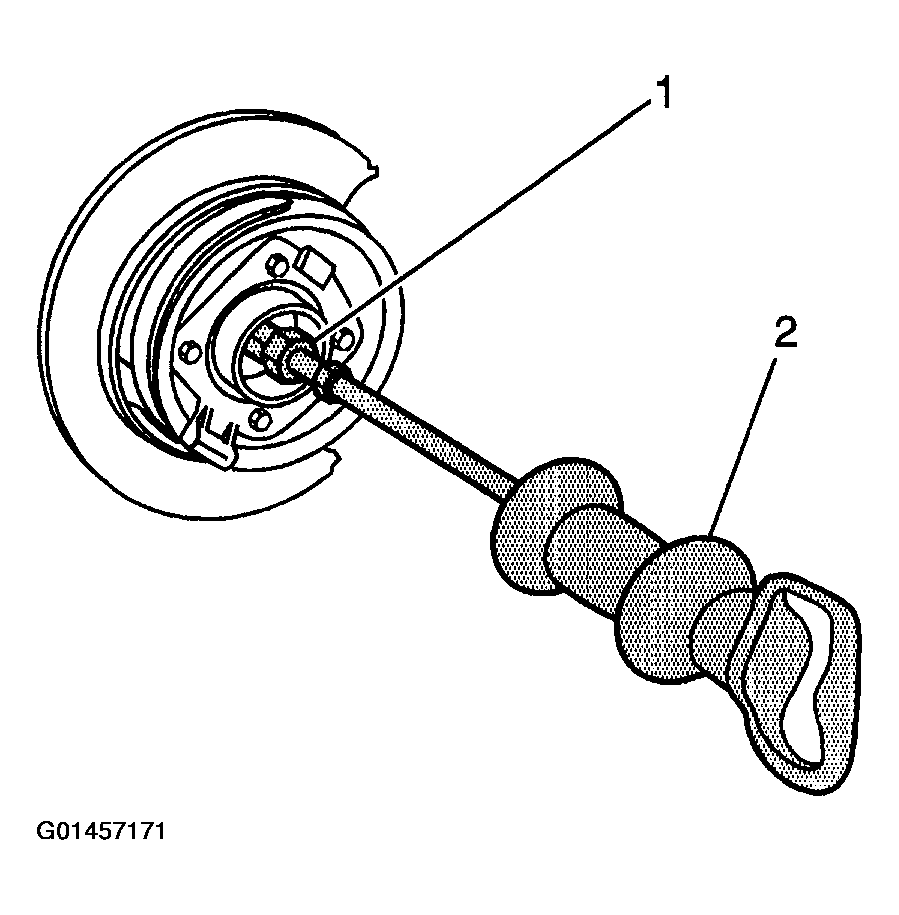

  6. Remove the axle shaft seal and the bearing from the axle housing using the J 44685  (1) and the J 2619-01  (2).
    7. Fig 1: Removing Axle Shaft Seal And Bearing From Axle Housing
    G01457171Courtesy of GENERAL MOTORS CORP.
  7. Remove the wheel speed sensor ring from the axle housing using the J 45857  (1) and the J 2619-01  (2).
    8. Fig 2: Removing Wheel Speed Sensor Ring From Axle Housing
    G01457172Courtesy of GENERAL MOTORS CORP.
