Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the harness connector to the traction control switch.
  2. Install the traction control switch (2) into the instrument panel (IP) assembly (3), making sure that all of the switch retaining tabs (1) are engaged.

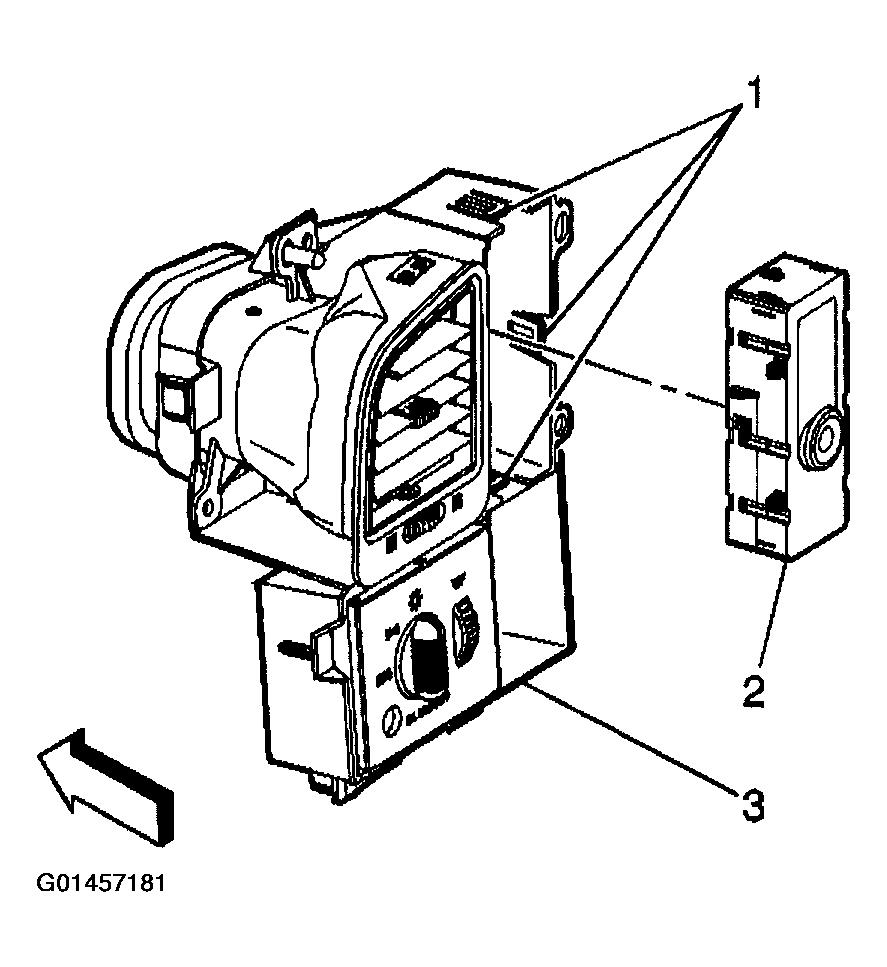

    3. Fig 1: Installing Traction Control Switch Into Instrument Panel (IP) Assembly
    G01457181Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
