Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the harness connector to the stabilitrak switch.
    2. Fig 1: Connecting Harness Connector To Stabilitrak Switch
    G01457178Courtesy of GENERAL MOTORS CORP.
  2. Install the stabilitrak switch (3) into the I/P assembly (1)

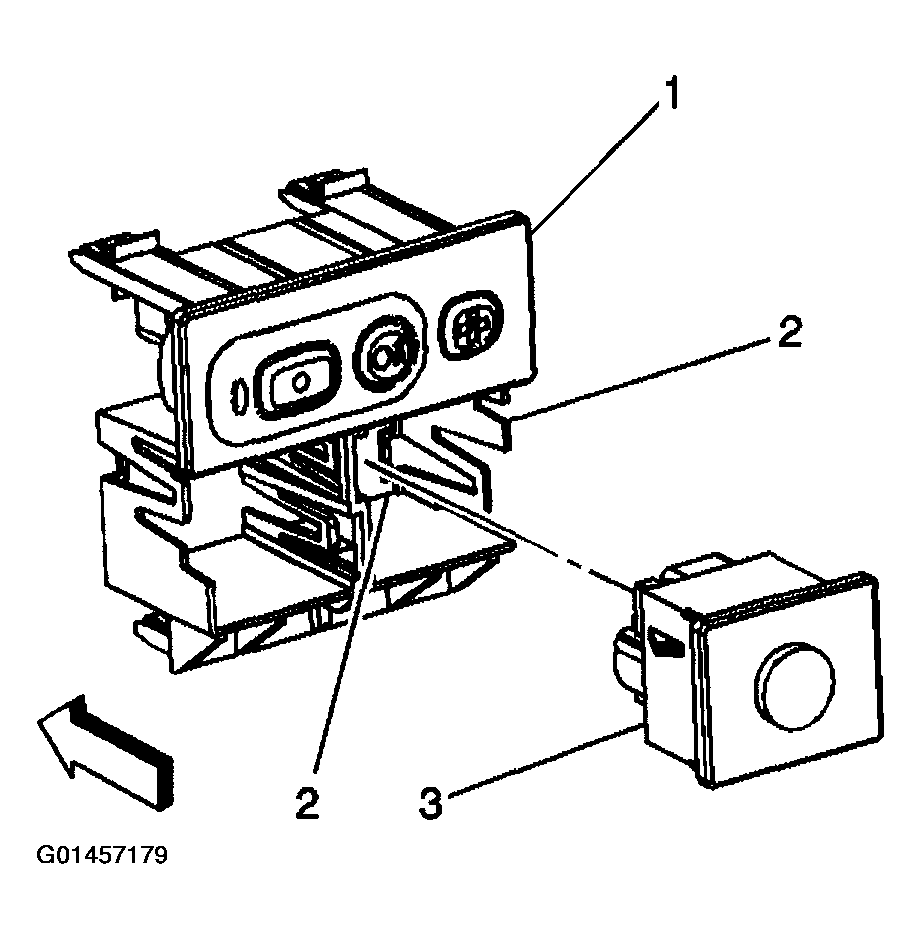

    3. Fig 2: Installing Stabilitrak Switch Into I/P Assembly
    G01457179Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the switch is secure into both retaining tabs (2).
  4. Install the I/P bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages and Console.
