Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

  1. Install the EBCM (2) onto BPMV (1).

    Important:  Do not reuse the old mounting bolts. Always install new EBCM bolts with the new BPMV.

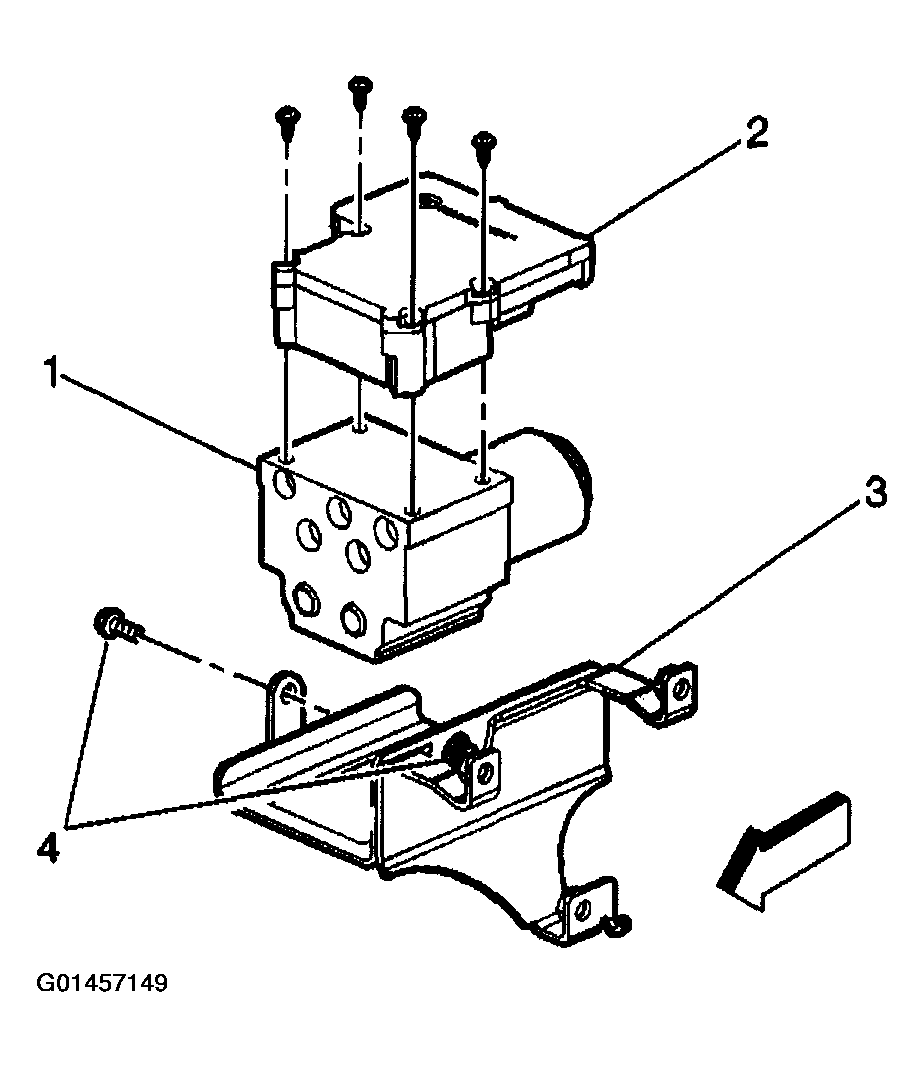

    2. Fig 1: Installing Bolts Securing BPMV To EHCU Mounting Bracket (w/o JL4)
    G01457149Courtesy of GENERAL MOTORS CORP.
  2. Install the four EBCM bolts.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the 4 bolts to 5 N.m (39 lb in) in an X-pattern.

  3. Connect the 2 way ABS pump motor connector to the EBCM.
  4. Install the BPMV (1) to EHCU bracket (3).
  5. Install the BPMV (1) to bracket retaining bolts (4).

    Tighten

    Tighten the bolts to 9 N.m (7 lb ft).

  6. Install the EHCU to the vehicle frame (5).

    Tighten

    Tighten the three EHCU bracket bolts (4) to 25 N.m (18 lb ft).

  7. Connect the 2 electrical harness connectors to the EBCM (1).

    Important:  The brake pipes are held in place by a plastic bracket mounted to the frame. Make sure that the brake pipes stay in the correct place for proper reassembly.

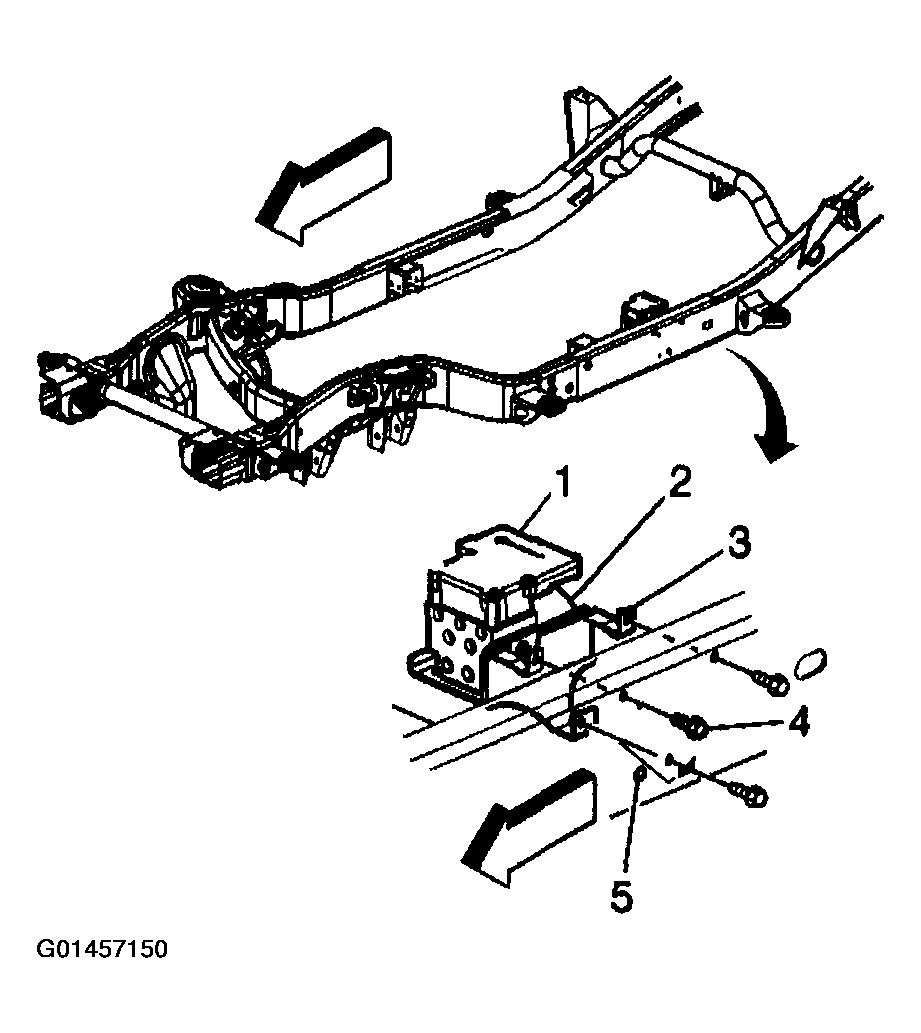

    8. Fig 2: Connecting Electrical Harness Connectors To Electronic Brake Control Module (EBCM) (w/o JL4)
    G01457150Courtesy of GENERAL MOTORS CORP.
  8. Install the 5 brake pipes to the BPMV (6).

    Tighten

    Tighten the brake pipe fittings to 30 N.m (22 lb ft).

  9. Bleed the brake system. Refer to BLEEDING BRAKE SYSTEM .
  10. Bleed the brake system. Refer to ABS AUTOMATED BLEED PROCEDURE (W/O JL4)  or ABS AUTOMATED BLEED PROCEDURE (W/JL4)  .
