Removal Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Brake fluid may irritate eyes and skin. In case of eye contact rinse thoroughly with water, skin contact wash with soap and water, or if ingested consult a physician immediately.
NOTE:
Avoid spilling brake fluid onto painted surfaces, electrical connections, wiring, or cables. Brake fluid will damage painted surfaces and cause corrosion to electrical components. If any brake fluid comes in contact with painted surfaces, immediately flush the area with water. If any brake fluid comes in contact with electrical connections, wiring, or cables, use a clean shop cloth to wipe away the fluid.
Important: The area around the electric hydraulic control unit (EHCU) MUST be free from loose dirt to prevent contamination of disassembled ABS components.
- Thoroughly wash all contaminants from around the EHCU.

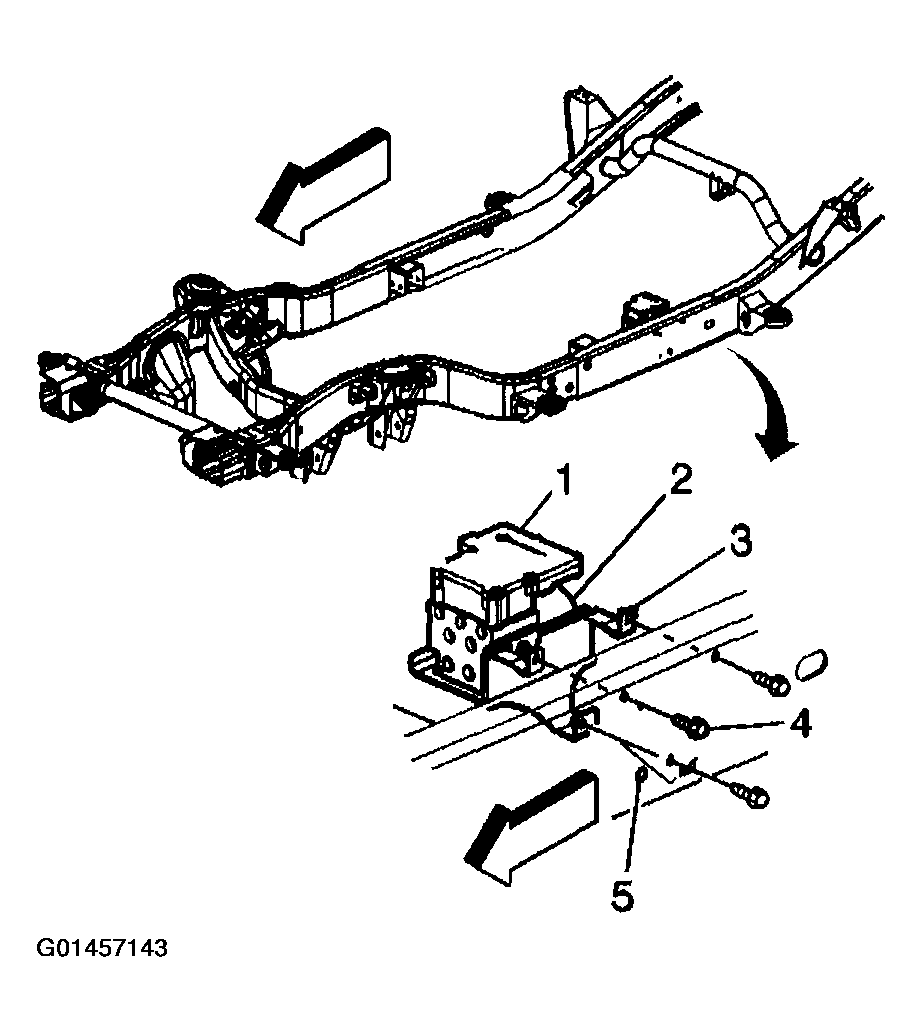

- Disconnect the electrical connector from the electronic brake control module (EBCM) (1).
Important: Make sure that brake lines are tagged and kept in order for proper reassembly.
- Disconnect the brake lines from the brake pressure modulator valve (BPMV) (2).
- Remove the bolts (4) securing the EHCU mounting bracket (3) to the frame rail (5).
- Remove the EHCU from the vehicle.

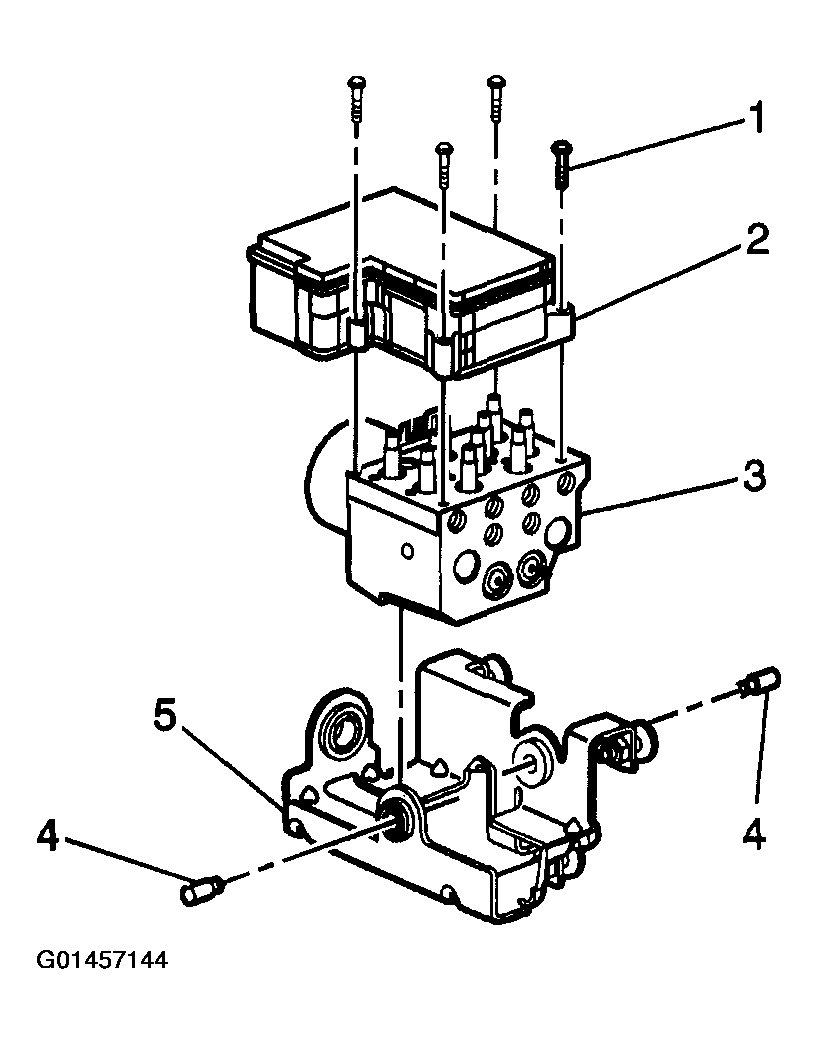

- Remove the bolts (4) securing the BPMV (3) to the EHCU mounting bracket (5).
- Remove the bolts (1) from the EBCM (2).
- Remove the EBCM (2) from the BPMV (3). Removal may require a light amount of force.
Important: Do not use a tool to pry the EBCM or the BPMV. Excessive force will damage the EBCM.
Important: Do not reuse the EBCM mounting bolts. Always install new bolts.
- Clean the EBCM to BPMV mounting surfaces with a clean cloth.
