Test Description
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

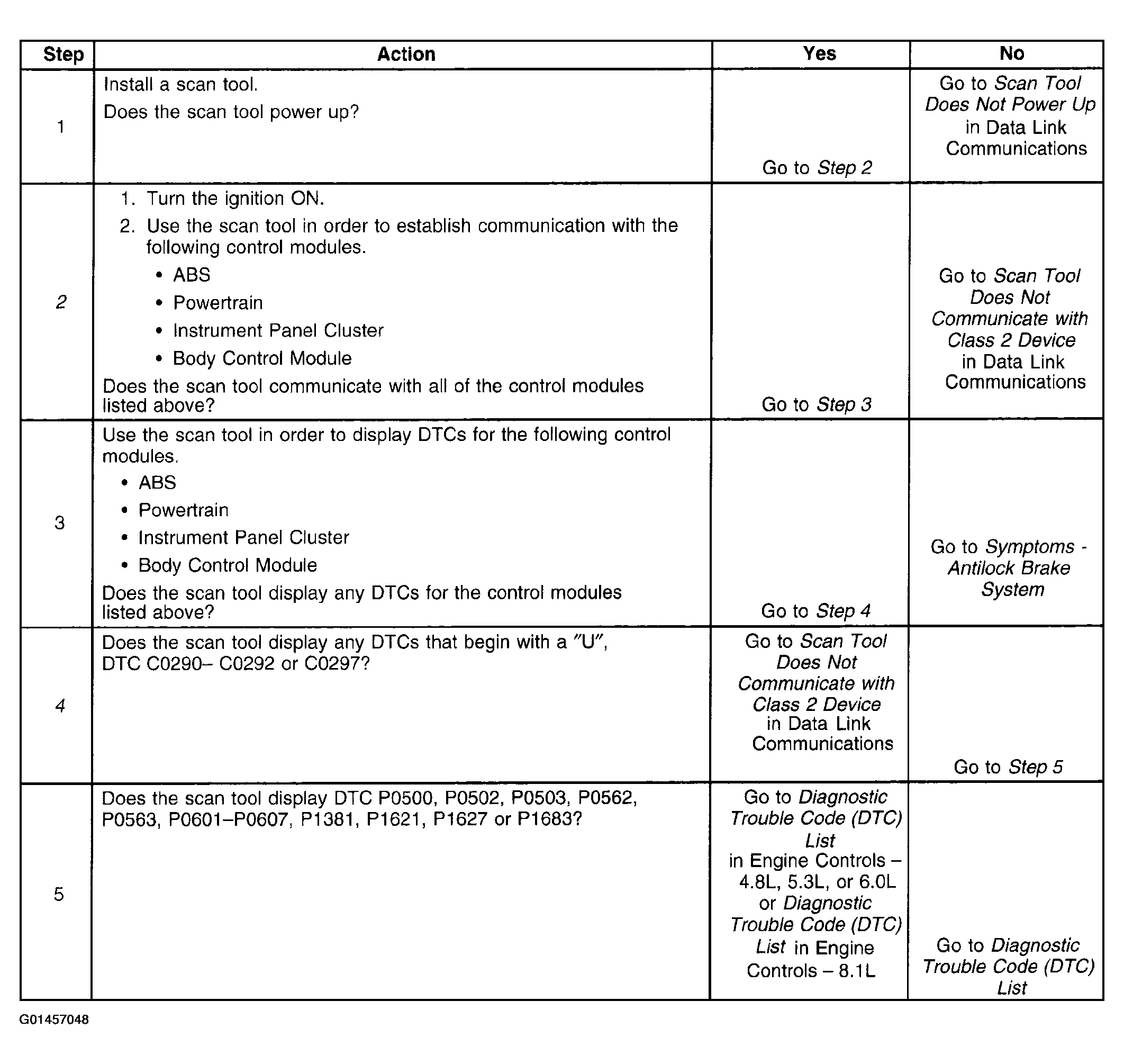

The numbers below refer to the step numbers in the diagnostic table.
- 2. Lack of communication may be due to partial or total malfunction of the serial data circuit. The specified procedure will determine the particular condition.
- 4. The presence of DTCs that begin with a "U" indicates that some other module is not communicating. The specified procedure will compile all of the available information before tests are performed.
