Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

3. This step test the circuitry in the high voltage range.
4. This step test the circuitry in the low voltage range.
5. This step tests the low reference circuit of the steering wheel position sensor.

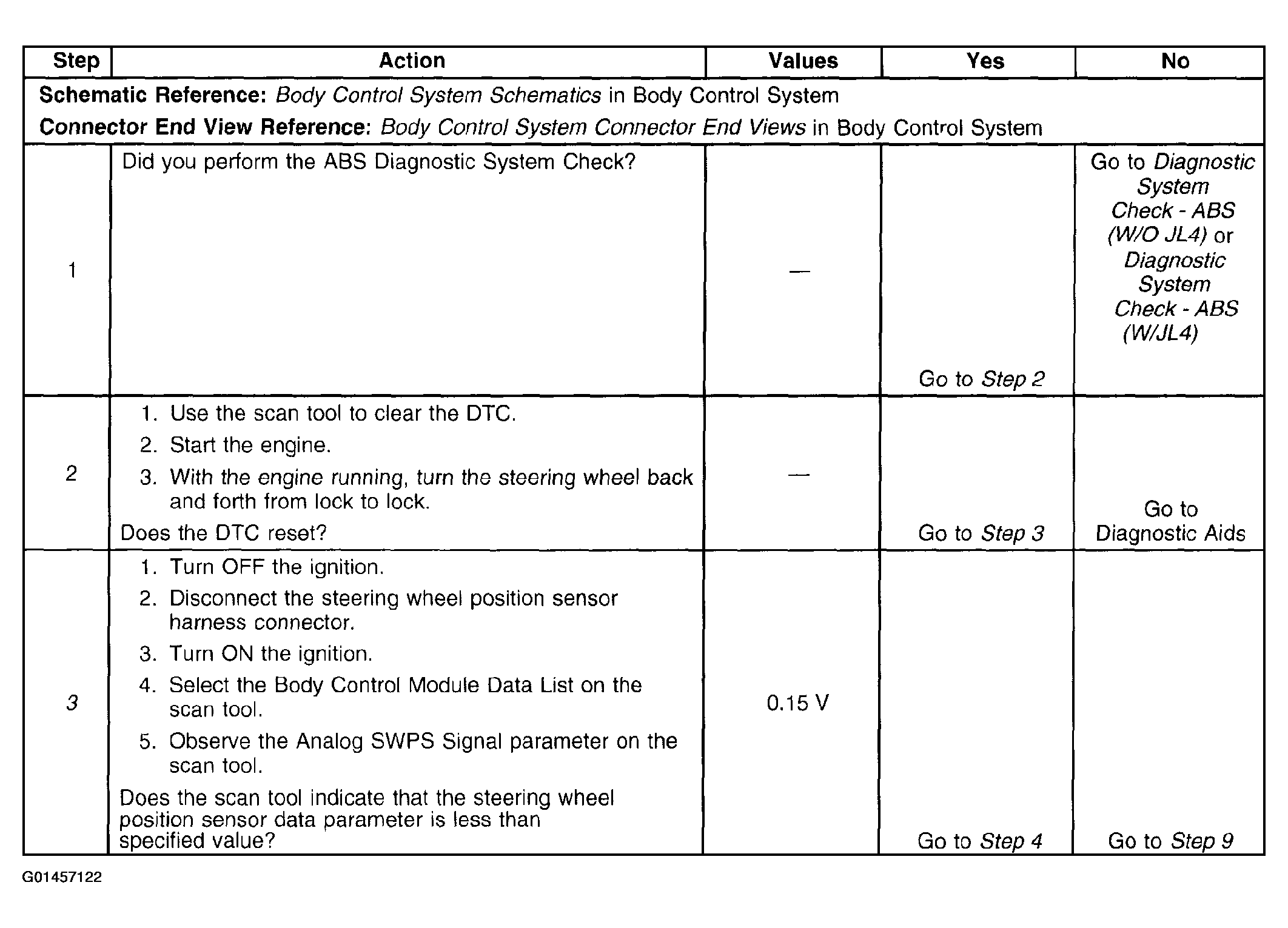

Fig 1: DTC C0472 Or C0473 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

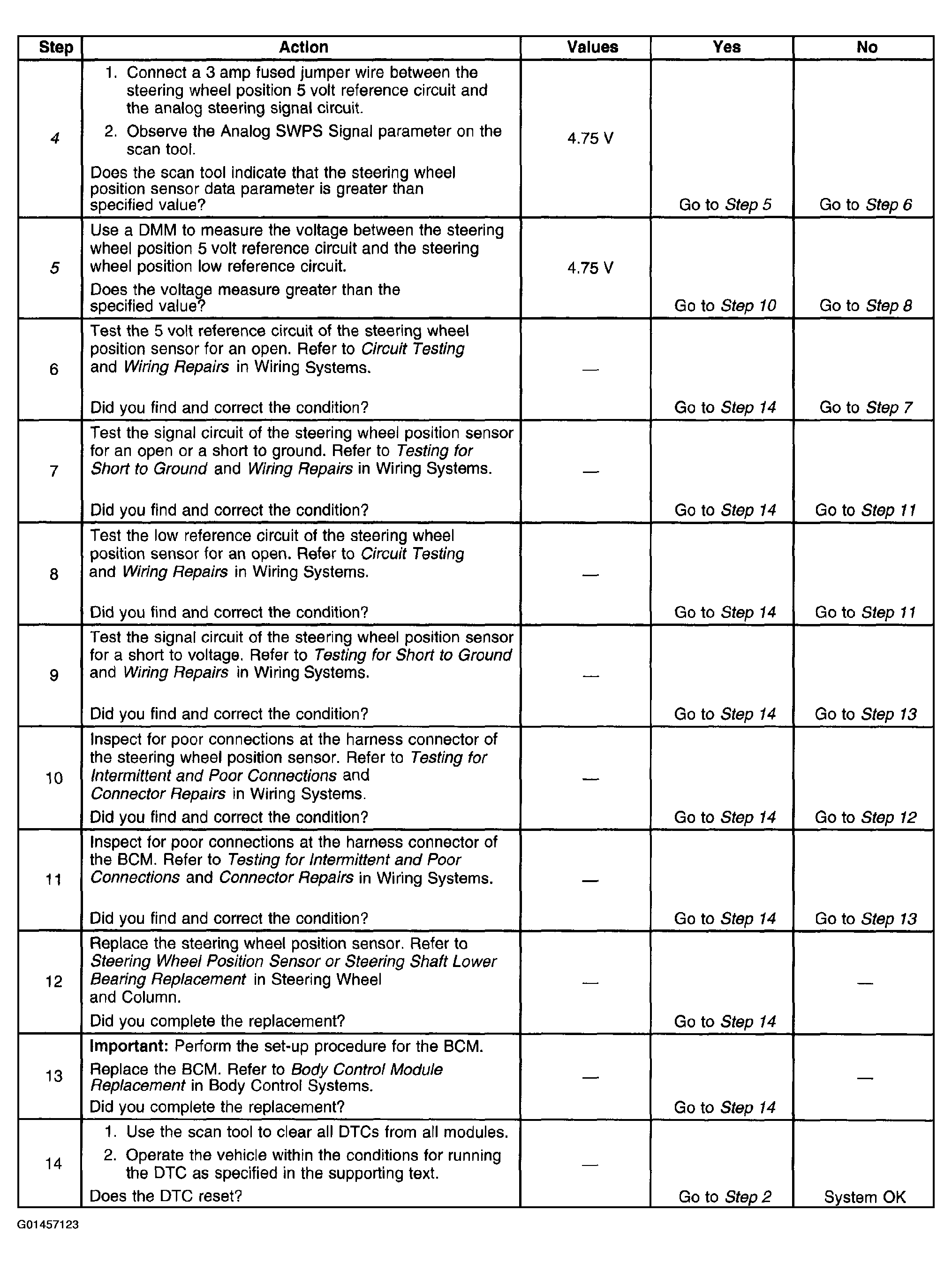

Fig 2: DTC C0472 Or C0473 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
