Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2.  If the DTC sets without turning the steering wheel or driving the vehicle, a malfunction exists in the analog steering wheel position signal to the BCM, and the BCM has set DTC C0472 or C0473.

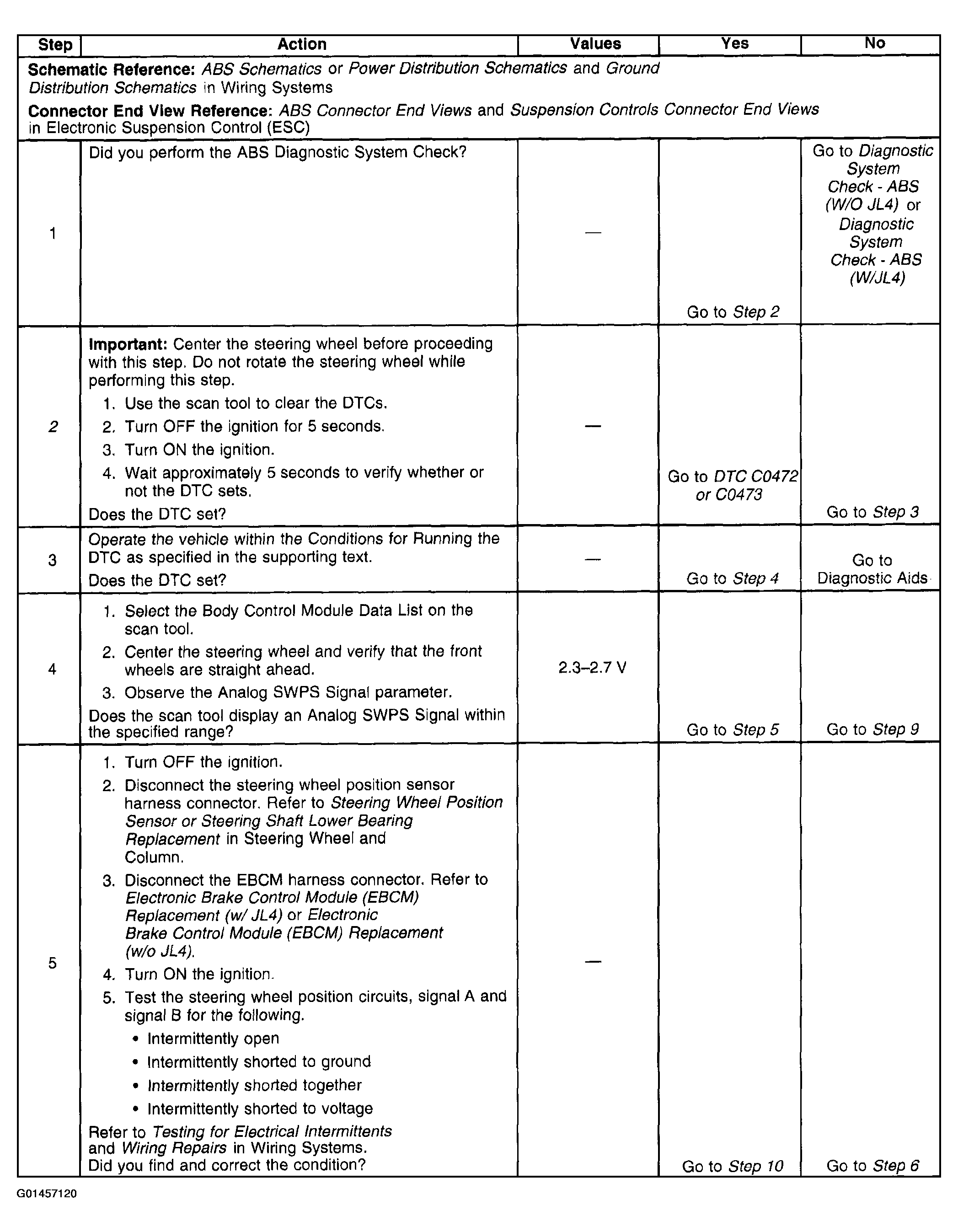

Fig 1: DTC C0455 (1 Of 2)
G01457120Courtesy of GENERAL MOTORS CORP.

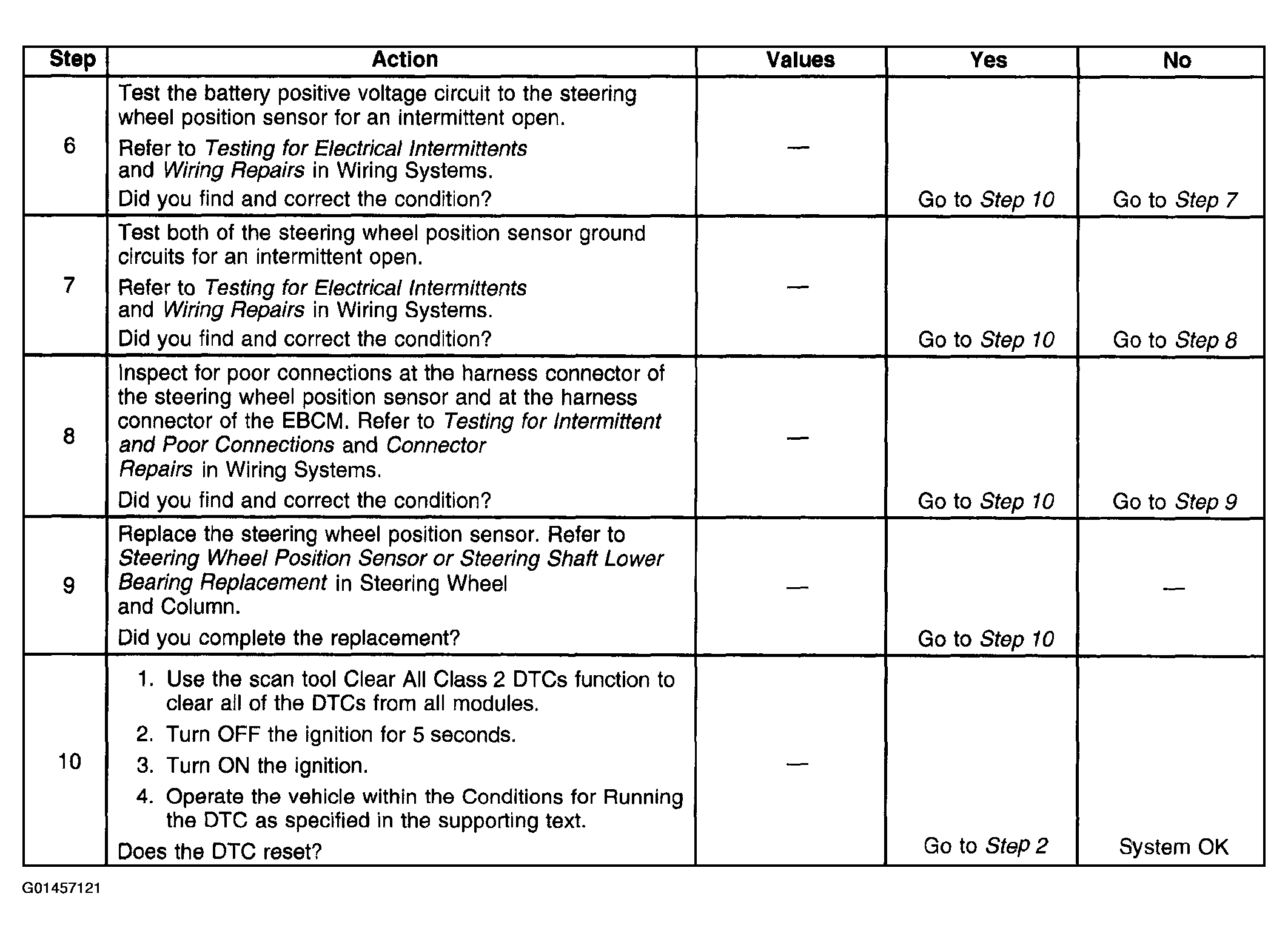

Fig 2: DTC C0455 (2 Of 2)
G01457121Courtesy of GENERAL MOTORS CORP.
