Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

An intermittent open/shorted solenoid DTC can be set by several different internal EBCM problems.

Replace the EBCM if an open/shorted solenoid DTC continues to set intermittently.

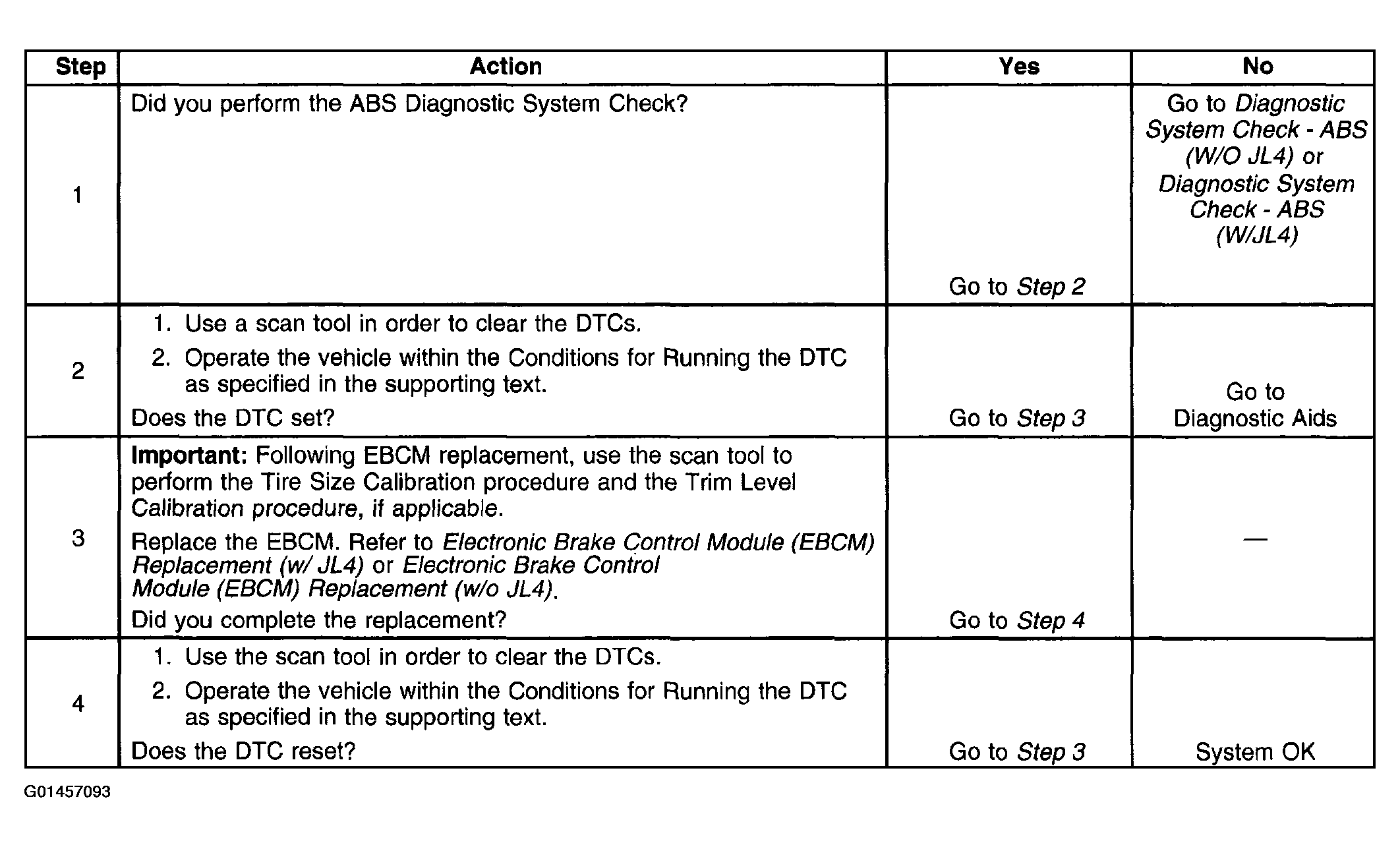

Fig 1: DTC C0246-C0254
G01457093Courtesy of GENERAL MOTORS CORP.
