ABS Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

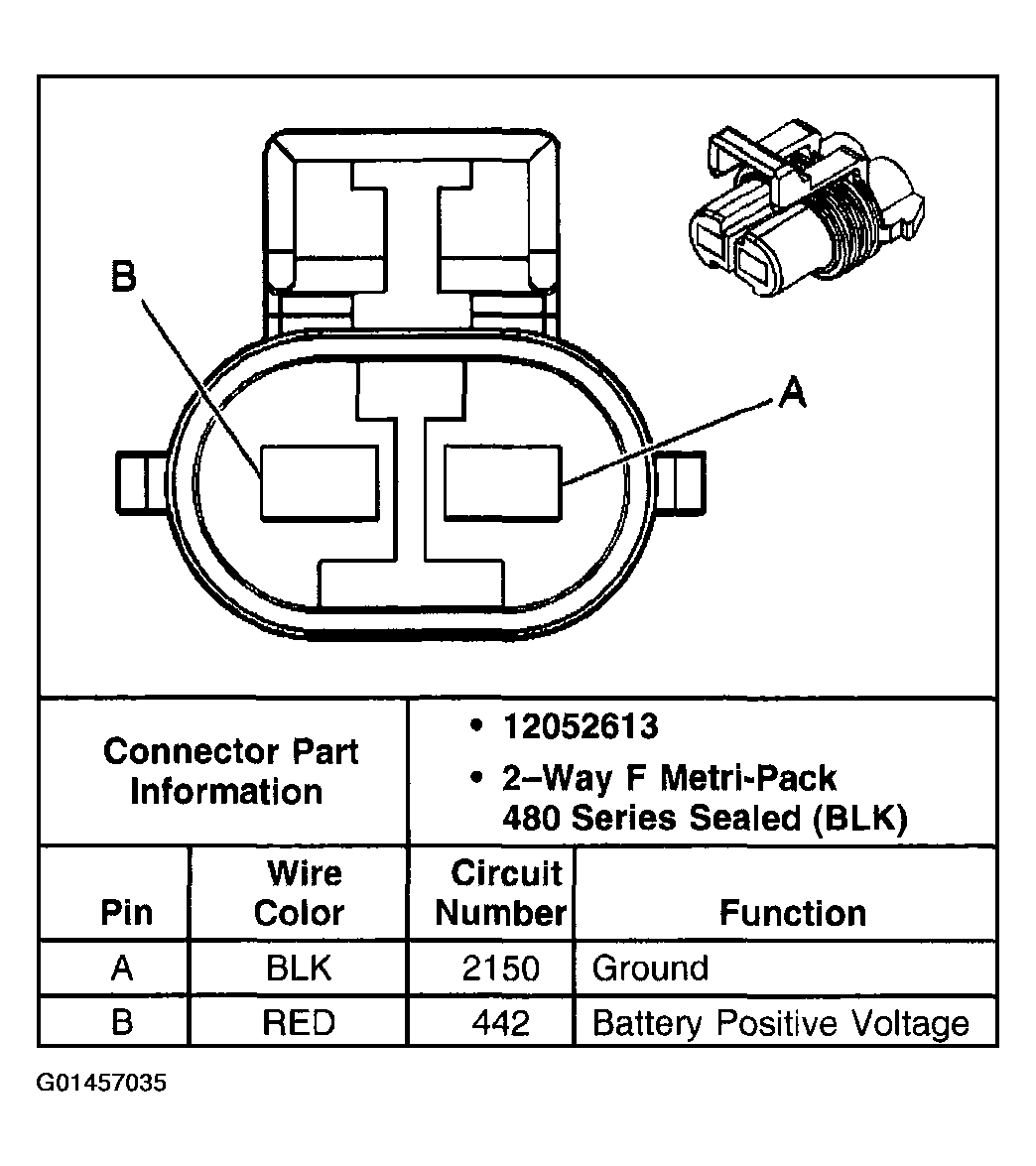

Fig 1: Identifying Electronic Brake Control Module (EBCM) - C1 (w/o JL4) Terminals

G01457035

Courtesy of GENERAL MOTORS CORP.

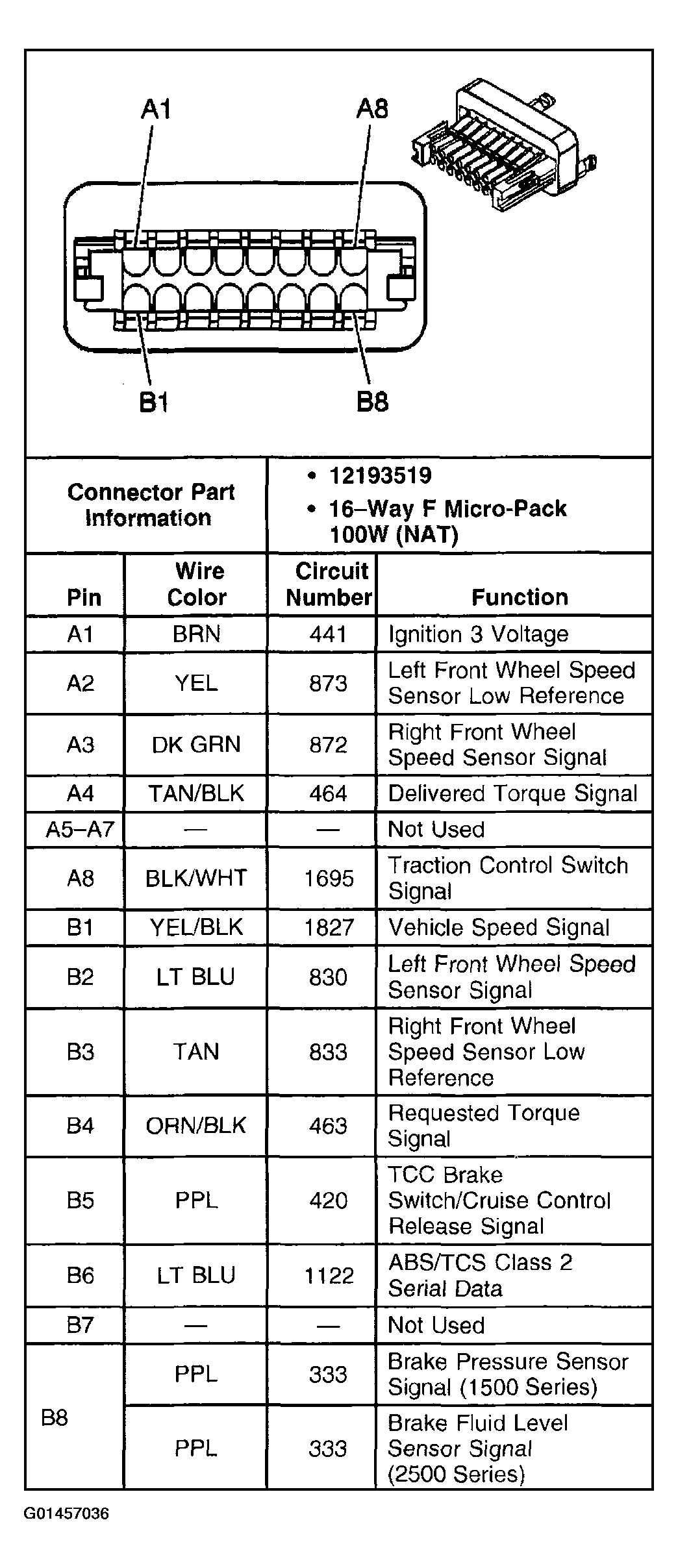

Fig 2: Identifying Electronic Brake Control Module (EBCM )- C2 (w/o JL4) Terminals

G01457036

Courtesy of GENERAL MOTORS CORP.

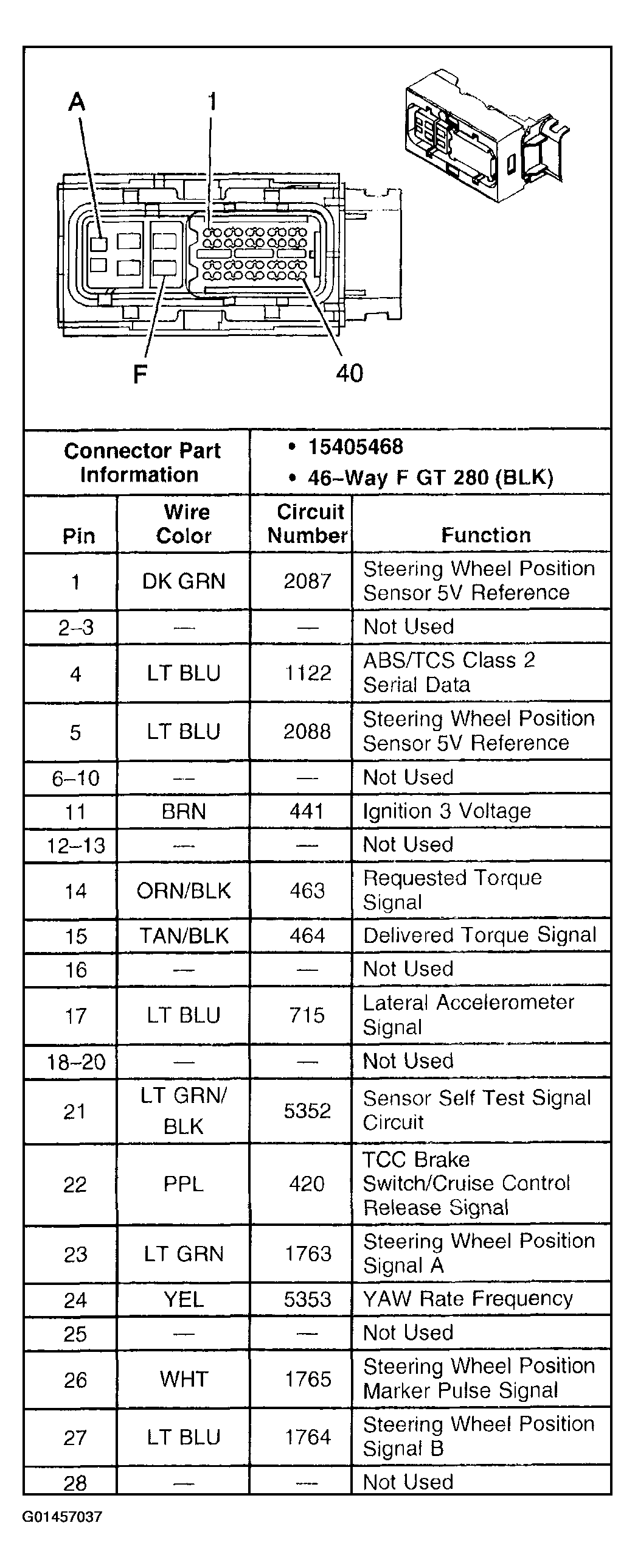

Fig 3: Identifying Electronic Brake Control Module (EBCM) (w/JL4) Terminals (1 Of 2)

G01457037

Courtesy of GENERAL MOTORS CORP.

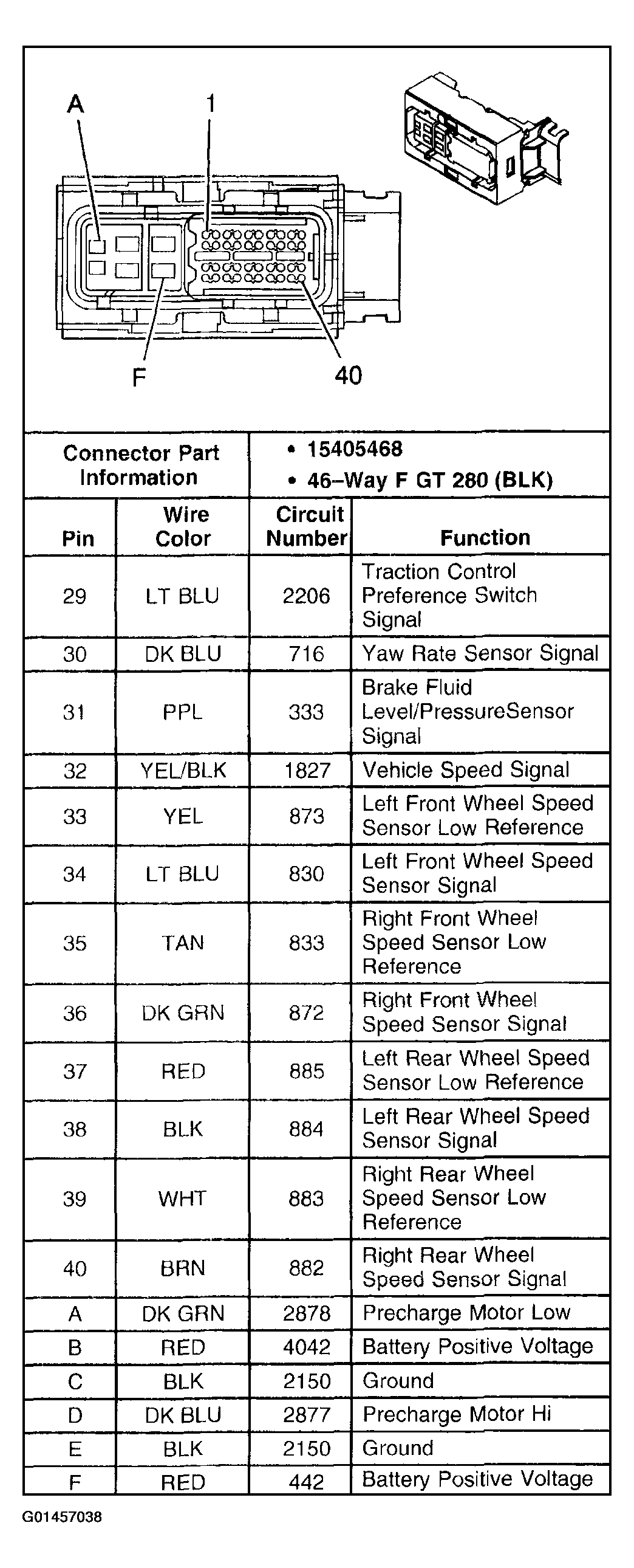

Fig 4: Identifying Electronic Brake Control Module (EBCM) (w/JL4) Terminals (2 Of 2)

G01457038

Courtesy of GENERAL MOTORS CORP.

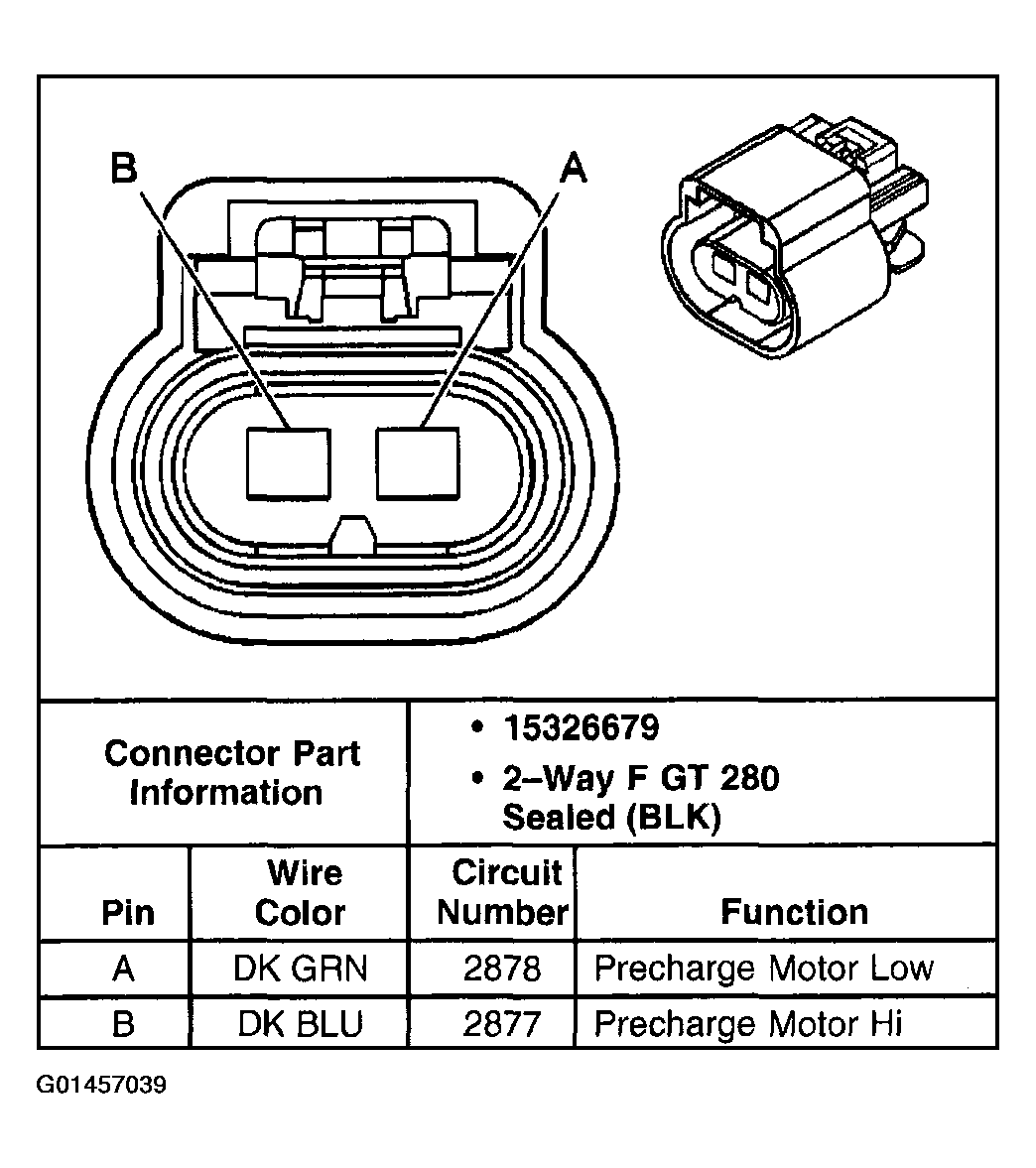

Fig 5: Identifying Precharge Motor Assembly Terminals

G01457039

Courtesy of GENERAL MOTORS CORP.

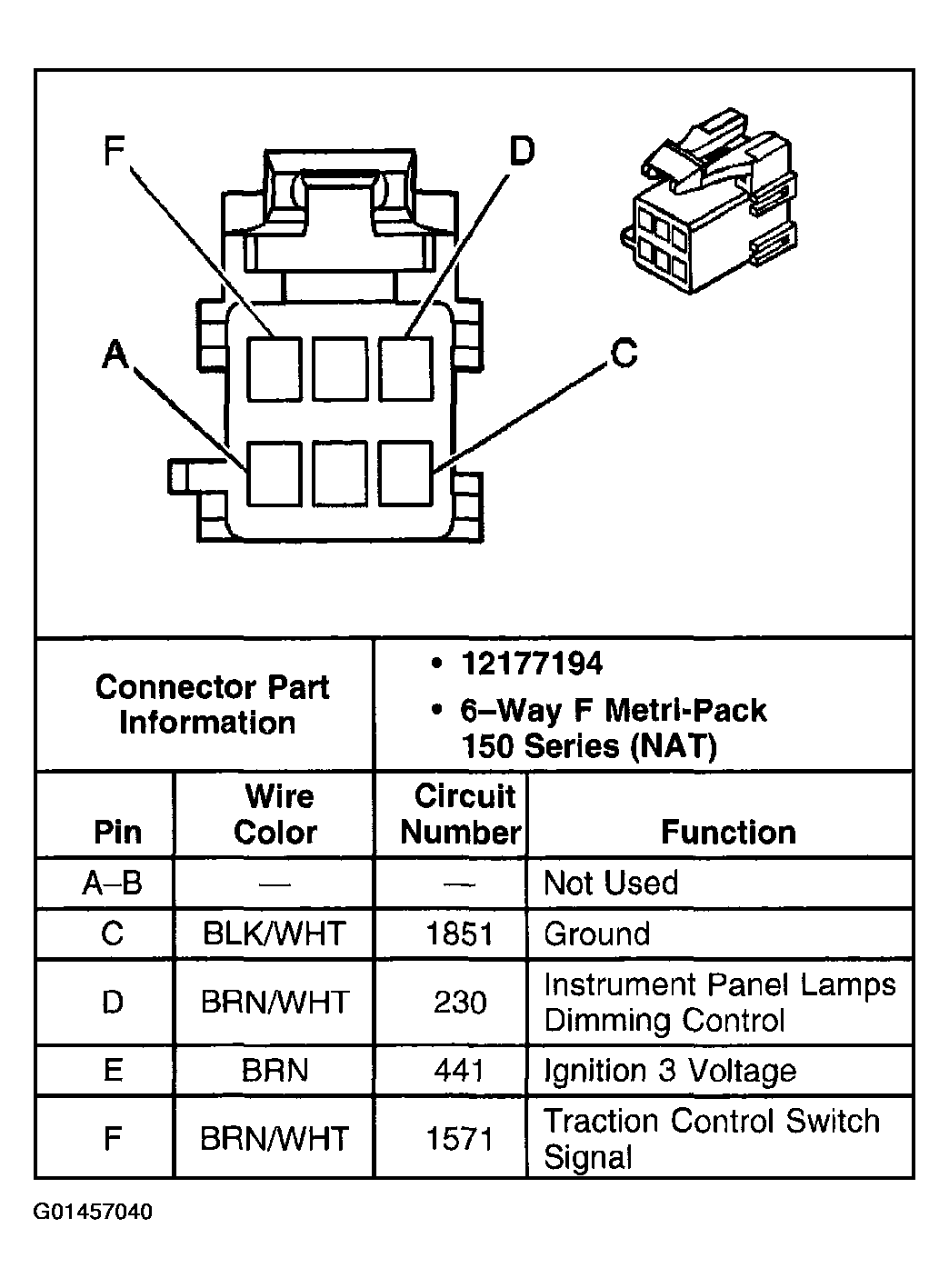

Fig 6: Identifying Traction Control Switch (w/o JL4) Terminals

G01457040

Courtesy of GENERAL MOTORS CORP.

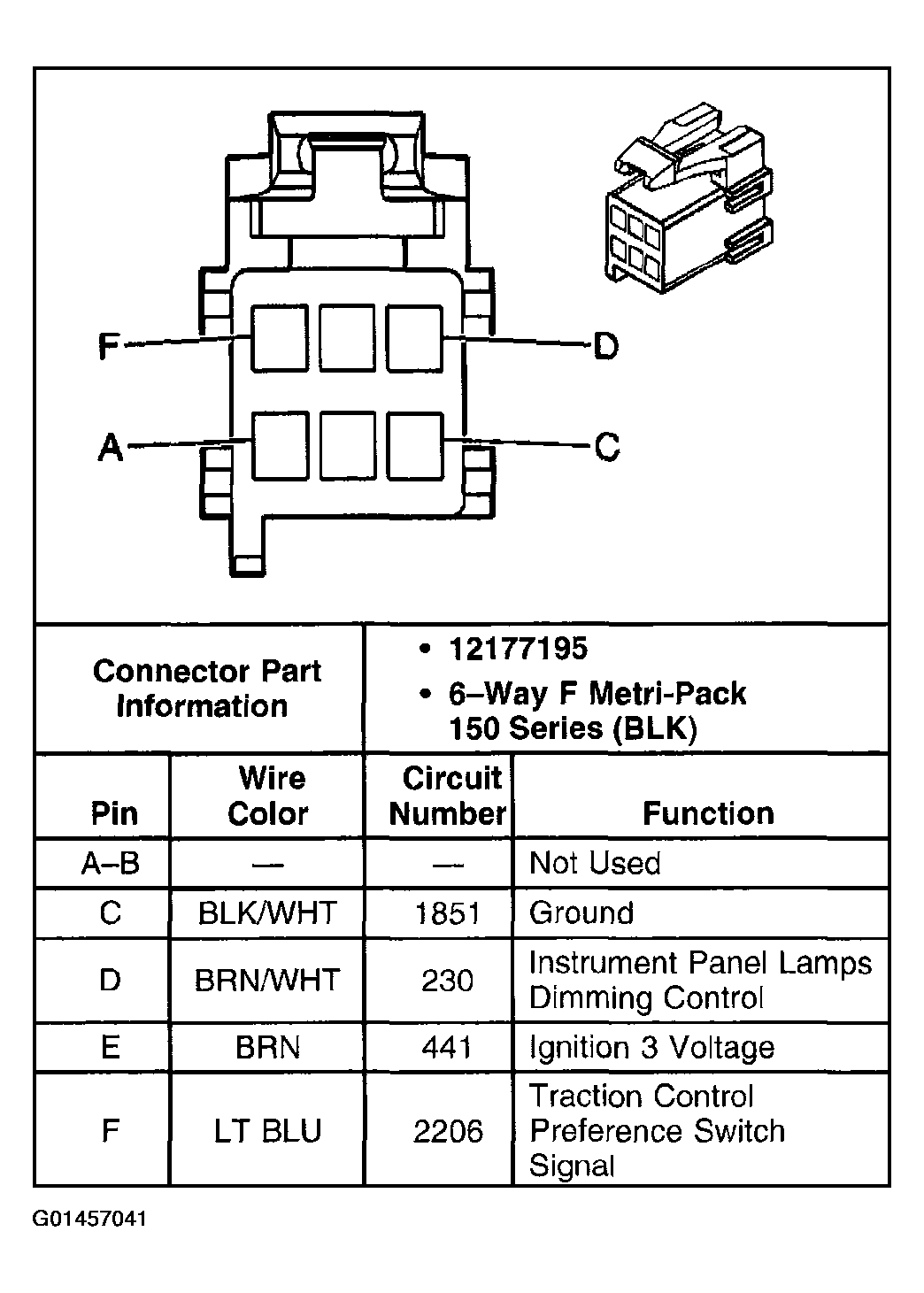

Fig 7: Identifying Traction Control Switch (w/JL4) Terminals

G01457041

Courtesy of GENERAL MOTORS CORP.

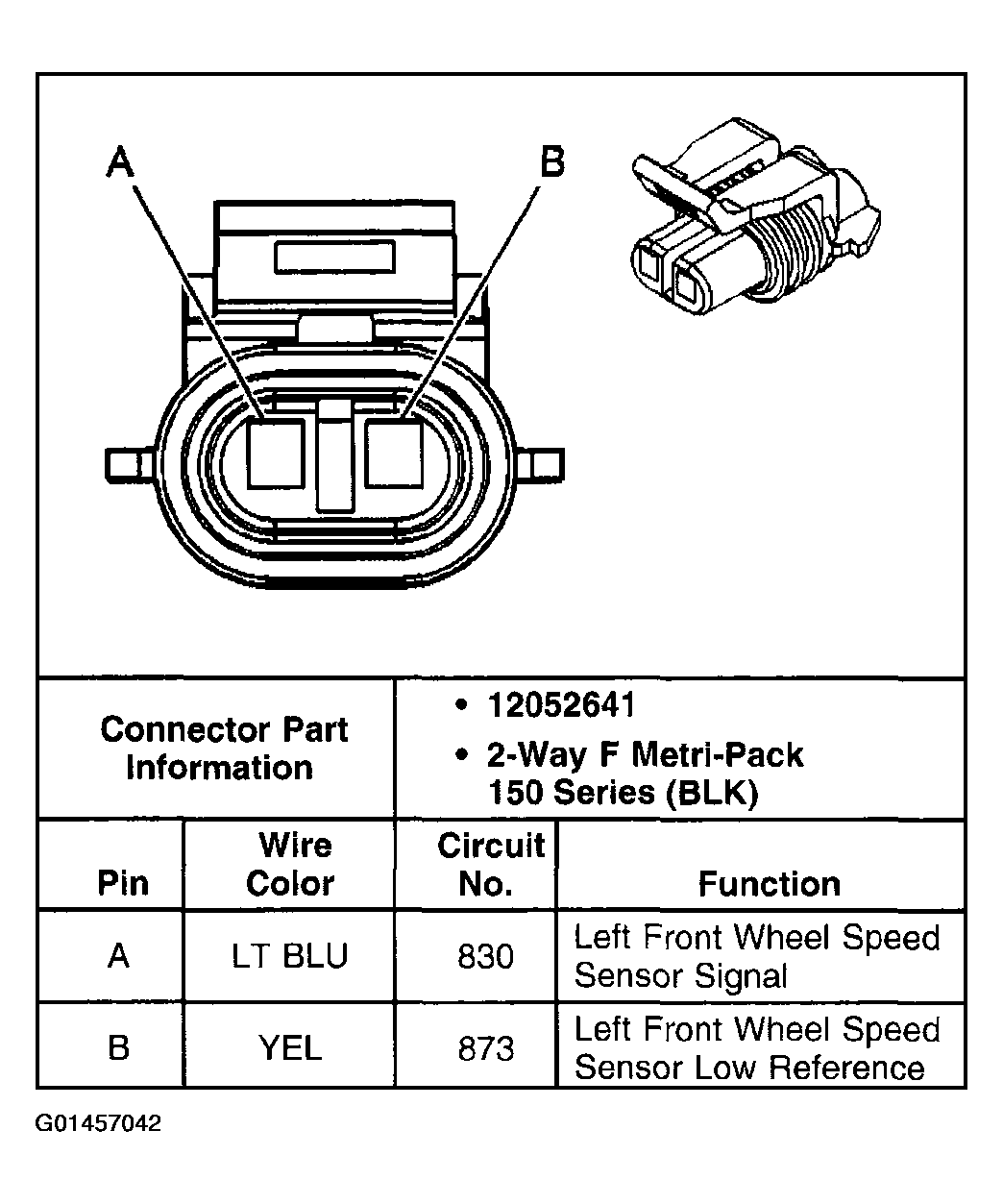

Fig 8: Identifying Wheel Speed Sensor (WSS) - LF Terminals

G01457042

Courtesy of GENERAL MOTORS CORP.

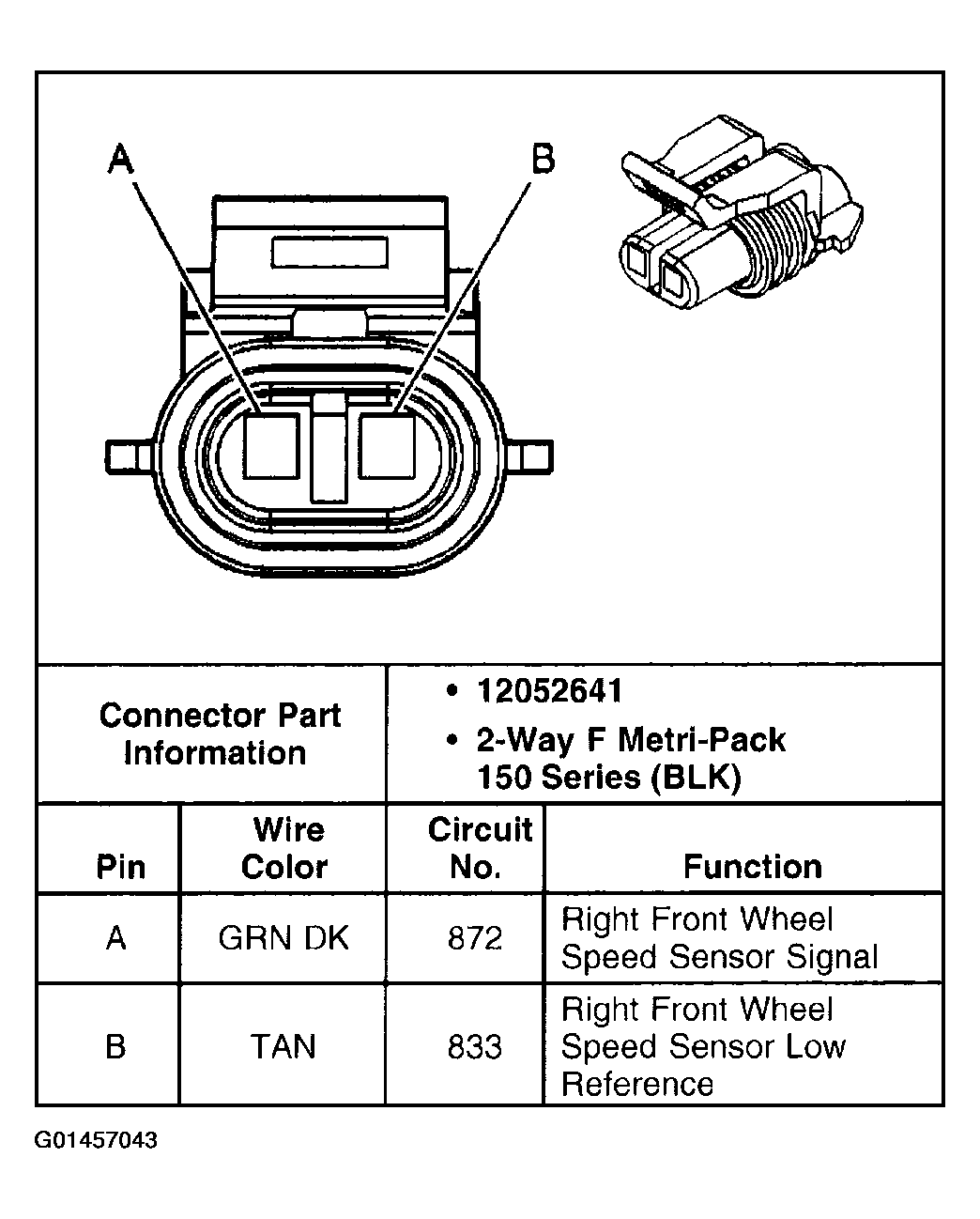

Fig 9: Identifying Wheel Speed Sensor (WSS) - RF Terminals

G01457043

Courtesy of GENERAL MOTORS CORP.

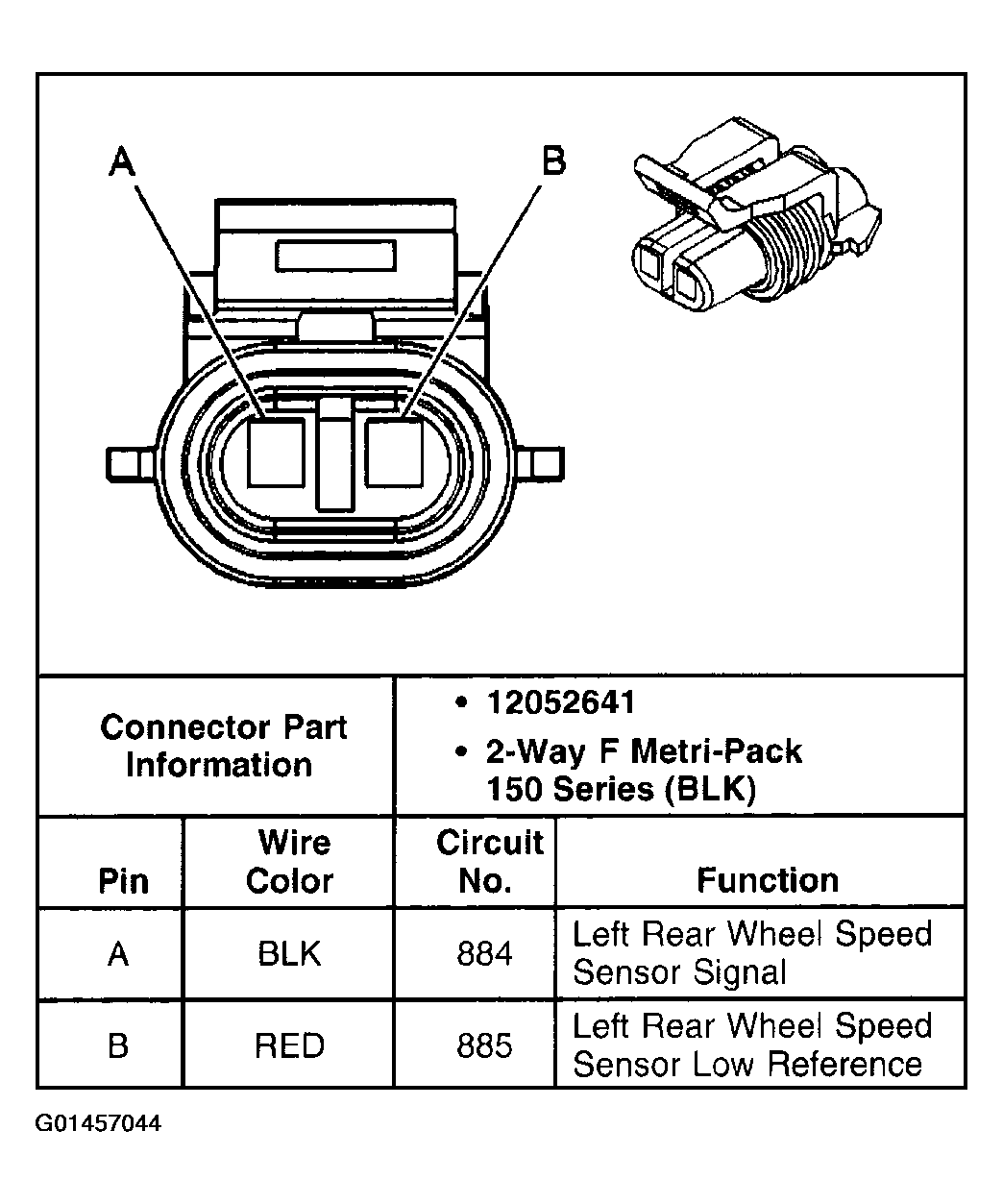

Fig 10: Identifying Wheel Speed Sensor (WSS) - LR (w/JL4) Terminals

G01457044

Courtesy of GENERAL MOTORS CORP.

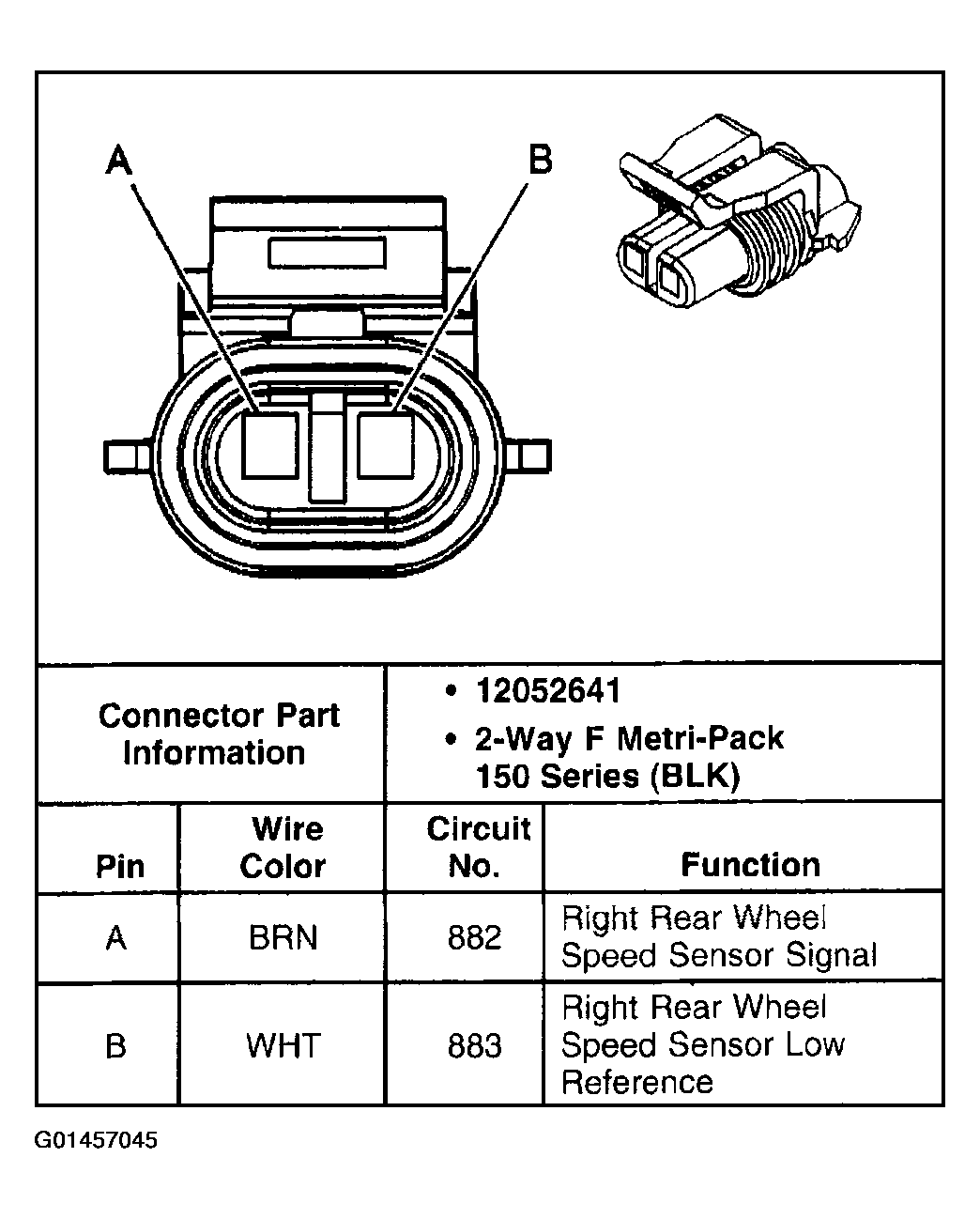

Fig 11: Identifying Wheel Speed Sensor (WSS) - RR (10 Series w/JL4) Terminals

G01457045

Courtesy of GENERAL MOTORS CORP.

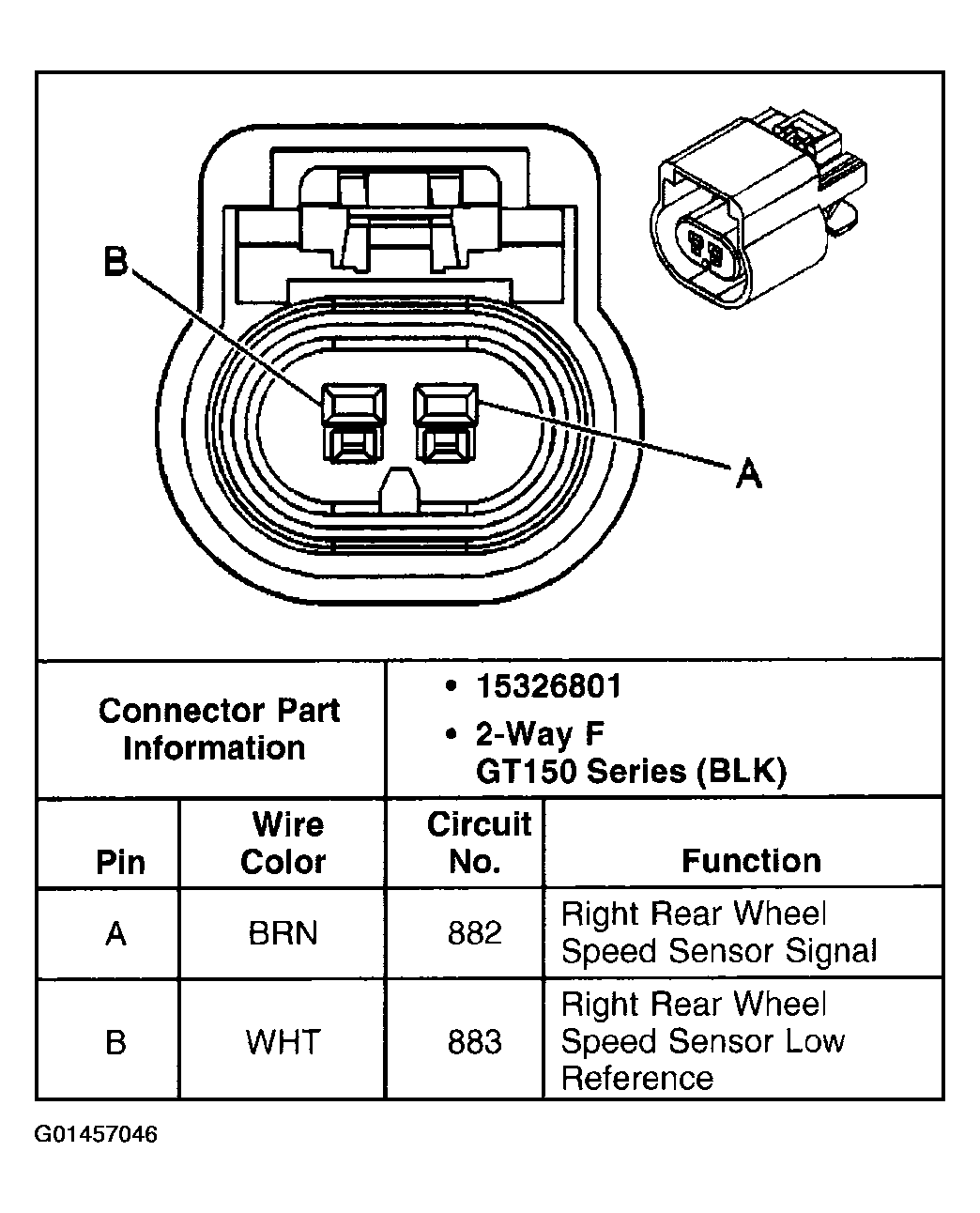

Fig 12: Identifying Wheel Speed Sensor (WSS) - RR (20 Series w/JL4) Terminals

G01457046

Courtesy of GENERAL MOTORS CORP.

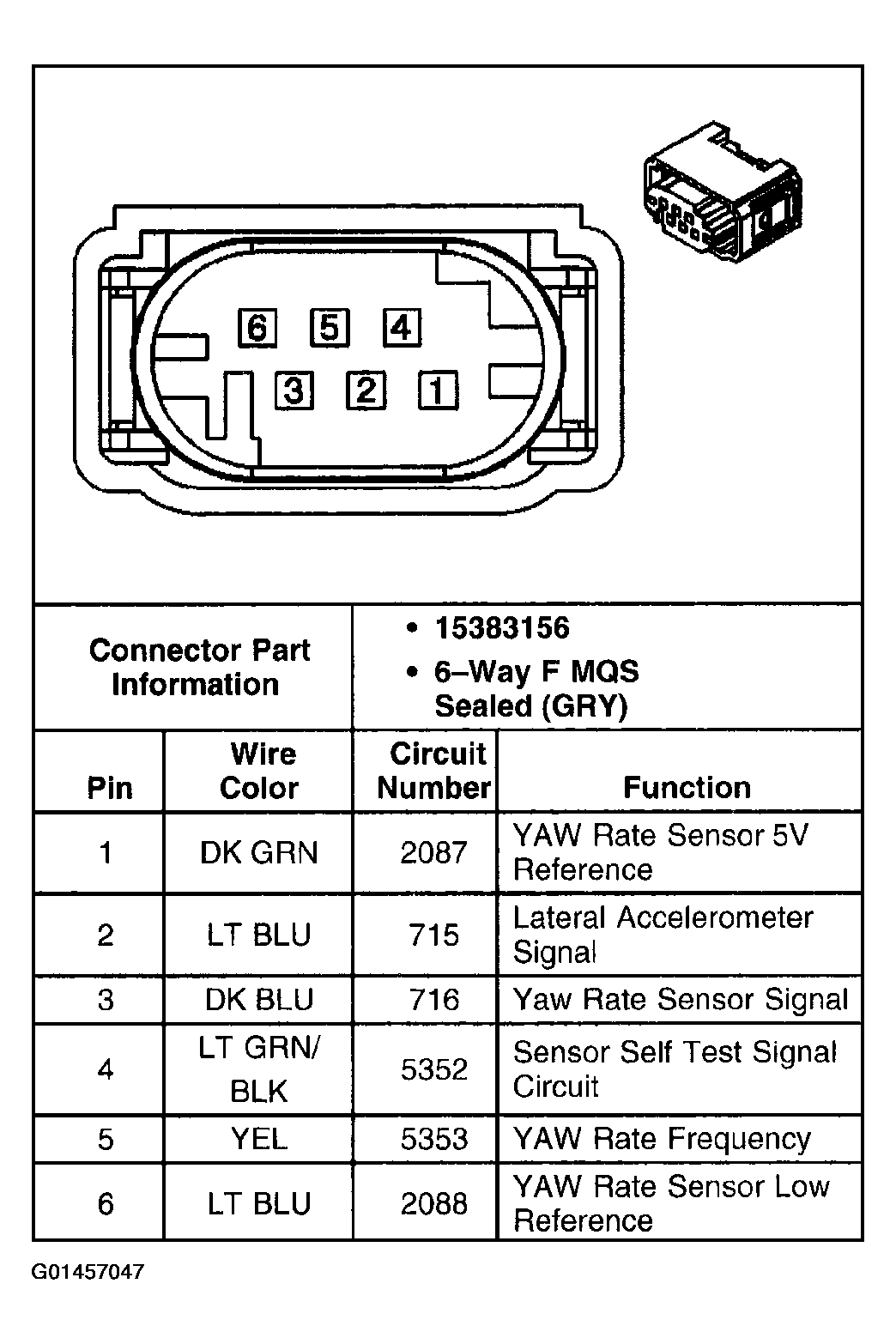

Fig 13: Identifying YAW And Lateral Acceleration Sensor Terminals

G01457047

Courtesy of GENERAL MOTORS CORP.
