ABS Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

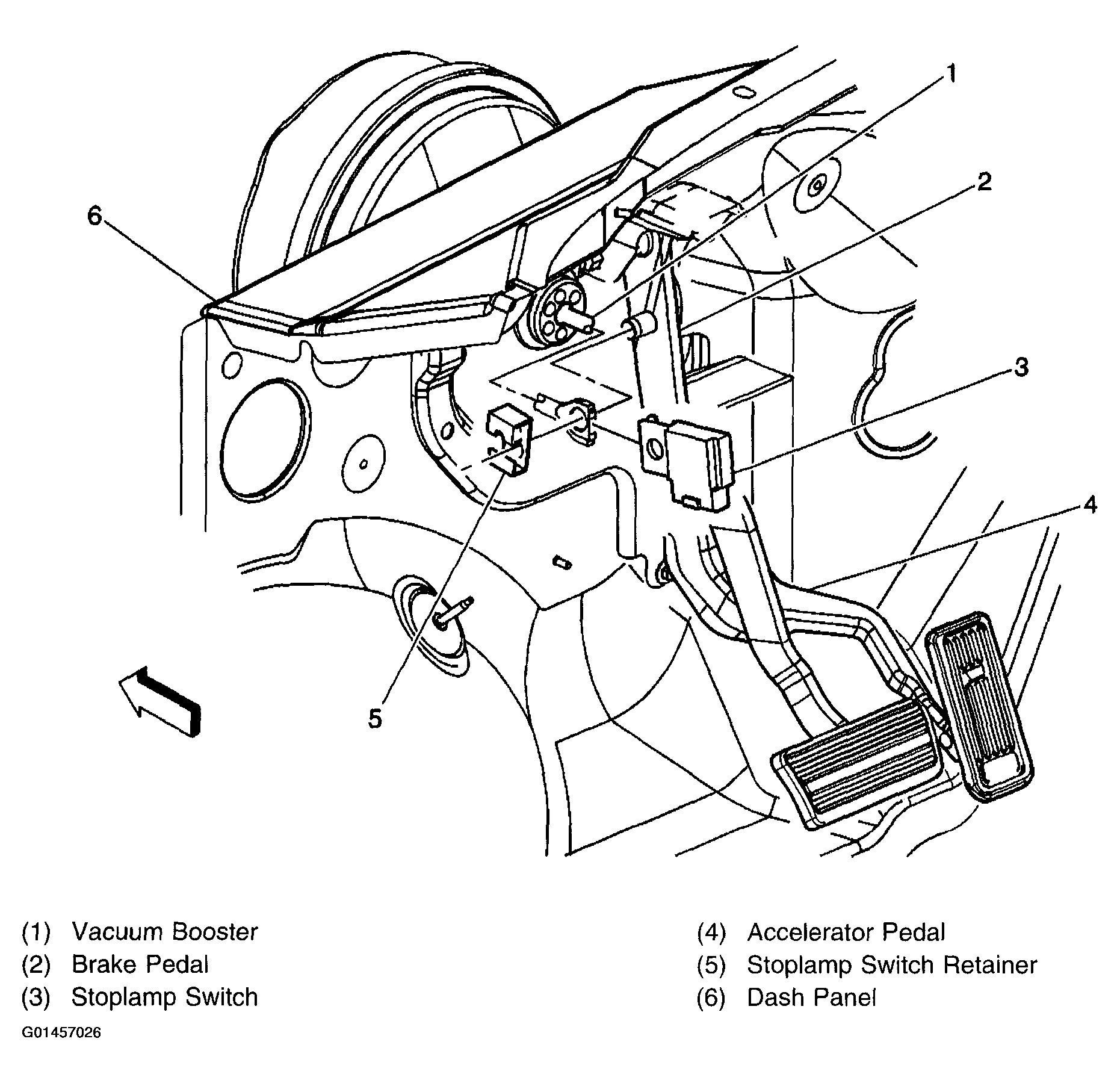

Fig 1: ABS Component Views - Brake Pedal Components

G01457026

Courtesy of GENERAL MOTORS CORP.

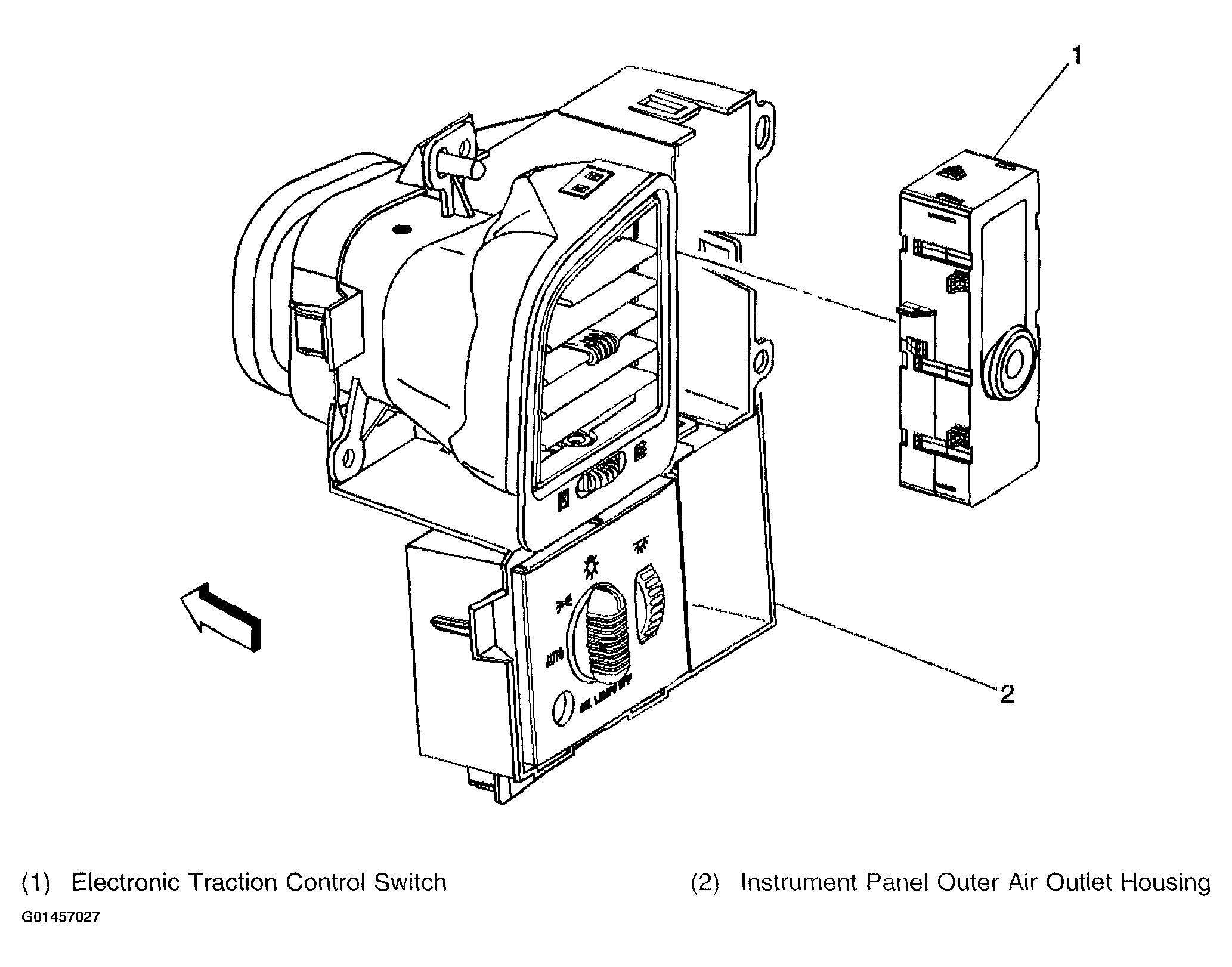

Fig 2: ABS Component Views - Electronic Transaction Control Switch

G01457027

Courtesy of GENERAL MOTORS CORP.

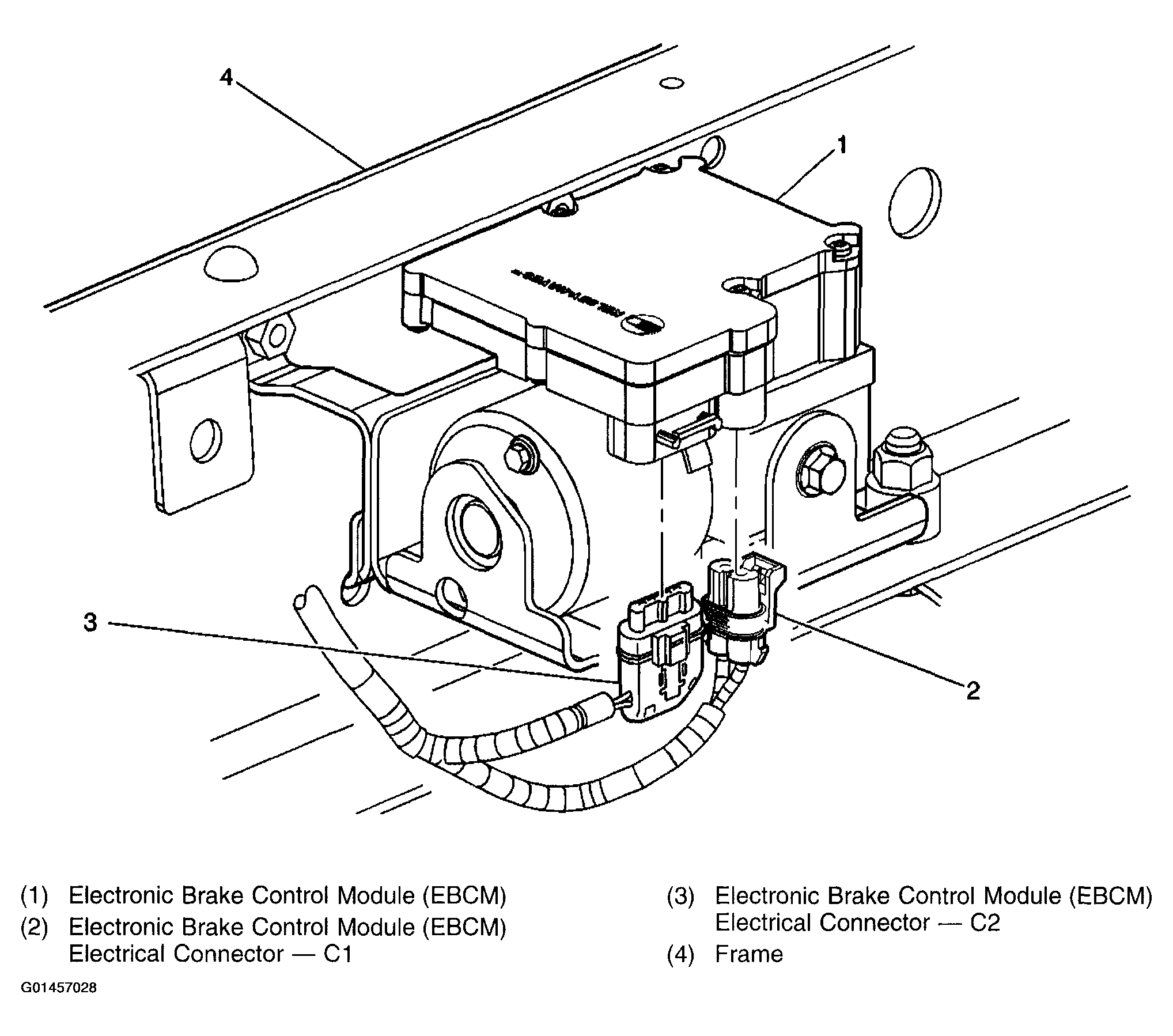

Fig 3: ABS Component Views - Left Side Frame Rail - EBCM

G01457028

Courtesy of GENERAL MOTORS CORP.

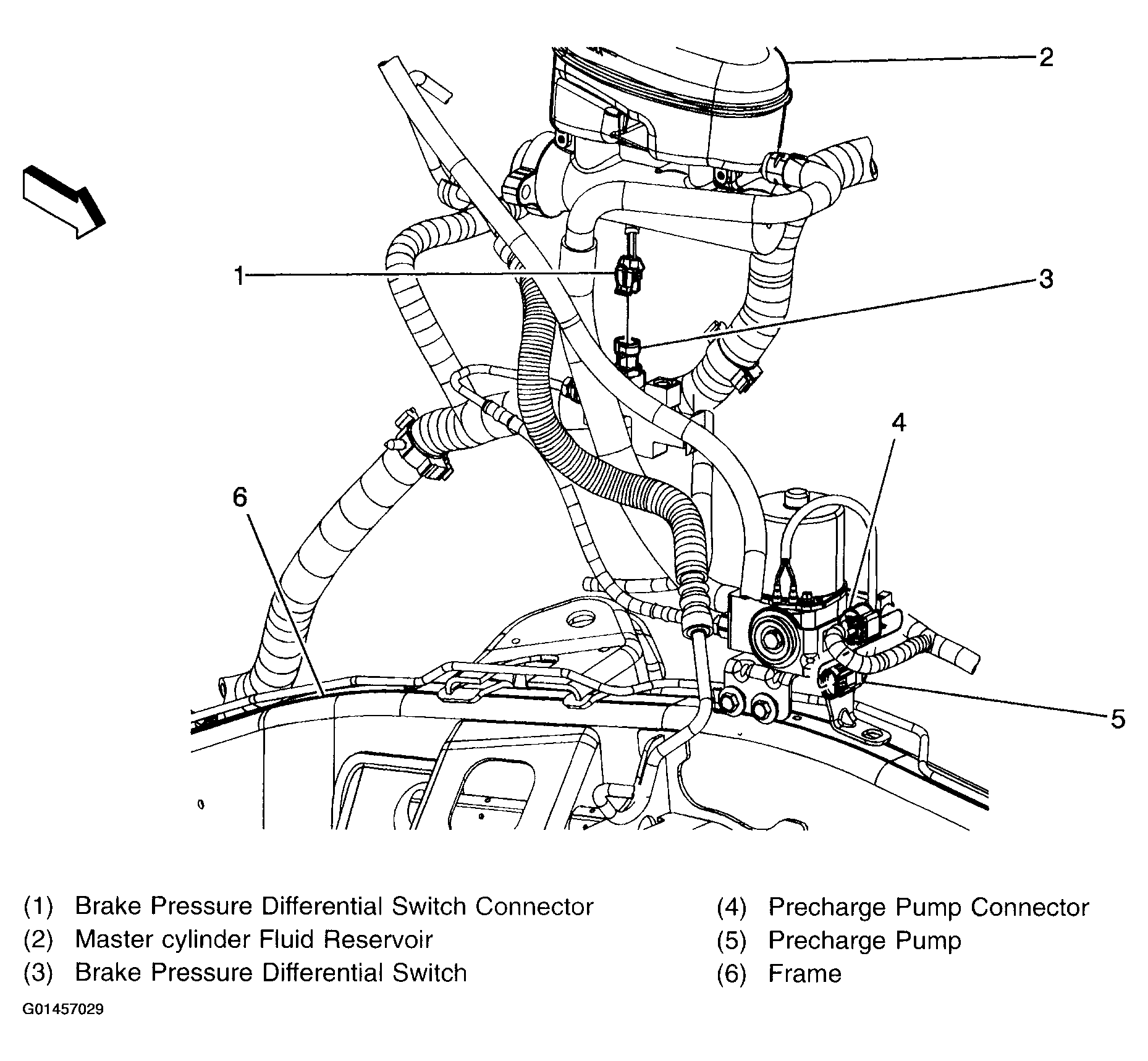

Fig 4: ABS Component Views - Precharge Pump (JL4)

G01457029

Courtesy of GENERAL MOTORS CORP.

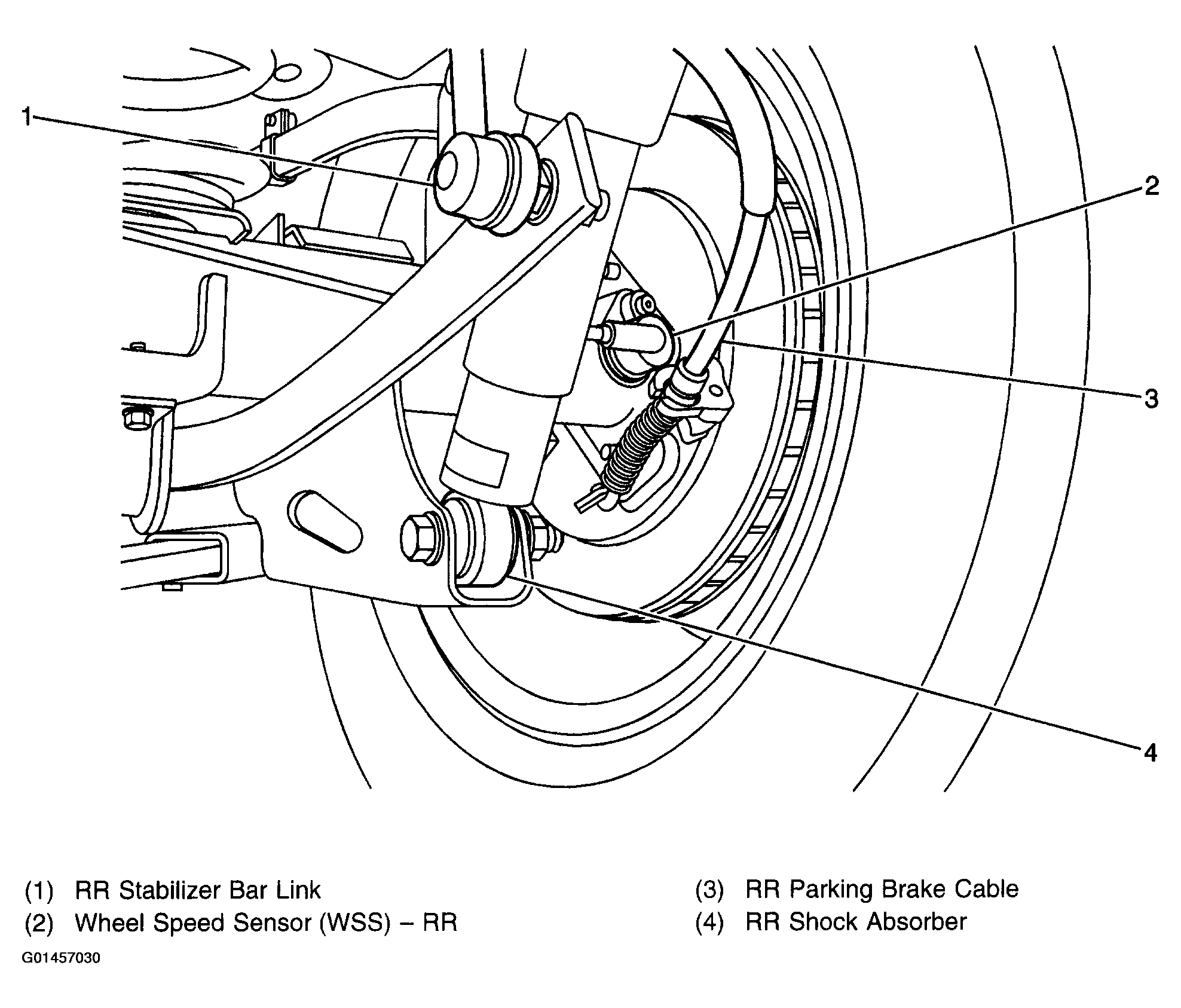

Fig 5: ABS Component Views - RR Suspension

G01457030

Courtesy of GENERAL MOTORS CORP.

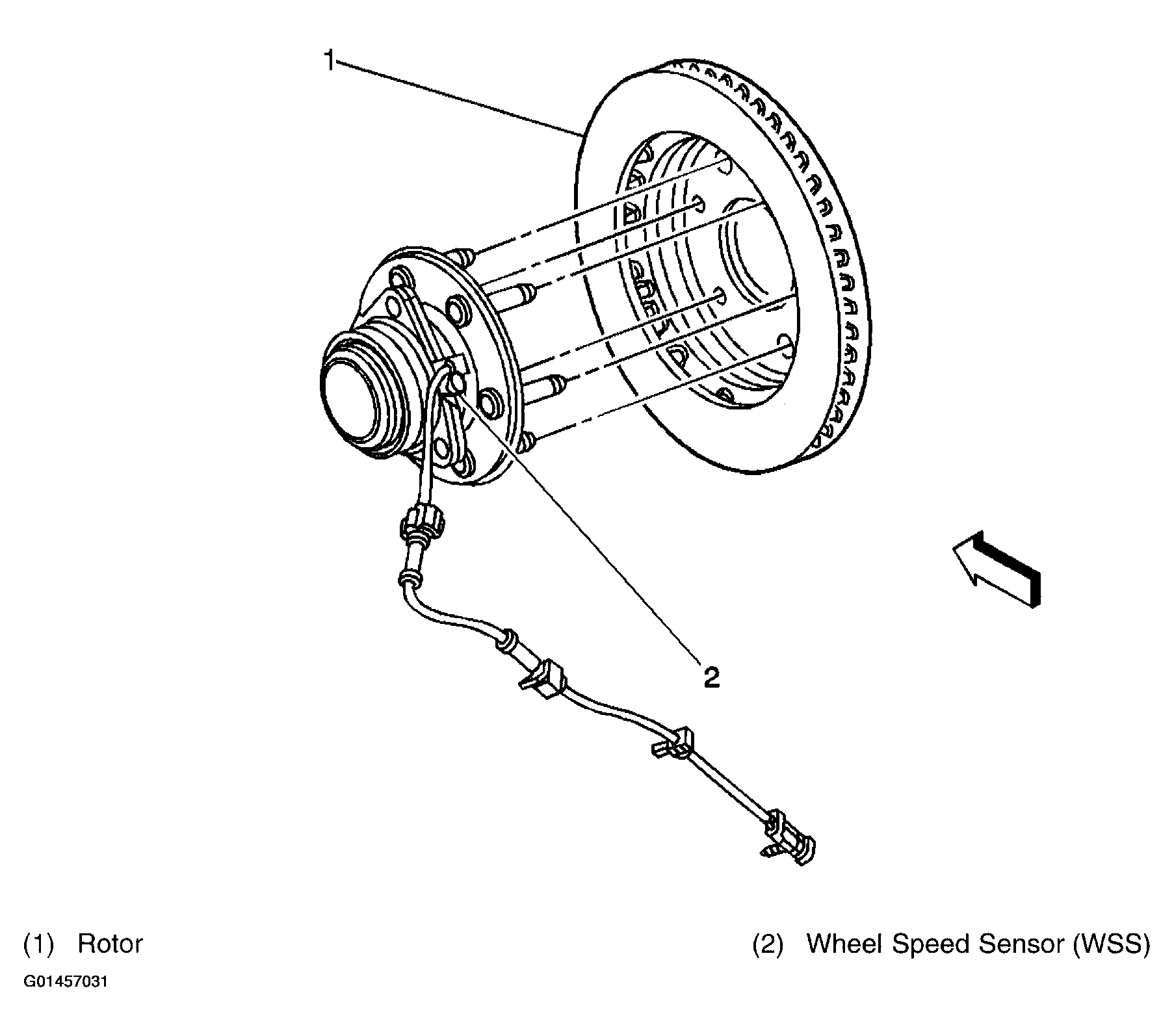

Fig 6: ABS Component Views - Wheel Speed Sensor - RF (2WD)

G01457031

Courtesy of GENERAL MOTORS CORP.

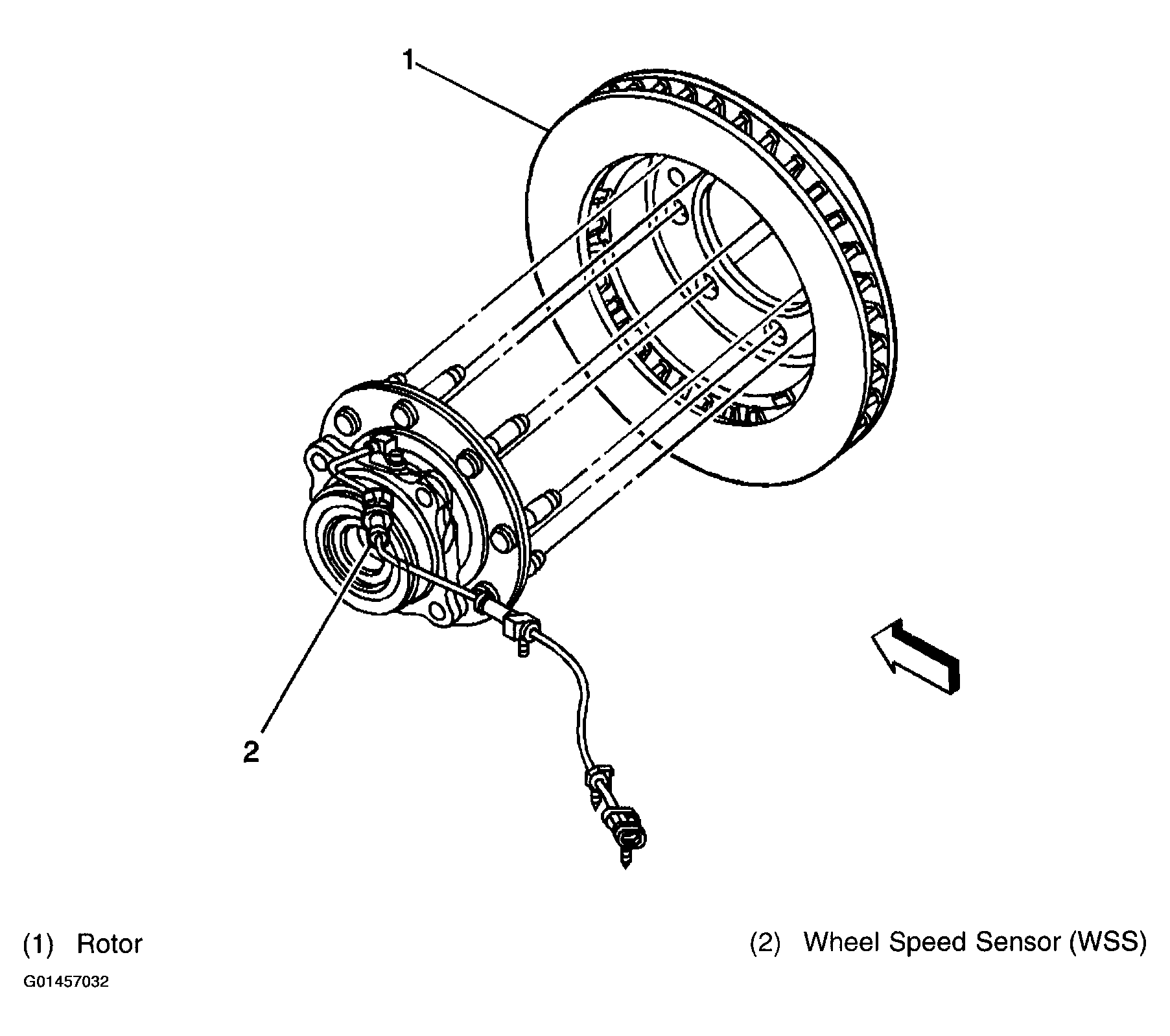

Fig 7: ABS Component Views - Wheel Speed Sensor - RF (4WD)

G01457032

Courtesy of GENERAL MOTORS CORP.

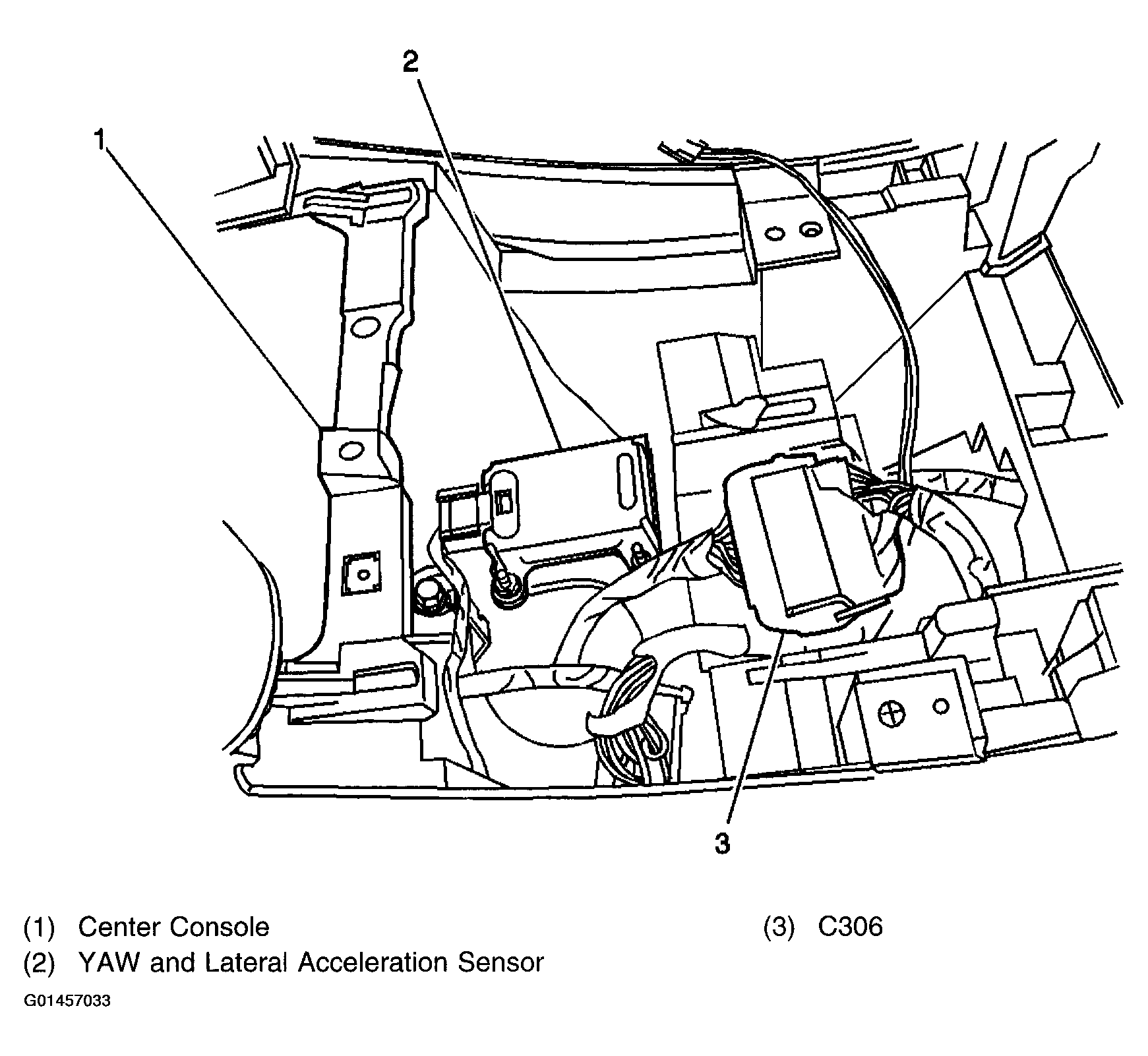

Fig 8: ABS Component Views - YAW And Lateral Acceleration Sensor (Escalade)

G01457033

Courtesy of GENERAL MOTORS CORP.

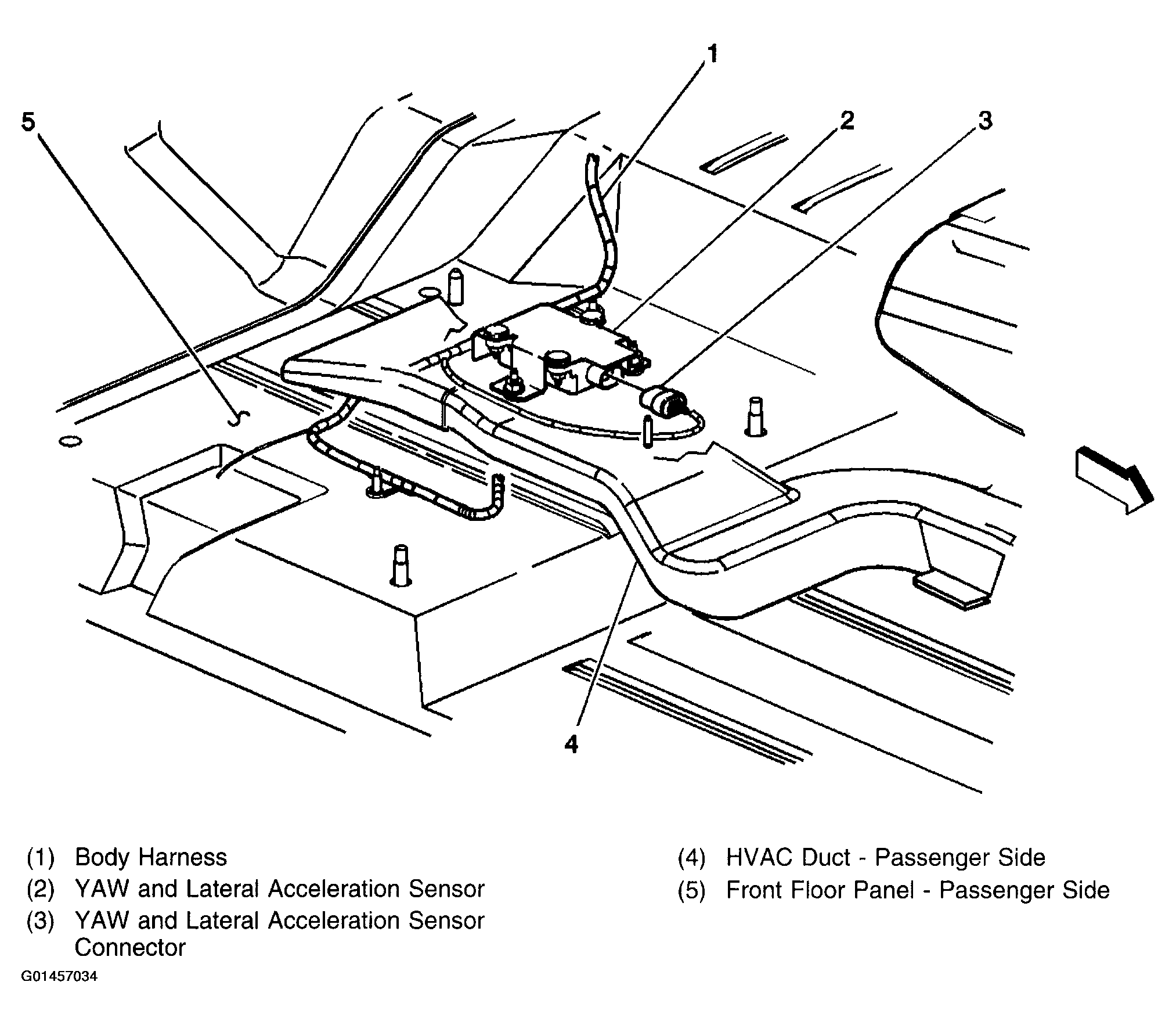

Fig 9: ABS Component Views - YAW And Lateral Acceleration Sensor (Escalade EXT)

G01457034

Courtesy of GENERAL MOTORS CORP.
