Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the splines of the transfer case output shaft for a sufficient coating of grease. If the output shaft does not have a sufficient coating of grease, lubricate the shaft with grease, GM P/N 12345879 or equivalent.
  2. If equipped with the double clamp style boot, perform the following steps to install the propeller shaft to the transfer case.

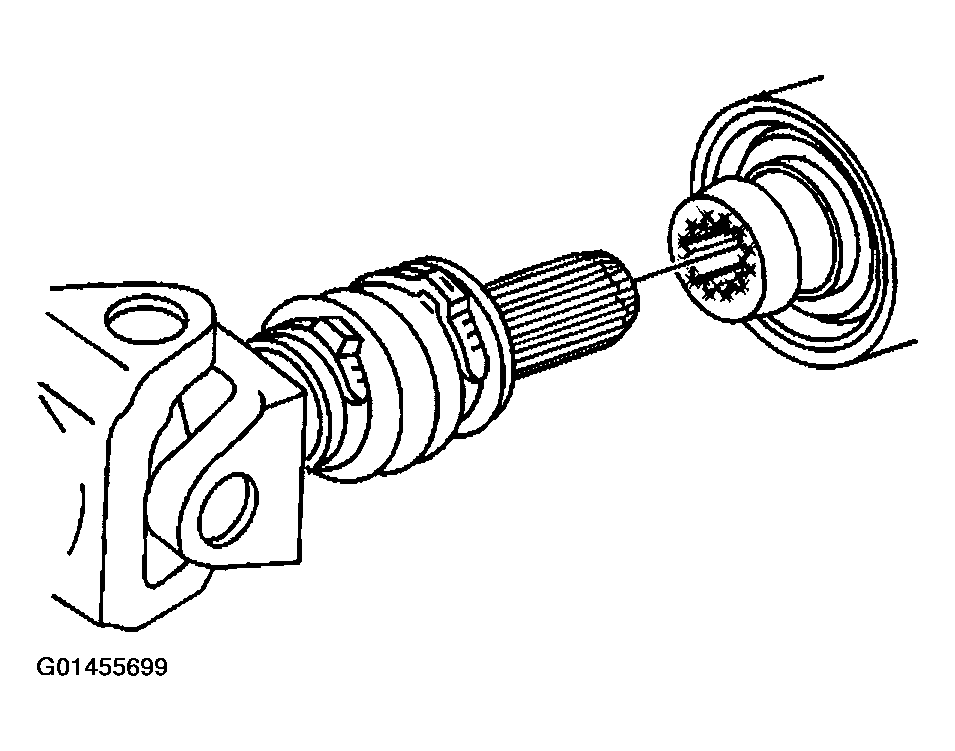

    Fig 1: Installing Propeller Shaft From Transfer Case Output Shaft (Double Clamp Style Boot)
    G01455699Courtesy of GENERAL MOTORS CORP.
    1. Place a new clamp in the groove of the propeller shaft boot.
    2. Install the propeller shaft splines in the transfer case output shaft.
    3. Install the boot onto the transfer case output shaft until the boot snaps into the groove on the OD of the output shaft.
  3. If equipped with the single clamp style boot, install the propeller shaft splines into the transfer case output shaft.
  4. Install the single clamp style boot onto the transfer case output shaft until the boot snaps into the groove on the output shaft.

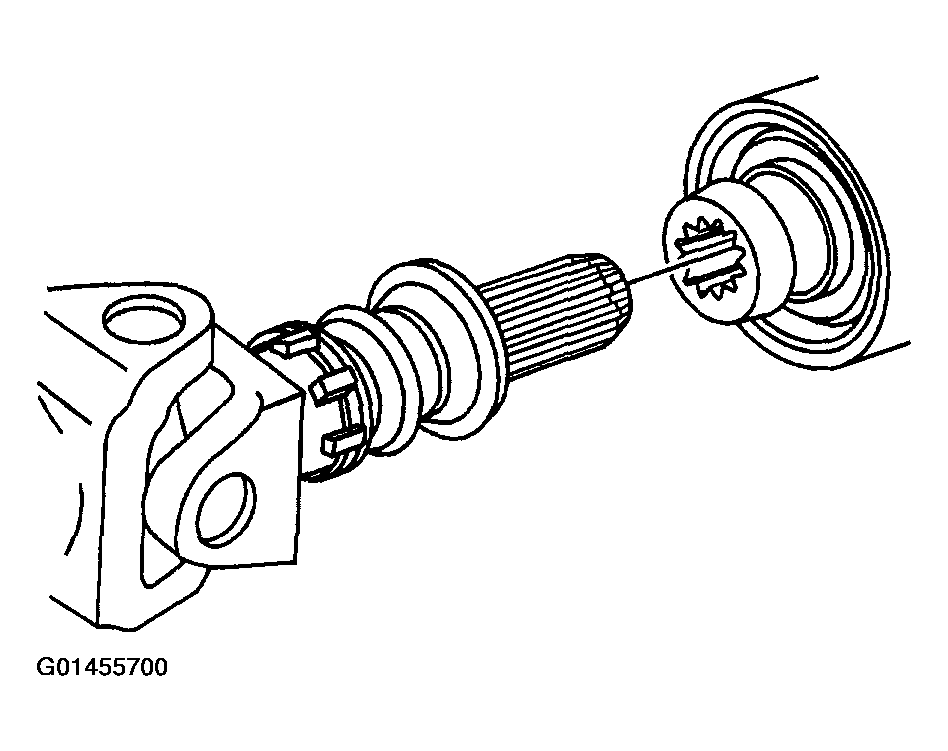

    5. Fig 2: Installing Propeller Shaft From Transfer Case Output Shaft (Single Clamp Style Boot)
    G01455700Courtesy of GENERAL MOTORS CORP.
  5. Install the propeller shaft (5) to the front axle pinion yoke (1).

    Align the reference marks made during removal.

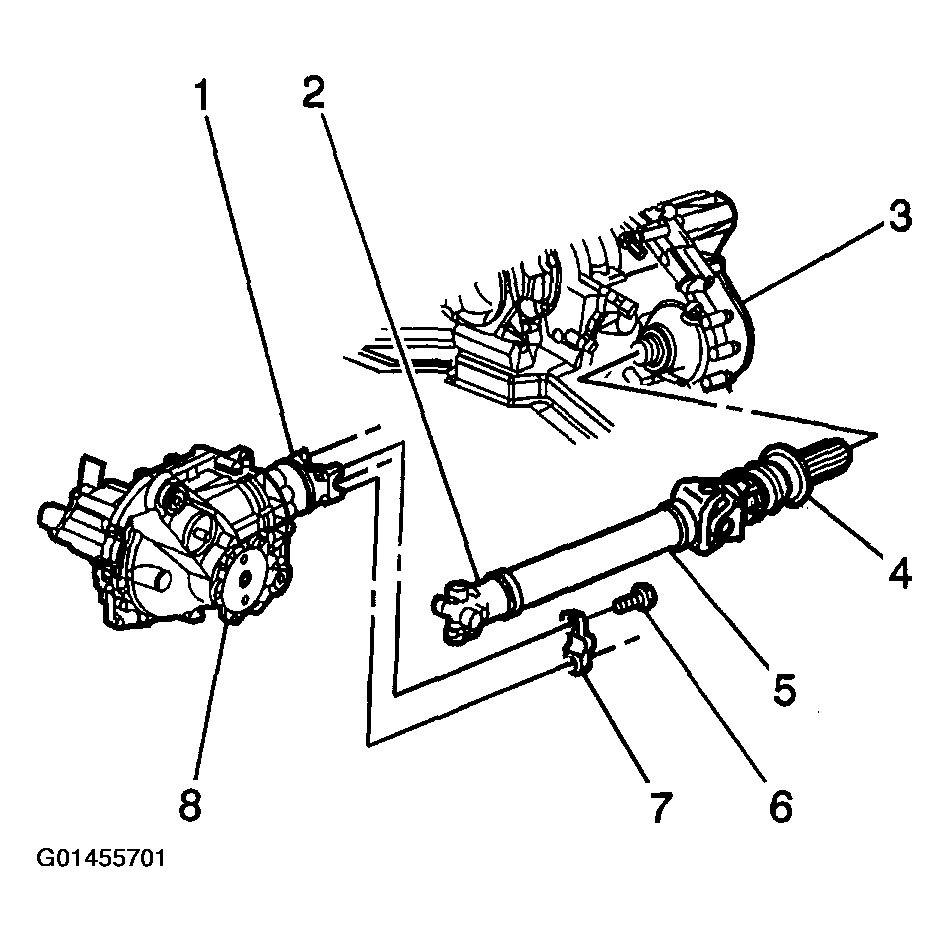

    6. Fig 3: Installing Propeller Shaft To Front Axle Pinion Yoke
    G01455701Courtesy of GENERAL MOTORS CORP.
  6. Install the yoke retainers (7) and the bolts (6).
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    Tighten the yoke retainer bolts to 25 N.m (18 lb ft).

  7. If equipped with the double clamp style boot, use the J 43218 to crimp the clamp until the dimensions shown are obtained.

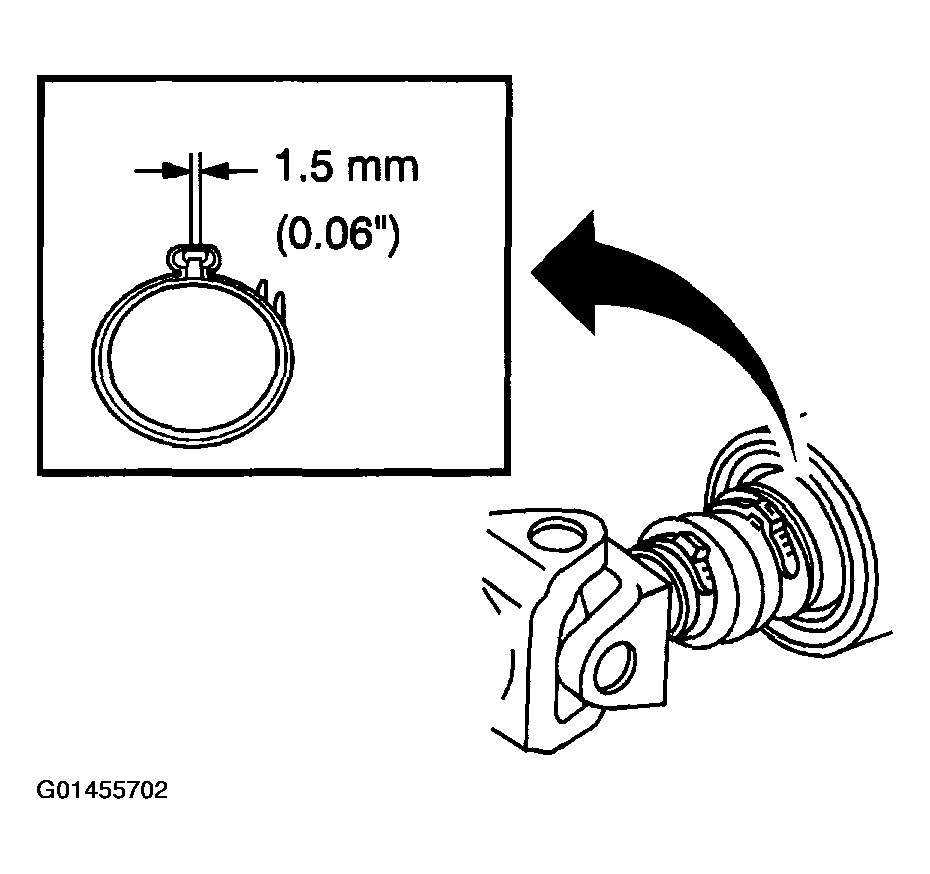

    8. Fig 4: Identifying Crimped Clamp Dimensions
    G01455702Courtesy of GENERAL MOTORS CORP.
  8. Install the transfer case shield, if equipped. Refer to the appropriate procedure:
  9. Lower the vehicle.
