Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

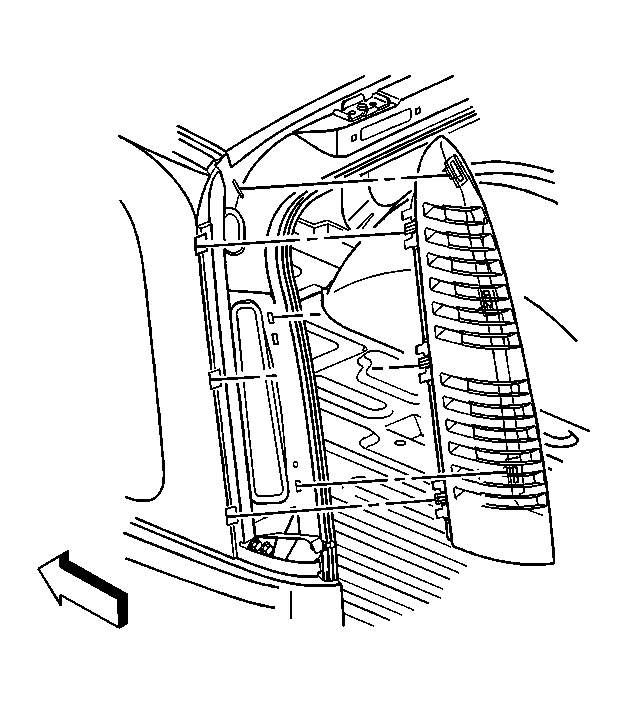

Fig 1: Quarter Panel Upper Applique

Courtesy of GENERAL MOTORS CORP.

Align the tabs to the body access holes.
Push the applique into place.

NOTE: Refer to FASTENER NOTICE .

Install the screw that retains the upper quarter of the applique.
Tighten: Tighten the screw to 1.6 N.m (14 lb in).
On vehicles with rear doors, install the rear compartment opening weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - REAR COMPARTMENT OPENING .
