Worm Thrust Bearing Preload Adjustment - Off Vehicle

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

  1. Rotate the stub shaft back and forth in order to drain the power steering fluid.
  2. Remove the coupling shield retainer and the lock nut from the steering gear housing using J 43435  and a torque wrench.

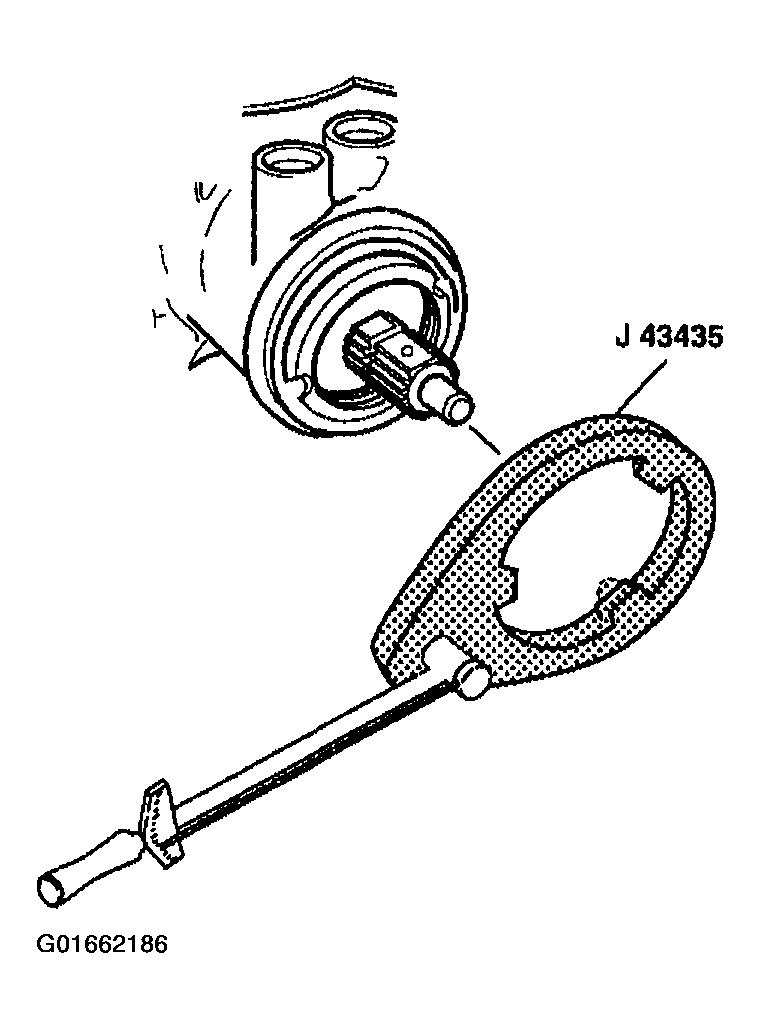

    Fig 1: Removing Coupling Shield Retainer & Lock Nut
    G01662186Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
  3. Turn the adjuster nut assembly (1) clockwise using J 42882  until the adjuster nut assembly (1) and the thrust support assembly (2) are firmly bottomed in the steering gear housing (3).

    Tighten

    Tighten the adjuster nut assembly (1) to 28-31 N.m (20-23 lb ft).

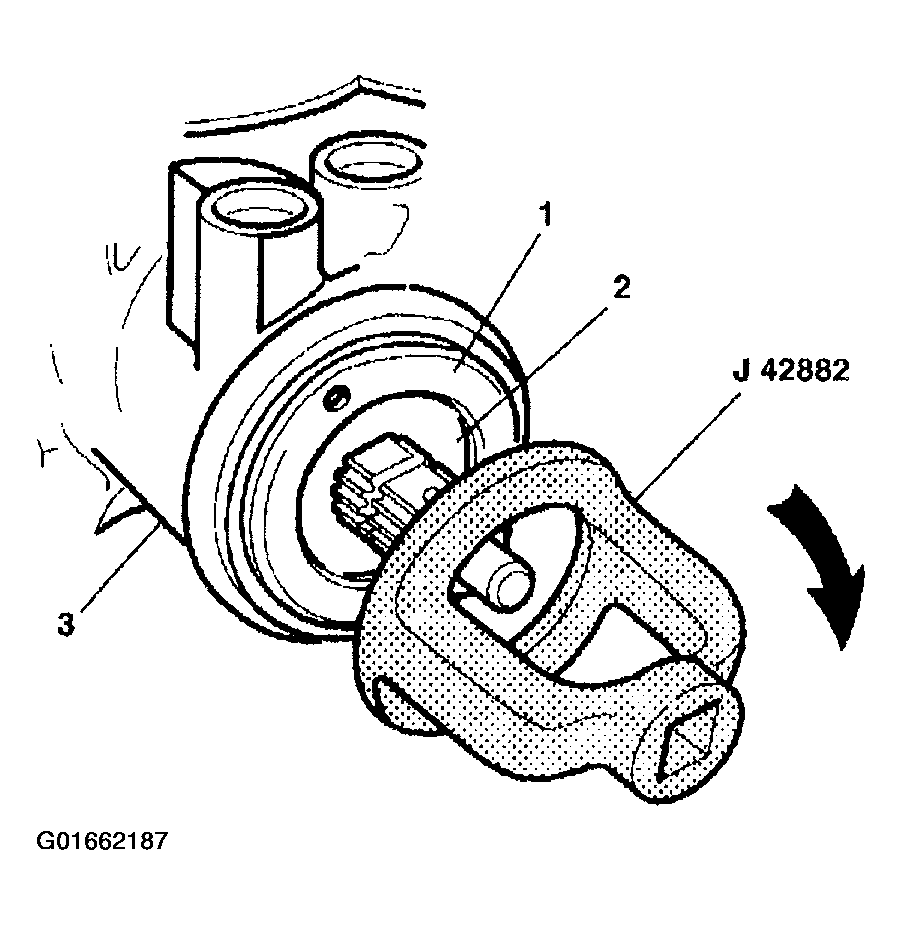

    Fig 2: Turning Adjuster Nut Assembly
    G01662187Courtesy of GENERAL MOTORS CORP.
  4. Place an index mark (1) on the steering gear housing (4) parallel with one of the holes (3) in the adjuster nut assembly (2).

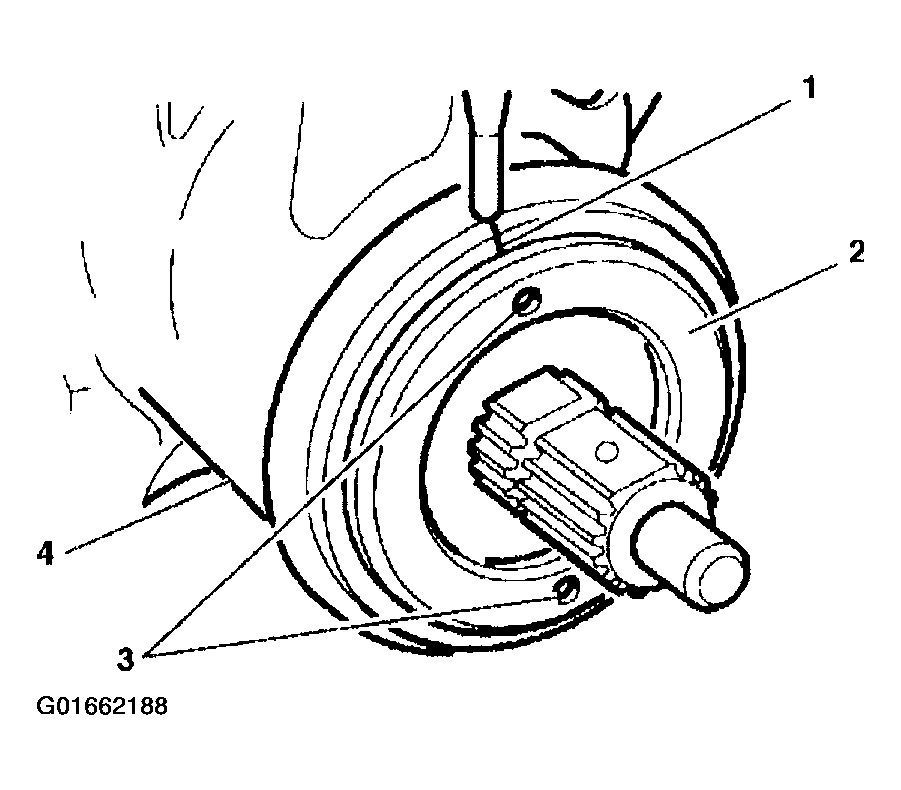

    Fig 3: Marking Steering Gear Housing (1 Of 2)
    G01662188Courtesy of GENERAL MOTORS CORP.
  5. Measure back counterclockwise 13 mm (1/2 in).
  6. Place a second mark (2) on the steering gear housing (1).

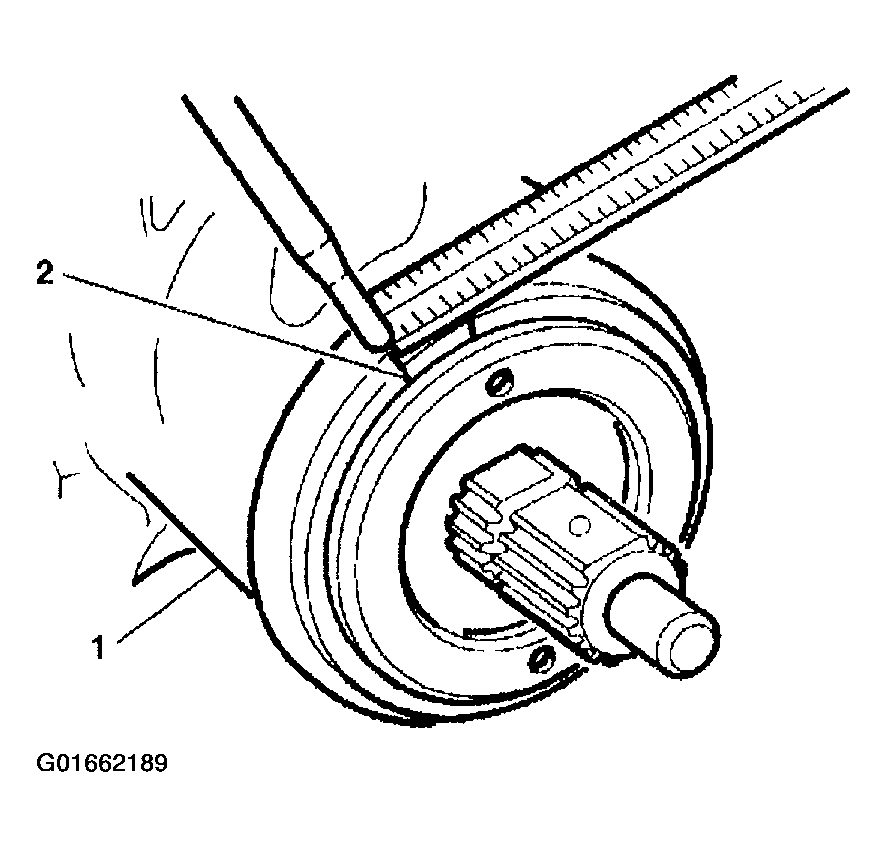

    Fig 4: Marking Steering Gear Housing (2 Of 2)
    G01662189Courtesy of GENERAL MOTORS CORP.
  7. Using J 42882  and a torque wrench, turn the adjuster nut assembly (1) counterclockwise 15-25 degrees to align the hole (2) in the adjuster nut assembly (1) with the second mark (4) on the steering gear housing (3).

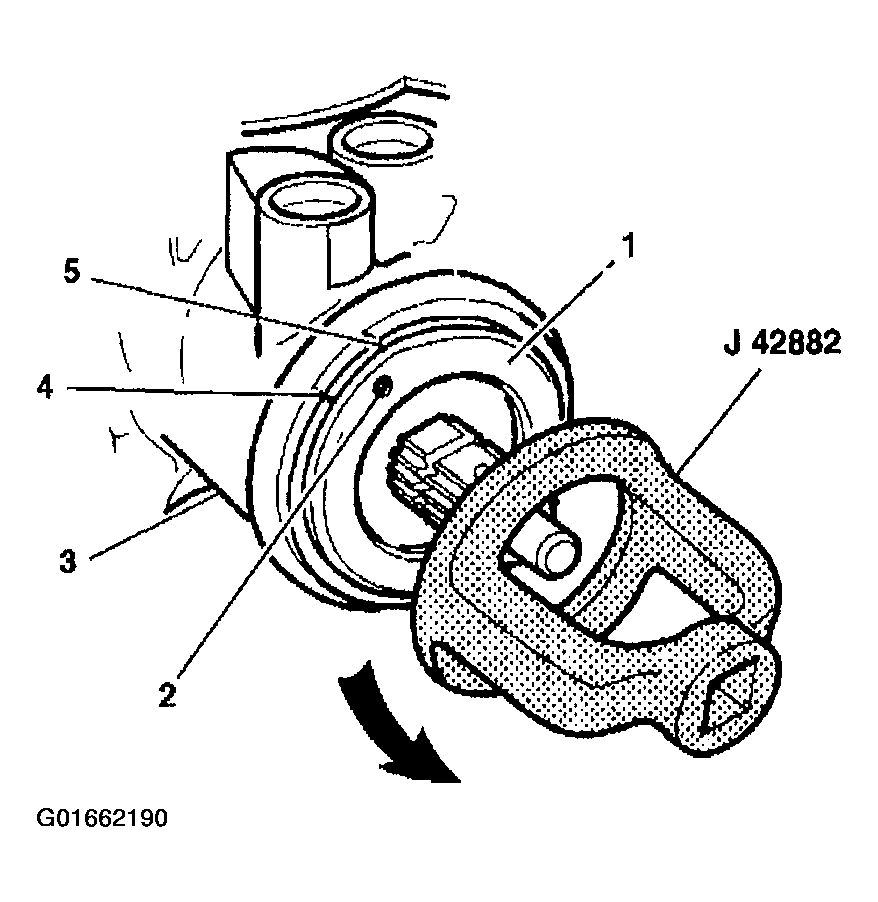

    Fig 5: Aligning Adjuster Nut Assembly Hole W/Second Mark
    G01662190Courtesy of GENERAL MOTORS CORP.
  8. Install the coupling shield retainer and the lock nut.
  9. Hold the adjuster nut assembly in position to maintain alignment of the marks.
  10. Tighten the coupling shield retainer and the lock nut using J 43435  and a torque wrench.

    Tighten

    Tighten the coupling shield retainer and the lock nut to 109 N.m (80 lb ft).

  11. To adjust the pitman shaft, refer to Pitman Shaft Over-Center Preload Adjustment - Off Vehicle .

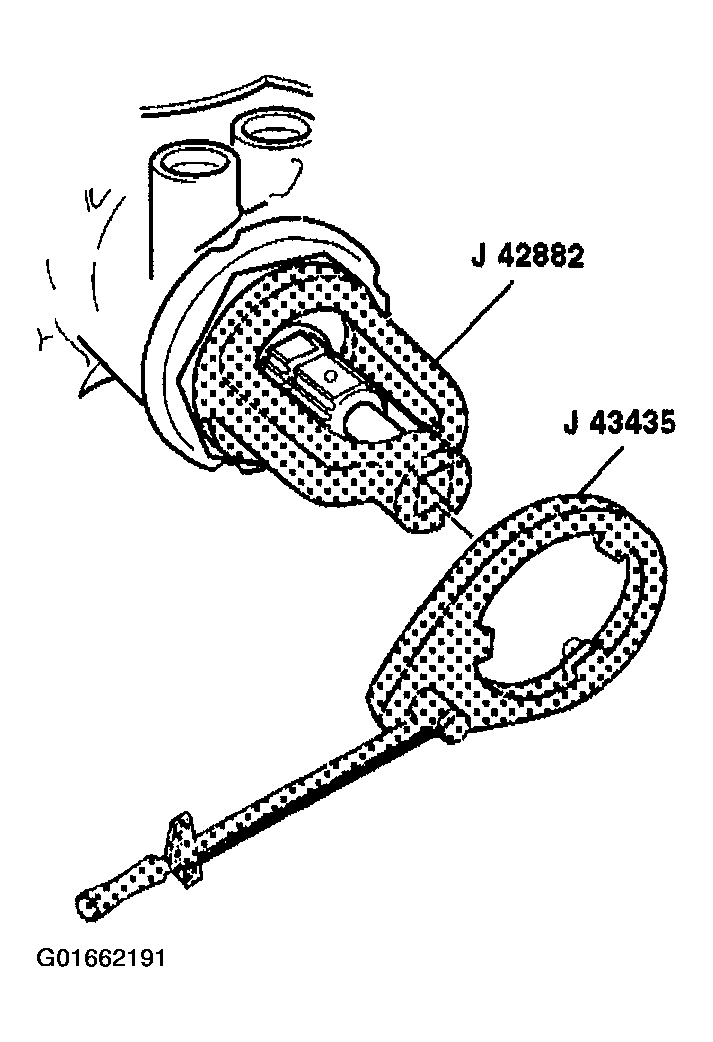

    Fig 6: Identifying J 42882 & J 43435
    G01662191Courtesy of GENERAL MOTORS CORP.
