Assembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grease the stub shaft seal with the special grease supplied with the new stub shaft housing.
  2. Install the new stub shaft housing O-rings (1) (2).
  3. Install the stub shaft housing (3) onto the steering gear.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the stub shaft housing bolts (4) into the stub shaft housing (34).

    Tighten

    Tighten the bolts to 55.0-70.0 N.m (40.5-51.6 lb ft).

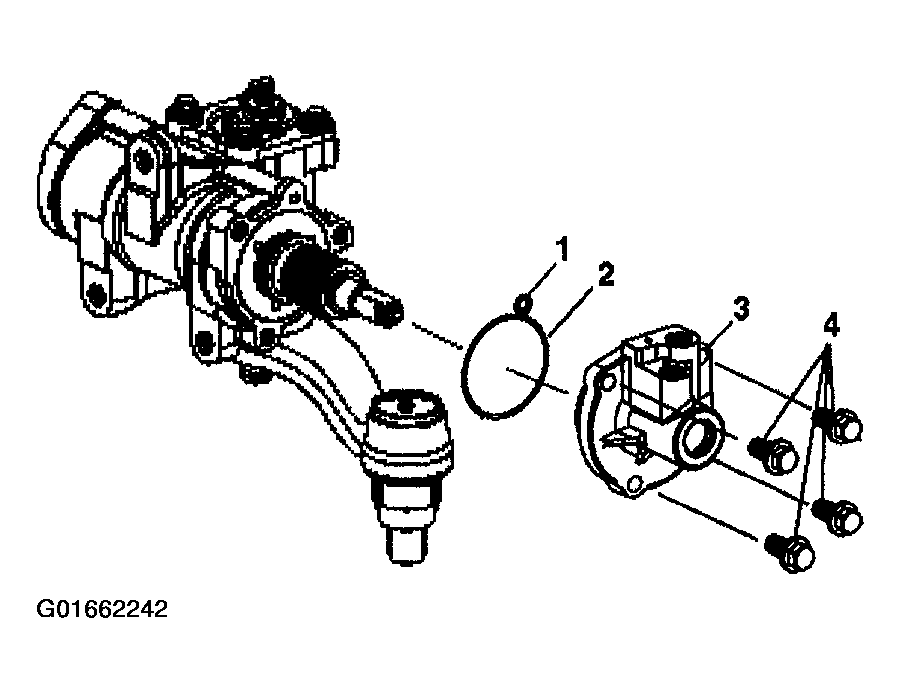

    Fig 1: Installing Stub Shaft Housing (680 Gear)
    G01662242Courtesy of GENERAL MOTORS CORP.
