Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the power steering fluid from the power steering pump.
  2. Remove the pump mounting studs (2).
  3. Remove the connector and fitting assembly (5). To remove the variable assist steering actuator (3) and retaining ring (4); refer to Power Steering Pump Flow Control Valve Actuator Replacement - On Vehicle .

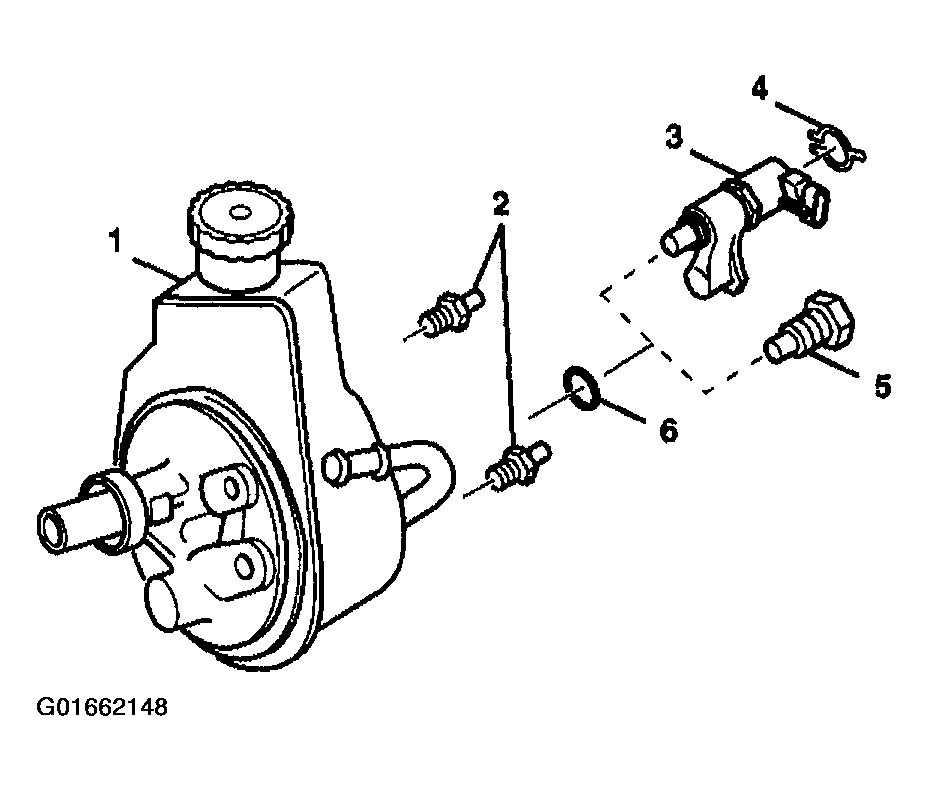

    Fig 1: Removing Power Steering Reservoir Components
    G01662148Courtesy of GENERAL MOTORS CORP.
  4. Remove the O-ring seal (6) from the connector and fitting assembly (4).
  5. If replacement is required, remove the control valve assembly and the flow control spring from the pump housing assembly; refer to Power Steering Pump Flow Control Valve Replacement - Off Vehicle (Regular) .
  6. Remove the reservoir assembly (1) from the pump housing assembly (2).

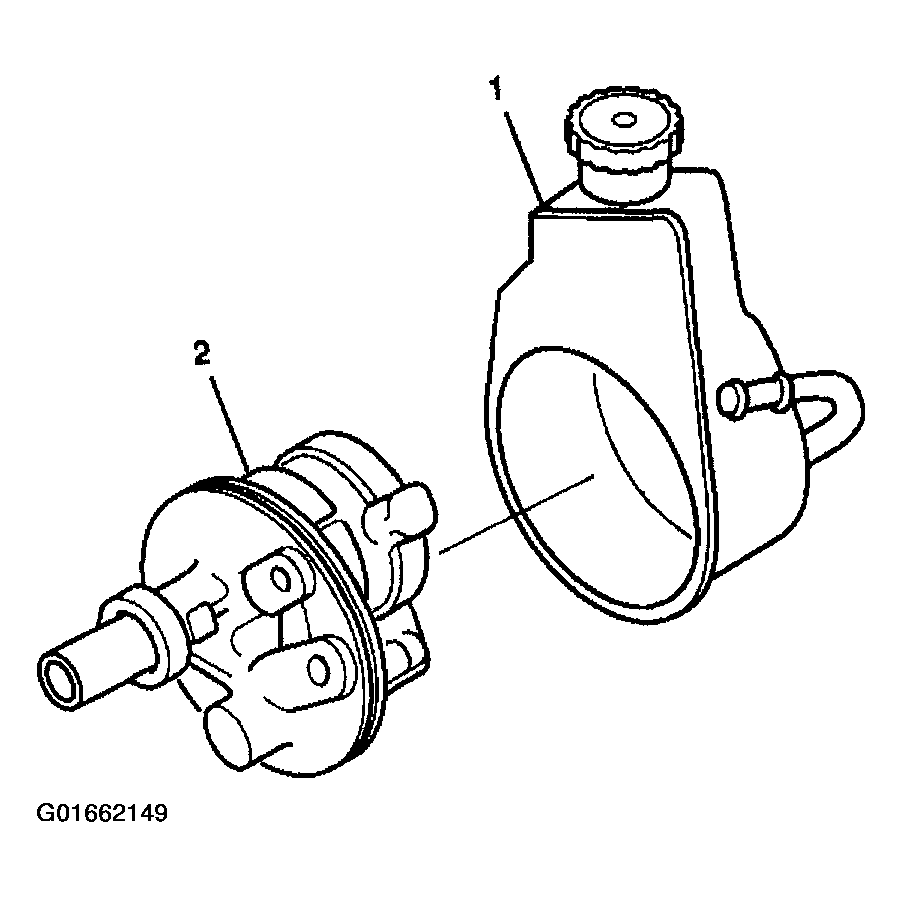

    Fig 2: Removing Power Steering Reservoir Assembly
    G01662149Courtesy of GENERAL MOTORS CORP.
  7. Remove the O-ring seals (1) (4).
  8. Remove the magnet (3).
  9. Clean the magnet (3).
  10. Inspect the welch plug in the power steering pump housing (2). Do not remove. If the welch plug is deformed or dislodged, replace the power steering pump housing (2).

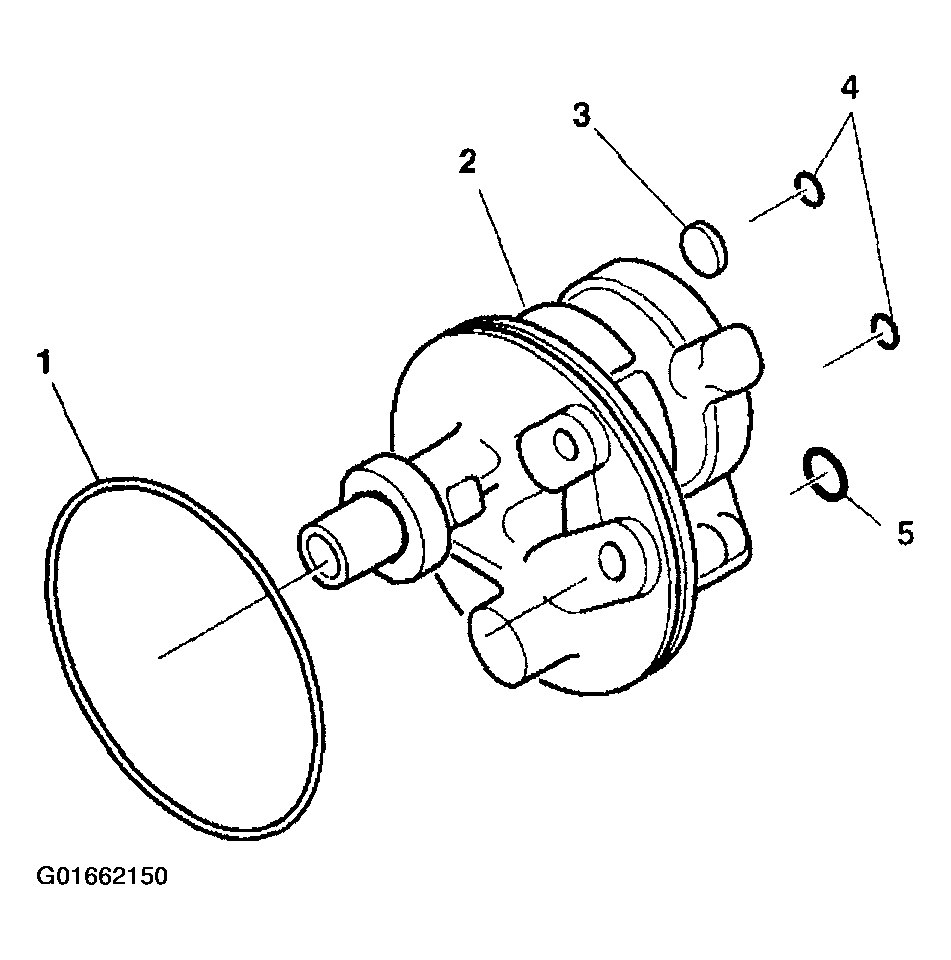

    Fig 3: Removing Power Steering Reservoir O-Ring Seals
    G01662150Courtesy of GENERAL MOTORS CORP.
