Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle.
  2. Remove the power steering pulley. Refer to Power Steering Pulley Replacement .
  3. Remove the nut (1) and clamp (3) retaining the filler neck (1) to the power steering pump, if equipped.

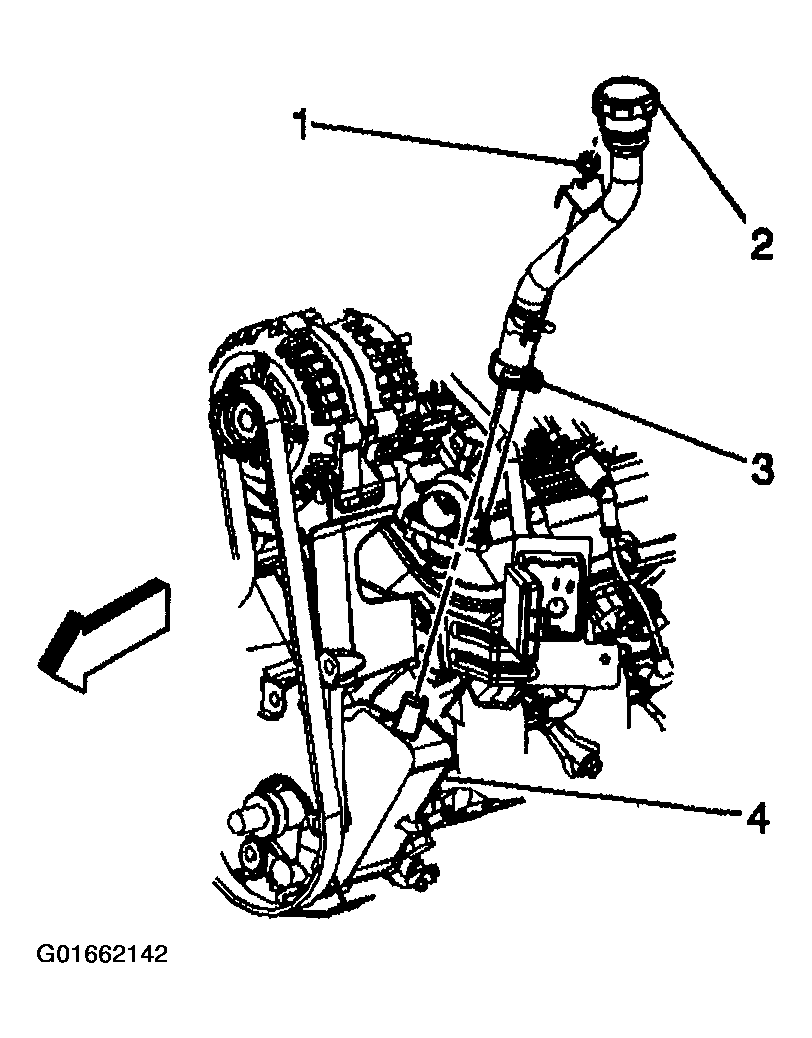

    Fig 1: Removing Power Steering Pump Filler Neck
    G01662142Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (2) from the front of the pump.
  5. Remove the bolts retaining the power steering mounting bracket.

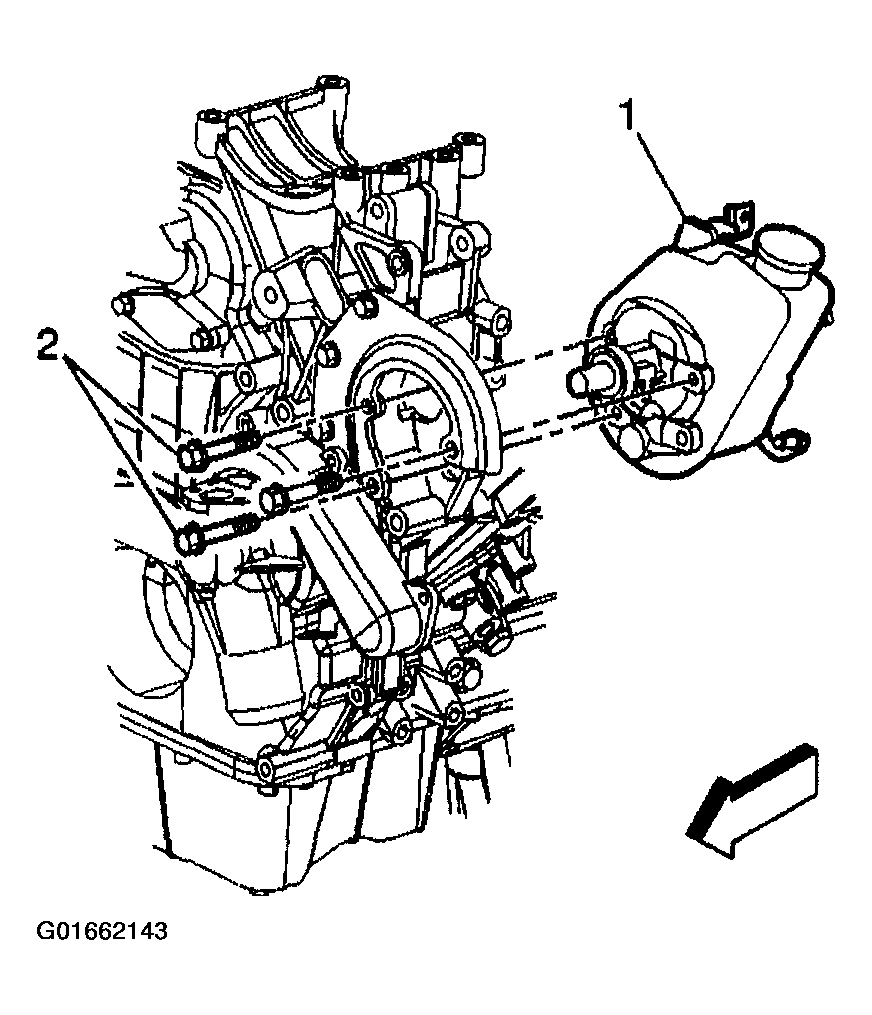

    Fig 2: Removing Power Steering Mounting Bracket
    G01662143Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts from the rear of the pump.
  7. Remove the hoses from the pump.
  8. For vehicles with variable effort steering, disconnect the electrical connector.
  9. Remove the pump from the vehicle.
  10. Remove the rear bracket from the power steering pump.

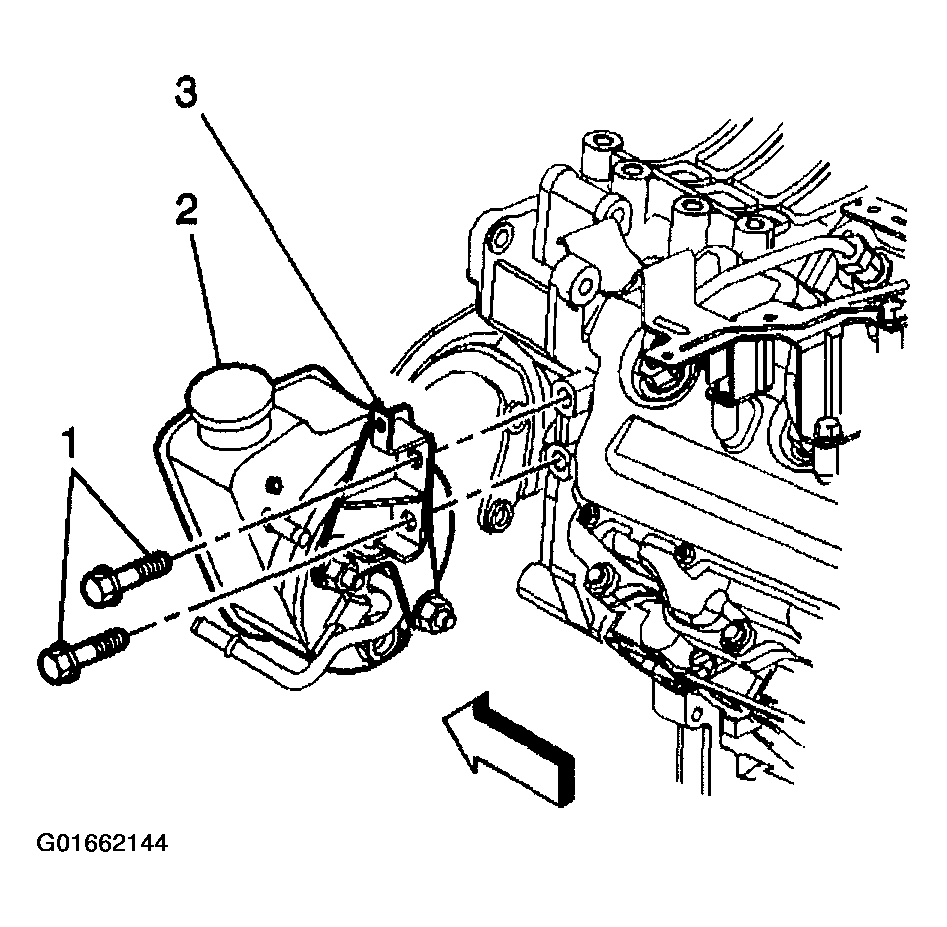

    Fig 3: Removing Power Steering Pump
    G01662144Courtesy of GENERAL MOTORS CORP.
