Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to FASTENER NOTICE .

Install the rear bracket to the power steering pump.
Tighten

Tighten the rear bracket retaining bolts to 50 N.m (37 lb ft).
Install the power steering pump to the vehicle.

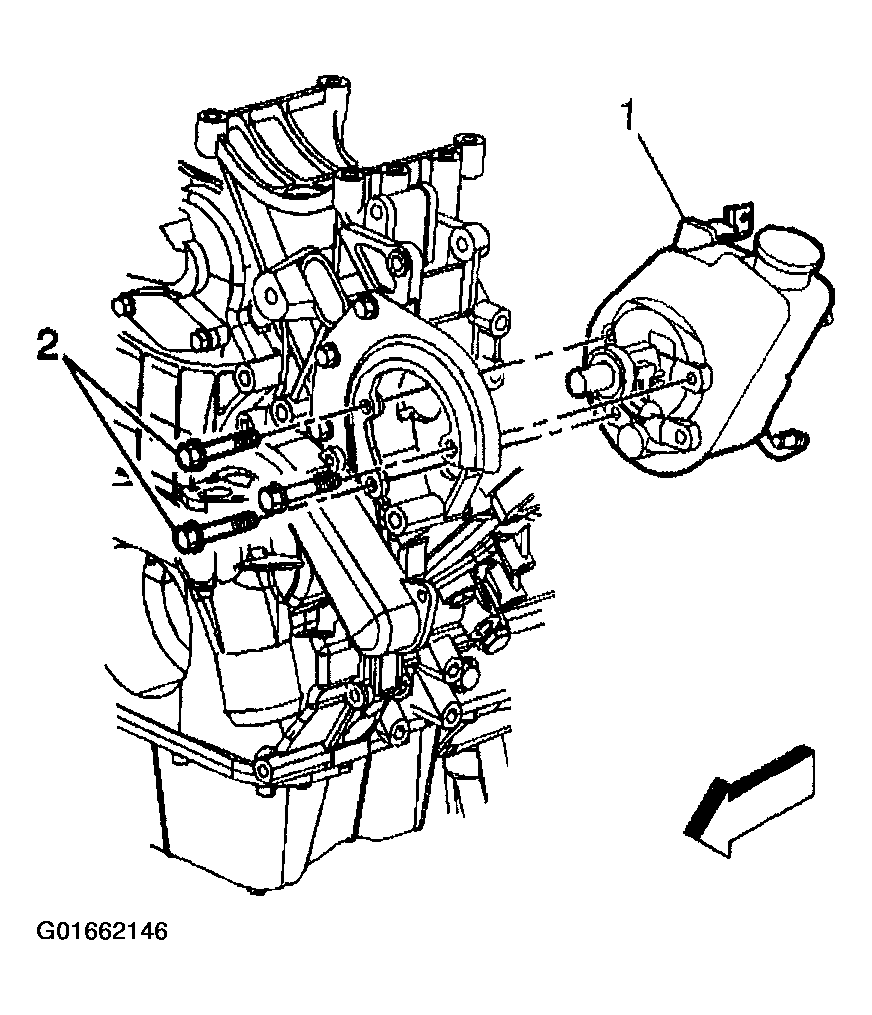

Fig 1: Installing Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

Install the hoses to the pump.
Tighten

Tighten the hose fitting to 28 N.m (20 lb ft).
For vehicles with variable effort steering, connect the electrical connector.
Install the bolts (1) to the rear of the power steering pump.
Tighten

Tighten the rear bolts to 50 N.m (37 lb ft).
Install the power steering pump mounting bracket.
Tighten

Tighten the mounting bracket bolts to 46 N.m (34 lb ft).
Install the power steering pump (1) to the bracket.
Install the bolts (2) to the front of the pump.
Tighten

Tighten the power steering pump retaining bolts to 50 N.m (37 lb ft).

Fig 2: Installing Power Steering Pump Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Install the filler neck to the power steering pump.
Install the nut (1) and clamp (3) retaining the filler neck to the power steering pump.
Tighten

Tighten the filler neck retaining nut to 25 N.m (18 lb ft).

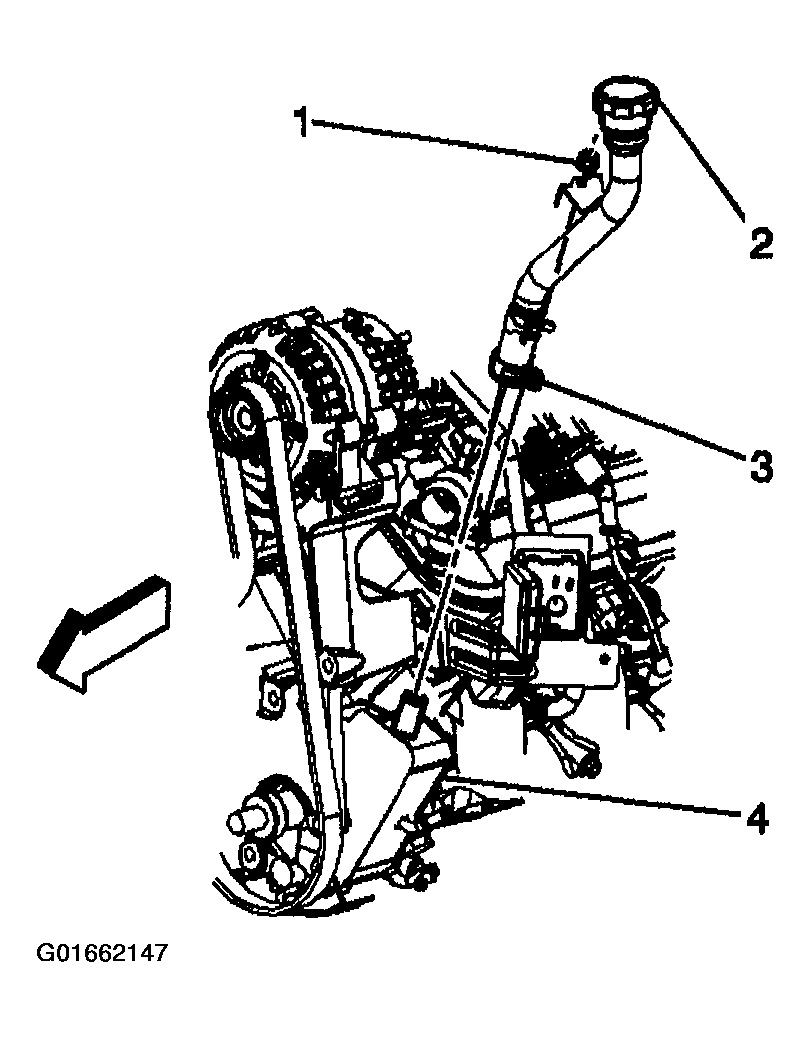

Fig 3: Installing Power Steering Pump Filler Neck

Courtesy of GENERAL MOTORS CORP.

Fill and bleed the power steering system. Refer to Bleeding the Power Steering System .
