Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper fan shroud. Refer to FAN SHROUD REPLACEMENT -- UPPER (W/O M74) or FAN SHROUD REPLACEMENT -- UPPER (W/M74) .
  2. Remove the drive belt. For 4.8L, 5.3, and 6.0L engines, refer to DRIVE BELT REPLACEMENT -- ACCESSORY or for 8.1L engines, refer to DRIVE BELT REPLACEMENT -- ACCESSORY .
  3. Remove the power steering pump pulley using the J 25034-C  .

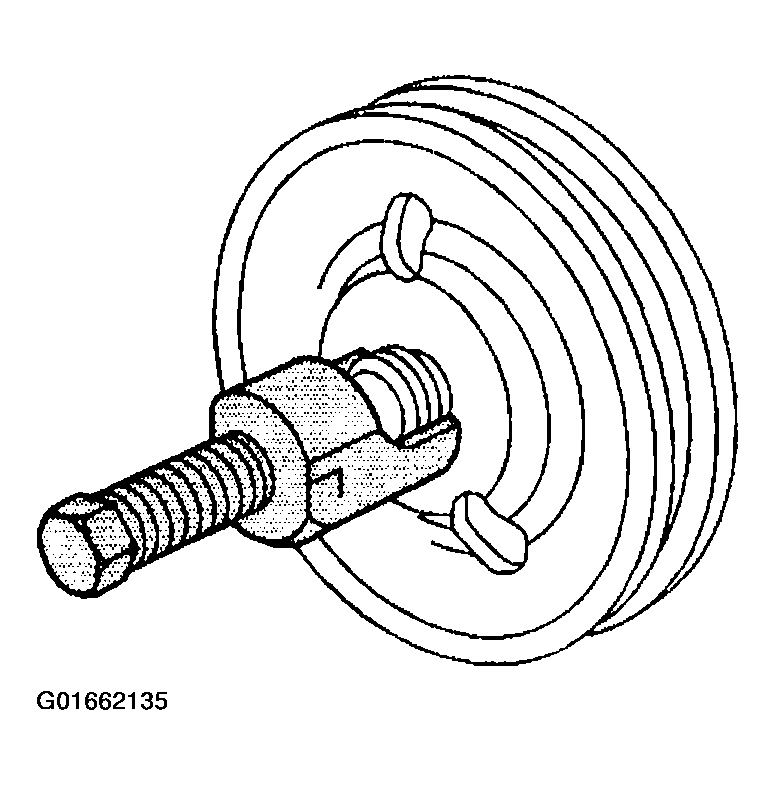

    Fig 1: Removing Power Steering Pulley
    G01662135Courtesy of GENERAL MOTORS CORP.
