Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Remove the hoses from the steering gear.
  2. Disconnect the intermediate shaft from the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT - LOWER .
  3. Raise the vehicle. Support the vehicle with suitable safety stands. Refer to LIFTING AND JACKING THE VEHICLE .
  4. Remove the engine protection shield, if equipped.
  5. Remove the pitman arm from the steering gear. Refer to PITMAN ARM REPLACEMENT (RWD) or PITMAN ARM REPLACEMENT (4WD) .
  6. Remove the bolts retaining the steering gear to the frame.
  7. Remove the steering gear from the vehicle.

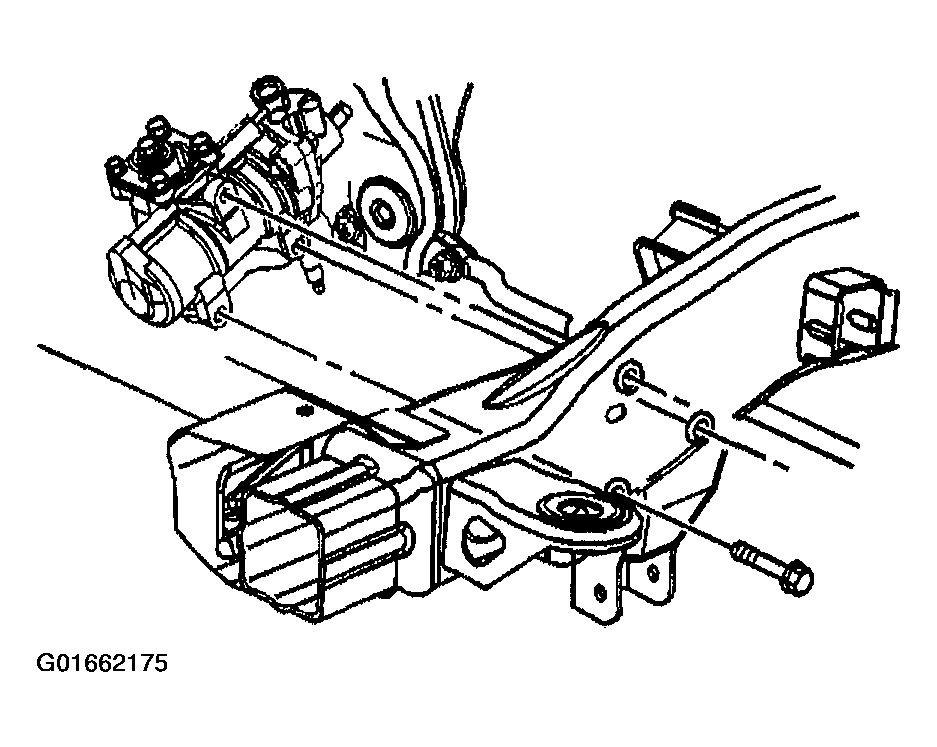

    Fig 1: Removing Power Steering Gear
    G01662175Courtesy of GENERAL MOTORS CORP.
