Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear outlet hose (3) from the steering gear (2).
  3. Remove the clamp retaining the power steering gear outlet hose (3) to the power steering pump (1).

    Remove the power steering gear outlet hose from the power steering pump.

  4. Remove the power steering gear outlet hose from the vehicle.

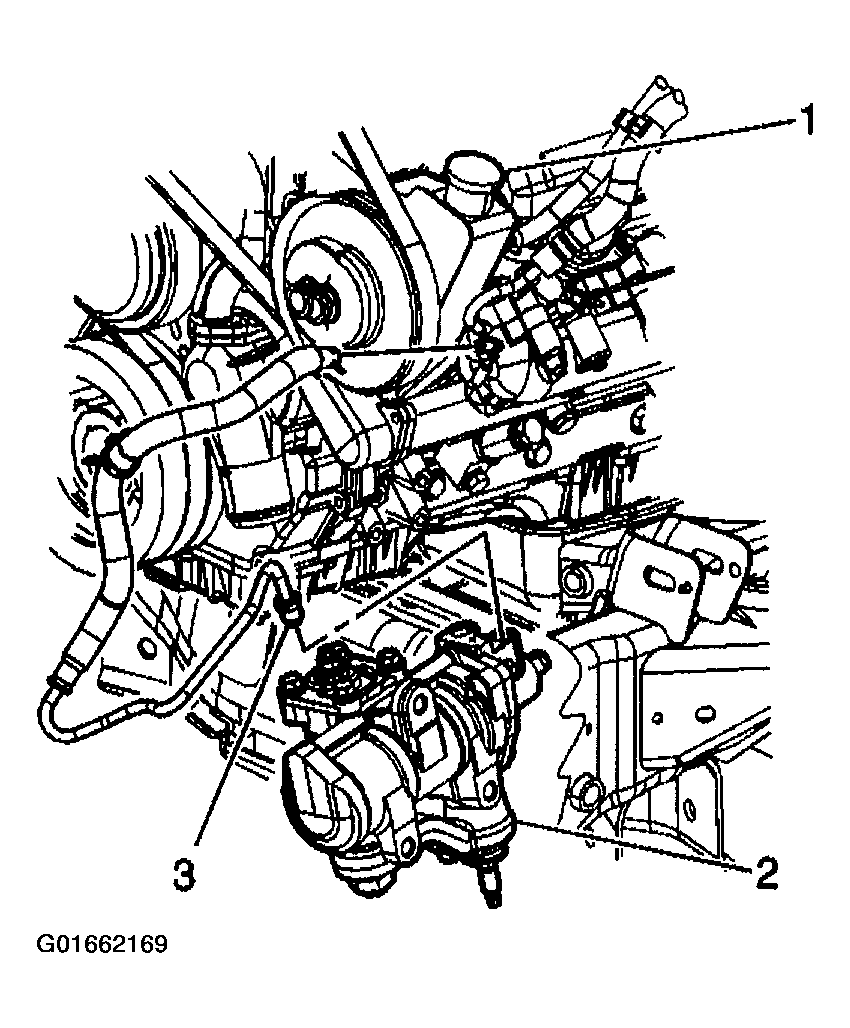

    Fig 1: Removing Power Steering Gear Outlet Hose
    G01662169Courtesy of GENERAL MOTORS CORP.
