Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the engine protection shield.
    CAUTION: Refer to POWER STEERING HOSE DISCONNECTED NOTICE .
  3. Install a drain pan under the vehicle.
  4. Remove the power steering gear inlet hose (3) from the power steering pump (1).
  5. Remove the power steering gear inlet hose from the power steering gear.
  6. Remove the power steering gear inlet hose from the vehicle.

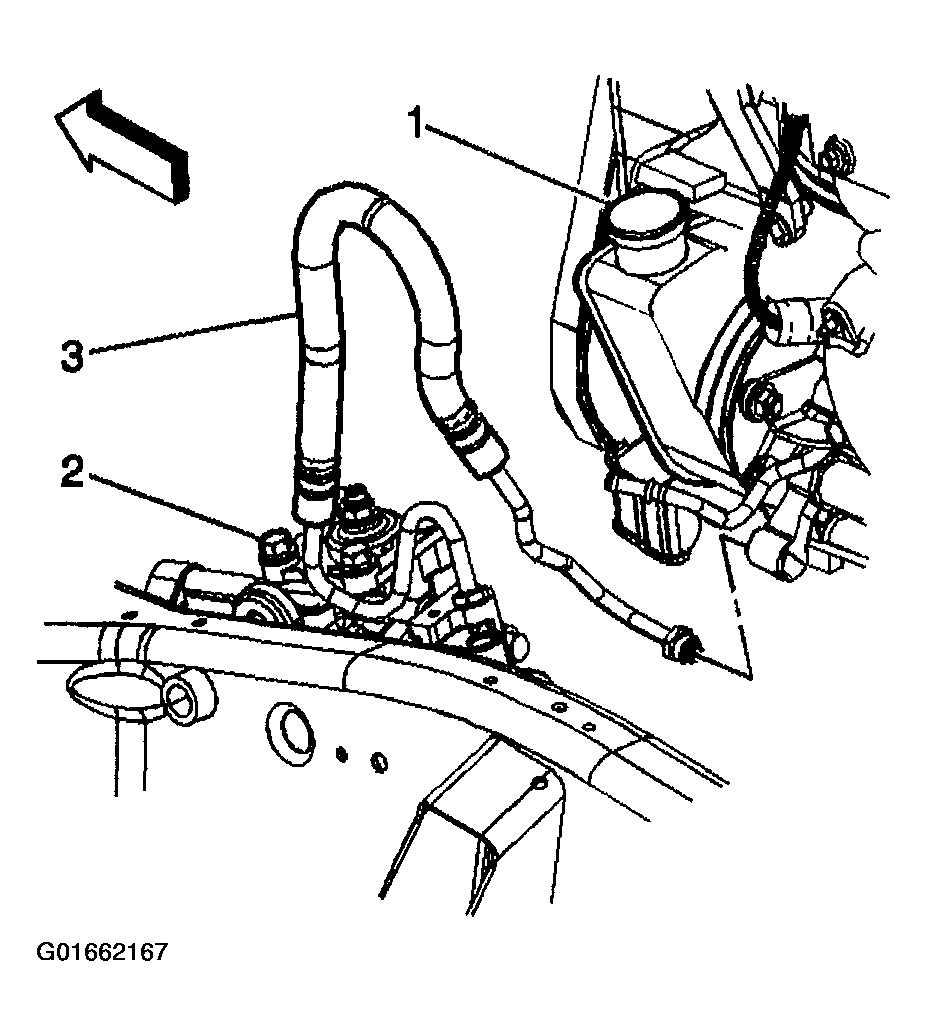

    Fig 1: Removing Power Steering Gear Inlet Hose
    G01662167Courtesy of GENERAL MOTORS CORP.
