Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the power steering gear inlet hose (3) to the power steering pump (1).
    CAUTION: Refer to FASTENER NOTICE .

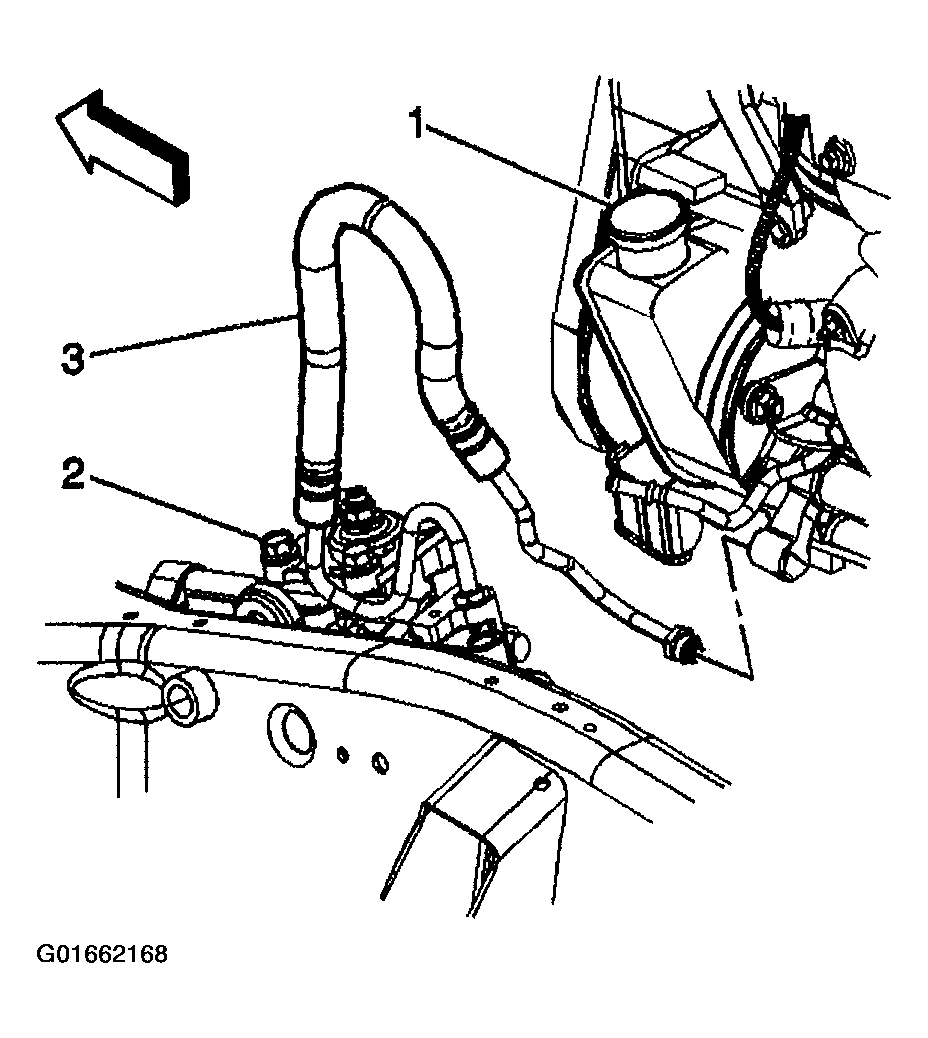

    3. Fig 1: Installing Power Steering Gear Inlet Hose
    G01662168Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering gear inlet hose to the power steering gear.

    Tighten

    Tighten the power steering gear inlet hose fittings to 28 N.m (20 lb ft).

  4. Remove the drain pan from under the vehicle.
  5. Install the engine protection shield.
  6. Lower the vehicle.
  7. Bleed the power steering system. Refer to Bleeding the Power Steering System .
