Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a drain pan under the vehicle.
  2. Remove the power steering gear inlet hose (1) from the brake booster.
  3. Remove the power steering gear inlet hose from the power steering gear.
  4. Remove the power steering gear inlet hose from the vehicle.

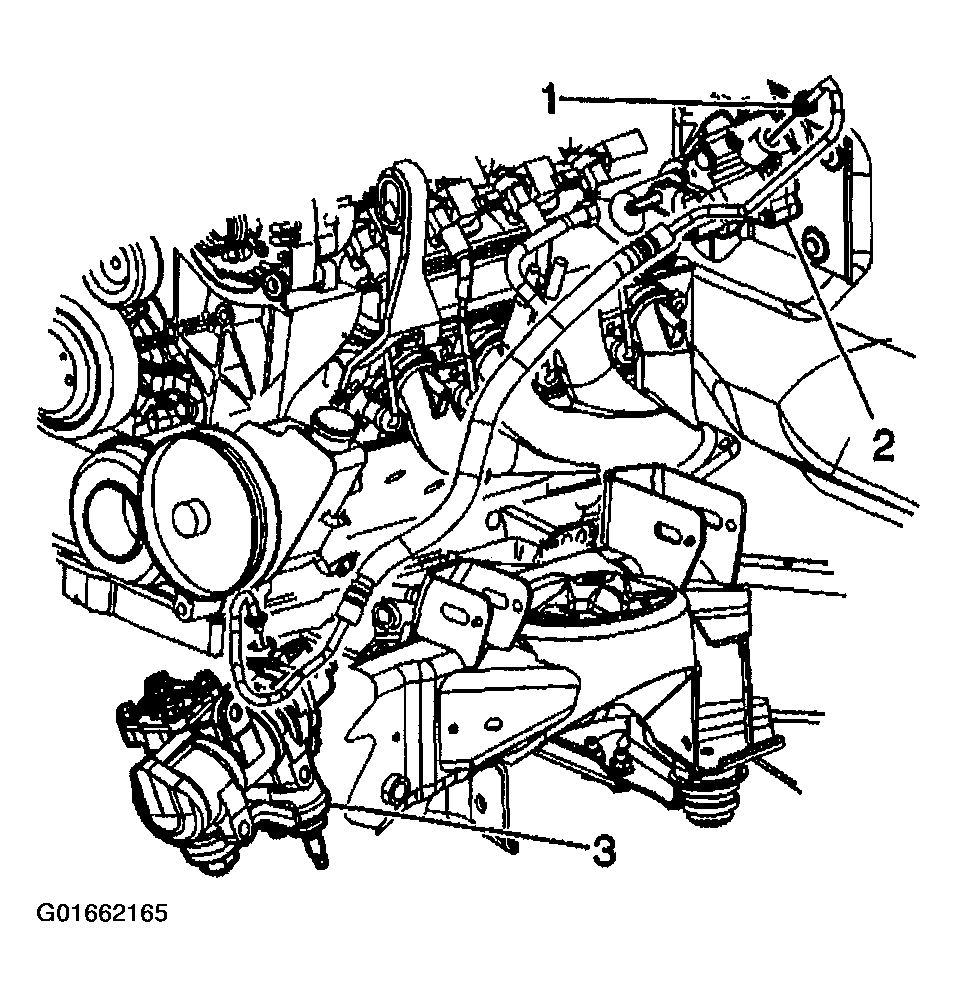

    Fig 1: Removing Power Steering Gear Inlet Hose
    G01662165Courtesy of GENERAL MOTORS CORP.
