Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to FASTENER NOTICE .
  1. Install the power steering cooler (1) to the vehicle.

    Tighten

    Tighten the power steering cooler retaining bolts to 5 N.m (44 lb in).

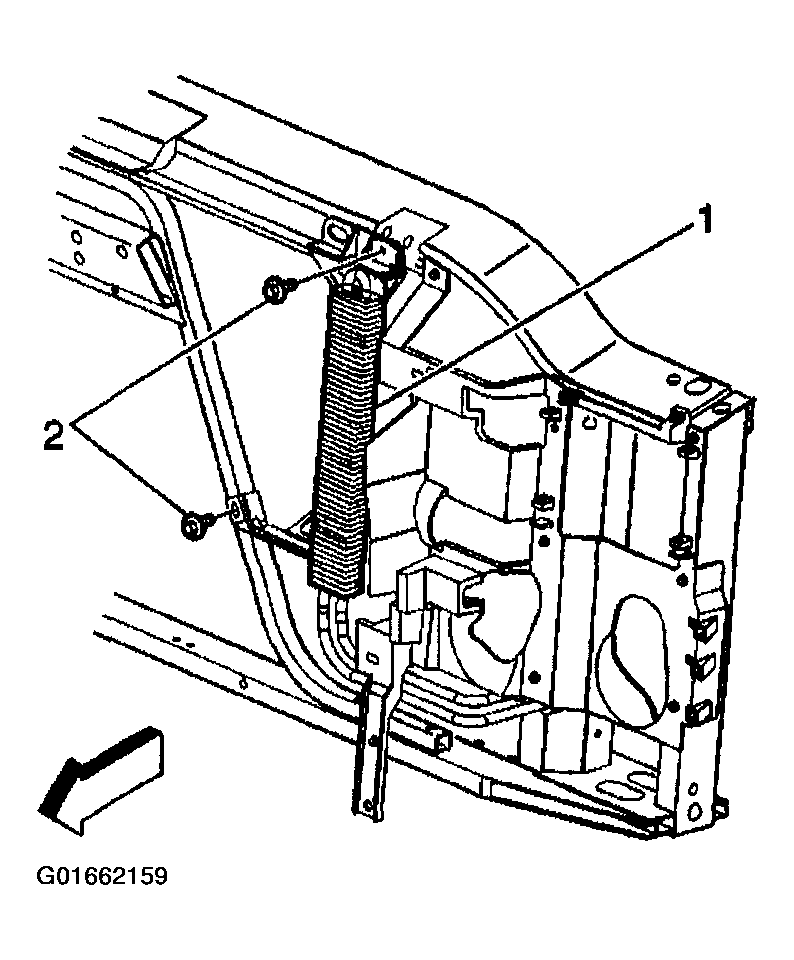

    Fig 1: Installing Power Steering Cooler
    G01662159Courtesy of GENERAL MOTORS CORP.
  2. Connect the power steering outlet hose (3) to the power steering gear (4).

    Install the retaining clamp.

  3. Connect the power steering inlet hose to the power steering pump.

    Install the retaining clamp.

  4. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  5. Inspect all the hose connections for leaks.
  6. Install the front grille. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) .

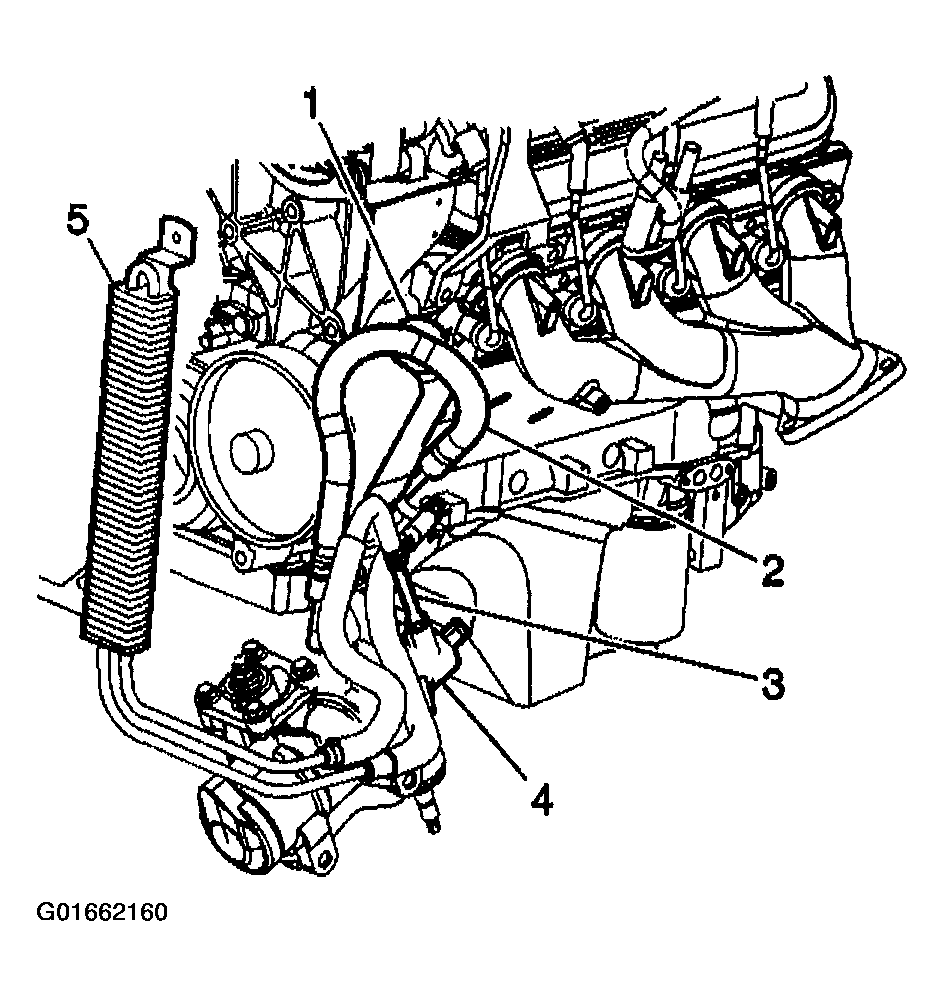

    Fig 2: Installing Power Steering Cooler Pipe/Hose
    G01662160Courtesy of GENERAL MOTORS CORP.
