Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE .
  1. Route the hose in the same position the hose occupied prior to removal.
  2. Install the brake booster inlet hose (1) to the brake booster (2).
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the brake booster inlet hose to the power steering pump.

    Tighten

    Tighten the brake booster inlet hose fittings to 27 N.m (20 lb ft).

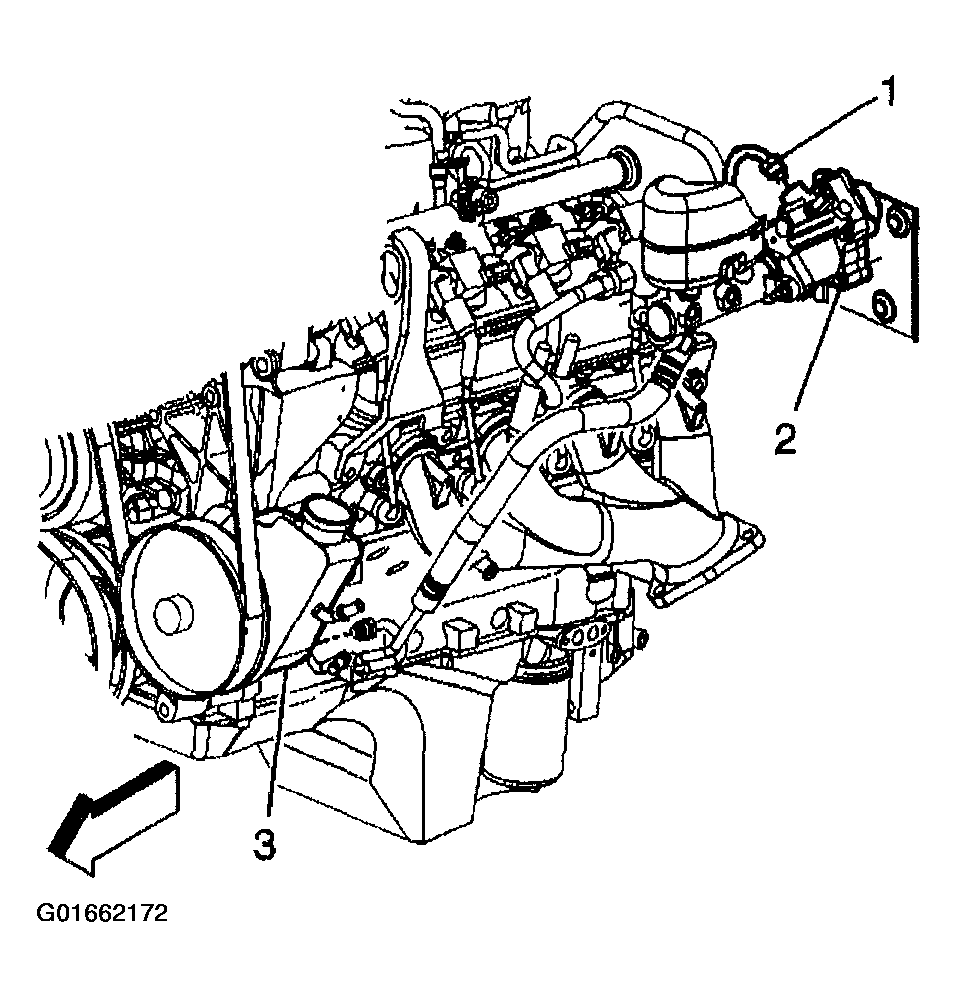

    4. Fig 1: Installing Brake Booster Inlet Hose
    G01662172Courtesy of GENERAL MOTORS CORP.
  4. Remove the drain pan from under the vehicle.
  5. Bleed the power steering system. Refer to Bleeding the Power Steering System .
