Special Tools and Equipment

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

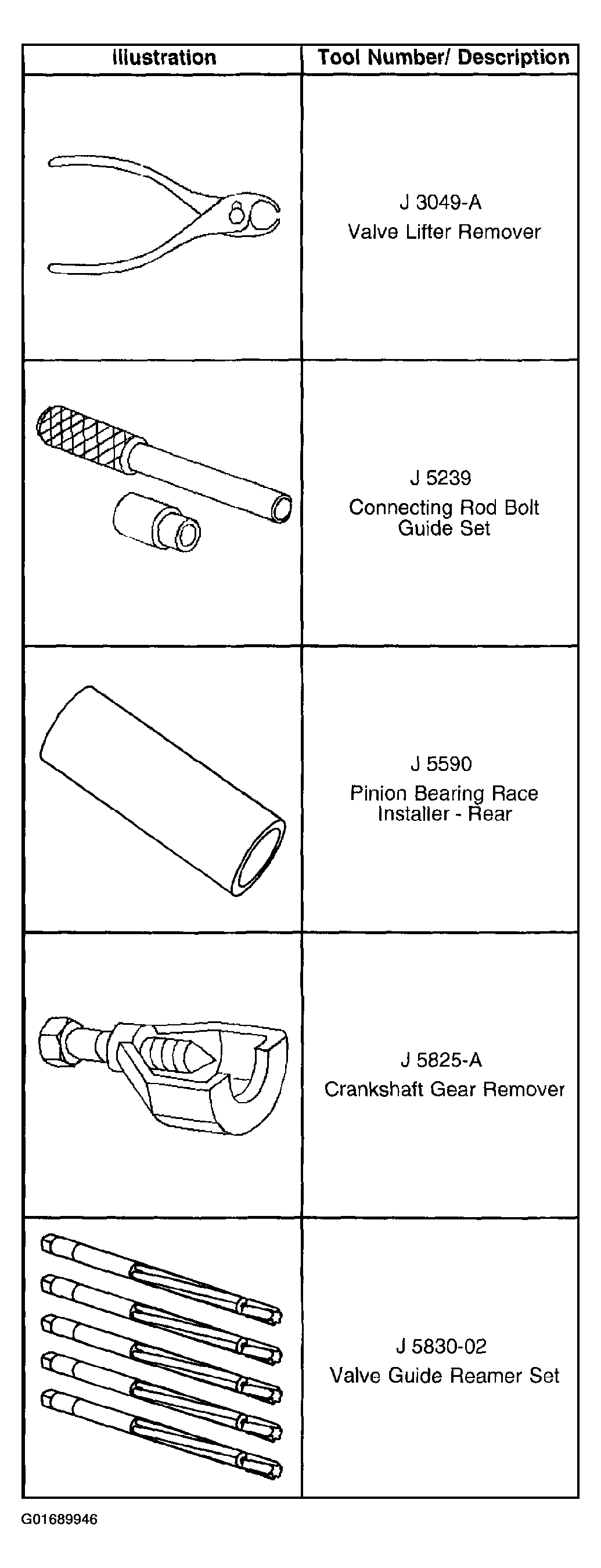

Fig 1: Special Tools J 3049-A - J 5830-02

Courtesy of GENERAL MOTORS CORP.

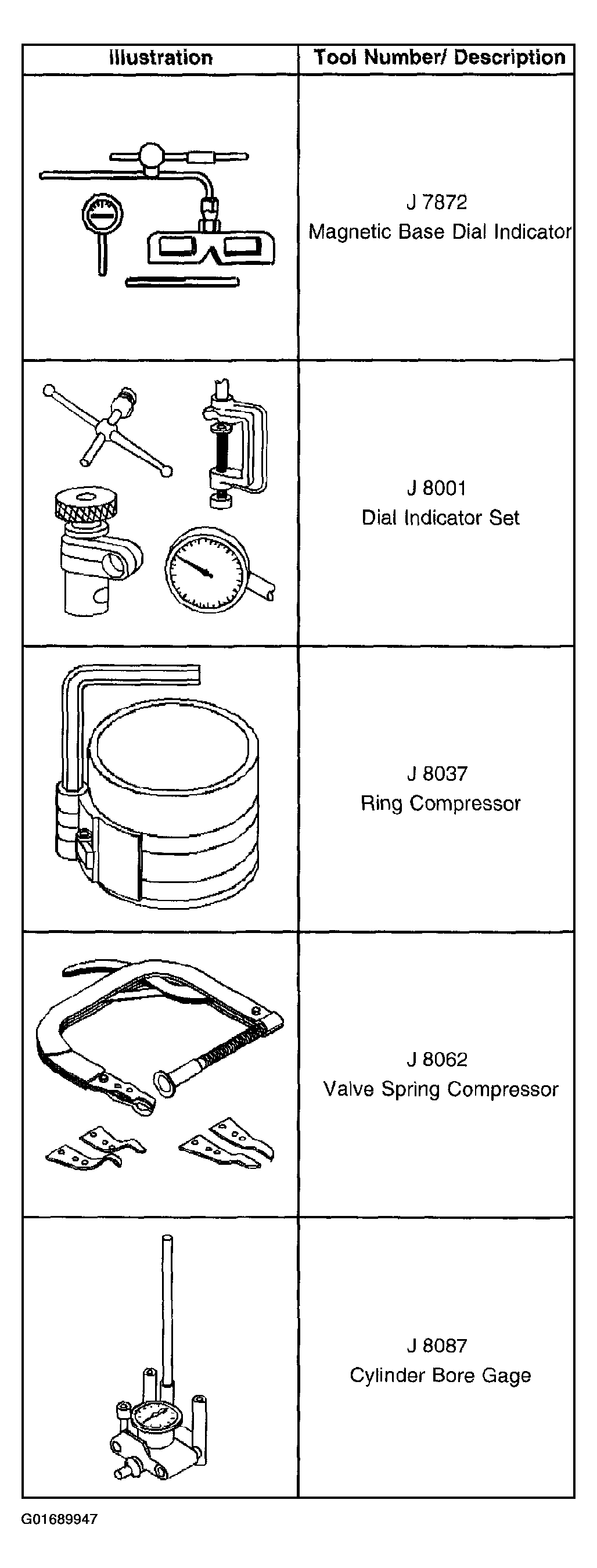

Fig 2: Special Tools J 7872 - J 8087

Courtesy of GENERAL MOTORS CORP.

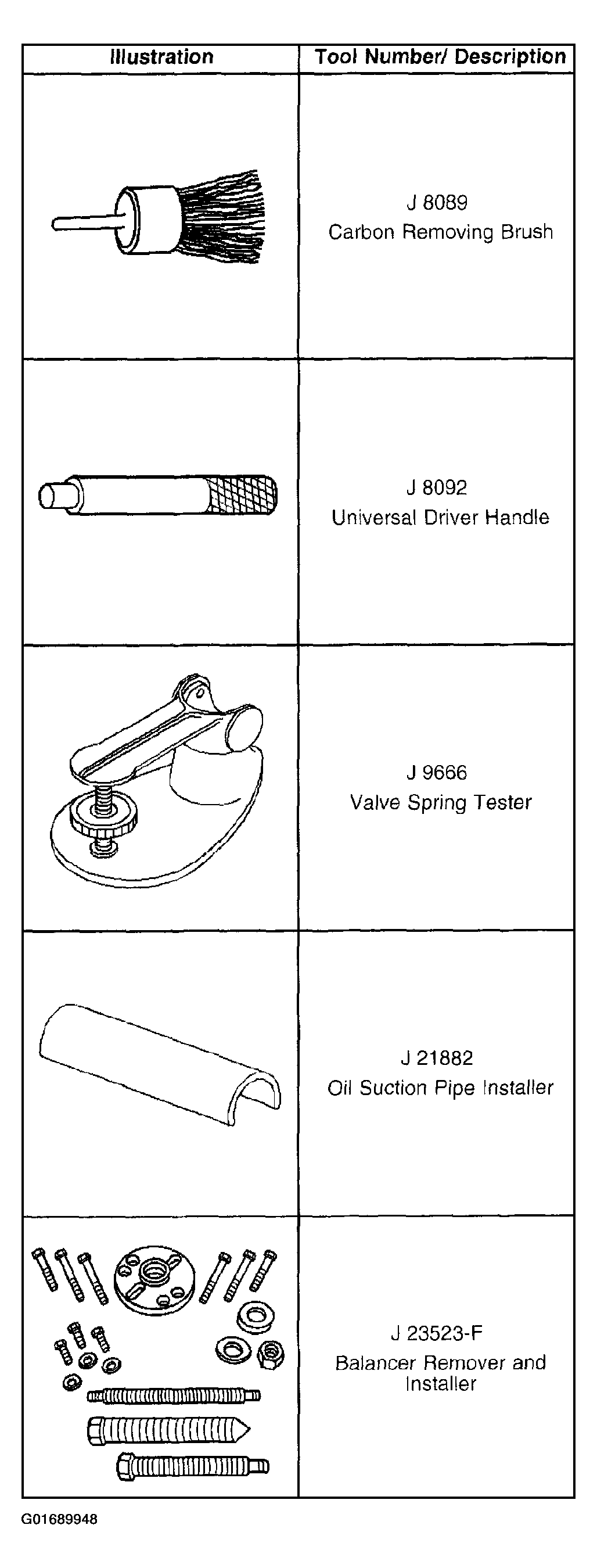

Fig 3: Special Tools J 8089 - J 23523-F

Courtesy of GENERAL MOTORS CORP.

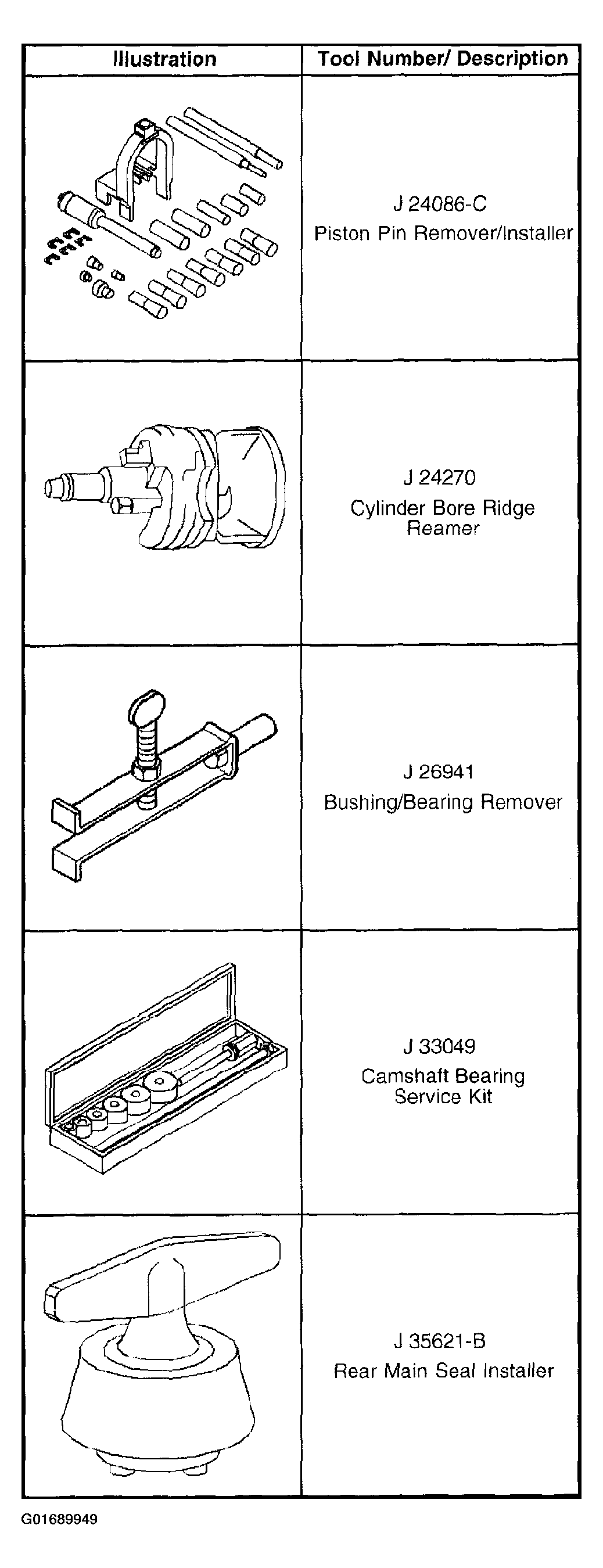

Fig 4: Special Tools J 24086-C - J 35621-B

Courtesy of GENERAL MOTORS CORP.

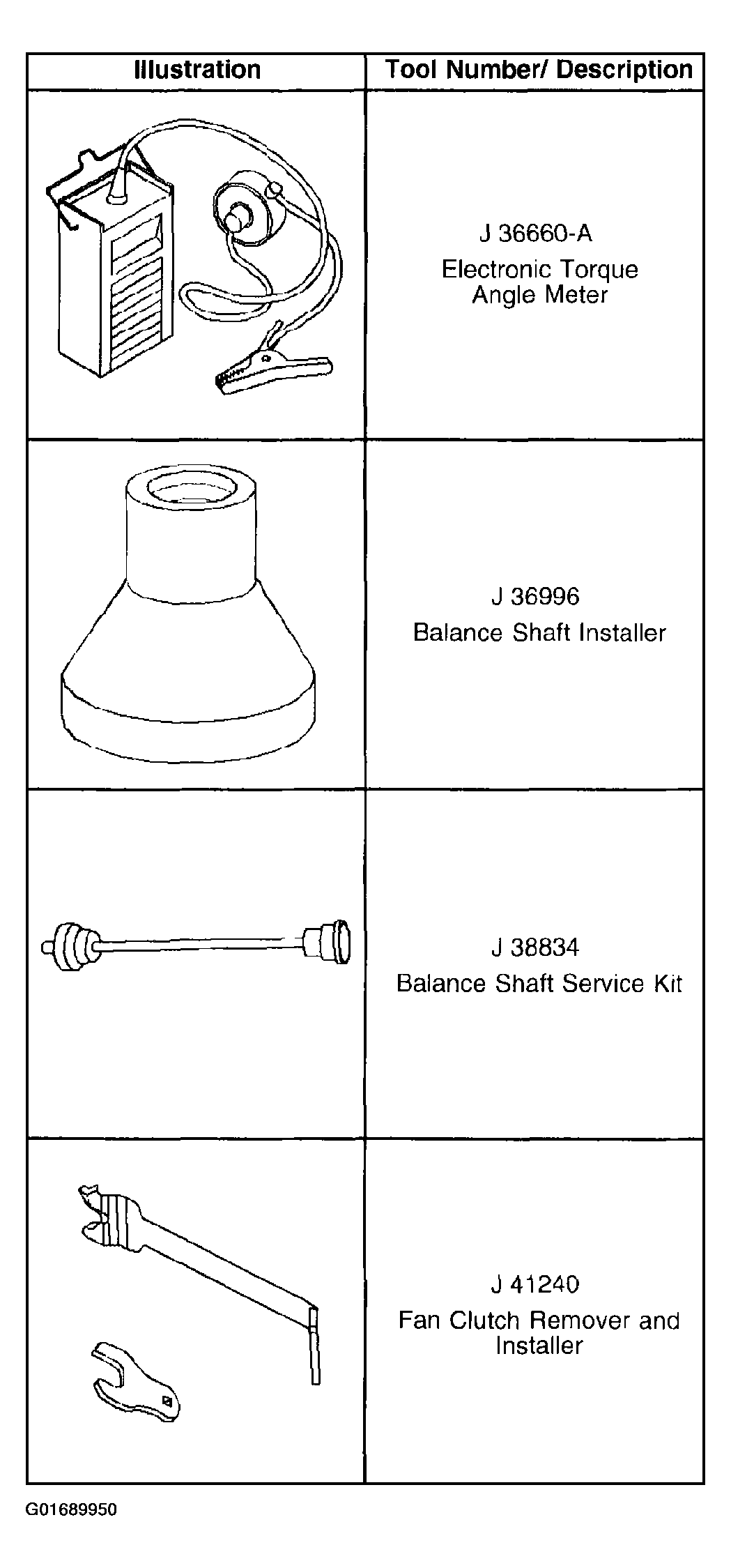

Fig 5: Special Tools J 36660-A - J 41240

Courtesy of GENERAL MOTORS CORP.

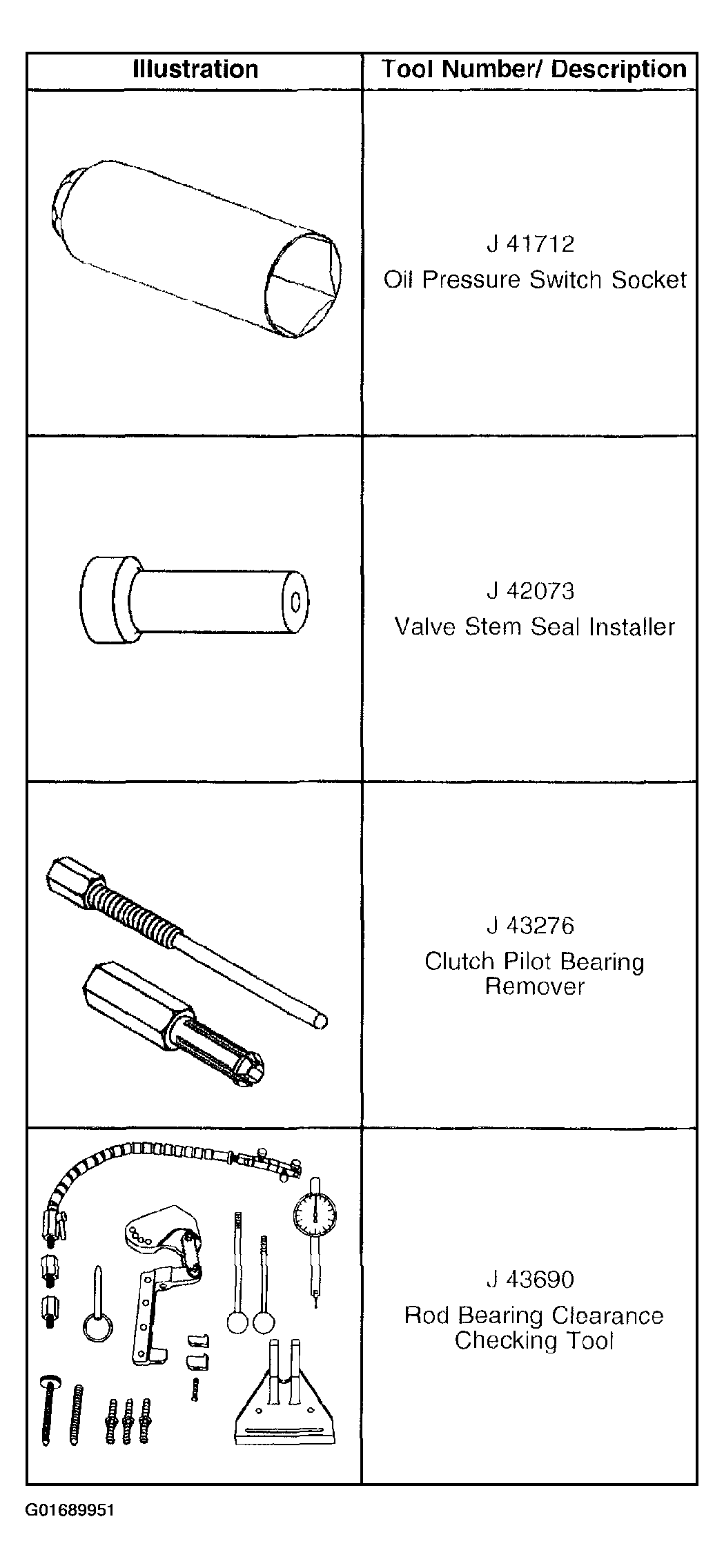

Fig 6: Special Tools J 41712 - J 43690

Courtesy of GENERAL MOTORS CORP.
