Water Pump Removal

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41240  Fan Clutch Remover and Installer

  1. Remove the bolts and the fan and water pump pulley using the J 41240  .

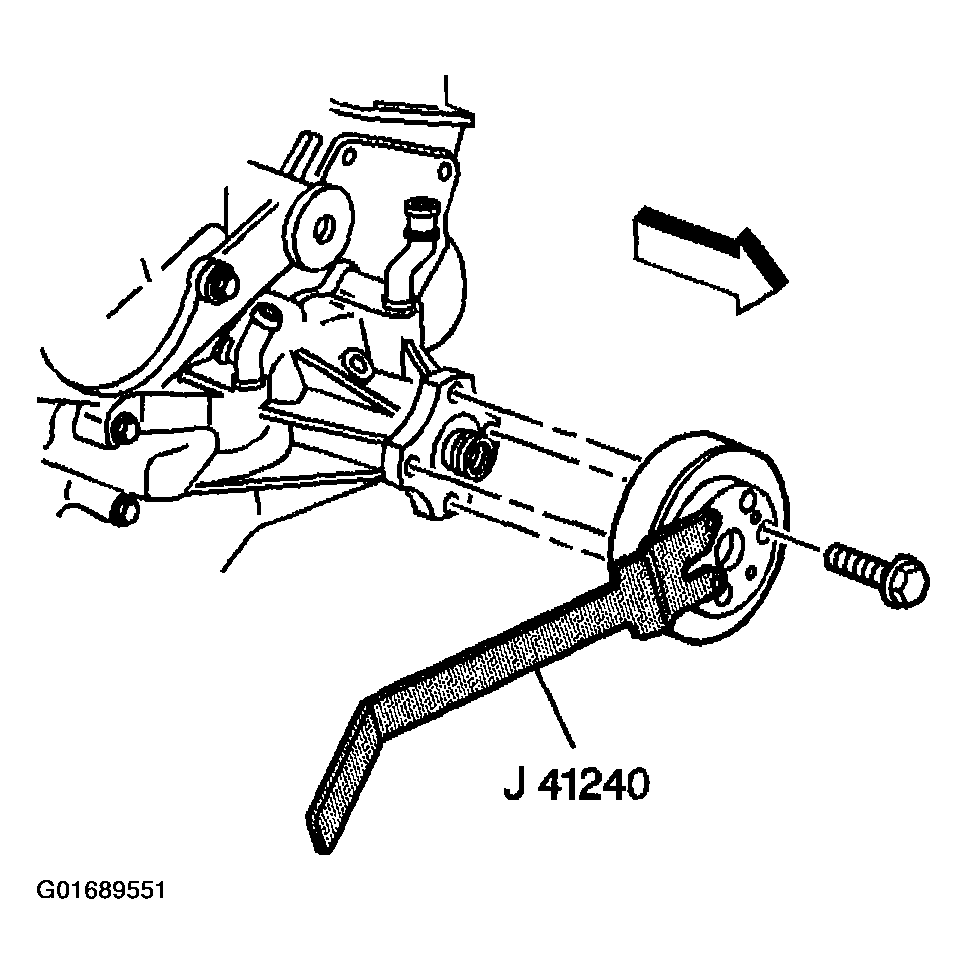

    Fig 1: J 41240
    G01689551Courtesy of GENERAL MOTORS CORP.
  2. Remove the clamps and the water pump inlet hose.

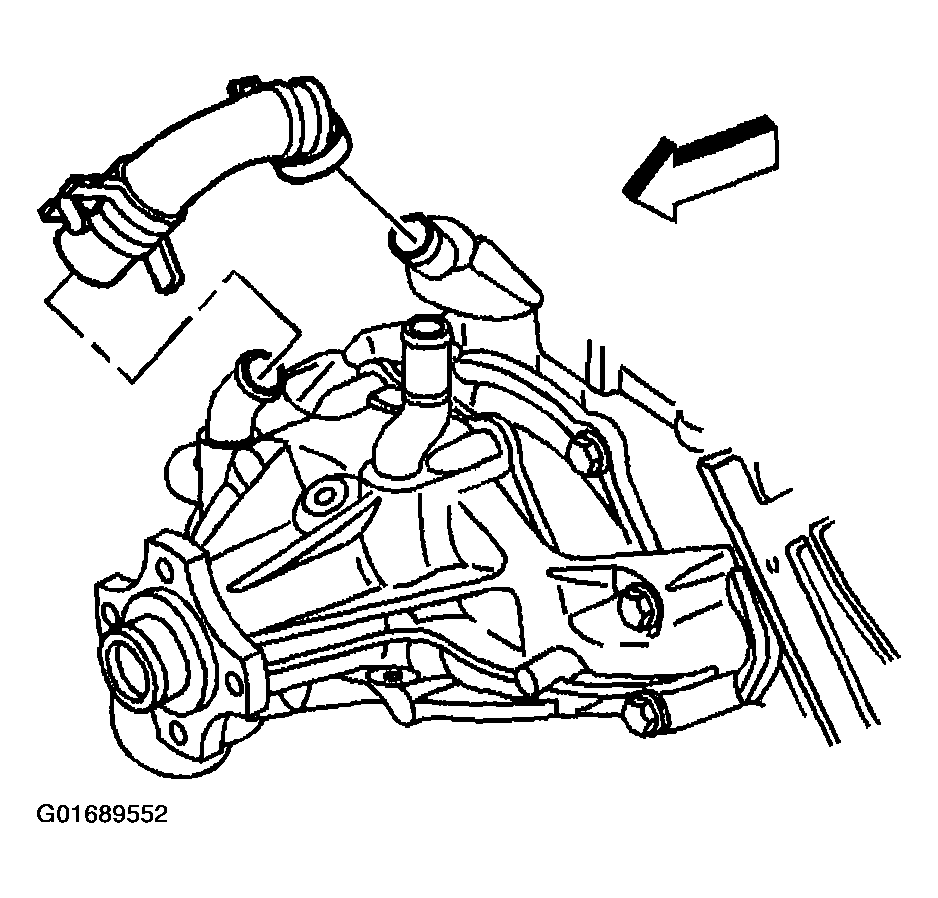

    Fig 2: Water Pump Inlet Hose
    G01689552Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump bolts.
  4. Remove the water pump.
  5. Remove the water pump gaskets.
  6. Discard the water pump gaskets.

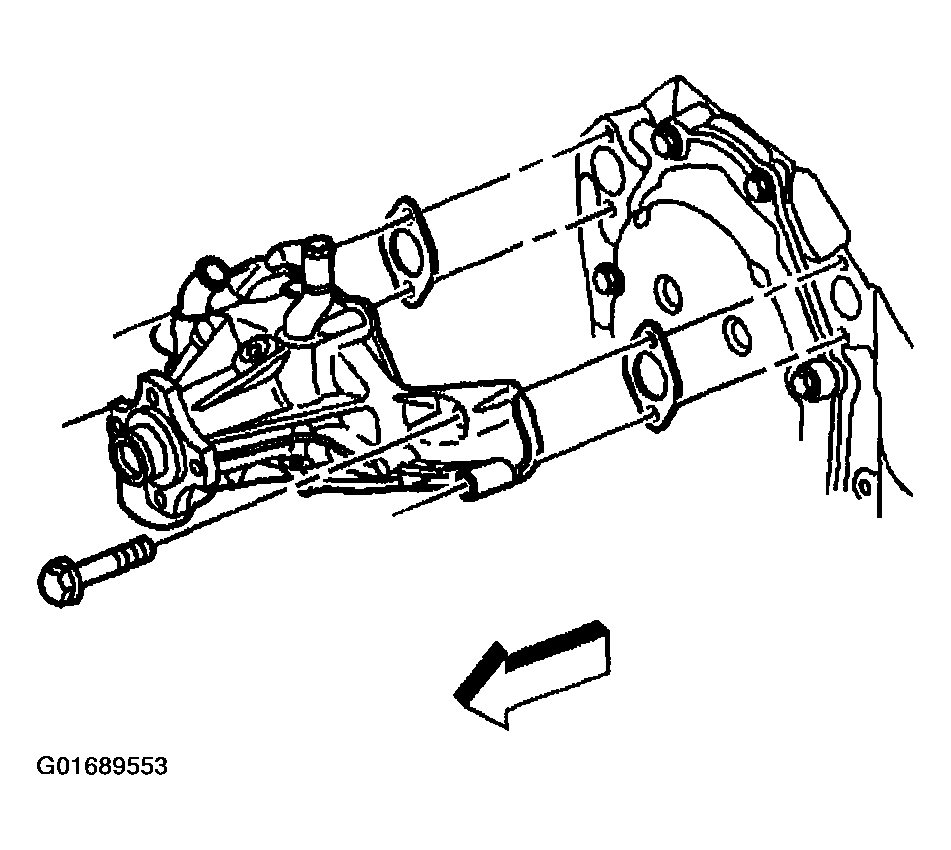

    Fig 3: Water Pump, Gaskets & Bolts
    G01689553Courtesy of GENERAL MOTORS CORP.
