Valve Rocker Arm Cover Installation - Left

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not reuse the valve cover gasket or the valve rocker arm cover bolt grommets.

  1. Install the NEW valve rocker arm cover gasket into the groove of the valve rocker arm cover.
  2. Install the NEW valve rocker arm cover bolt grommets into the valve rocker arm cover.

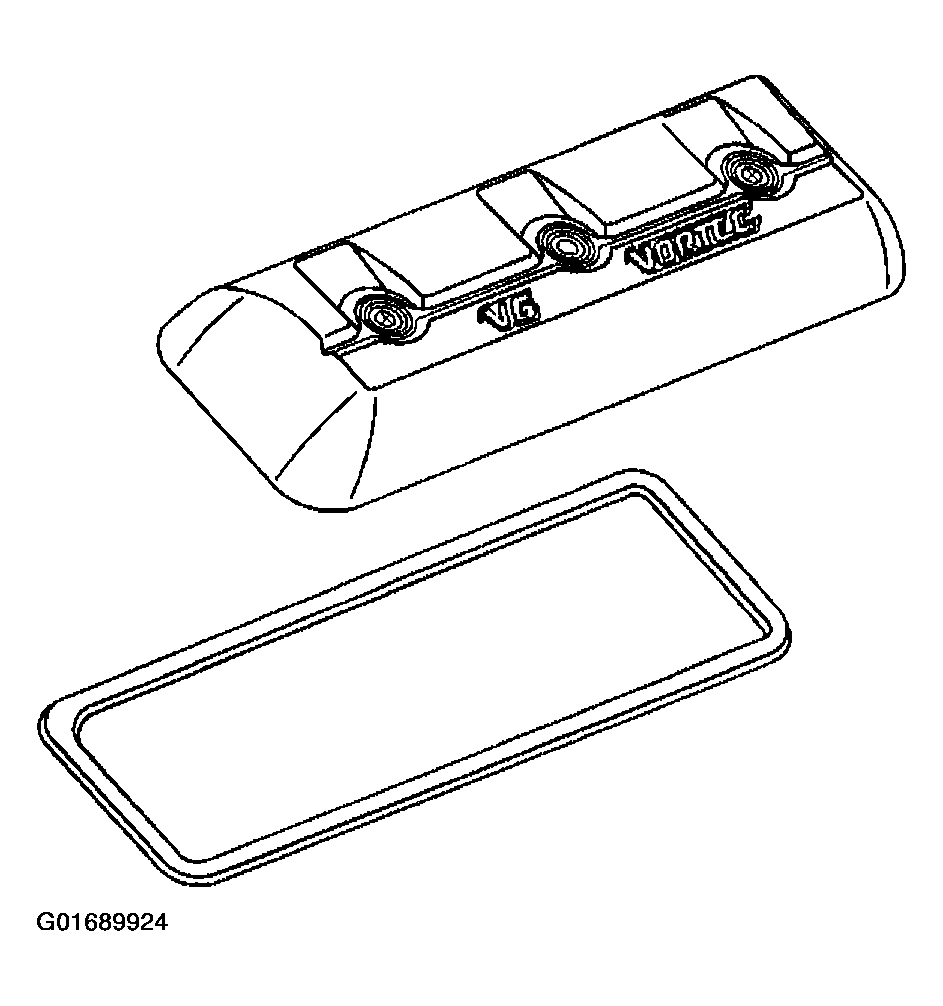

    Fig 1: Valve Rocker Arm Cover Gasket & Bolt Grommets
    G01689924Courtesy of GENERAL MOTORS CORP.
  3. Install the valve rocker arm cover onto the cylinder head.

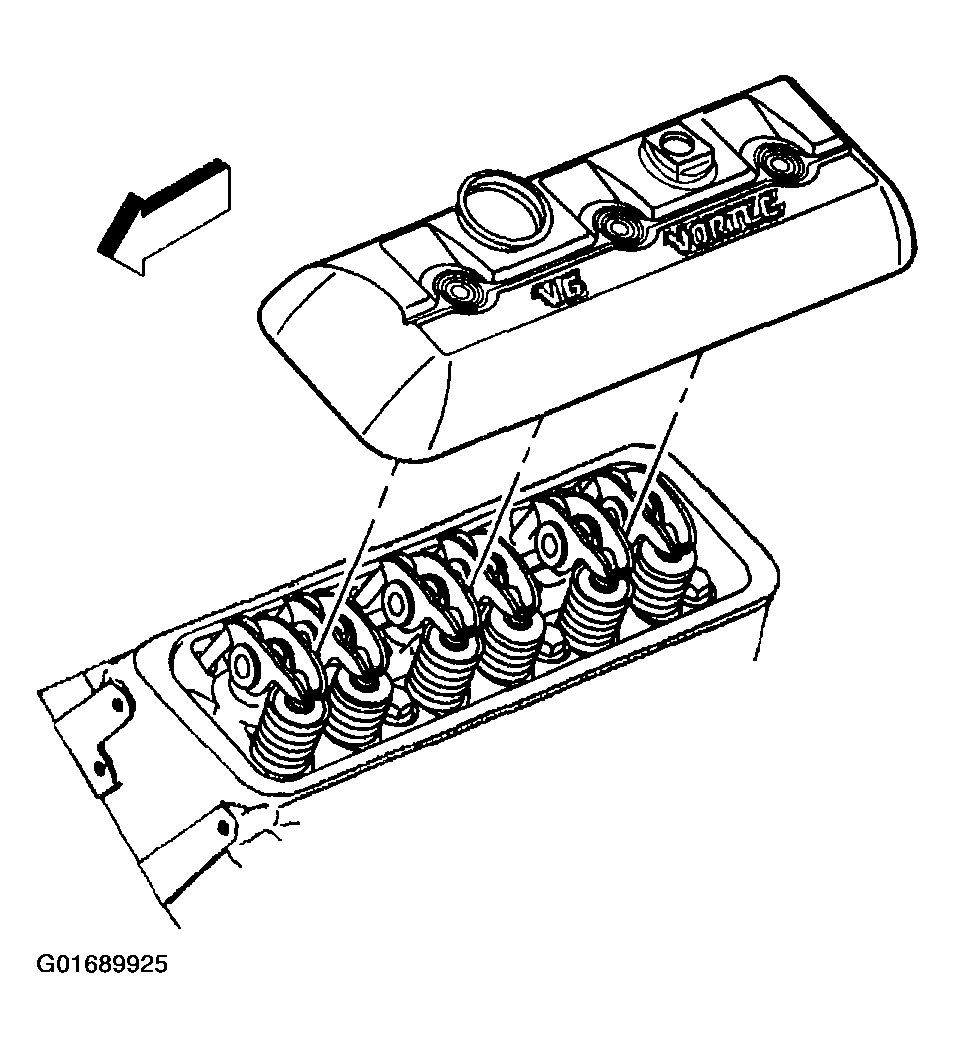

    Fig 2: Valve Rocker Arm Cover
    G01689925Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 12 N.m (106 lb in).

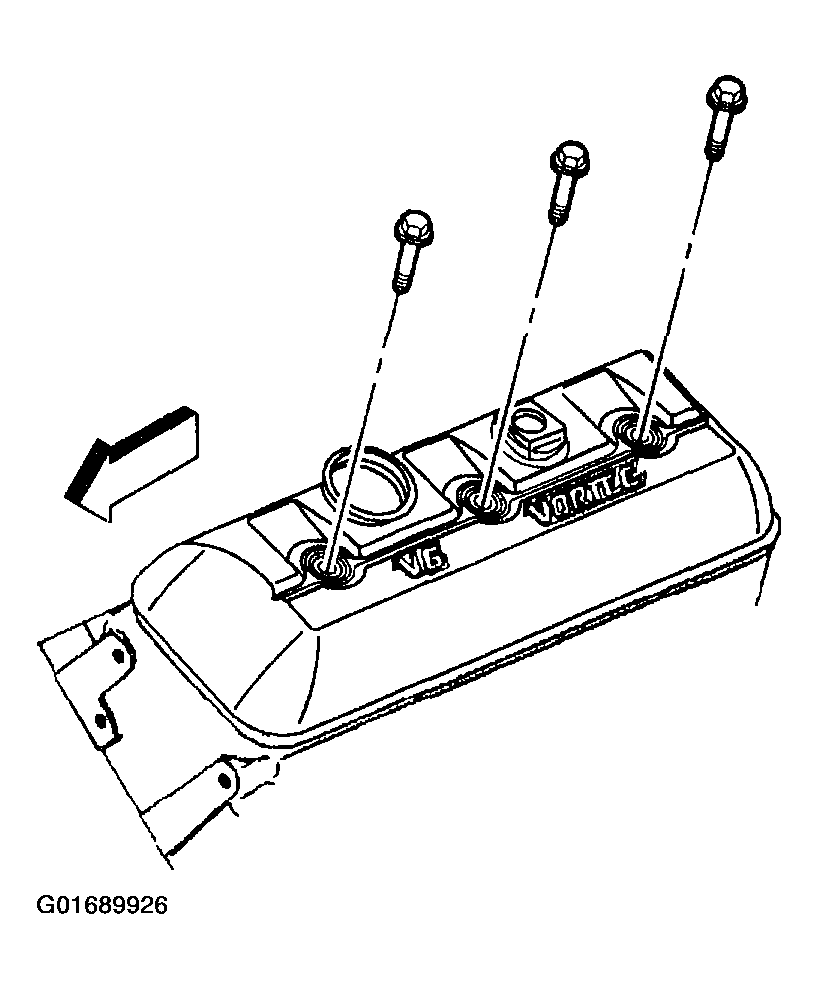

    Fig 3: Valve Rocker Arm Cover Bolts
    G01689926Courtesy of GENERAL MOTORS CORP.
