Oil Pump Installation

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect for properly installed oil pump locator pins.

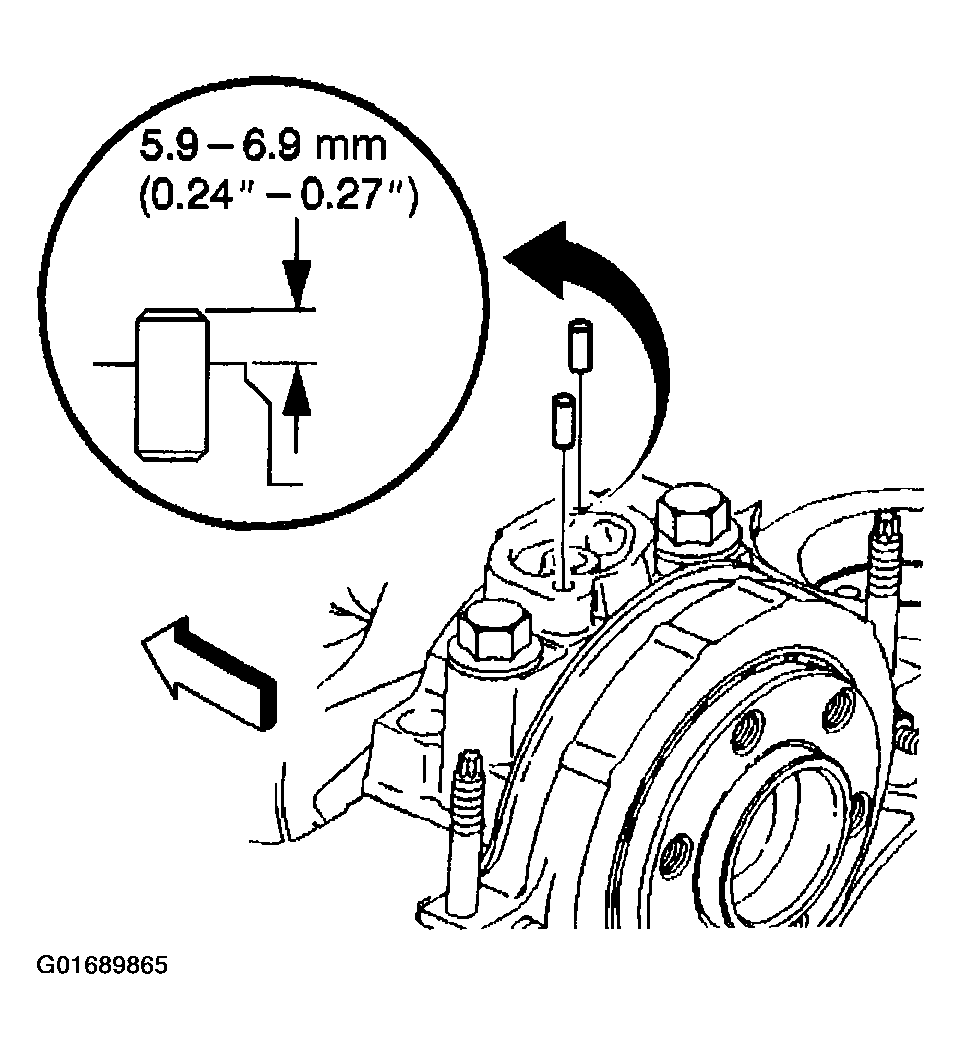

    Fig 1: Inspecting For Properly Installed Oil Pump Locator Pins
    G01689865Courtesy of GENERAL MOTORS CORP.

    Important:  Do not reuse the oil pump driveshaft retainer.

    During assembly, install a NEW oil pump driveshaft retainer.

  2. Install the oil pump.
  3. Position the oil pump onto the pins.

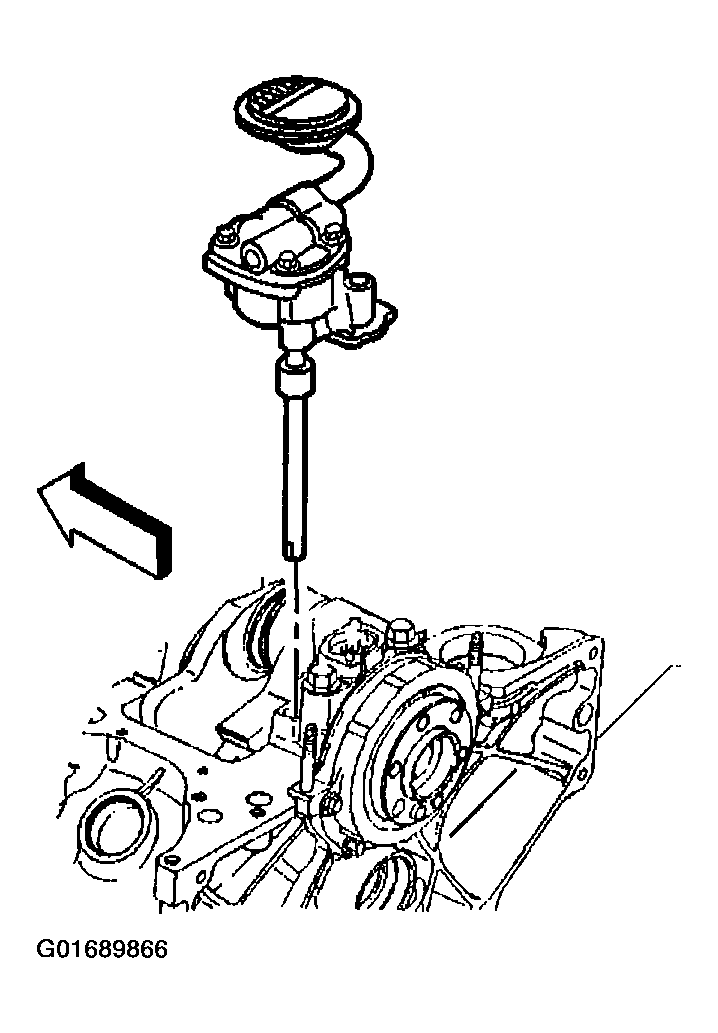

    Fig 2: Oil Pump
    G01689866Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the oil pump bolt attaching the oil pump to the rear crankshaft bearing cap.

    Tighten

    Tighten the oil pump bolt to 90 N.m (66 lb ft).

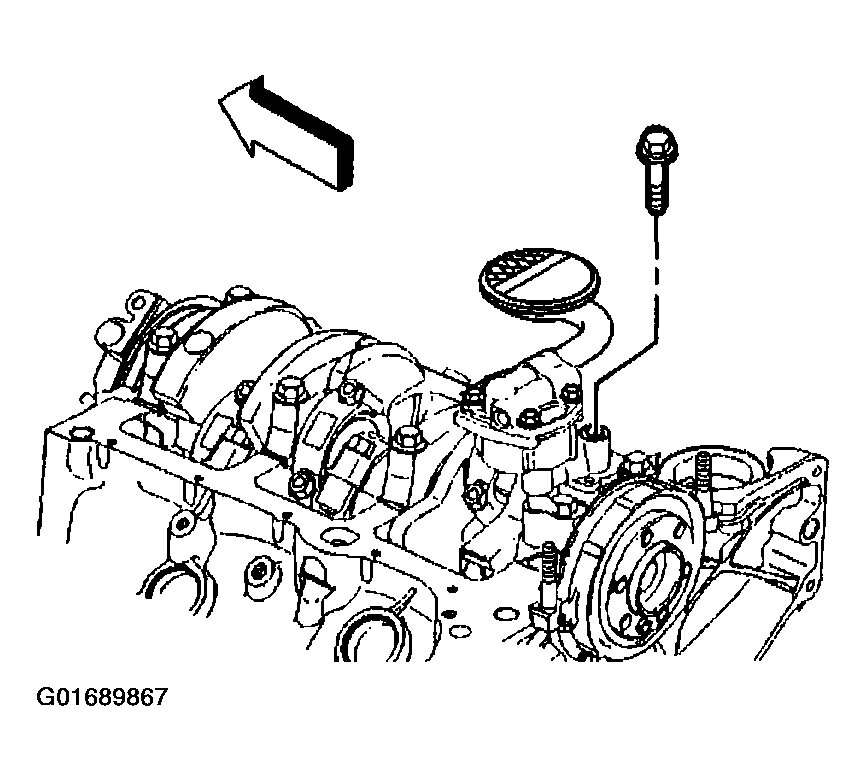

    Fig 3: Oil Pump Bolt
    G01689867Courtesy of GENERAL MOTORS CORP.
