Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the oil level indicator tube, if required.

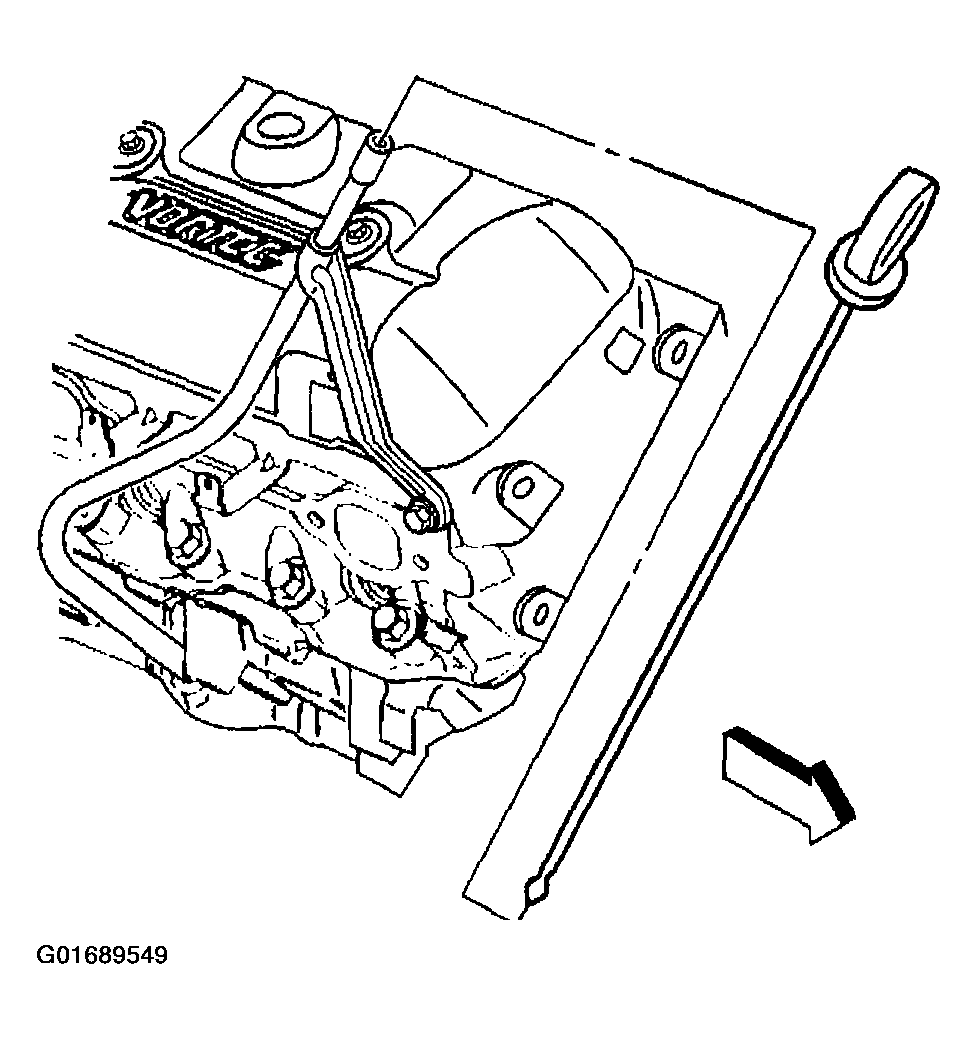

    Fig 1: Oil Level Indicator
    G01689549Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.

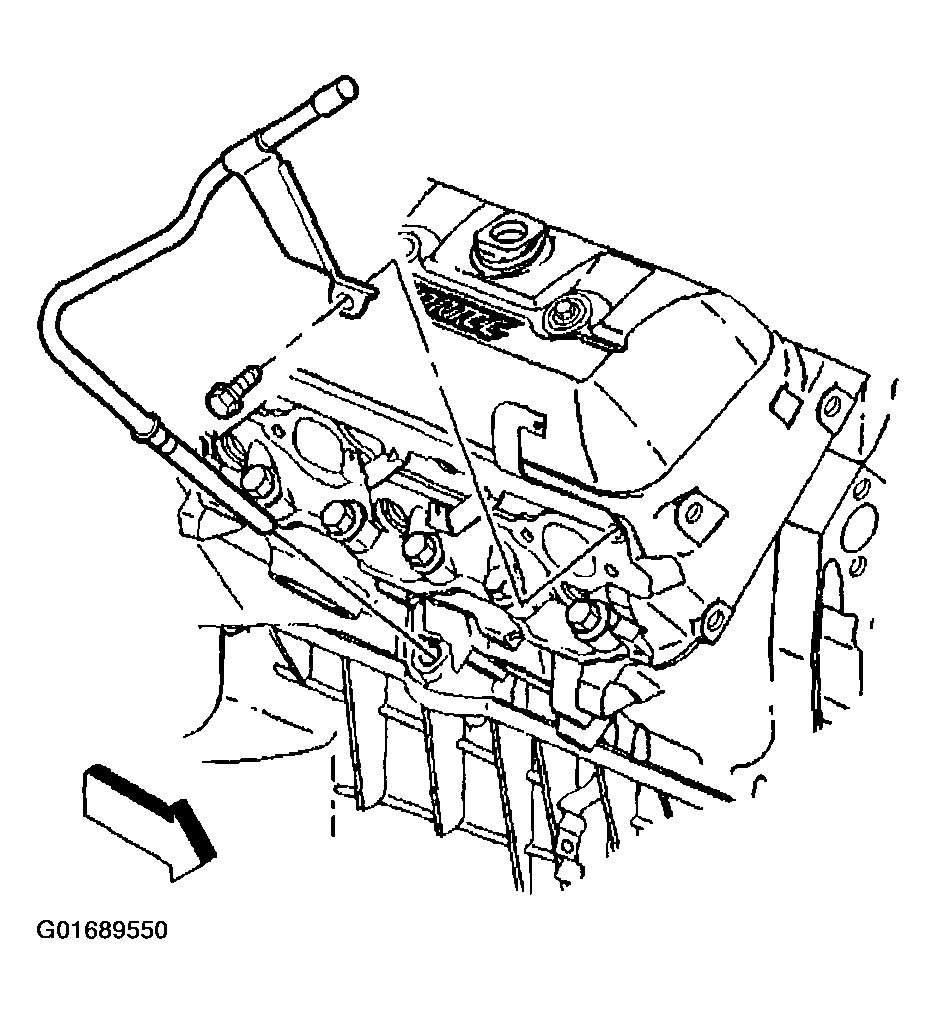

    Fig 2: Oil Level Indicator Tube & Bolt
    G01689550Courtesy of GENERAL MOTORS CORP.
