Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent, around the oil level indicator tube 13 mm (0.5 in) below the tube bead.
  2. Install the oil level indicator tube into the engine block. Rotate the oil level indicator tube into position.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 12 N.m (106 lb in).

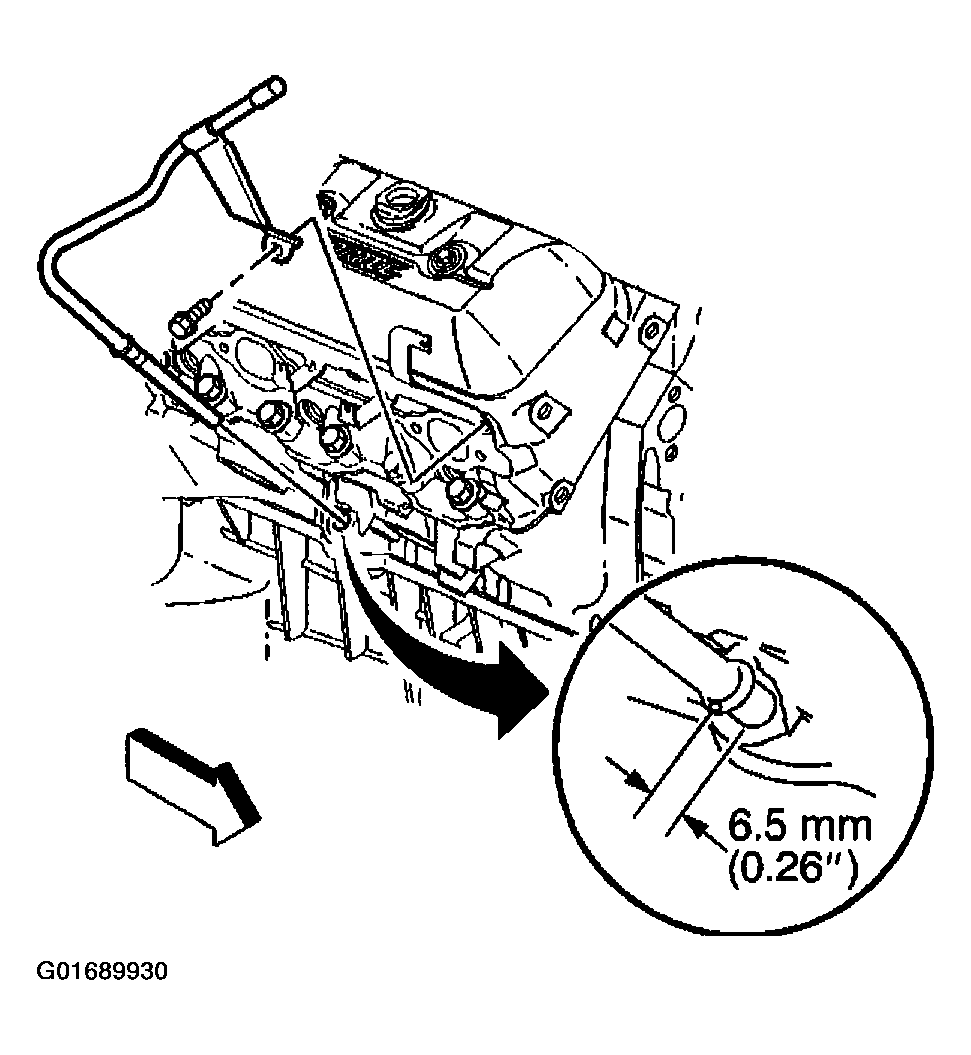

    Fig 1: Oil Level Indicator Tube Bolt
    G01689930Courtesy of GENERAL MOTORS CORP.
  4. Install the oil level indicator into the oil level indicator tube, if required.

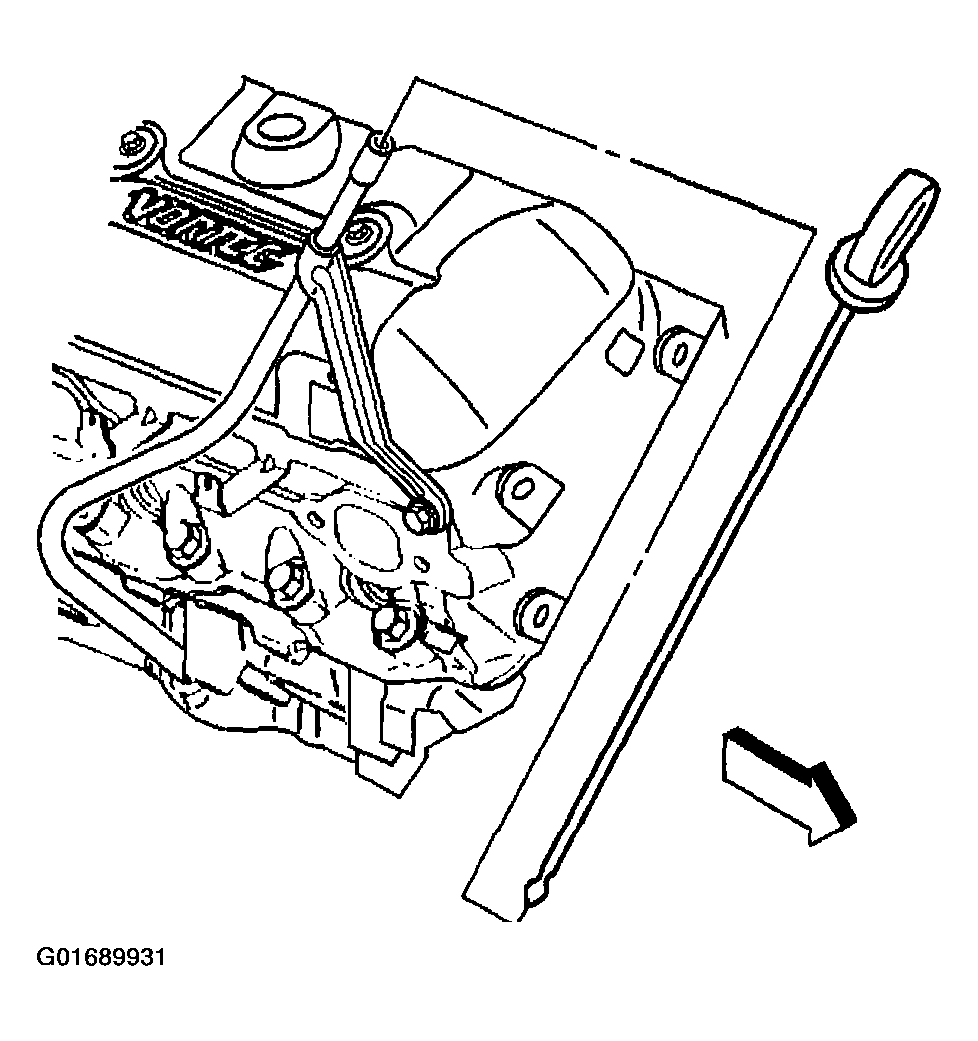

    Fig 2: Oil Level Indicator
    G01689931Courtesy of GENERAL MOTORS CORP.
