Distributor Removal

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition coil wire harness from the ignition coil and distributor cap.

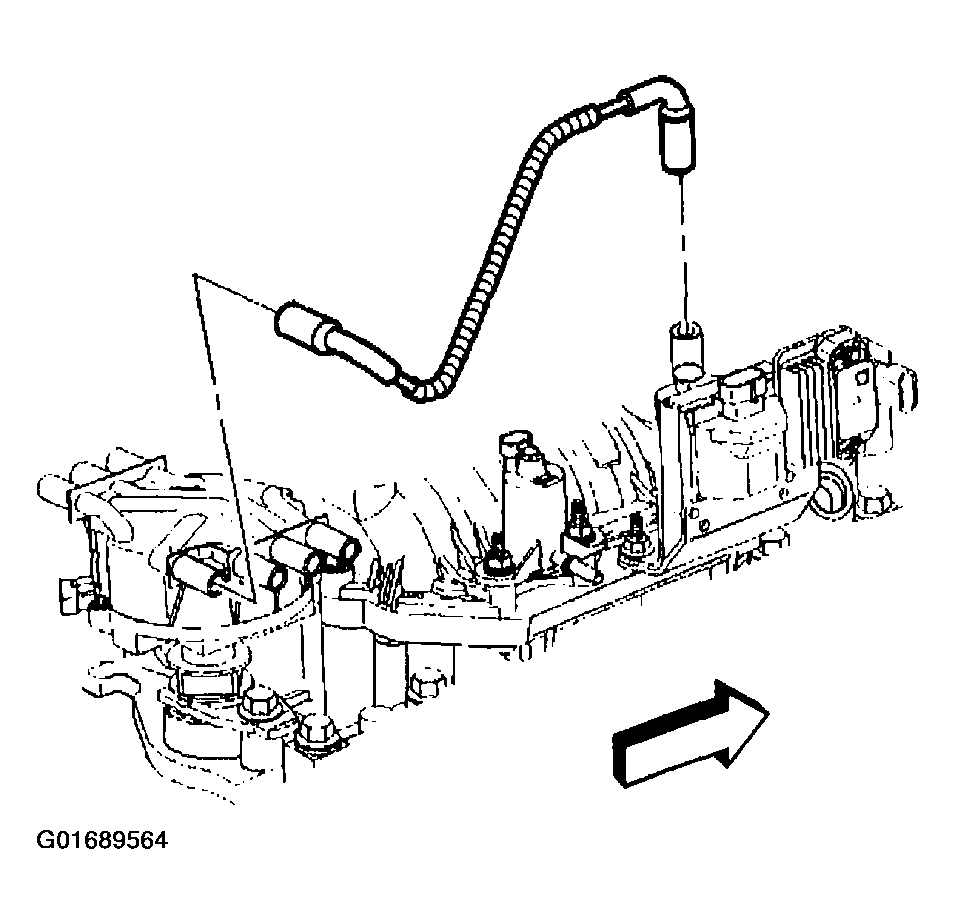

    Fig 1: Ignition Coil Wire Harness
    G01689564Courtesy of GENERAL MOTORS CORP.
  2. Remove the distributor clamp bolt.
  3. Remove the distributor and the distributor clamp.

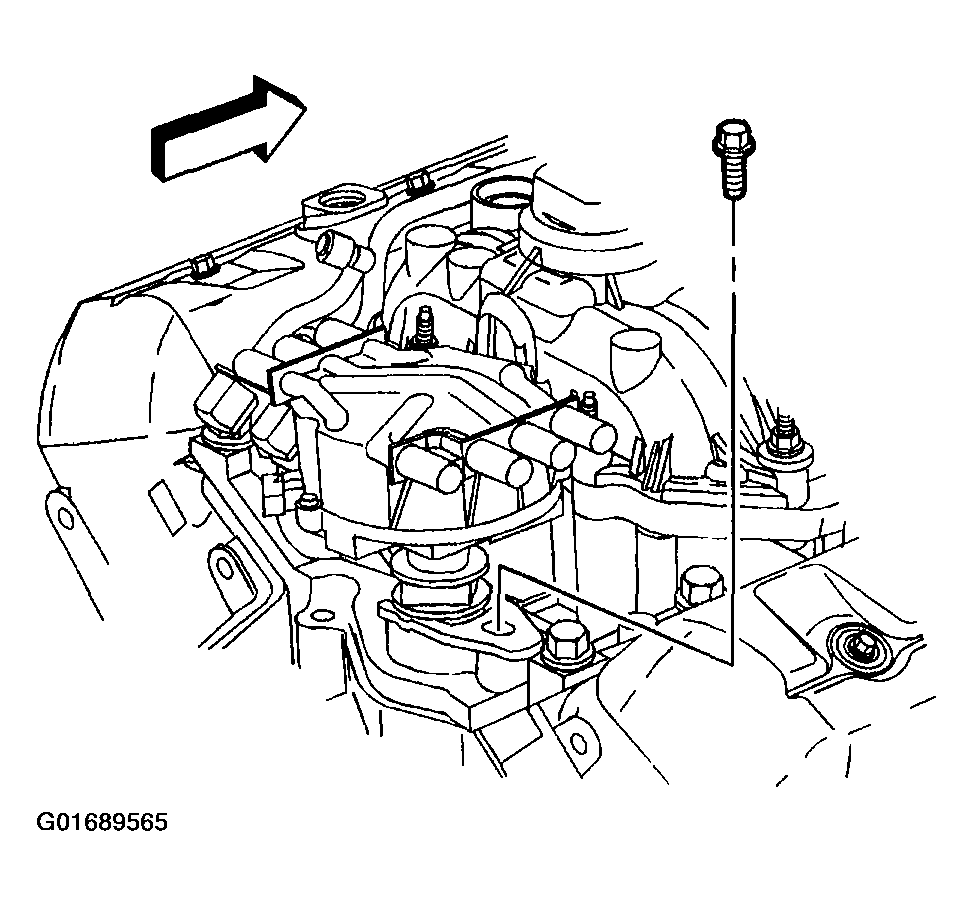

    Fig 2: Distributor, Clamp & Bolt
    G01689565Courtesy of GENERAL MOTORS CORP.
  4. Remove the distributor gasket and discard.

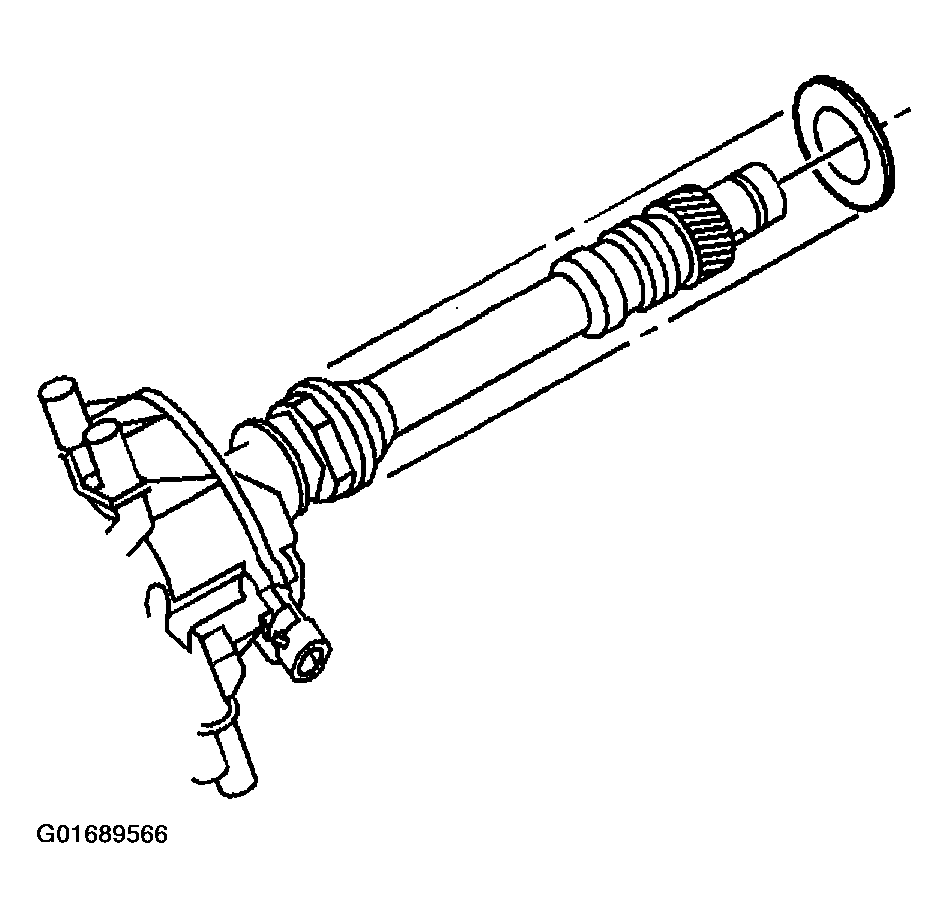

    Fig 3: Distributor Gasket
    G01689566Courtesy of GENERAL MOTORS CORP.
