Disassembled Views (M/L Van and G Van)

WARNING: This page is about a different car, the 2002 GMC Savana and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

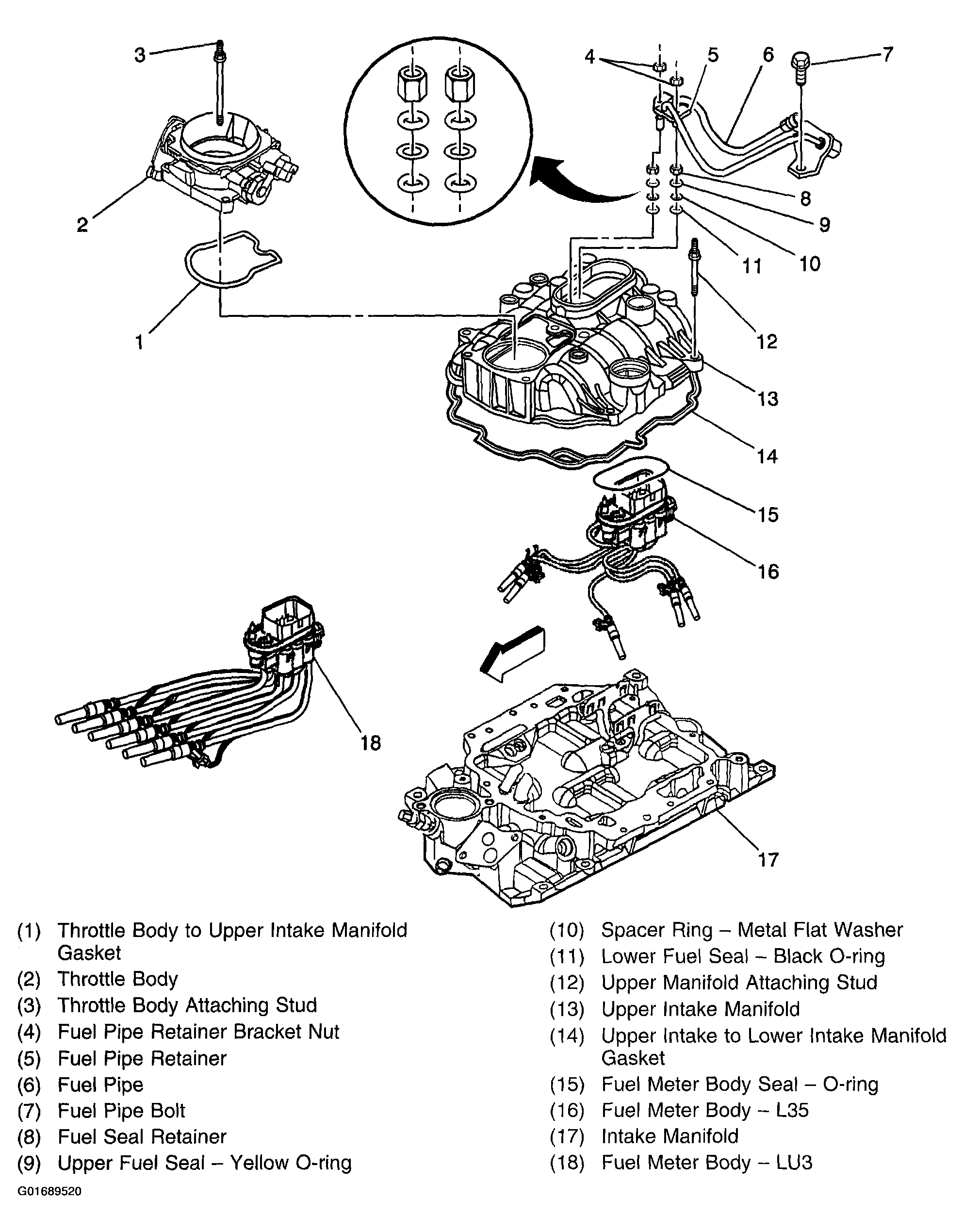

Fig 1: Upper & Lower Intake Manifold View

Courtesy of GENERAL MOTORS CORP.

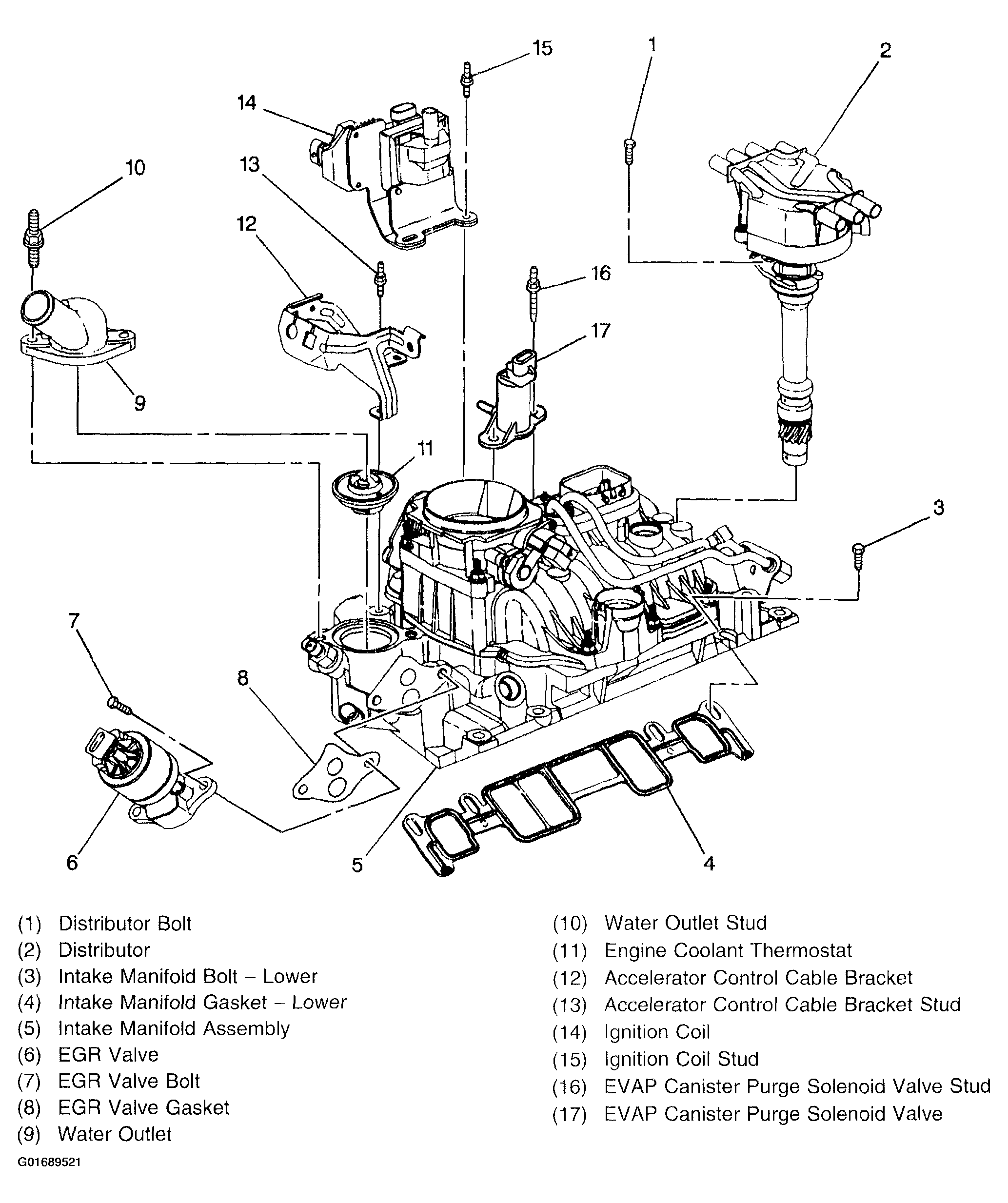

Fig 2: Upper Engine View 1

Courtesy of GENERAL MOTORS CORP.

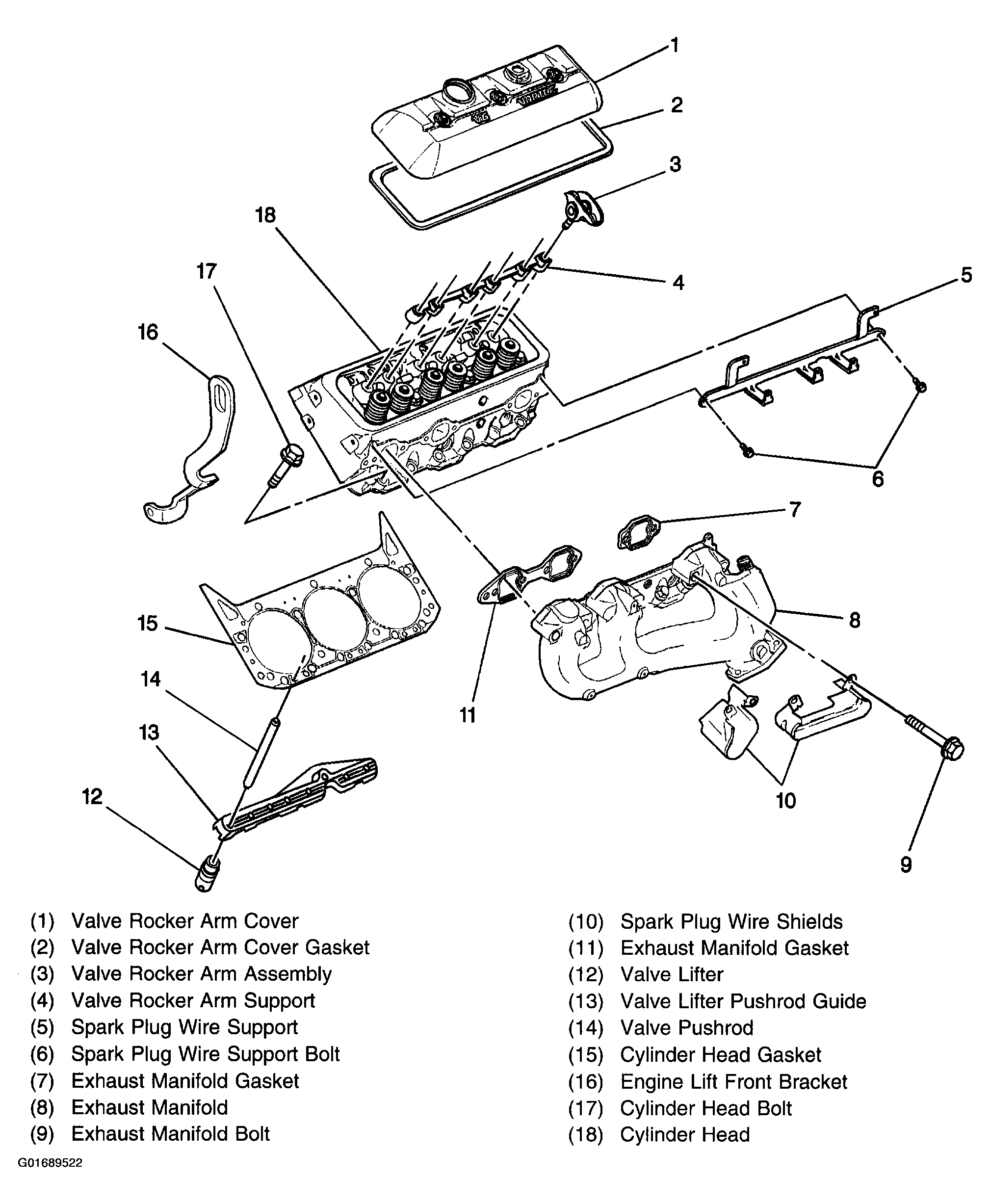

Fig 3: Upper Engine View 2

Courtesy of GENERAL MOTORS CORP.

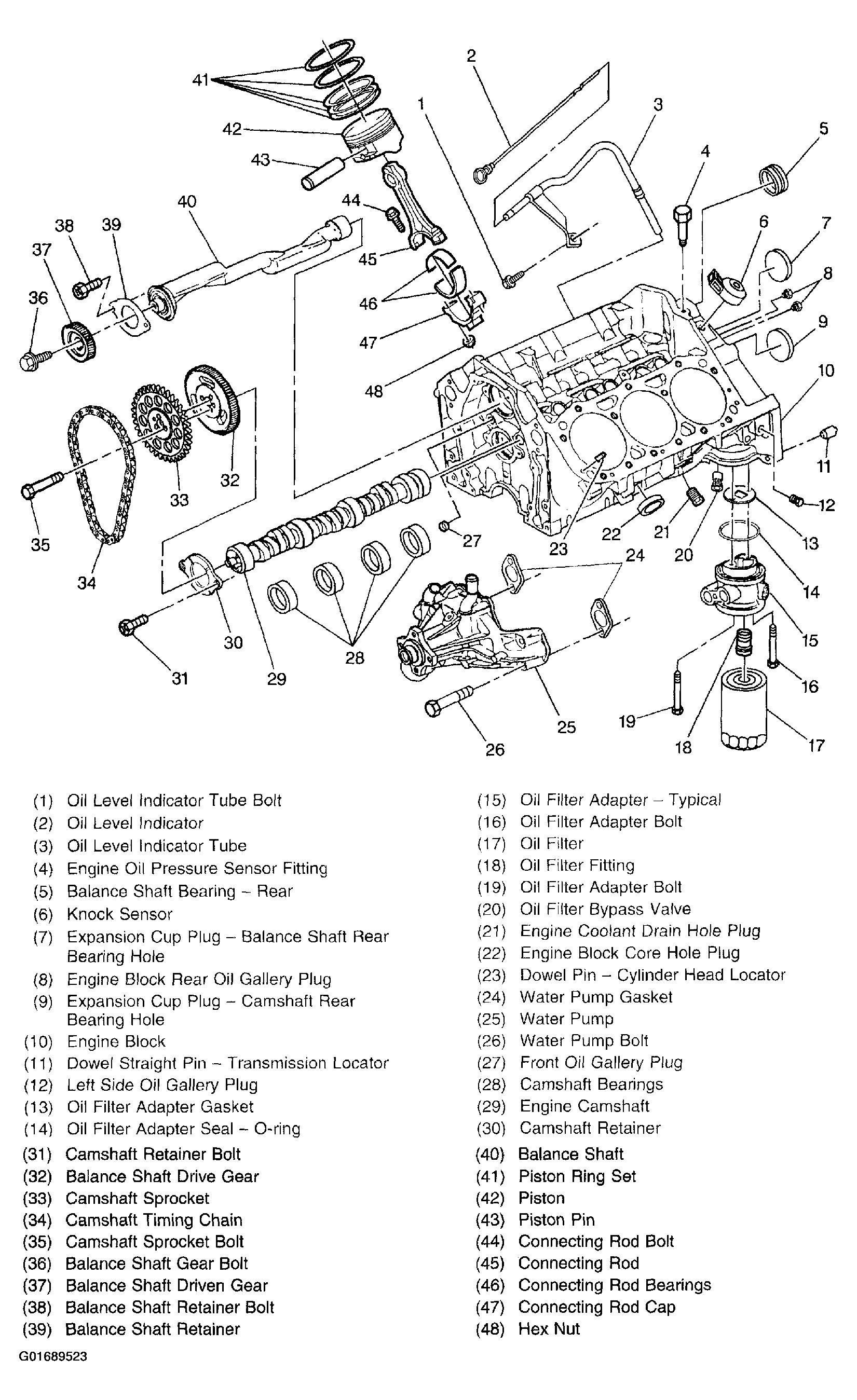

Fig 4: Lower Engine View 1

Courtesy of GENERAL MOTORS CORP.

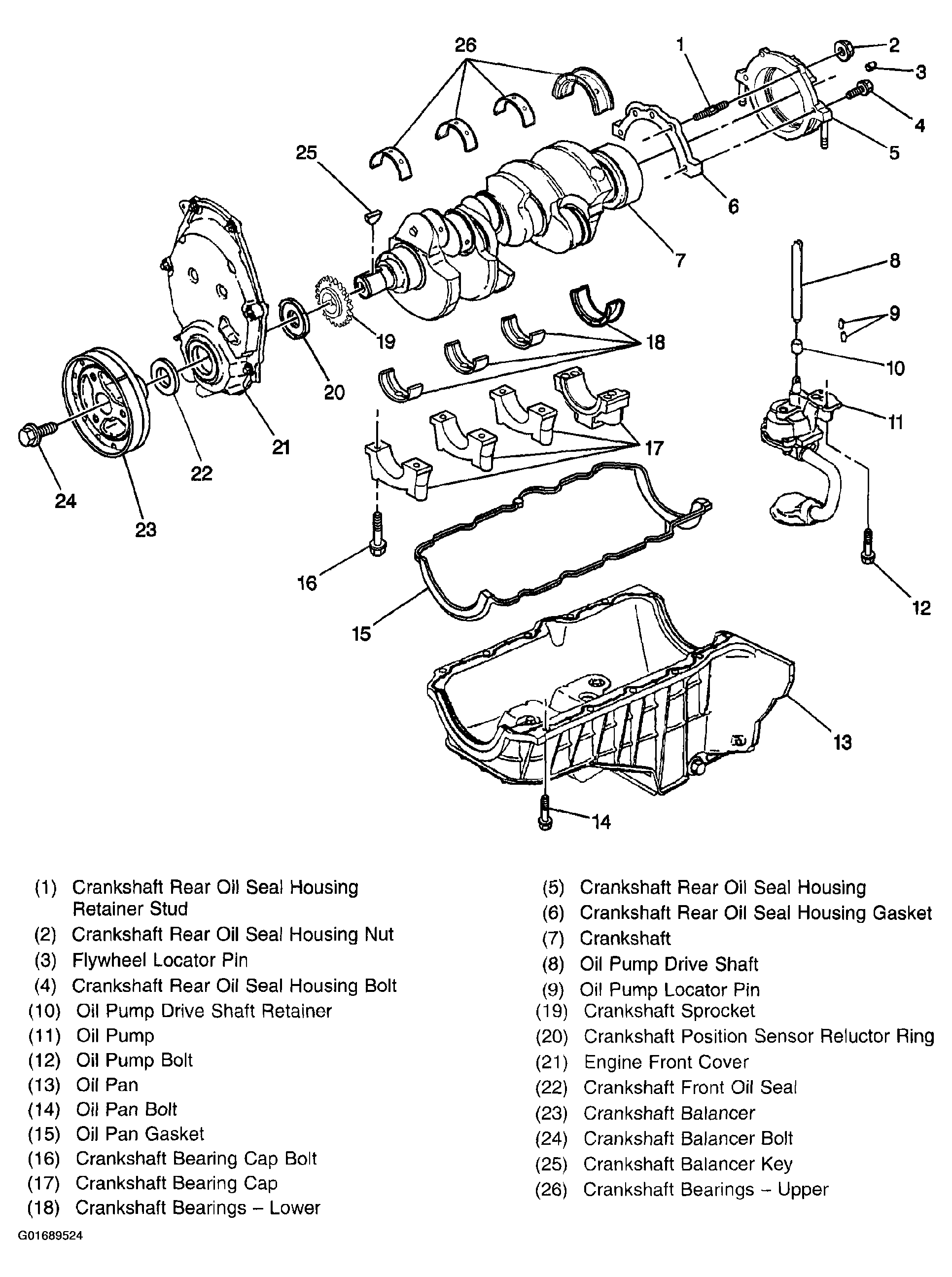

Fig 5: Lower Engine View 2

Courtesy of GENERAL MOTORS CORP.
