Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the tie rod threads with chassis lubricant.
Install the tie rod end (4) to the shaft (6).
Install the outer tie rod ball stud (3) to the steering knuckle (1).

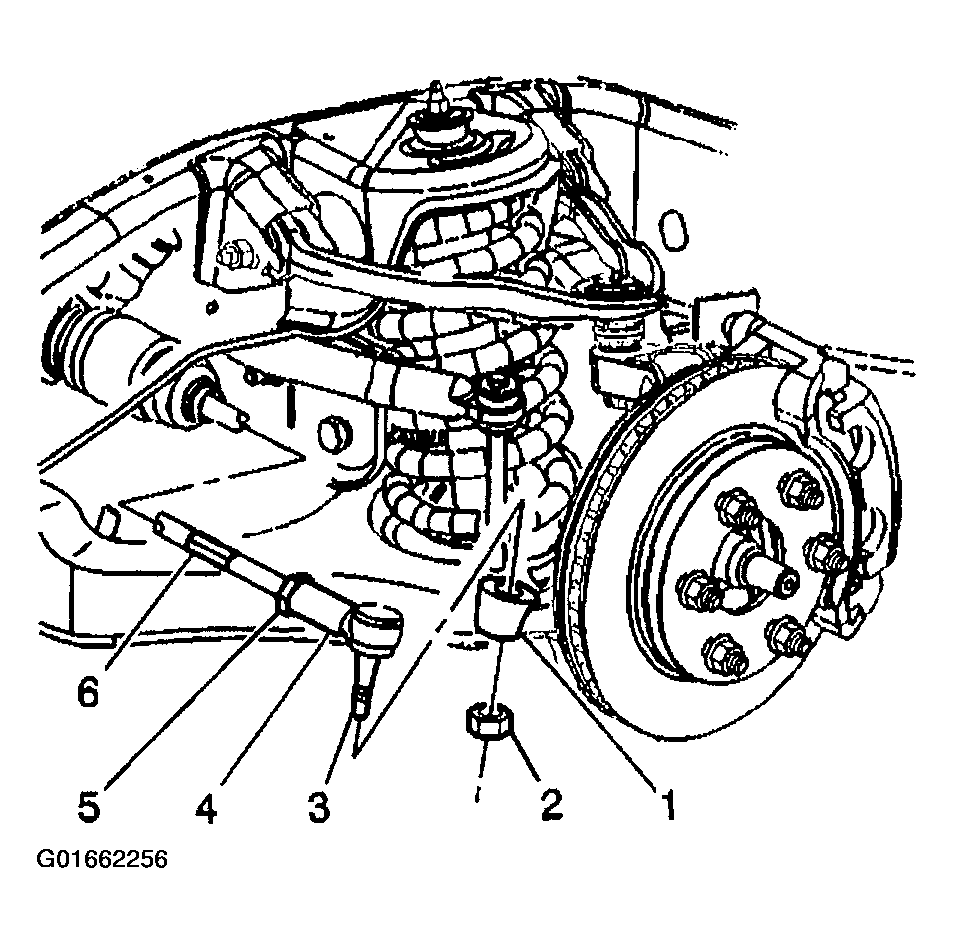

Fig 1: Installing Tie Rod End
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to FASTENER NOTICE .
Use the J 29193 in order to install the outer tie rod ball stud.
Tighten

Tighten the J 29193 to 54 N.m (40 lb ft) in order to seat the tapers.

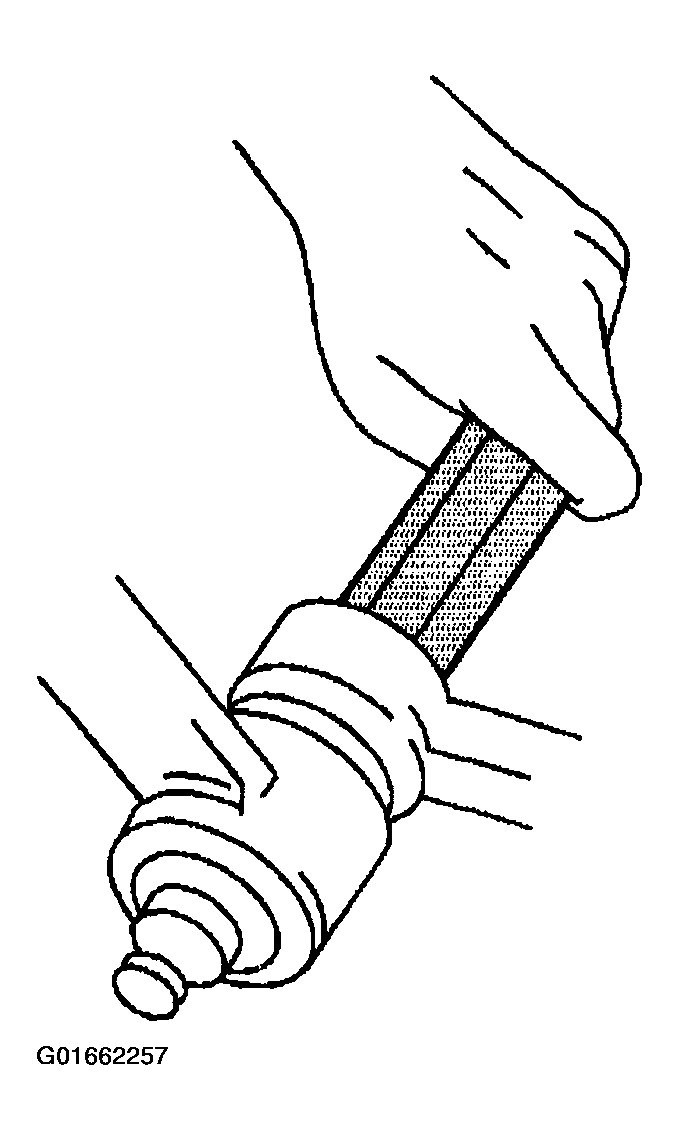

Fig 2: Installing Outer Tie Rod Ball Stud
Courtesy of GENERAL MOTORS CORP.
Install the new prevailing torque nut (2) to the outer rod ball stud (3).
Tighten

Tighten the nut to 45 N.m (33 lb ft).

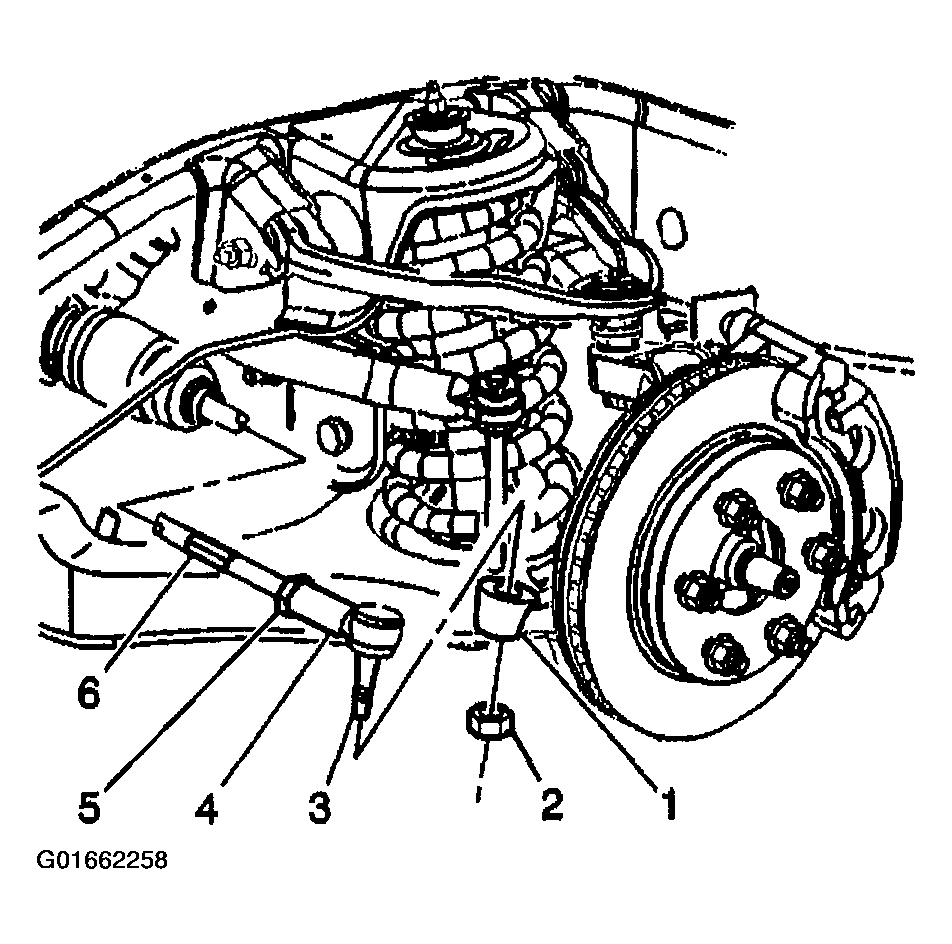

Fig 3: Installing Prevailing Torque Nut

Courtesy of GENERAL MOTORS CORP.

Adjust the front toe. Refer to SPECIFICATIONS .
Tighten the jam nut (5).
Tighten

Tighten the nut to 68 N.m (50 lb ft).
