Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the relay rod nut from the pitman arm ball stud.

    Do not reuse the relay rod nut.

  3. Remove the engine protection shield, if equipped.
  4. Use the J 24319-B  in order to remove the relay rod from the pitman arm ball stud.

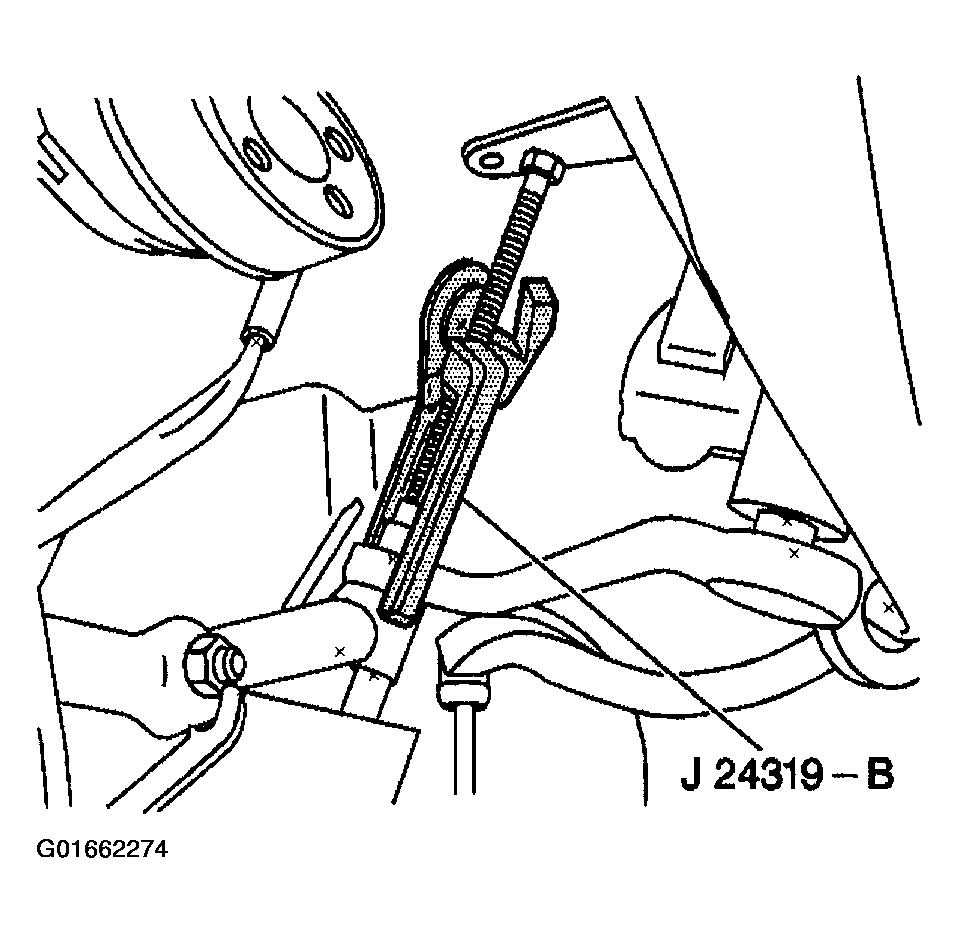

    Fig 1: Removing Relay Rod
    G01662274Courtesy of GENERAL MOTORS CORP.
  5. Remove the pitman arm nut and the pitman arm washer.

    Do not reuse the nut.

  6. Mark the pitman arm and the pitman shaft in order to ensure the proper alignment at assembly.
    CAUTION: Do not hammer on the pitman arm, pitman arm shaft or puller. Damage to the pitman arm or steering gear may result.
  7. Use the J 29107-A  or J 6632-01  in order to remove the pitman arm.

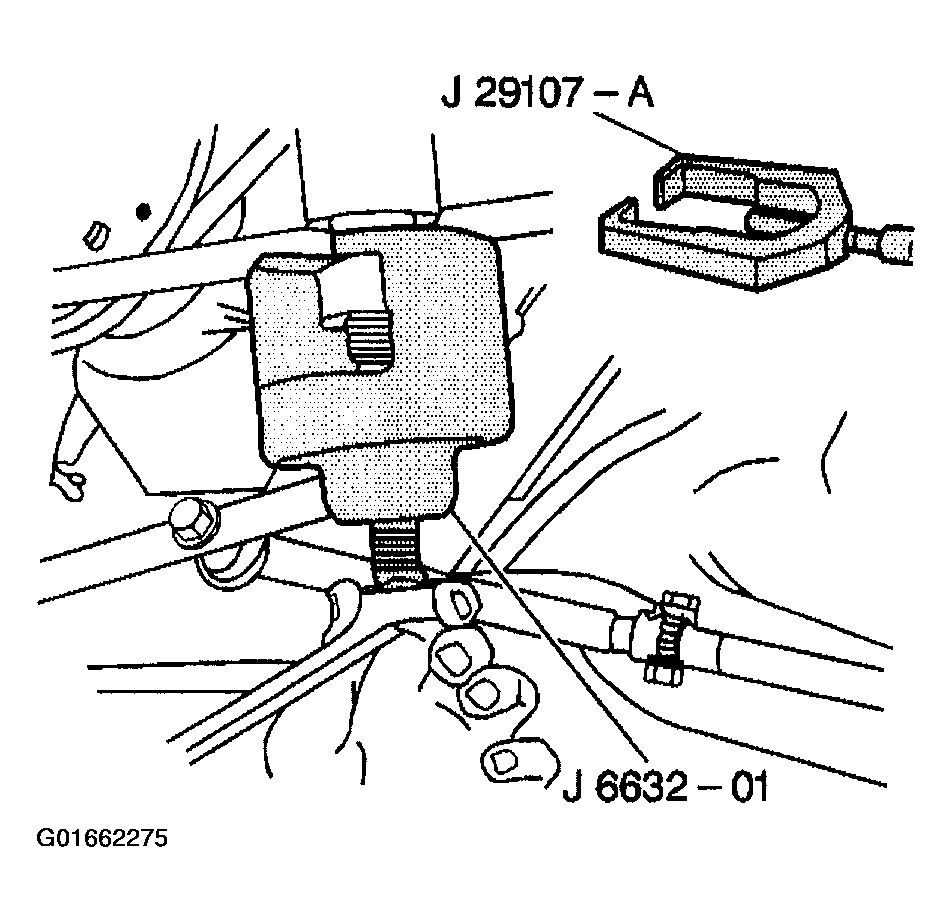

    8. Fig 2: Removing Pitman Arm
    G01662275Courtesy of GENERAL MOTORS CORP.
  8. Inspect the ball stud threads for damage.
  9. Inspect the ball stud seals for excessive wear.
  10. Clean the threads on the ball stud.
