Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pitman arm on the pitman shaft.
  2. Align the marks made at removal.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the pitman arm washer and the pitman arm nut (8).

    Tighten

    Tighten the pitman arm nut to 250 N.m (184 lb ft).

  4. Install the relay rod (9) to the pitman arm ball stud. Ensure the seal is on the pitman arm ball stud.

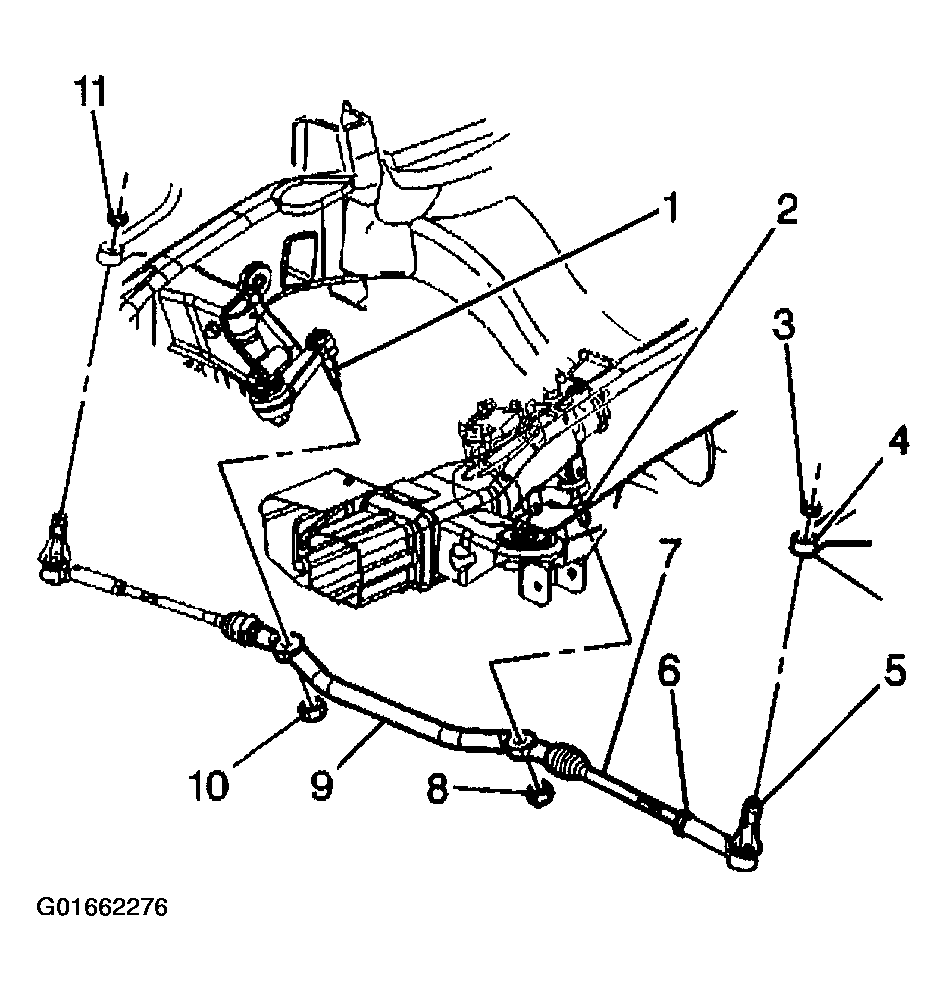

    Fig 1: Installing Pitman Arm Washer & Nut
    G01662276Courtesy of GENERAL MOTORS CORP.
  5. Install the J 29193  .

    Tighten

    Tighten the J 29193  to 54 N.m (40 lb ft) in order to seat the tapers.

  6. Remove the J 29193  .

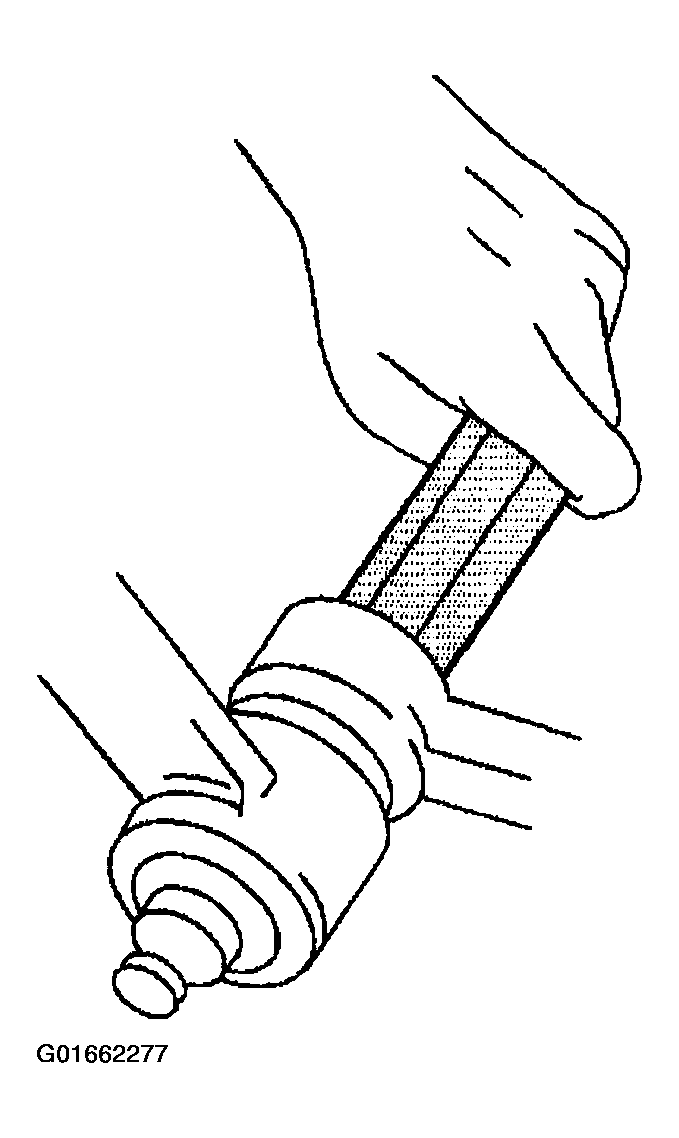

    7. Fig 2: Installing & Removing J 29193
    G01662277Courtesy of GENERAL MOTORS CORP.
  7. Install the new prevailing torque nut.

    Tighten

    Tighten the new prevailing torque nut to 62 N.m (46 lb ft).

  8. Install the engine protection shield, if equipped.
  9. Lower the vehicle.
