Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Clean all corrosion or contaminates from the steering knuckle bore and the hub and bearing assembly.
Lubricate the steering knuckle bore with wheel bearing grease or the equivalent.
Install the O-ring (7) to the steering knuckle, the 25/35 series.
CAUTION: Refer to FASTENER NOTICE .
Install the wheel speed sensor mounting bolt to the wheel hub and bearing.
Tighten

Tighten the sensor mounting bolt to 18 N.m (13 lb ft).
Install the wheel hub and bearing and splash shield to the vehicle, 25/35 series.

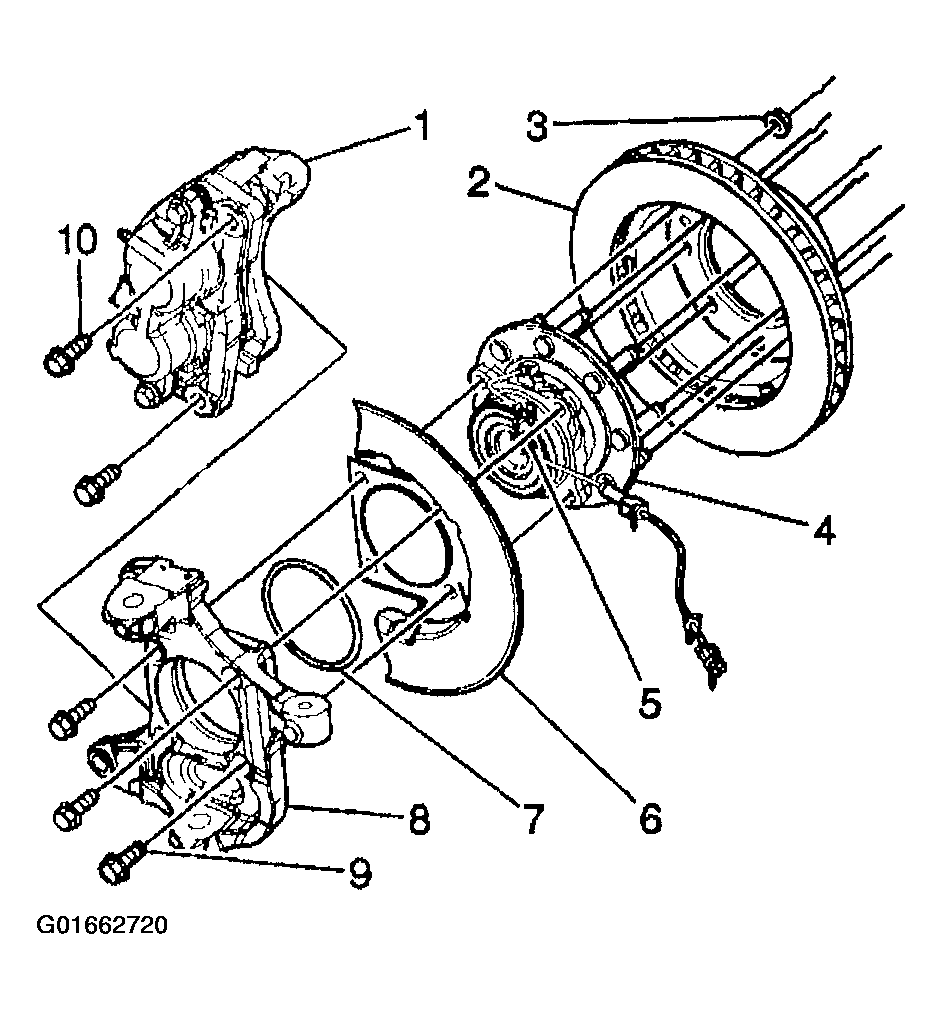

Fig 1: Installing Wheel Hub (25/35 Series)
Courtesy of GENERAL MOTORS CORP.
Install the wheel hub and bearing (5) and splash shield (6) to the vehicle, 15 series.
Install the wheel hub and bearing mounting bolts, the 15 series.
Install the wheel hub and bearing mounting bolts, 25/35 series.

Tighten

Tighten the wheel hub to knuckle bolts to 180 N.m (133 lb ft).

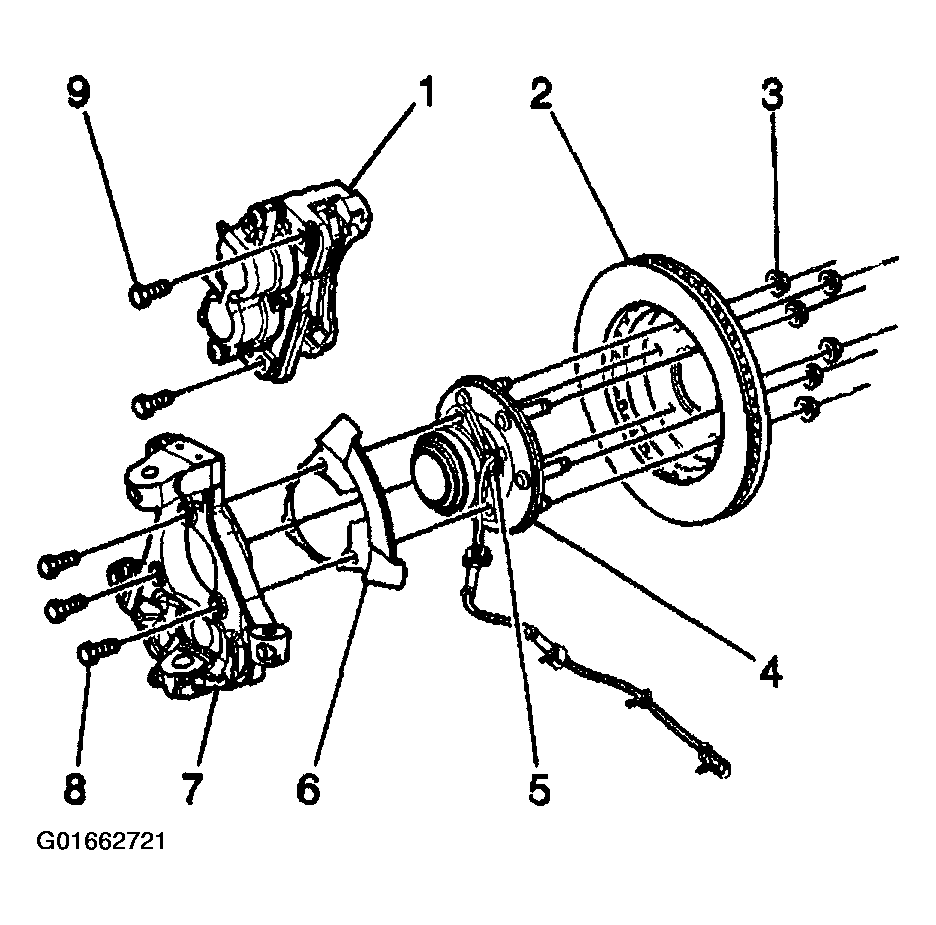

Fig 2: Installing Wheel Hub (15 Series)
Courtesy of GENERAL MOTORS CORP.
Install the nut (2) and washer (3) retaining the wheel drive shaft assembly to the wheel hub and bearing.
Tighten

Tighten the nut to 210 N.m (155 lb ft).

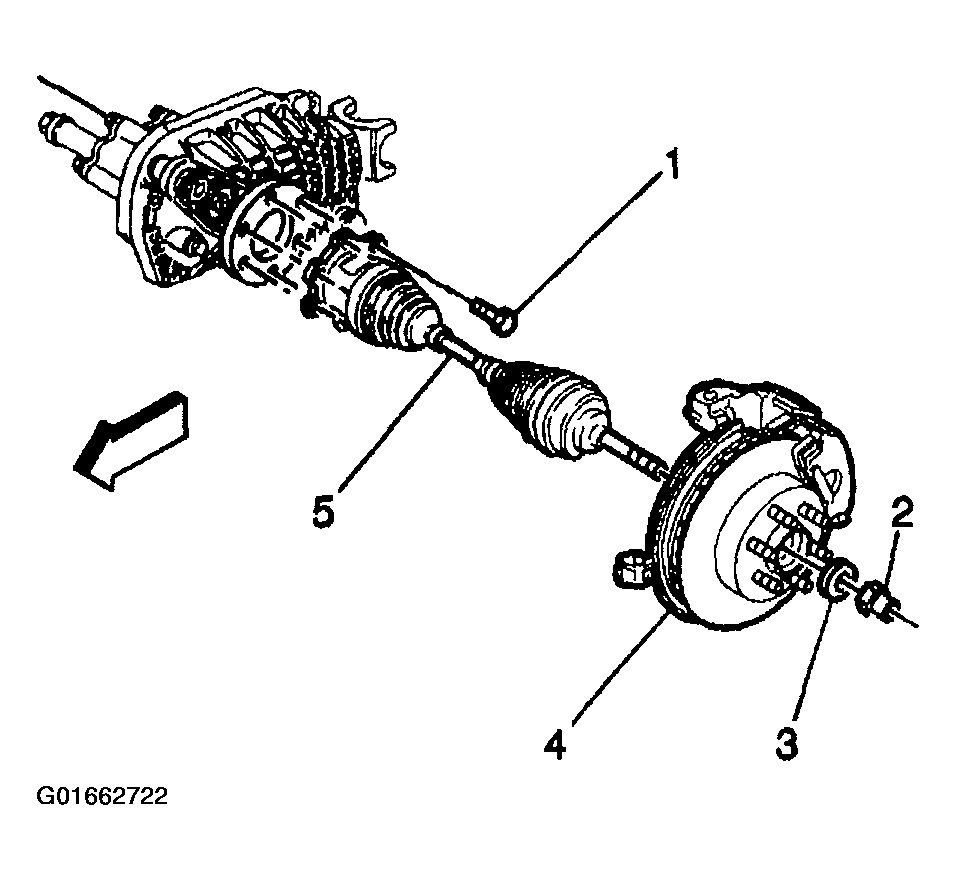

Fig 3: Installing Wheel Drive Shaft Assembly
Courtesy of GENERAL MOTORS CORP.
Install the wheel speed sensor and brake hose mounting bracket bolt to the steering knuckle.
Tighten

Tighten the bolt to 12 N.m (106 lb in).

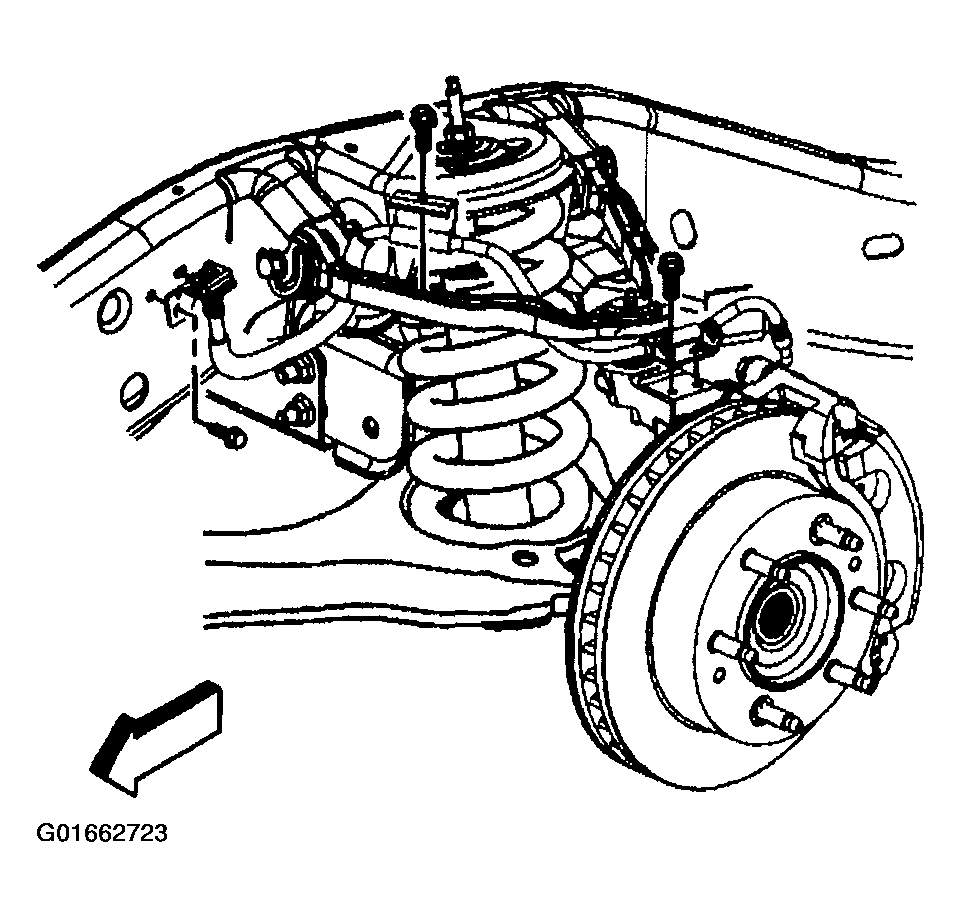

Fig 4: Installing Brake Hose Mounting Bracket

Courtesy of GENERAL MOTORS CORP.

Install the rotor. Refer to BRAKE ROTOR .
Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Lower the vehicle.
