Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the torsion bars to the lower control arm.

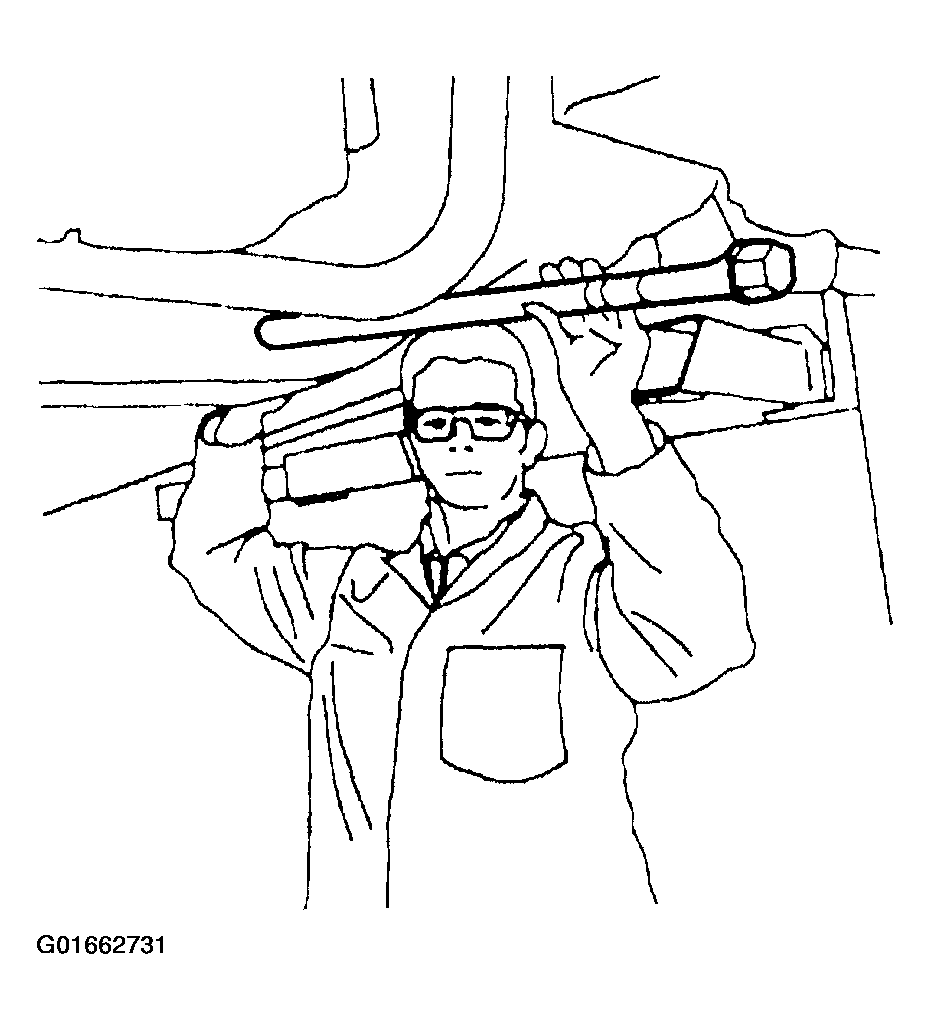

    Fig 1: Installing Torsion Bar
    G01662731Courtesy of GENERAL MOTORS CORP.
  2. Install the torsion bar crossmember.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the torsion bar crossmember bolts (1) to the weld nuts (4).

    Tighten

    Tighten the bolt to 95 N.m (70 lb ft).

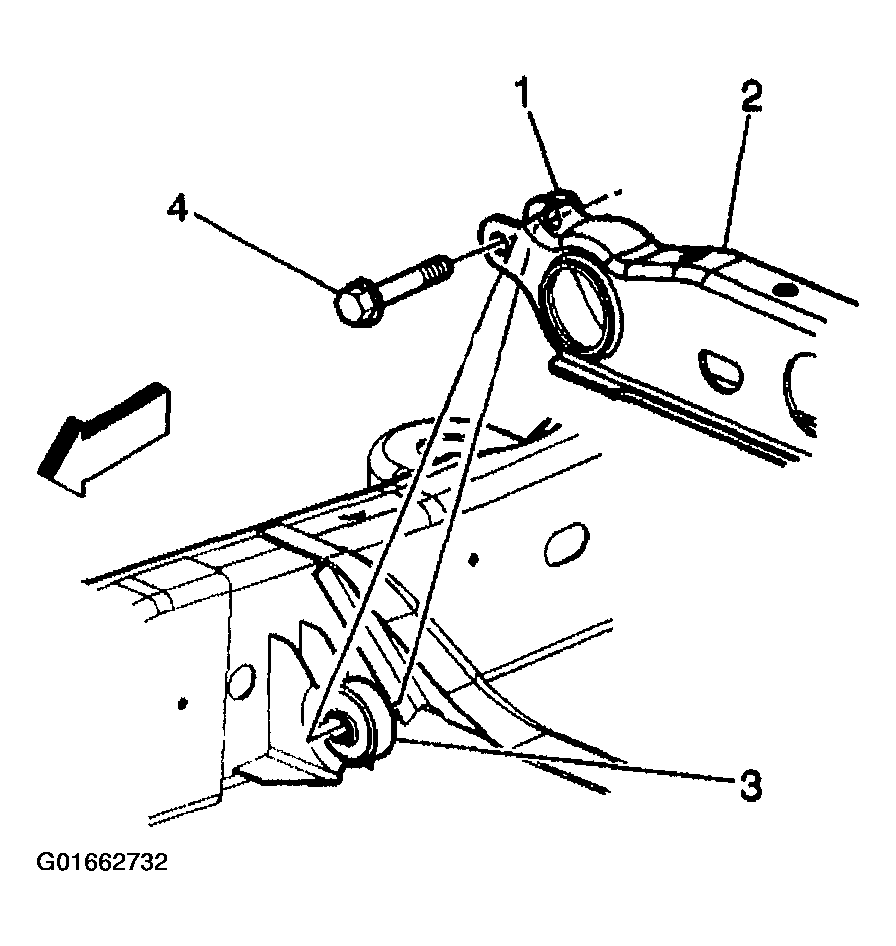

    Fig 2: Installing Torsion Bar Crossmember Bolts & Nuts
    G01662732Courtesy of GENERAL MOTORS CORP.
  4. Install the upper link mounting nuts and the bolts (3).

    Tighten

    Tighten the nut to 95 N.m (70 lb ft).

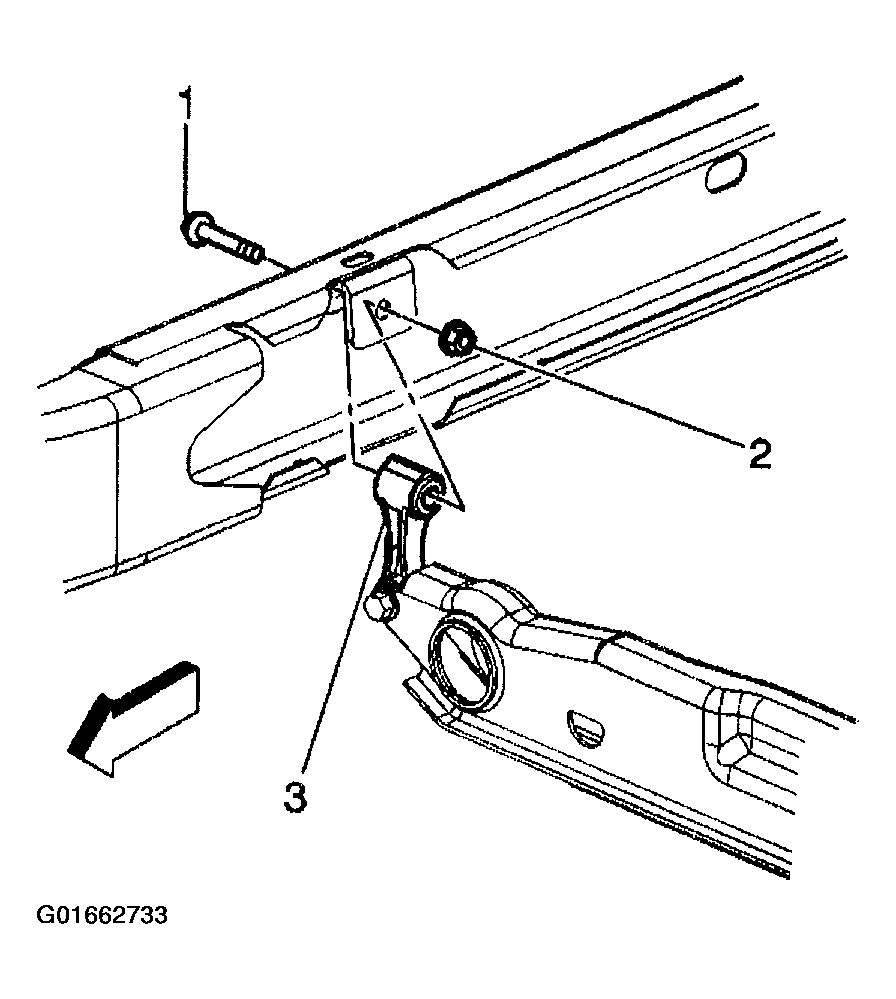

    Fig 3: Installing Upper Link Mounting Nuts & Bolts
    G01662733Courtesy of GENERAL MOTORS CORP.
  5. While supporting the adjustment arm, slide the torsion bar rearward until the torsion bar fully engages the adjustment arm.
  6. Install the J 36202  to the adjustment arm and the crossmember.

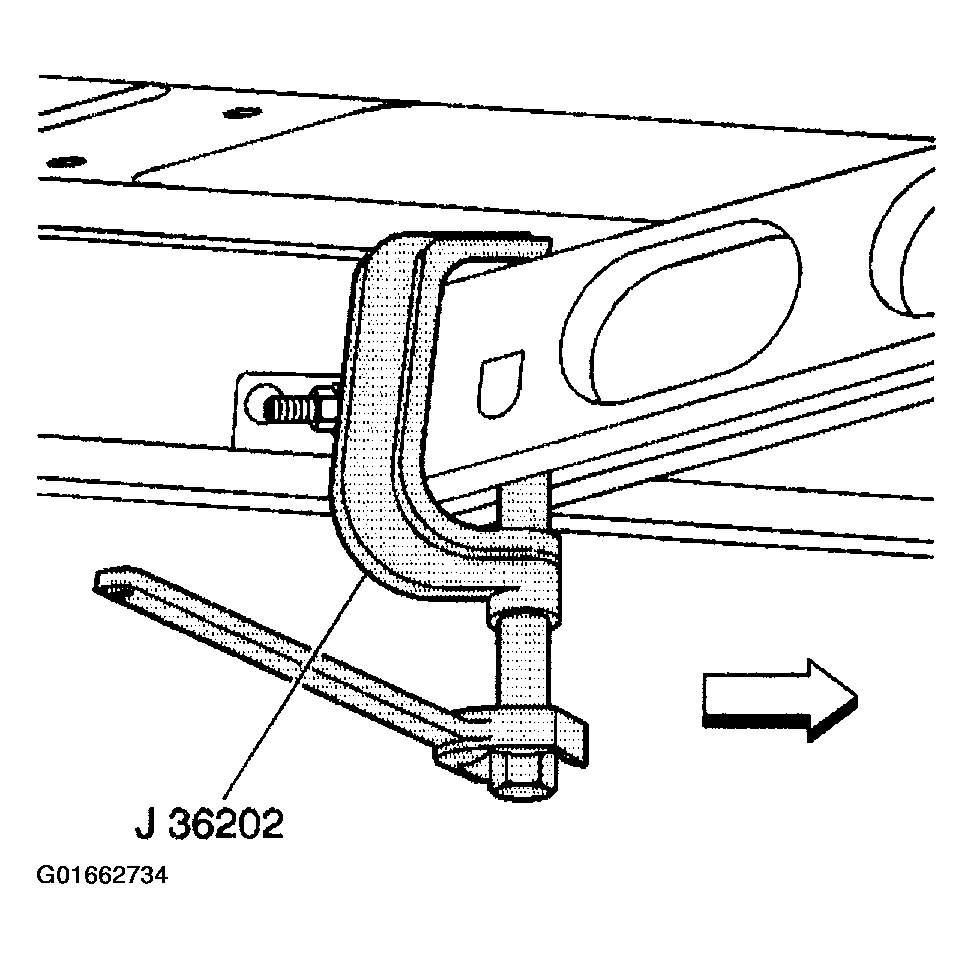

    7. Fig 4: Installing J 36202
    G01662734Courtesy of GENERAL MOTORS CORP.
  7. Increase the tension on the adjustment arm in order to load the torsion bar.

    Important:  Install the adjustment bolt the same amount of turns that were required to remove the bolt during removal.

  8. Install the adjustment bolt (3) and the adjuster nut (4).

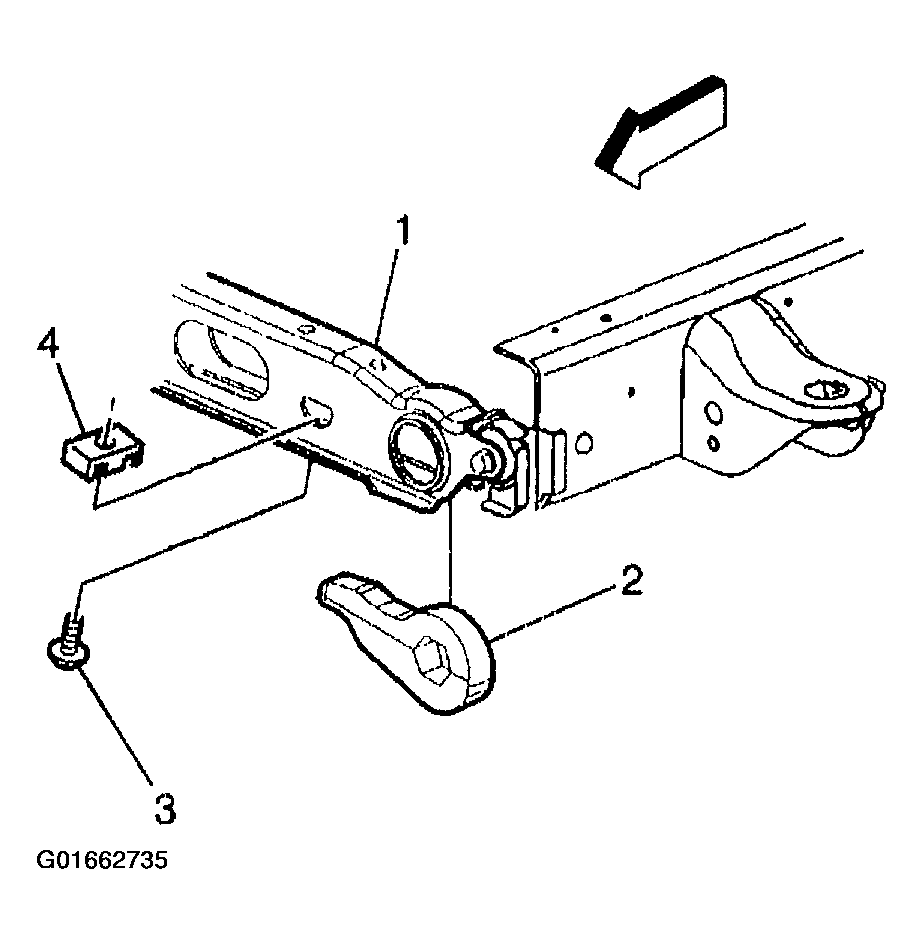

    Fig 5: Installing Adjustment Bolts & Nuts
    G01662735Courtesy of GENERAL MOTORS CORP.
  9. Install the adjustment bolt (3) and the adjuster nut (4), for vehicles with MN8, MT1 AND MW3.

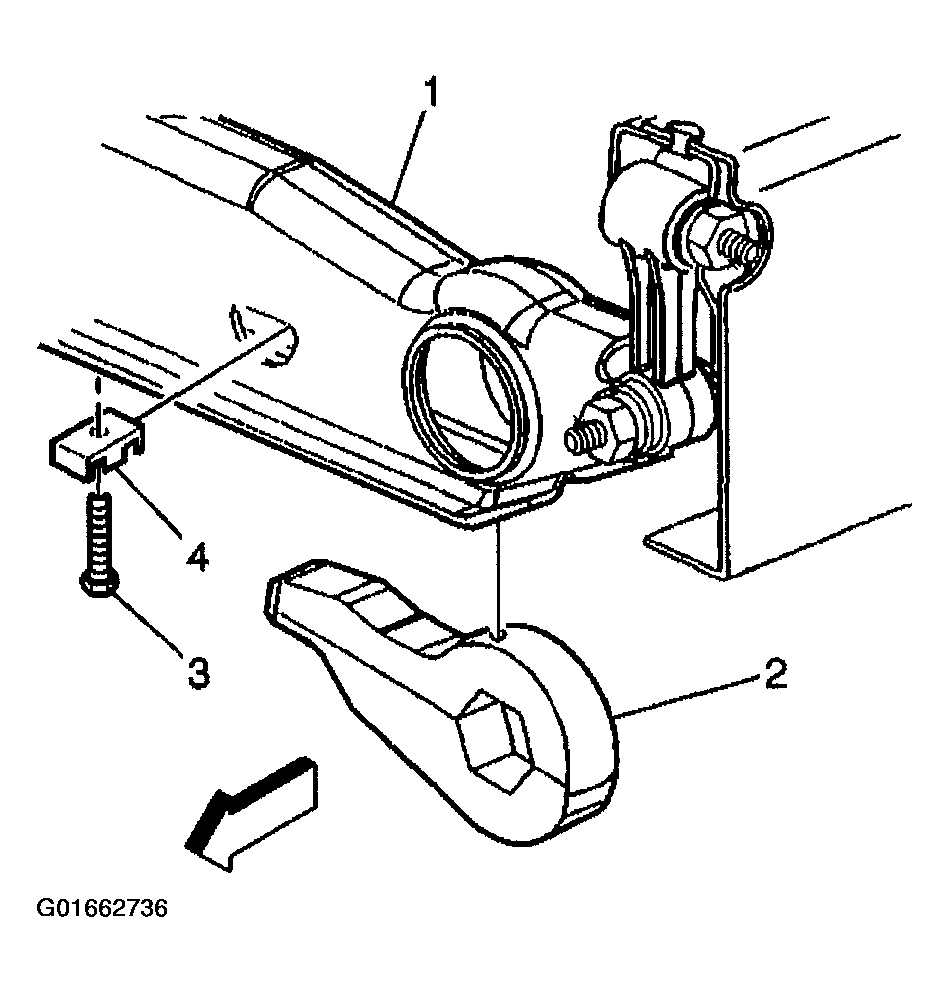

    10. Fig 6: Installing Adjustment Bolts & Nuts (MN8, MT1 & MW3)
    G01662736Courtesy of GENERAL MOTORS CORP.
  10. Remove the J 36202  releasing the tension on the torsion bar until the load is taken up by the adjustment bolt.
  11. Remove the safety stands.
  12. Lower the vehicle.
  13. Measure the Z height. Refer to TRIM HEIGHT INSPECTION PROCEDURE .
  14. Turn the adjustment bolt (2) clockwise to increase the Z height and counterclockwise to decrease the Z height.
    Fig 7: Locating Adjustment Bolt
    G01662737Courtesy of GENERAL MOTORS CORP.
