Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the wheel hub and bearing. Refer to Wheel Hub, Bearing, and Seal Replacement (RWD)  or Wheel Hub, Bearing, and Seal Replacement (4WD)  .
  4. Disconnect the Real Time Damping (RTD) link rod from the sensor, if equipped. Refer to FRONT POSITION SENSOR LINK ASSEMBLY REPLACEMENT - ELECTRONIC SUSPENSION .
  5. Support the lower control arm with a suitable jack.
  6. Disconnect the outer tie rod from the knuckle. Refer to TIE ROD REPLACEMENT .
  7. Remove the brake hose bracket retaining bolt from the knuckle.
  8. Remove the retaining nut and separate the upper ball joint from the steering knuckle (2) using the J 43631  (1).

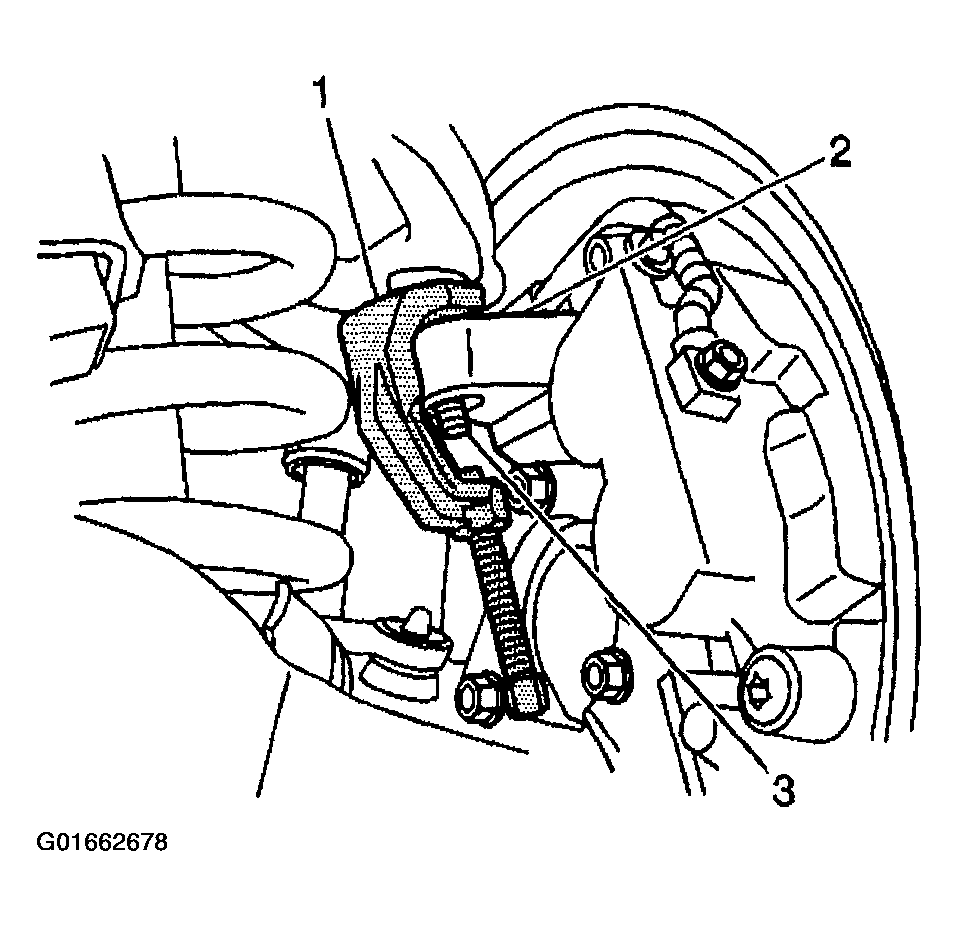

    9. Fig 1: Removing Upper Ball Joint
    G01662678Courtesy of GENERAL MOTORS CORP.
  9. Remove the retaining nut and separate the lower ball joint from the steering knuckle (2) using the J 43631  (1).

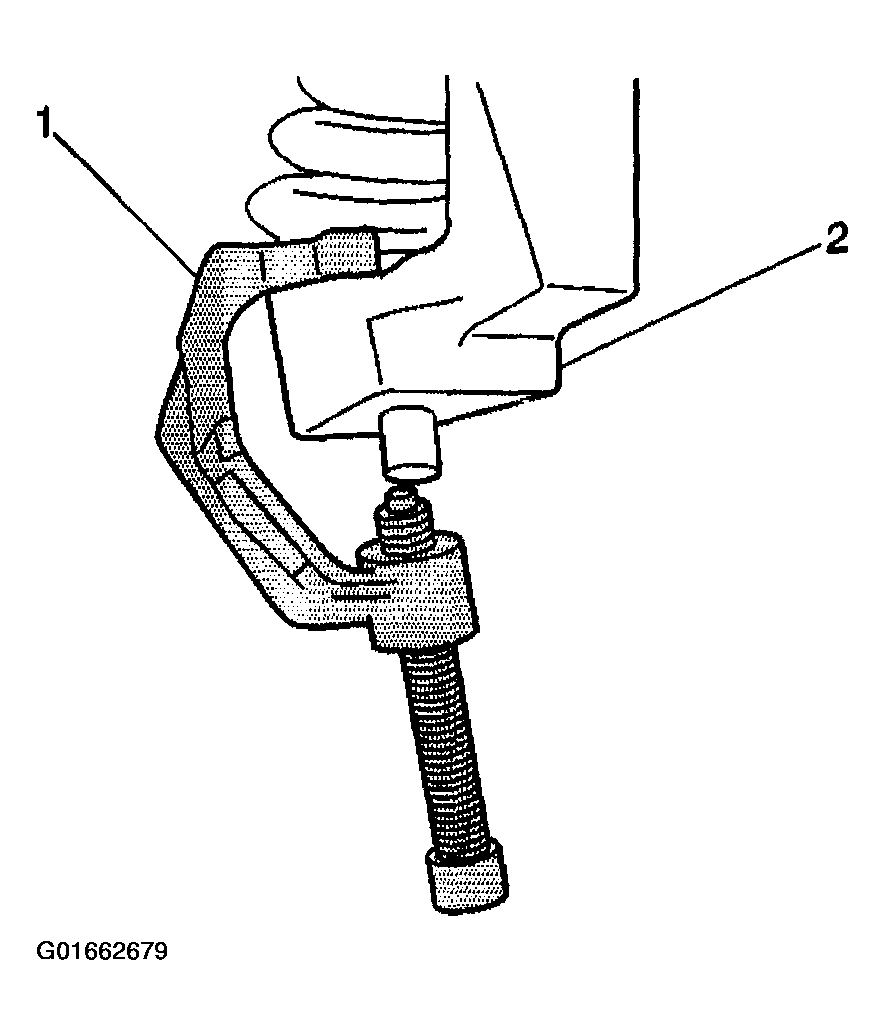

    Fig 2: Removing Lower Ball Joint
    G01662679Courtesy of GENERAL MOTORS CORP.
  10. Remove the steering knuckle.

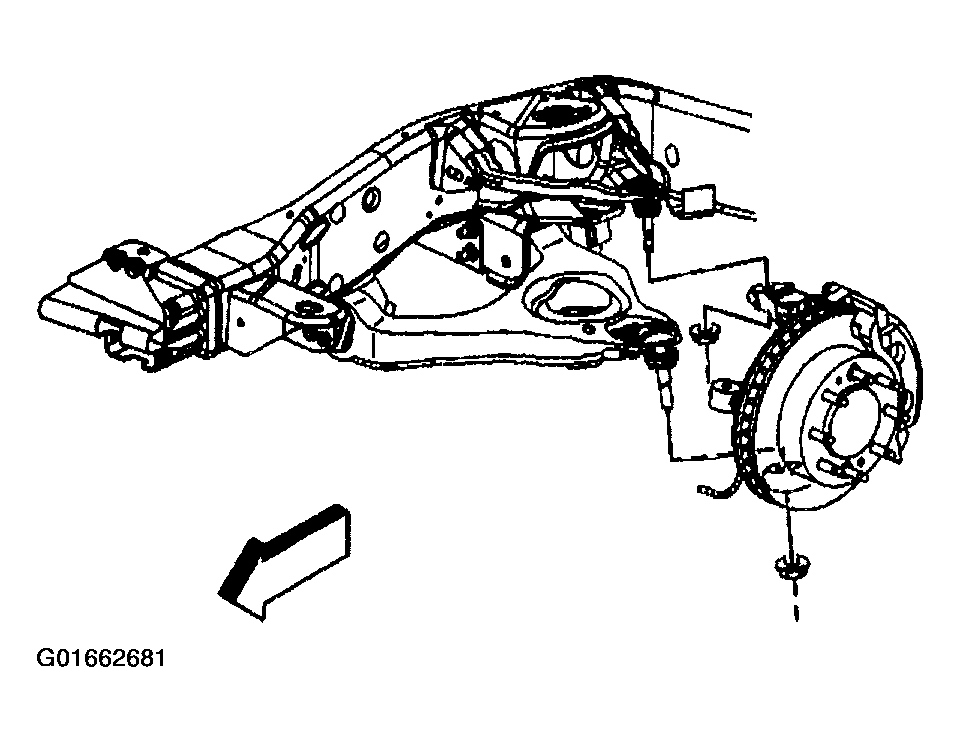

    Fig 3: Removing Steering Knuckle
    G01662681Courtesy of GENERAL MOTORS CORP.
