Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the stabilizer links. Refer to Stabilizer Shaft Link Replacement .
  4. Remove the oil pan skid plate, if equipped.

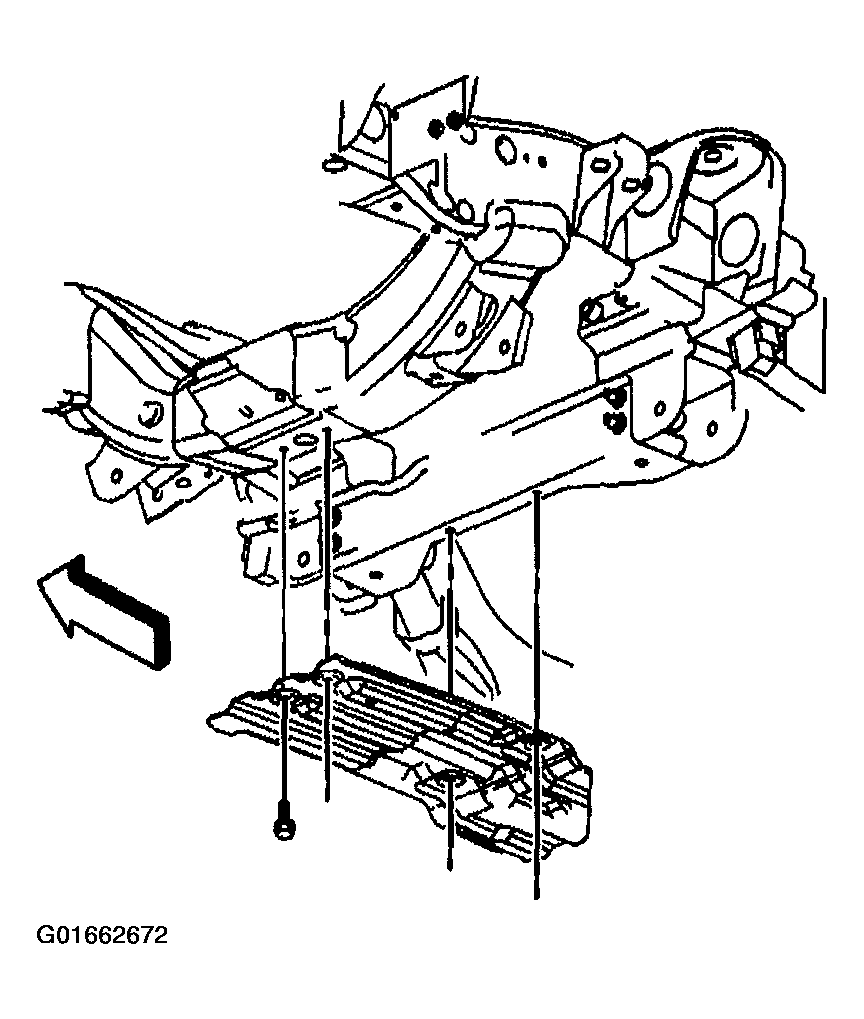

    Fig 1: Removing Oil Pan Skid Plate
    G01662672Courtesy of GENERAL MOTORS CORP.
  5. Remove the stabilizer shaft insulator bracket bolts (3).
  6. Remove the stabilizer shaft bracket (2).
  7. Remove the stabilizer shaft (4).
  8. Remove the stabilizer shaft insulators (1).

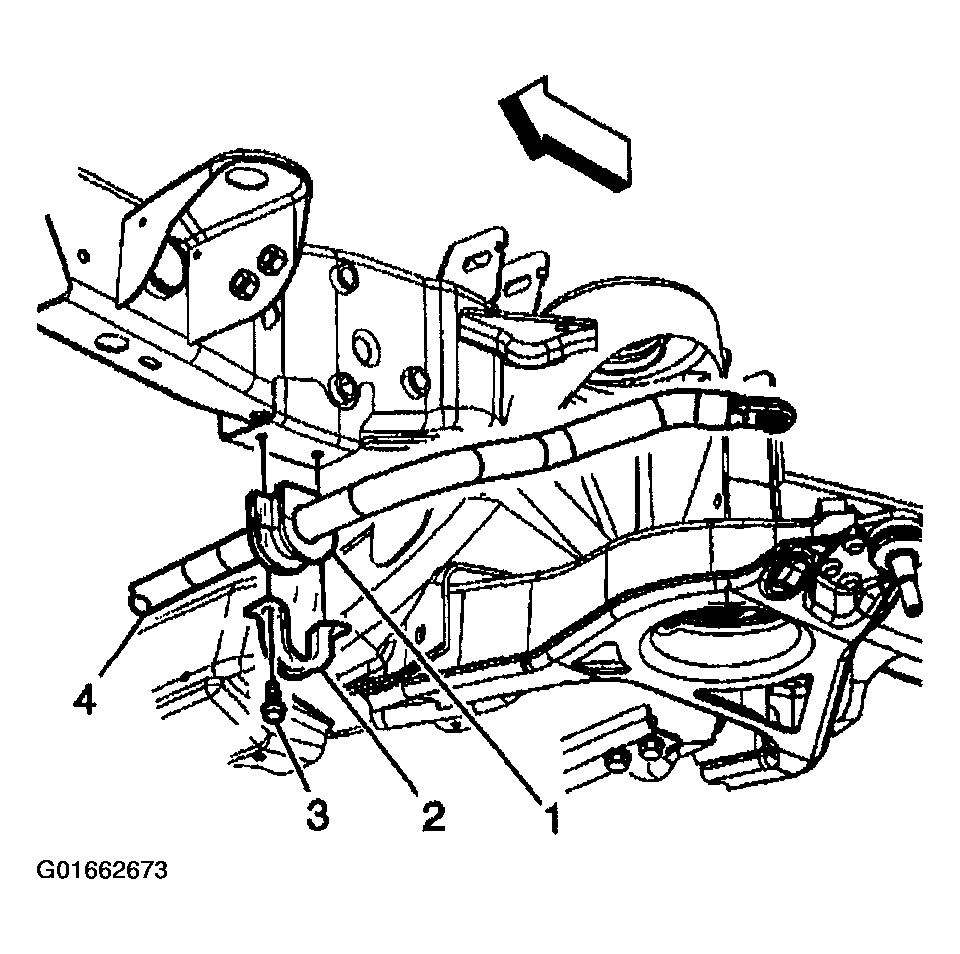

    9. Fig 2: Removing Stabilizer Shaft
    G01662673Courtesy of GENERAL MOTORS CORP.
  9. Inspect all of the parts for wear and damage.
