Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the stabilizer shaft nut (1) from the link bolt.
  3. Remove the stabilizer shaft link bolt (3).
  4. Remove the stabilizer shaft link insulators and spacers (2).

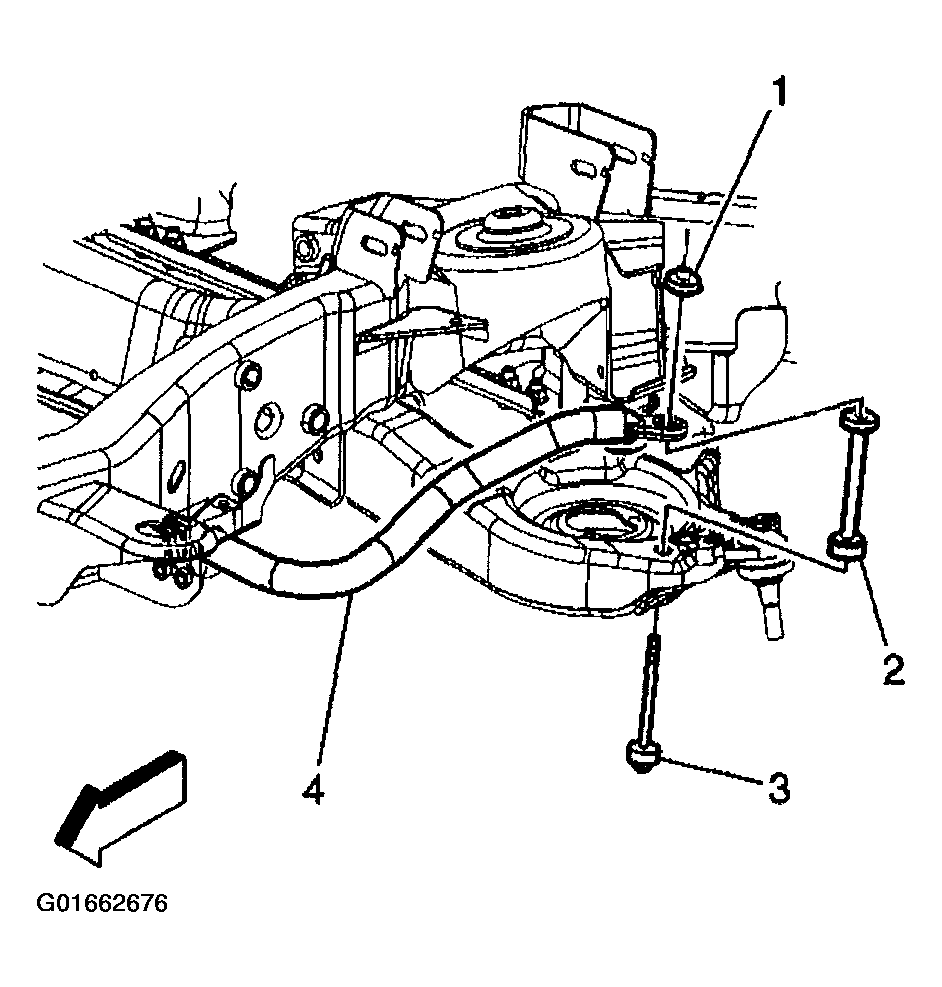

    5. Fig 1: Removing Stabilizer Shaft Link
    G01662676Courtesy of GENERAL MOTORS CORP.
  5. Inspect all of the parts for wear and damage.
