Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hoist to the crossmember.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt.

    Tighten

    Tighten the bolt to 40 N.m (30 lb ft).

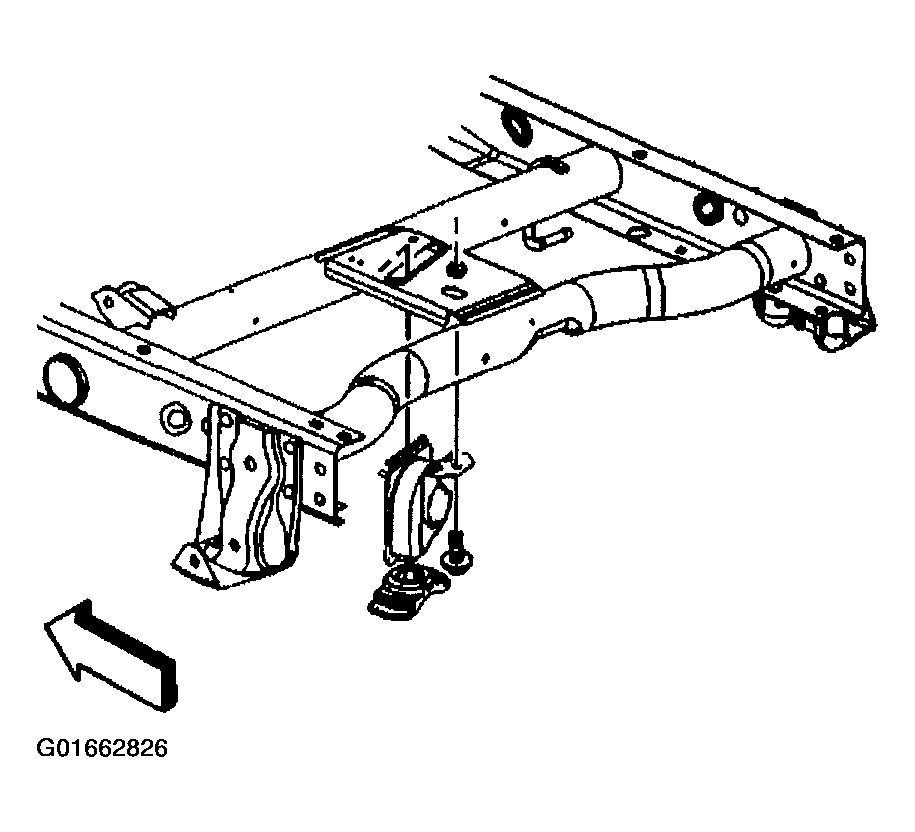

    Fig 1: Installing Hoist From The Bracket
    G01662826Courtesy of GENERAL MOTORS CORP.
  3. Install the spare wheel hoist shaft guide from the spare wheel hoist.

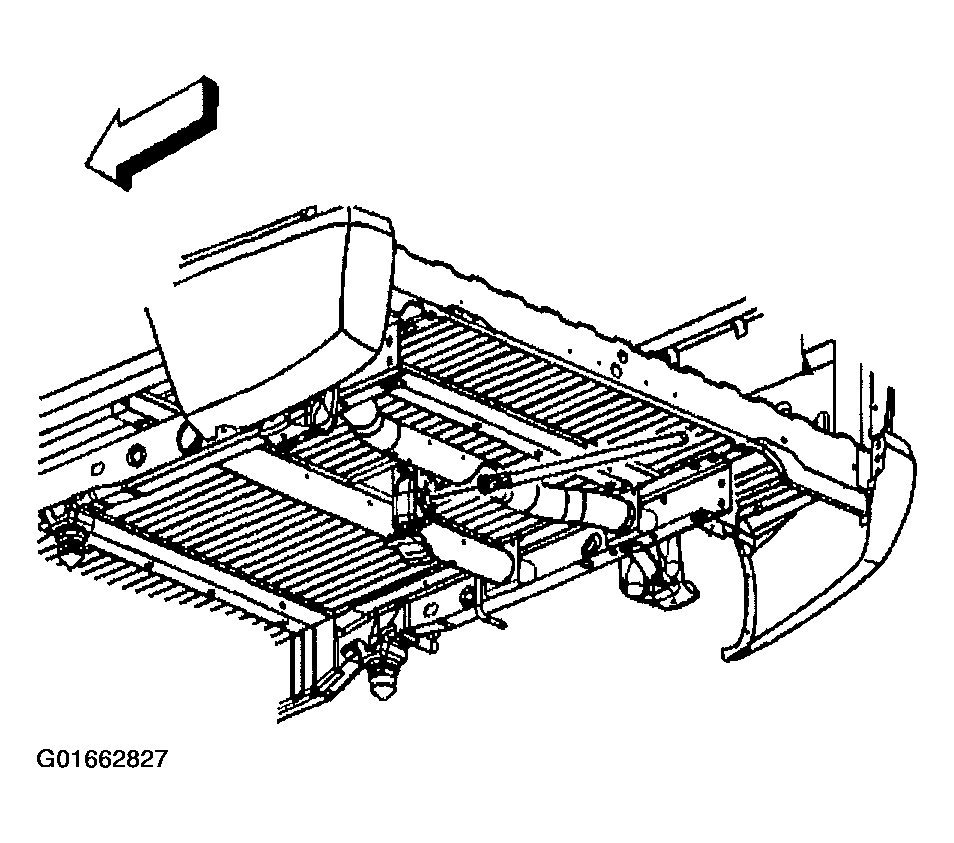

    Fig 2: Installing Spare Wheel Hoist Shaft Guide From Spare Wheel Hoist
    G01662827Courtesy of GENERAL MOTORS CORP.
  4. Install the spare wheel hoist shaft guide (2) to the bumper.
    Fig 3: Installing Spare Wheel Hoist Shaft Guide From Bumper
    G01662828Courtesy of GENERAL MOTORS CORP.
  5. Install the spare wheel hoist shaft guide retaining clips to the bumper (1).
    Fig 4: Installing Spare Tire Wheel Hoist Guide Retaining Clips From Bumper
    G01662829Courtesy of GENERAL MOTORS CORP.
  6. Install the spare tire to the hoist.

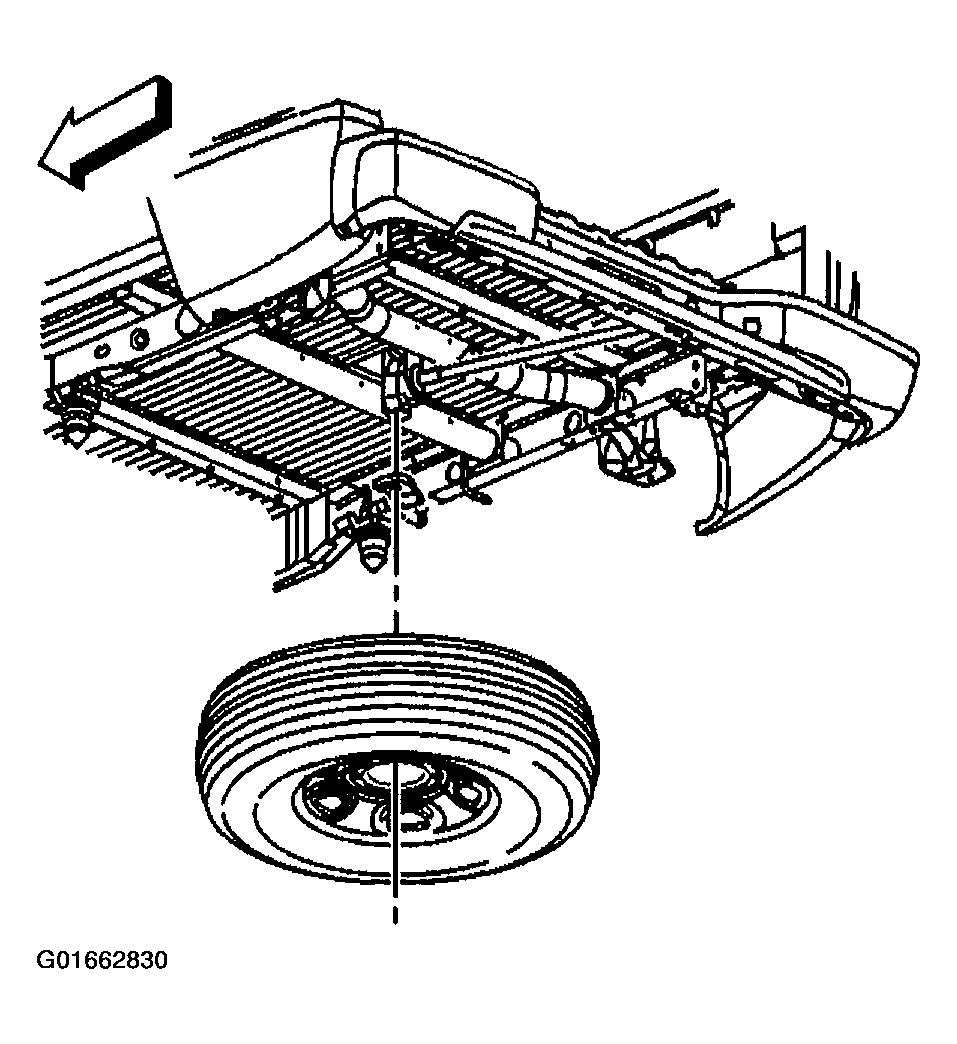

    Fig 5: Installing Spare Tire
    G01662830Courtesy of GENERAL MOTORS CORP.
  7. Remove the safety stands.
  8. Lower the vehicle.
  9. Install the spare wheel stowage lock cylinder.

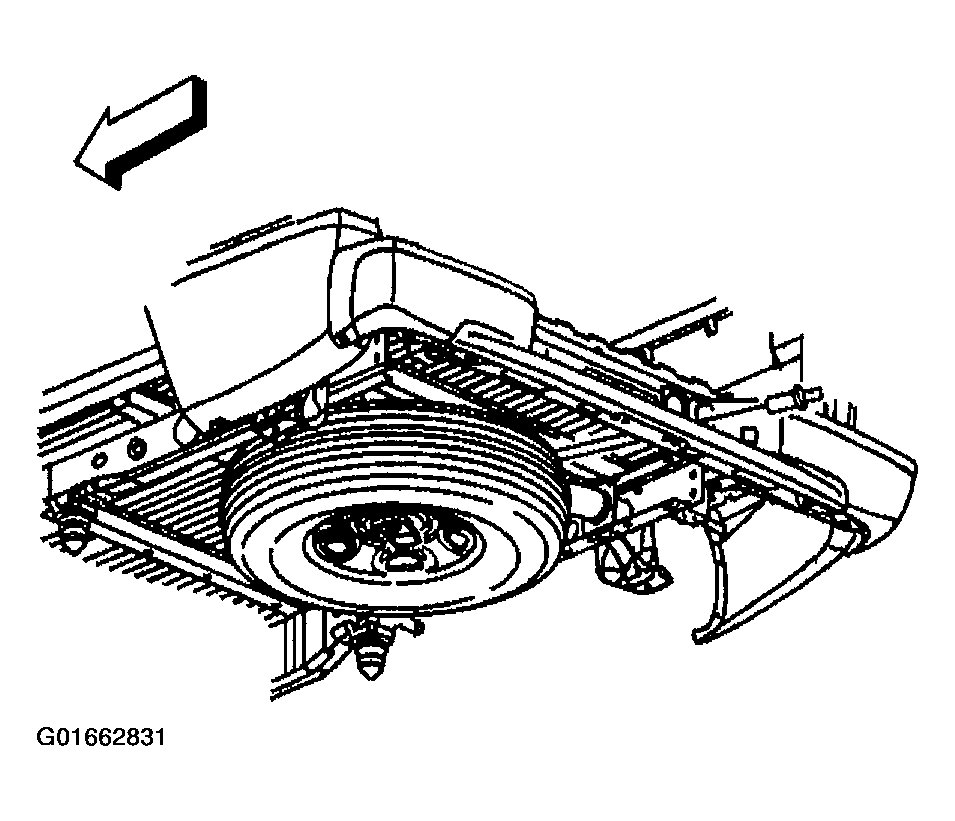

    Fig 6: Locating Spare Wheel Stowage
    G01662831Courtesy of GENERAL MOTORS CORP.
