Vehicle Speed Sensor (4L60-E): Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

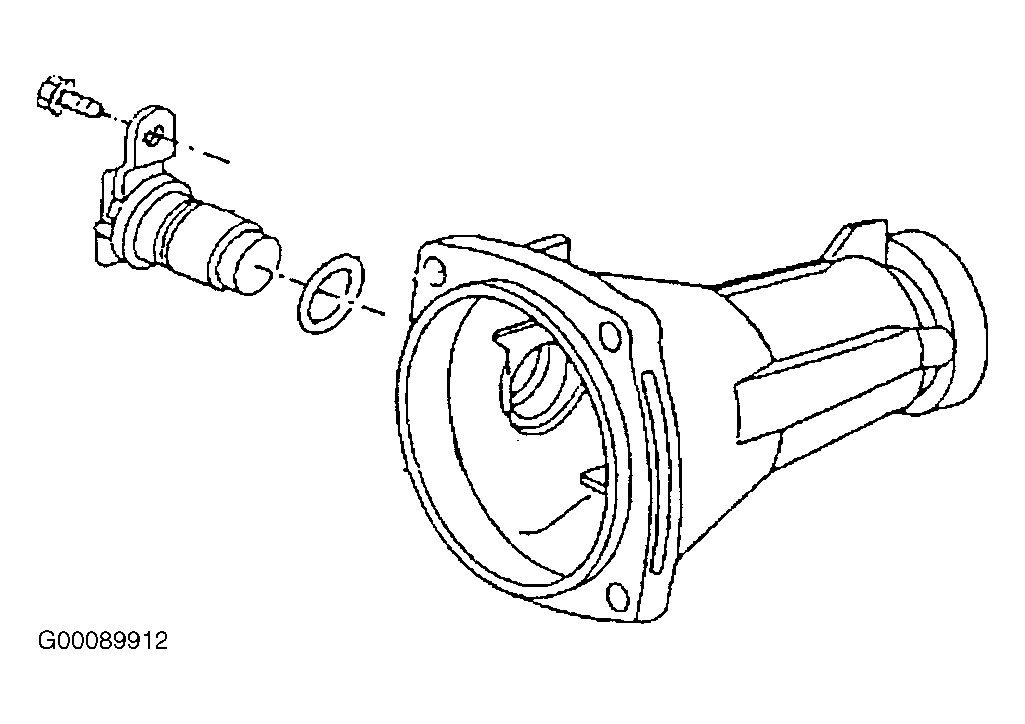

Install the speed sensor and the O-ring seal into the transmission. See Fig 1 . Install the bolt. Tighten the bolt to specification. See TORQUE SPECIFICATIONS . Install the electrical connector to the speed sensor. Lower the vehicle. Check transmission fluid level and fill if necessary. See LUBRICATION .
