Shift Cable: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the transmission is in the mechanical Neutral position. Rotate the transmission control lever clockwise until it reaches the full clockwise stop position.
  2. Move the shift lever counterclockwise 2 detents. Remove the clip that secures the shift cable to the steering column bracket. Remove the shift cable end from the steering column shift controller stud ball.

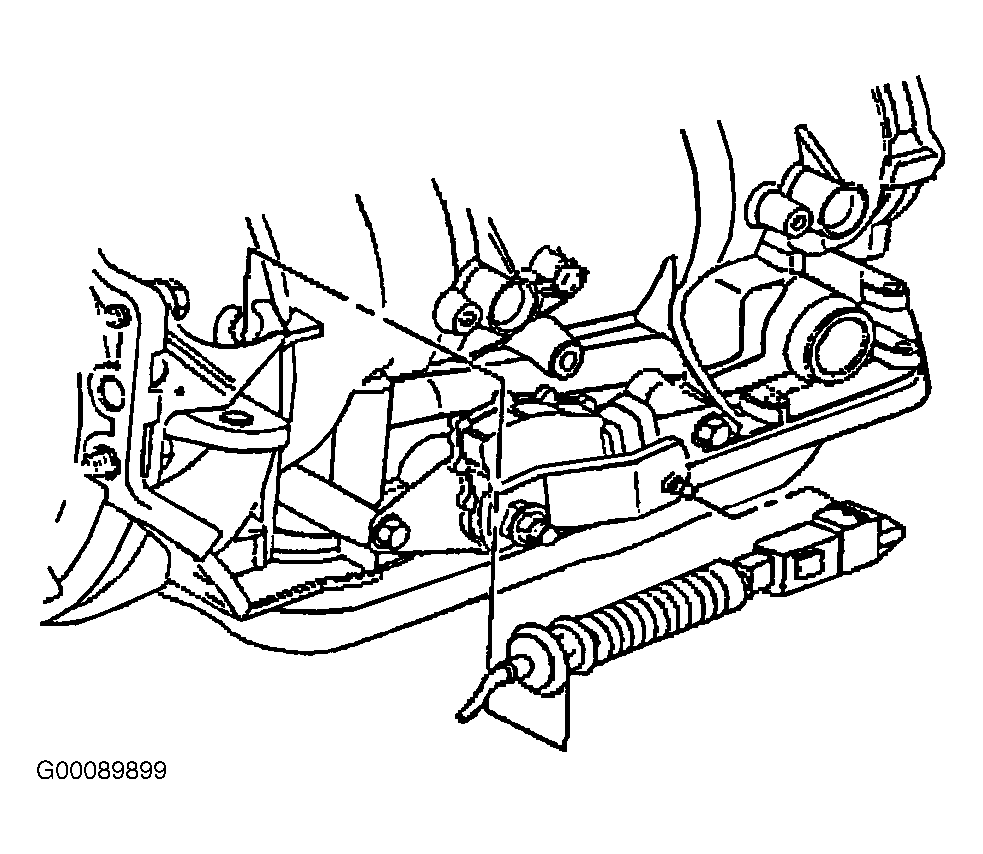

  3. Raise and support the vehicle. Remove the shift cable from the transmission bracket. Remove the shift cable end from the transmission shift lever stud ball. See Figure .
  4. Remove the grommet from the hole in the floor panel. Remove the cable from the vehicle.
